KNOWLED F200Bi Flexible IP65 LED Mat Flex Cine LED Panel



Tax included. Shipping calculated at checkout.

  • In Stock, Ready to ship
  • Looking to hire? - More Info
Add Extended Warranty:
Add Accessories:
Your Total:
  • Verified Secure Shopping

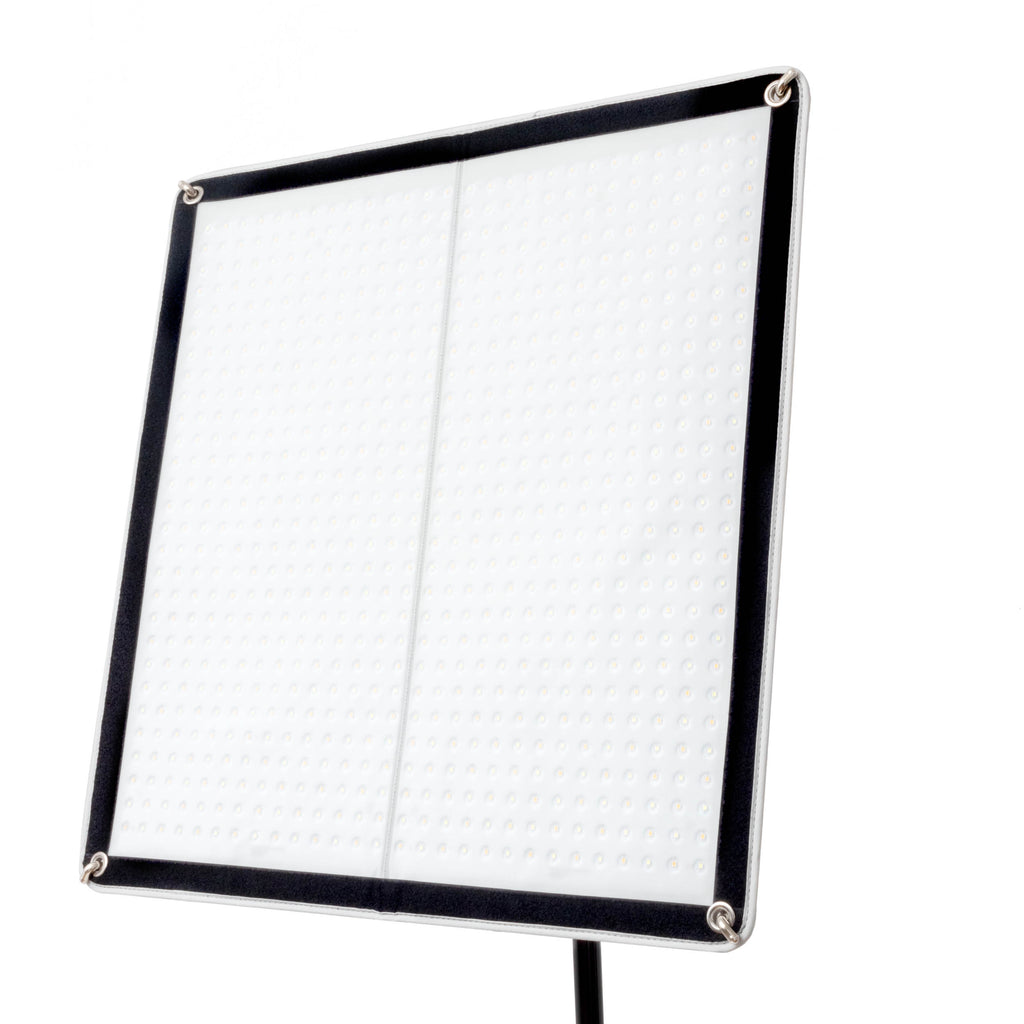

The F200Bi is a high-powered Bi-colour Flexible LED Panel that has been specially designed to fit the needs of the film and television industry. This 200W LED features an ultra-slim profile, and flexible design, allowing it to be placed in positions that are either very difficult or impossible for regular video light fixtures. It has a CRI and TLCI of ≥96 for impeccable colour rendition. It supports Industry-Standard DMX512 control protocol, as well as Godox’s own RC-R9 2.4GHz Wireless Remote and Bluetooth enabling it to be used with the GODOX Light App. ideal for large productions. The F200Bi is perfect for large-scale Film and TV productions, and Broadcasting and Commercial Video productions.

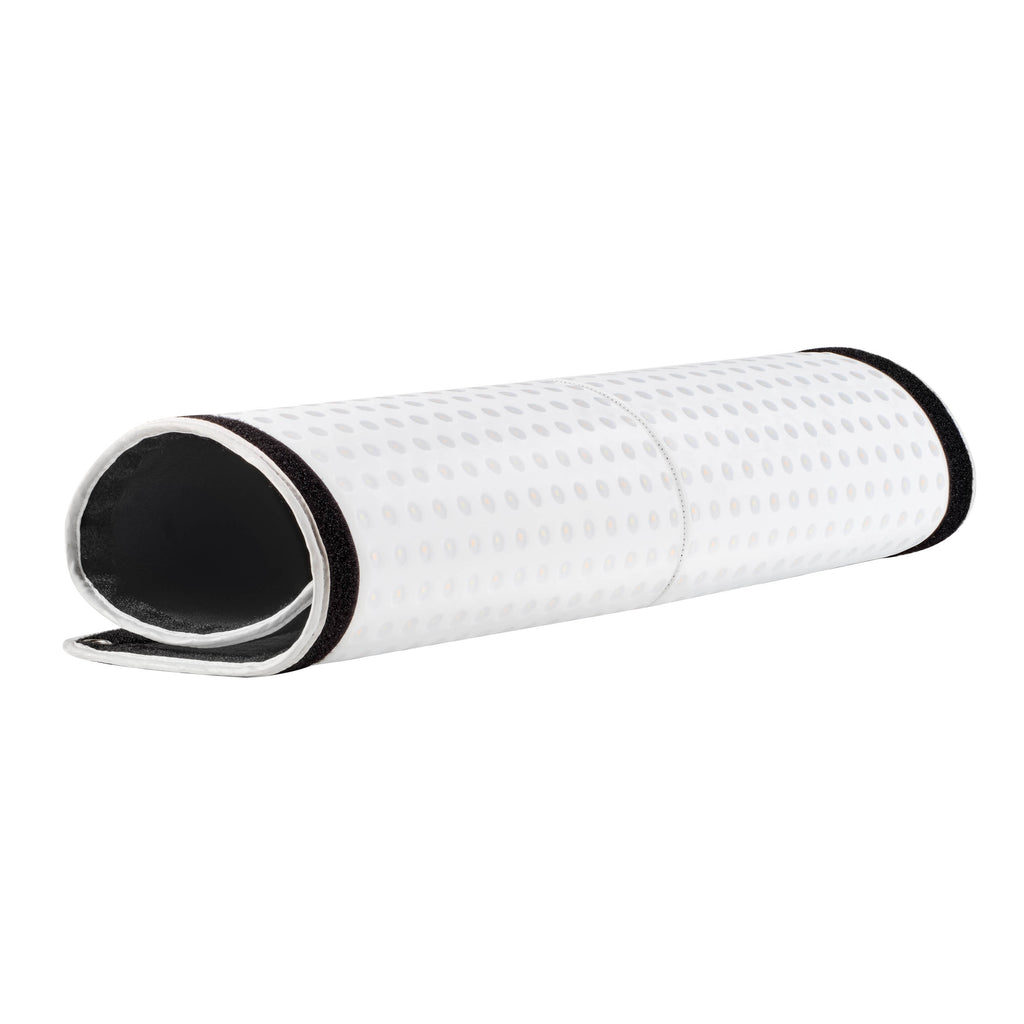

Complete Flexibility with Your Lighting

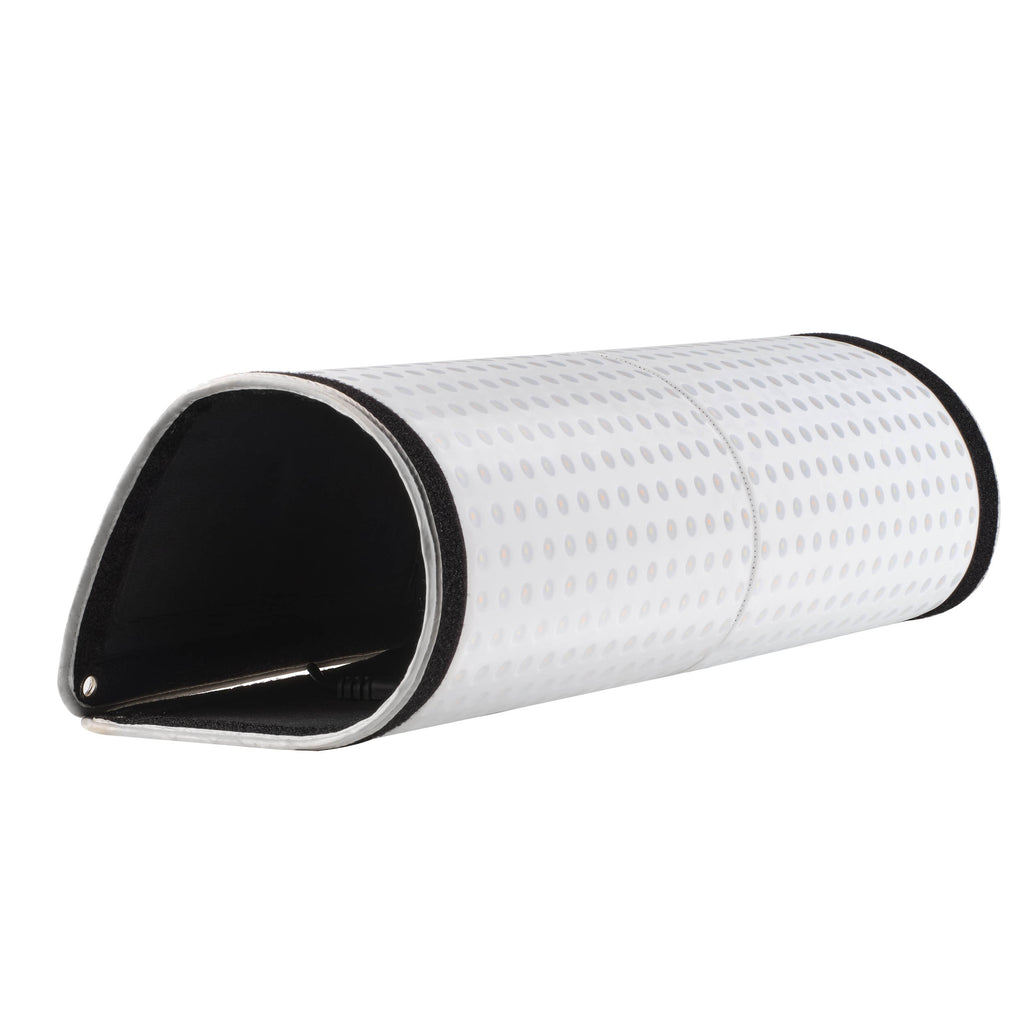

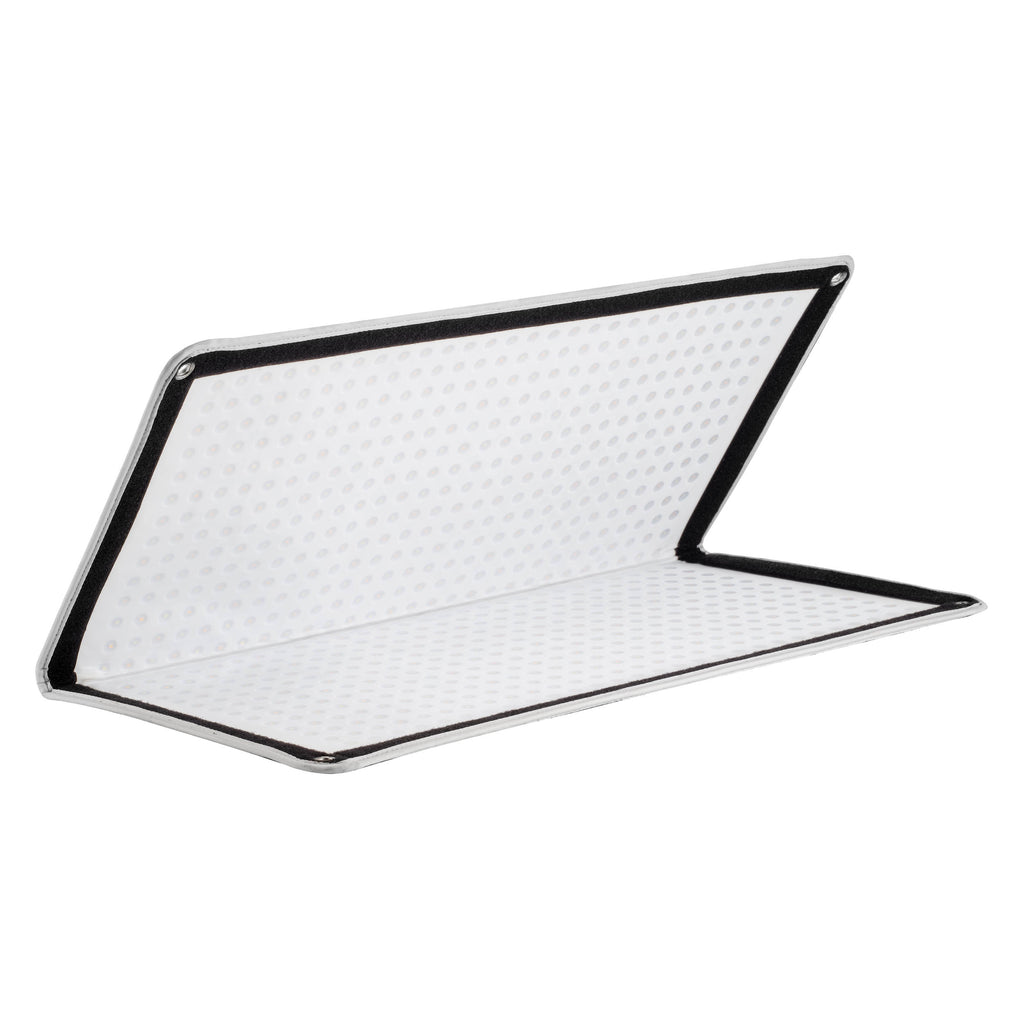

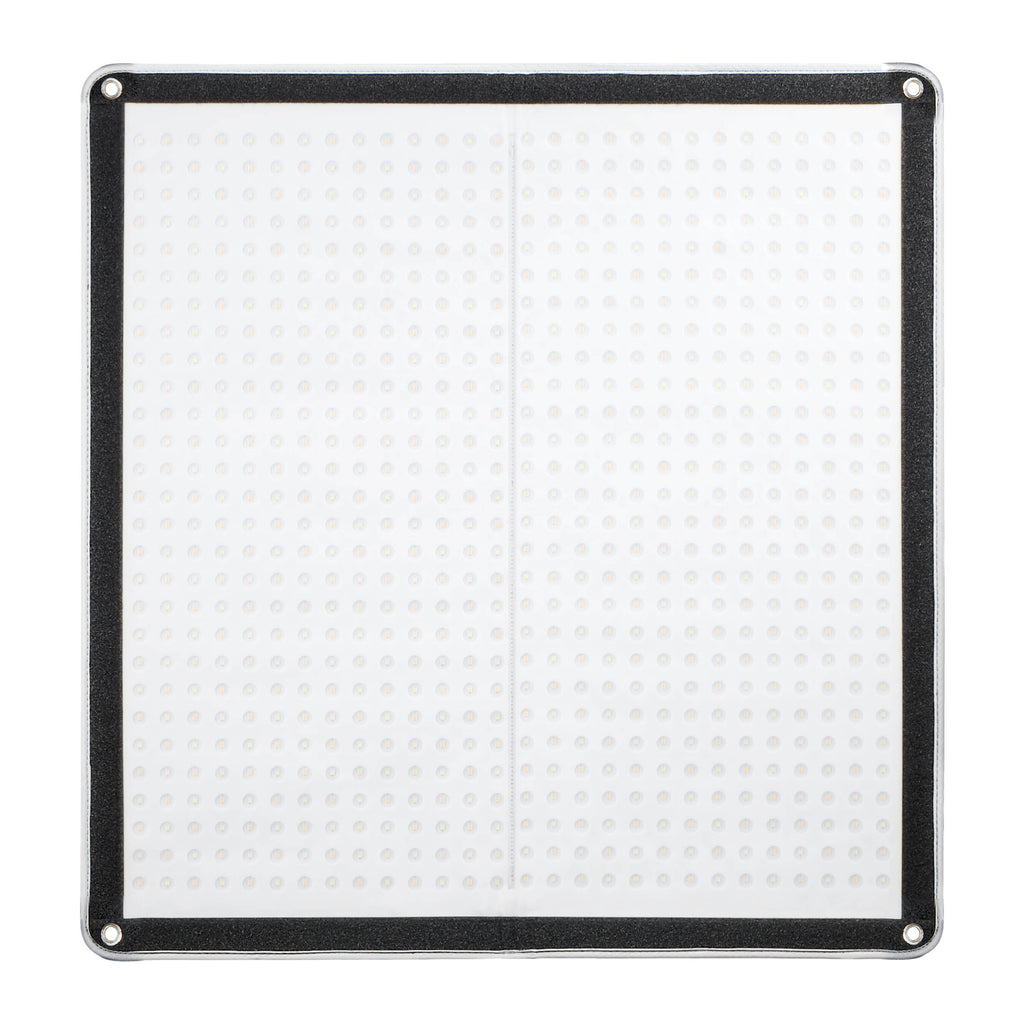

One of the Key features of the GODOX F200Bi is its foldable design. When opened, it becomes a large 60x60cm light source, producing soft even lighting, even without a softbox (sold separately). When not in use it can be folded down to a fraction of its full size, for portability. It can also be placed in positions that would be very difficult or impossible for other light fixtures, giving you added flexibility.

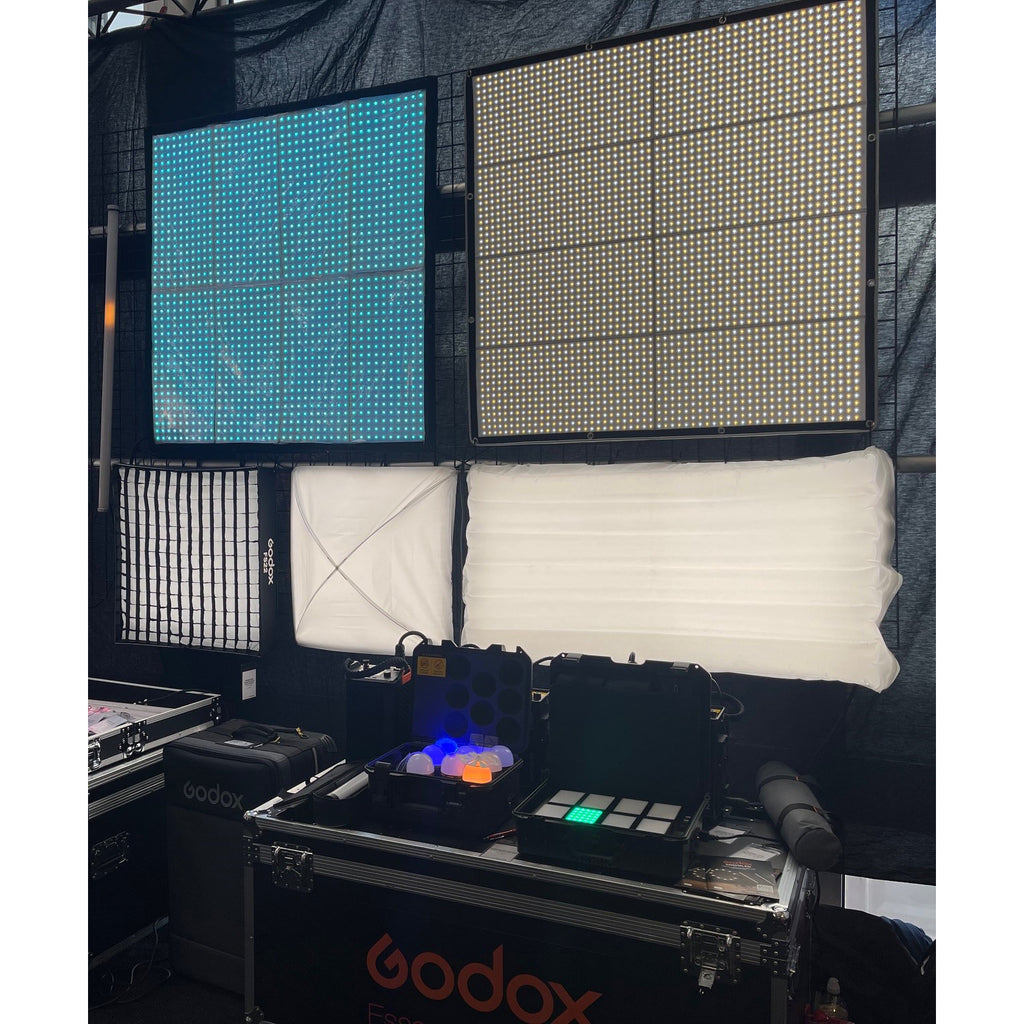

Knowled F-Series Flexible Panels

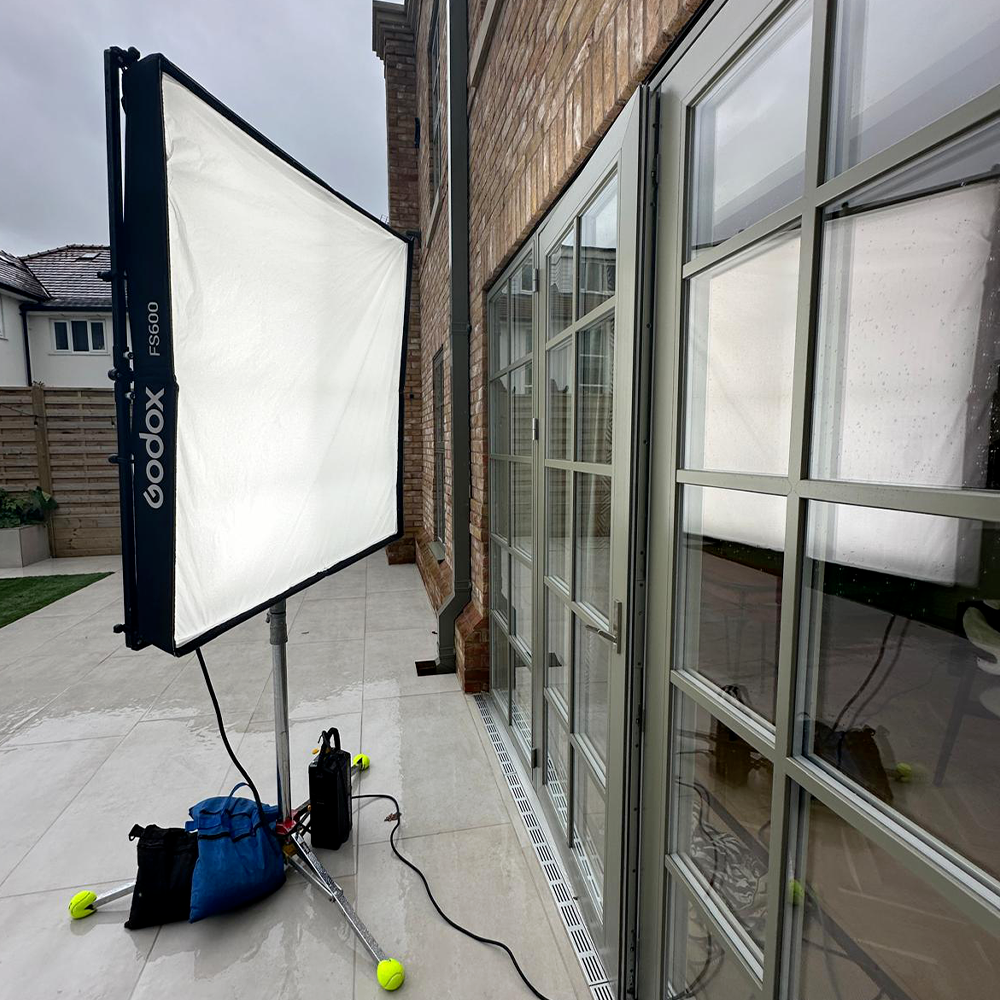

IP65 Water-Resistance

The KNOWLED F200Bi Light Panel is IP65 certified. This means that it is weather resistant, enabling it to be comfortably used in weather conditions such as rain or fog, etc.  (PLEASE NOTE: The Controller Box is NOT IP65 Water-resistant).

The KNOWLED F-Series has IP68 Water Resistance

Perfect Practical Lighting

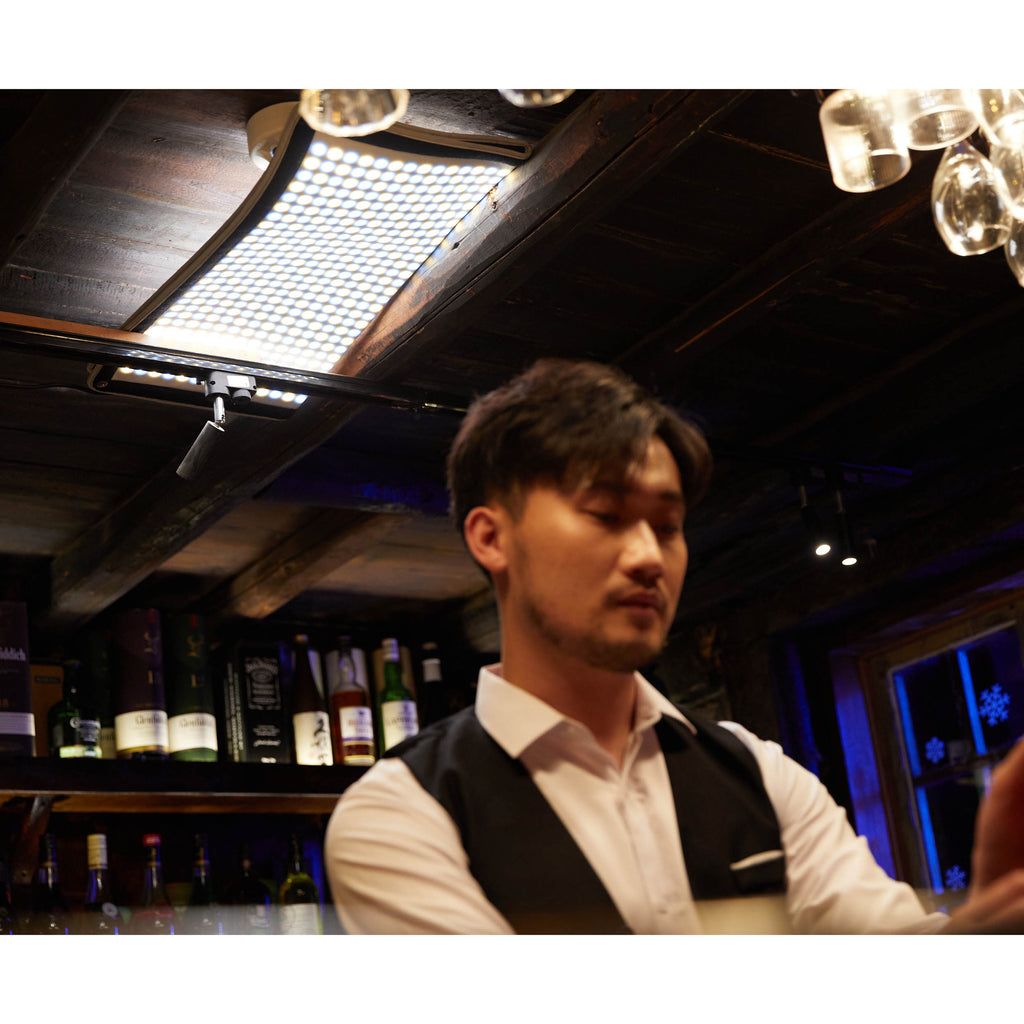

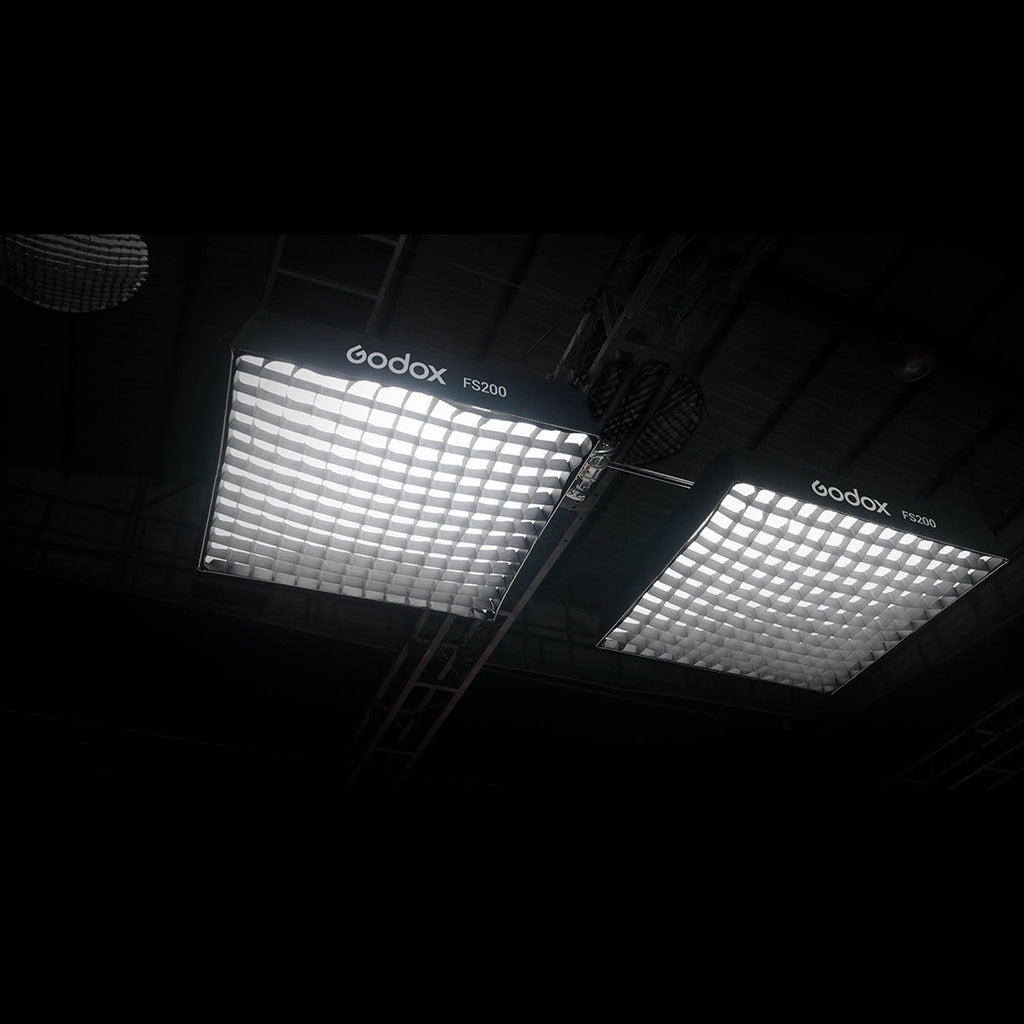

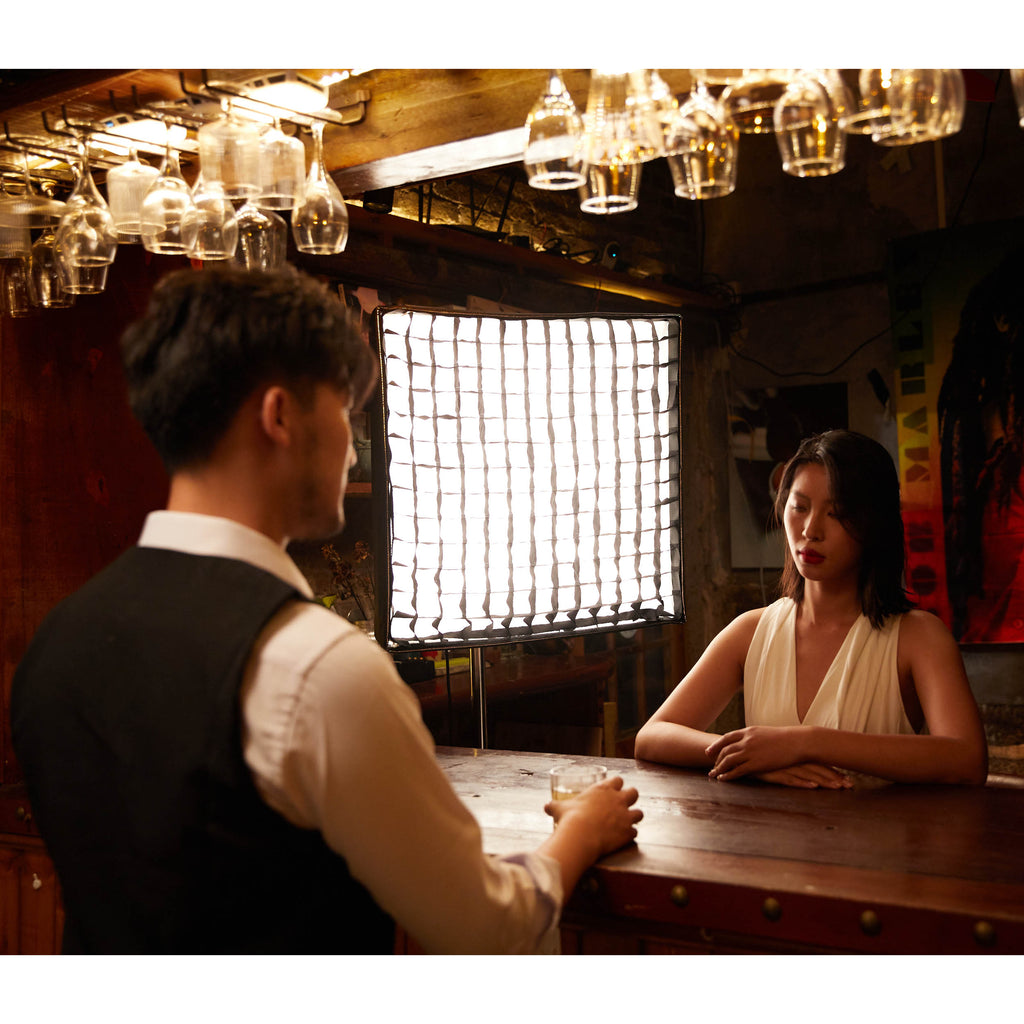

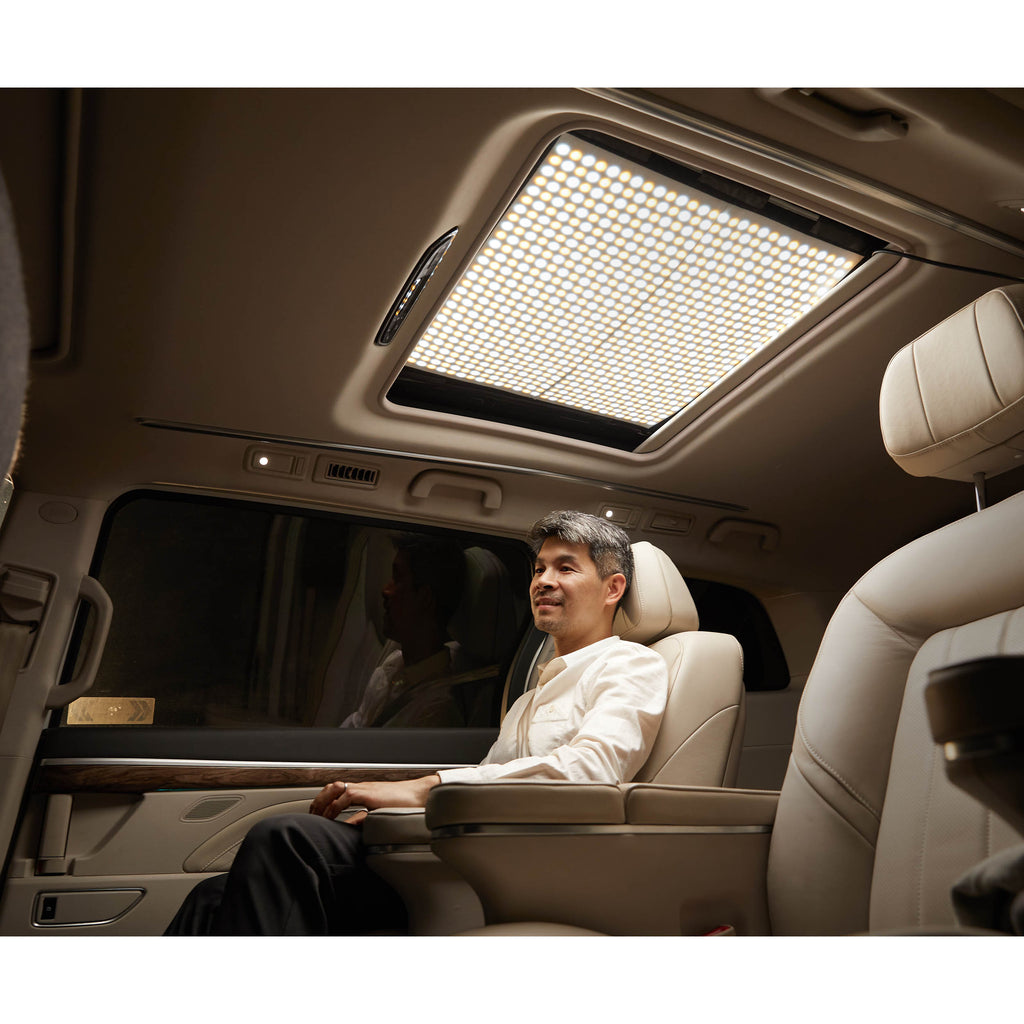

Due to their ultra-thin profile, the Knowled F-Series panels lights are perfect for illuminating your subject(s) with soft lighting, in spaces that are either impractical or impossible with traditional Video light fixtures. They can be used in places such as the ceiling of car interiors, in cramped spaces places where there isn’t a lot of room for light stands such as the interior of a train, or as lightweight overhead lighting when shooting either indoors or outdoors.

The F200bi can be placed virtually anywhere

Unrivalled Colour Accuracy

The F200Bi LED Panel has a CRI (Colour Rendition Index) of ≥96 and a TLCI (Television Lighting Consistency Index) of ≥96. This means that the F200BI will render colours accurately making it ideal for broadcast usage. Perfect for illuminating, tv studios, and movie sets.

Scientific Dimming Curves.

The KNOWLED F200Bi LED Light Panel gives you the option of four dimming curves, enabling the way that you adjust your lighting just the way you like. You can select between a Linear, S-Curve, an Exponential Curve, or a Logarithmic Curve, rendering the best lighting effects, in the shortest amount of time.

Slow-Motion? No Problem.

F200BI LED Fresnel Studio Light provides industry-leading reliability with flicker-free performance at any frame rate or shutter angle, and at any intensity level, making it ideal for filming slow-motion shots.

Industry Standard Control Protocols

The F200BI LED Panel supports a wide range of international Industry-standard control methods, making it easy to integrate into your current work pipeline. It supports DMX512 (via a 5-pin XLR connection) control protocol, which enables you to control a single unit or multiple units from a DMX control console.

LumenRadio CRMX Control system is also available when used with the TimoLink Receiver (Sold Separately). This makes the F200BI perfect for large film and television productions that are filming in large studio spaces. CRMX compatibility also means these lights will be compatible with the LumiAir App, Blackout Lighting Software, and the MadMapper App.


Knowled F-Series Panel use with TImoLink receiver for CRMX Control (Sold Separately)

Other Control Options

As well as the industry standard control protocols, the F200Bi also features a built-in 2.4GHz wireless control receiver, enabling it to be used with the GOODOX RC-R9 Remote (sold separately). It also features Bluetooth support enabling it to be used with the Godox Light App.

Knowled F22Bi used with Godox Light App via Bluetooth

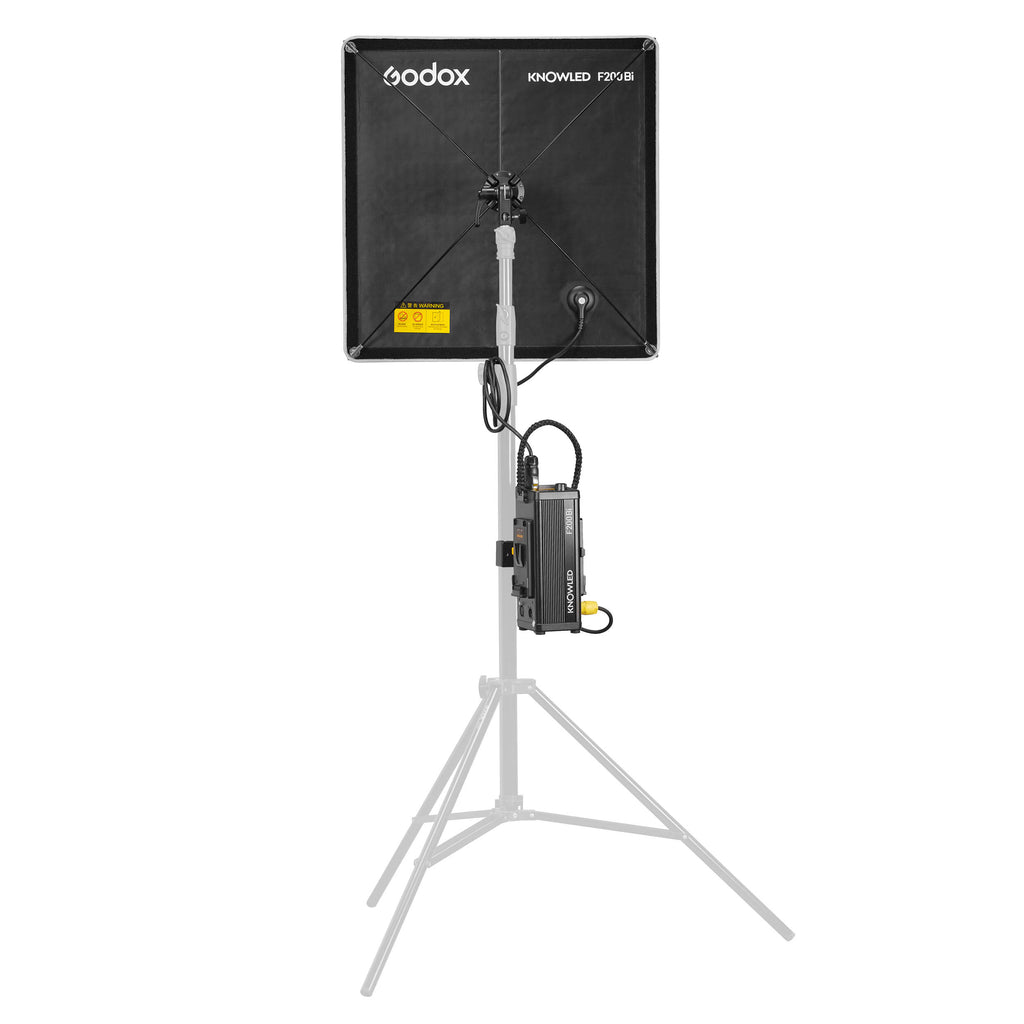

High-Quality X-Frame

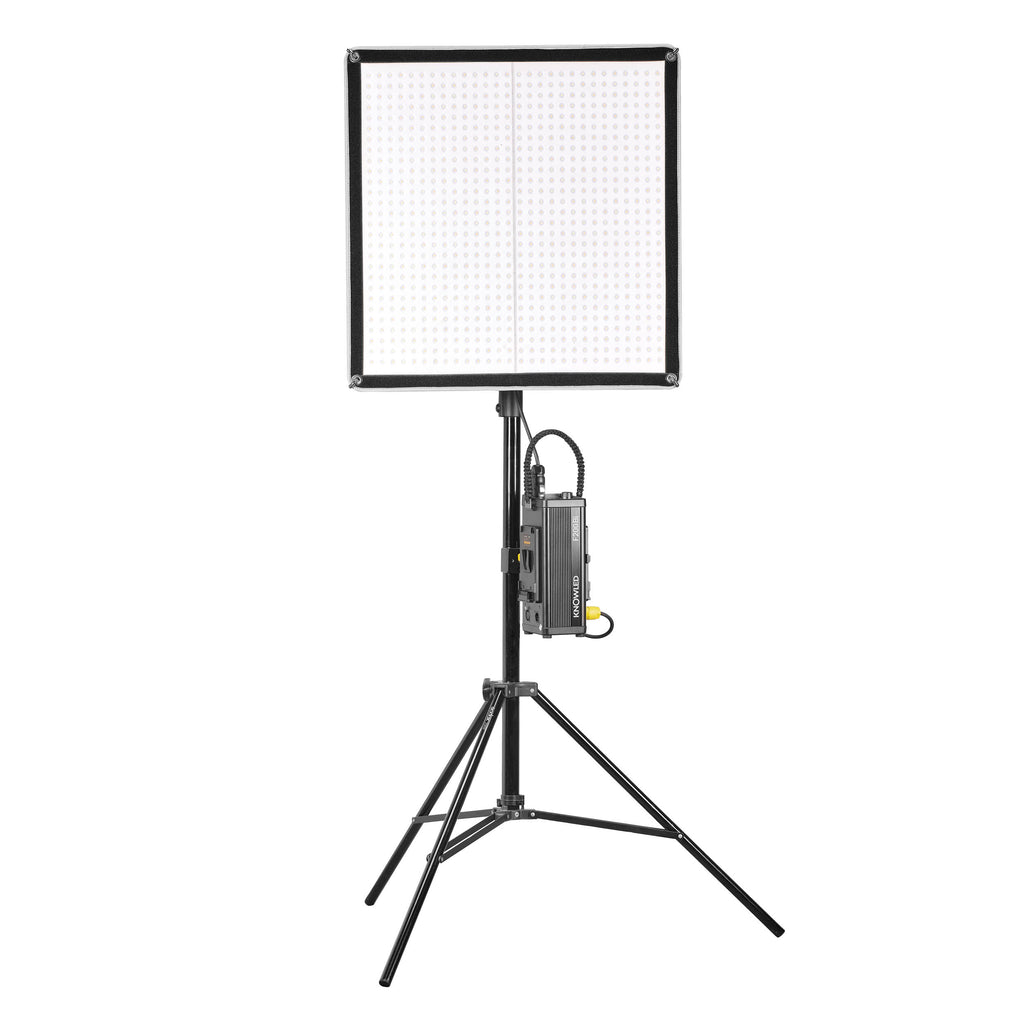

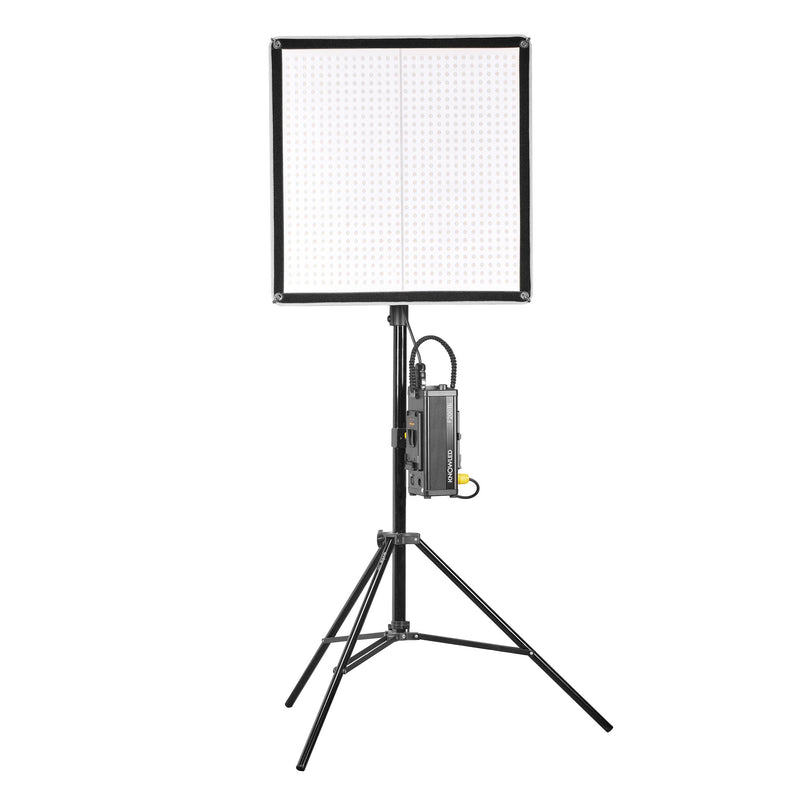

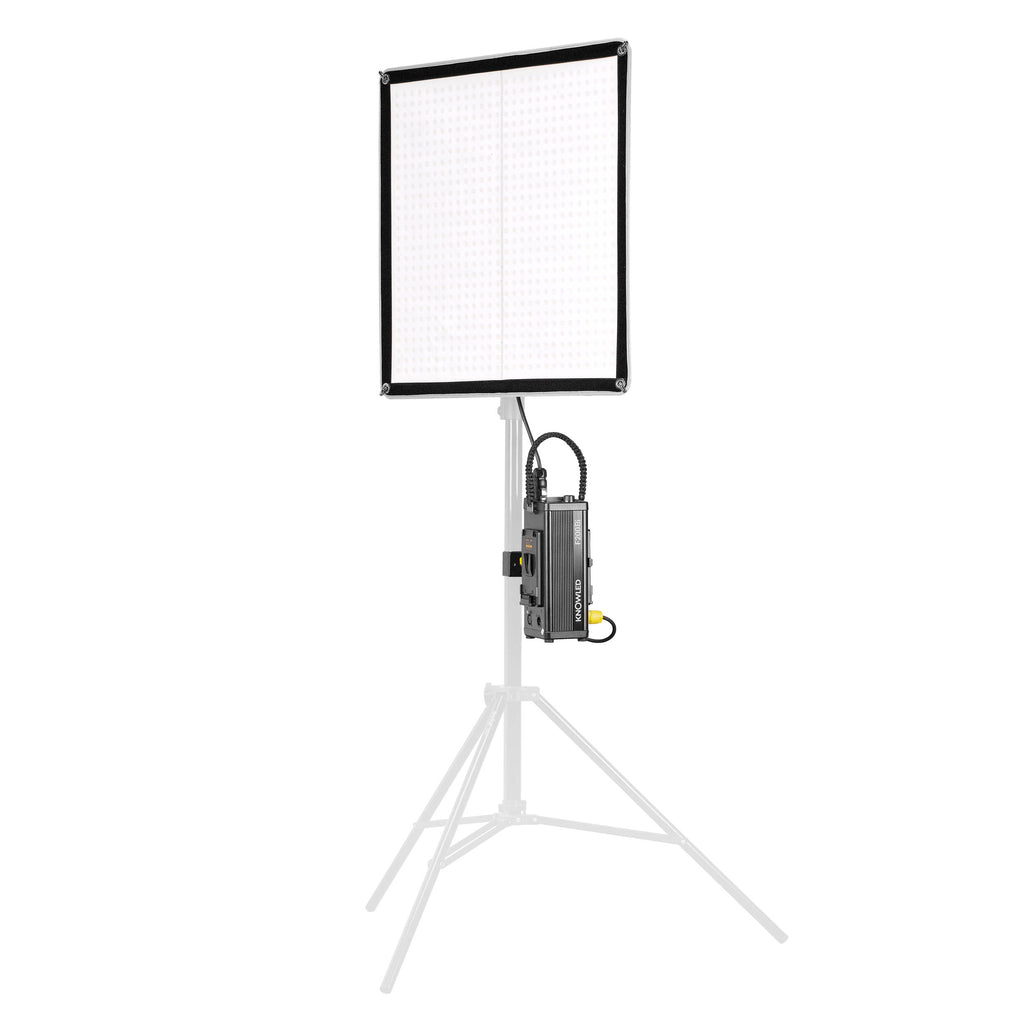

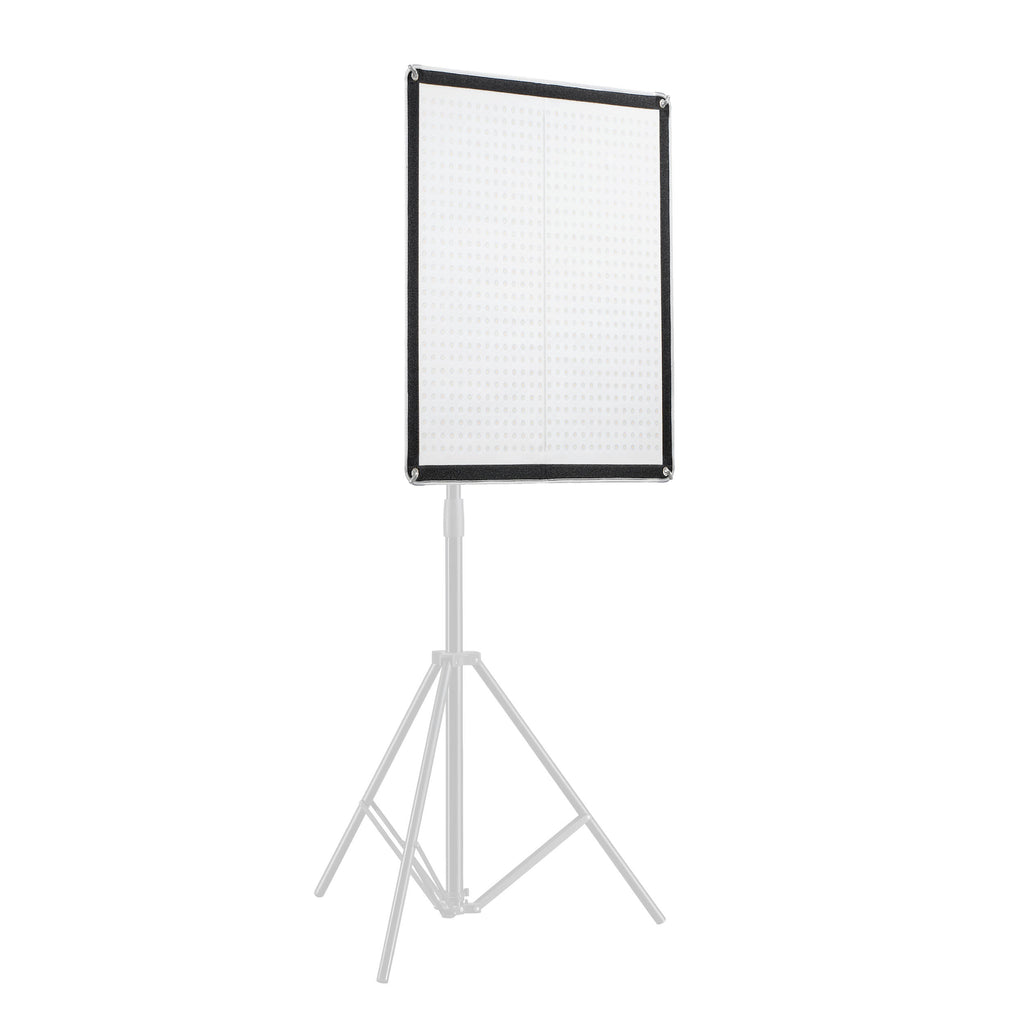

The F200BI comes with a high-quality aluminum-alloy X-Frame, which enables you to mount the light to a regular light stand.

KNOWLED F-Series with X-Frame

More sizes and options are available

GODOX Knowled Flexi LED Mat series comes in various size and power, perfect for different scenes and sets: F200BI F400BI F600BI

Godox Knowled F-Series Size Comparison

The PIXAPRO F200BI Flexible LED Panel is the perfect Broadcasting, Corporate video, YouTube, Cinematography, Chroma Key green screen as well as for photography. Whether you’re a seasoned professional or an enthusiast, you can’t really go wrong with the F200Bi Bi-Colour LED panels.

What's In The Box?

GODOX KNOWLED F200Bi Box Content


Distributed By EssentialPhoto

We are proud to now stock Godox branded lights as distributed by EssentialPhoto, this means that you will get Godox but with everything that you loved with the service of EssentialPhoto, including a 2-year warranty and UK customer support.

F200Bi/F400Bi/F600Bi Comparison Table

Model F200Bi F400Bi F600Bi
Colour Temperature Range 2,700-8,500K 2,700-8,500K 2,700-8,500K
Brighness 1,130lux @3m (5600K) 2,280lux @3m (5600K) 3,240lux @3m (5600K)
Max. Power 200W 400W 600W
CRI ≥96 ≥96 ≥96
TLCI ≥96 ≥96 ≥96
DMX512 Yes Yes Yes
CRMX Yes (With TimoLink RX Receiver) Yes (With TimoLink RX Receiver) Yes (With TimoLink RX Receiver)
Light Body Dimensions 650mm x 631mm x 29mm 1209mm x 627mm x 23mm 1200mm x 1200mm
Controller Box Dimensions 124mm x 132mm x 270mm 124mm x 132mm x 270mm TBC

Photometric Data for KNOWLED F200Bi

CCT Unit 1m 2m 3m
2800K lux 6,680 1,910 915
fc 620 177 85
3200K lux 7,340 2,100 1,000
fc 682 195 93
4300K lux 8,070 2,300 1,100
fc 750 214 103
5600K lux 8300 2370 1130
fc 770 220 105
6500K lux 8,160 2,340 1,130
fc 758 217 103
8500K lux 7,700 2,210 1,050
fc 714 206 98

Hawk-Woods Batteries Run-Time (Full Power)

VL-350N 1 Hour 45 Minutes 0 Seconds
VL-M150D 45 Minutes 0 Seconds
VL-M98D 29 Minutes 24 Seconds

Was: C-152401


  • IP65 Water Resistance
  • Full 200W Power across the colour temperature Range
  • Flicker-Free
  • CRI 96+, TLCI96+
  • DMX Support, 2.4GHz Remote Control, and On-Board Control
  • CRMX Support with Optional TimoLink Receiver (Sold Separately)
  • Linear/S-Curve/Logarithmic/Exponential Dimming Curve.
  • Record up to 20 pre-sets
  • Foldable Design

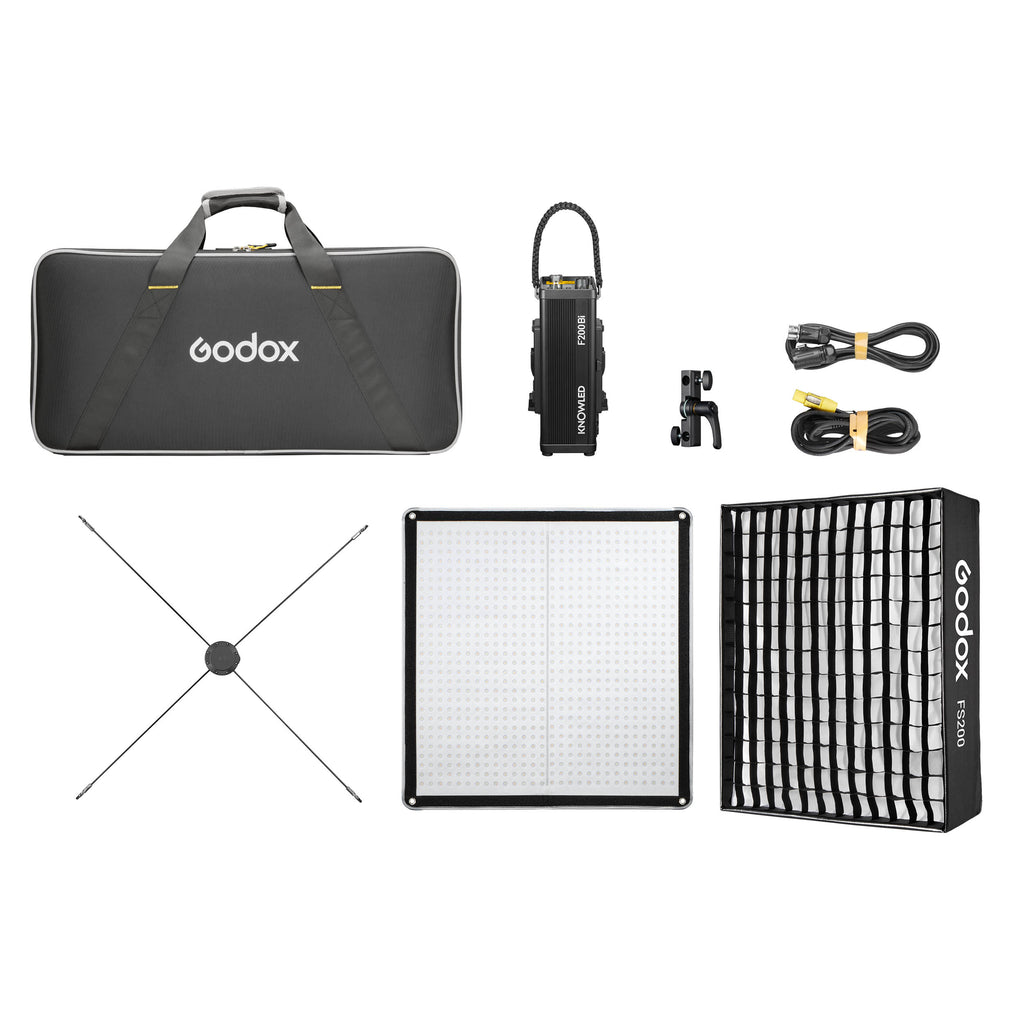

What’s In the Box

  • 1x KNOWLED F200Bi Panel

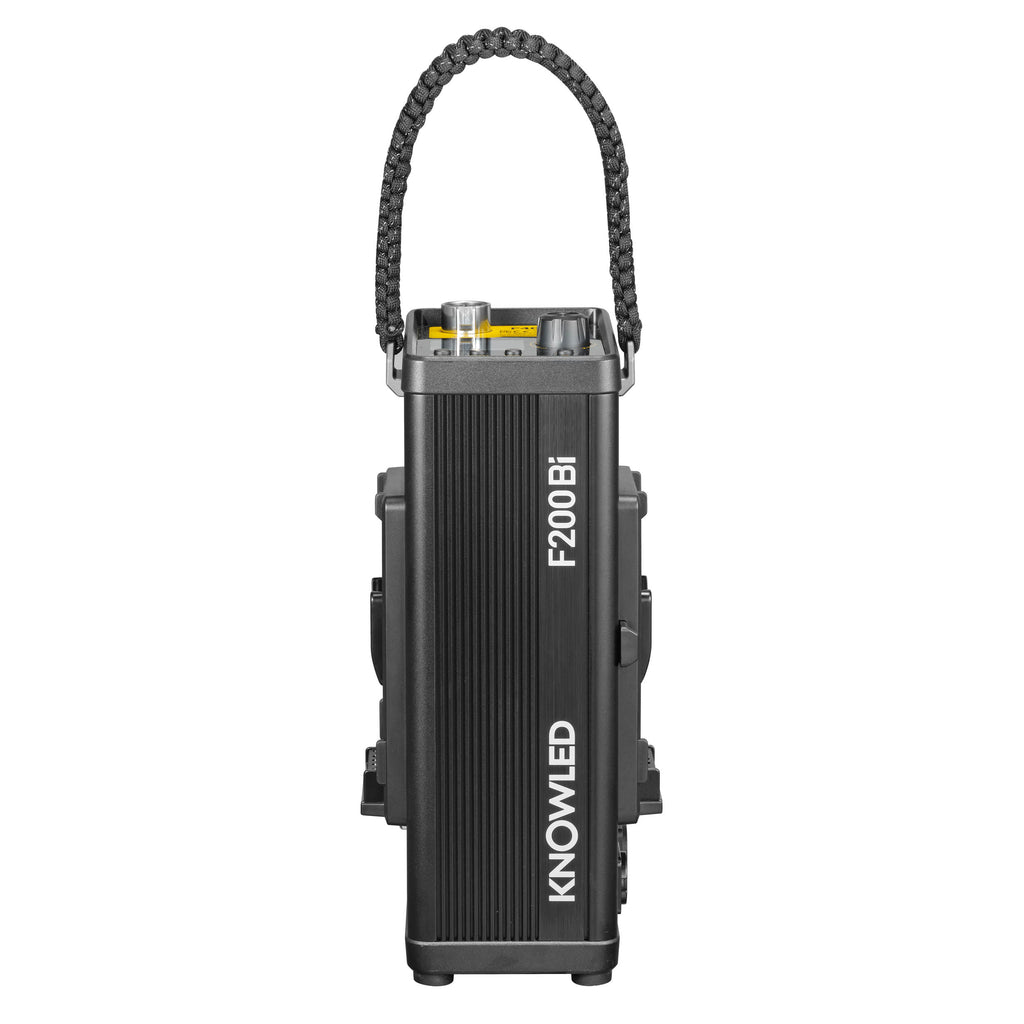

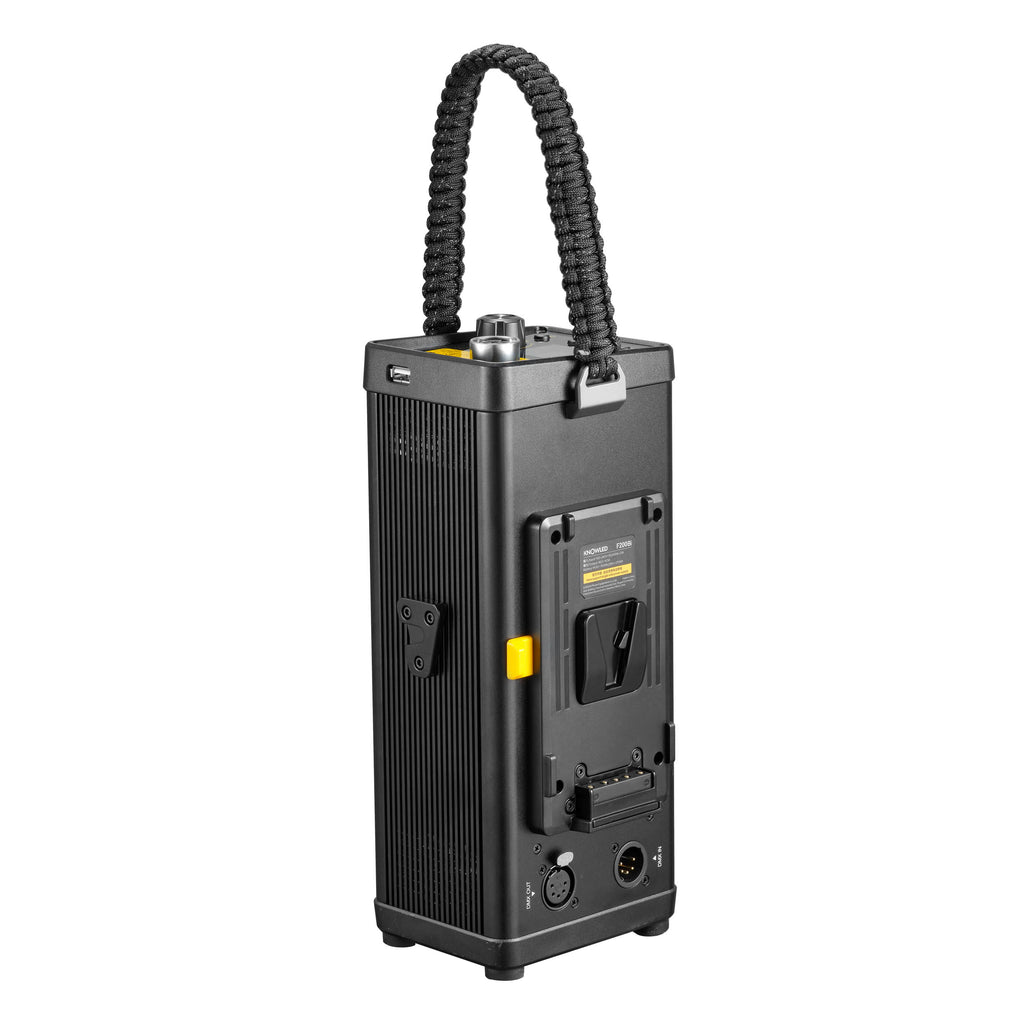

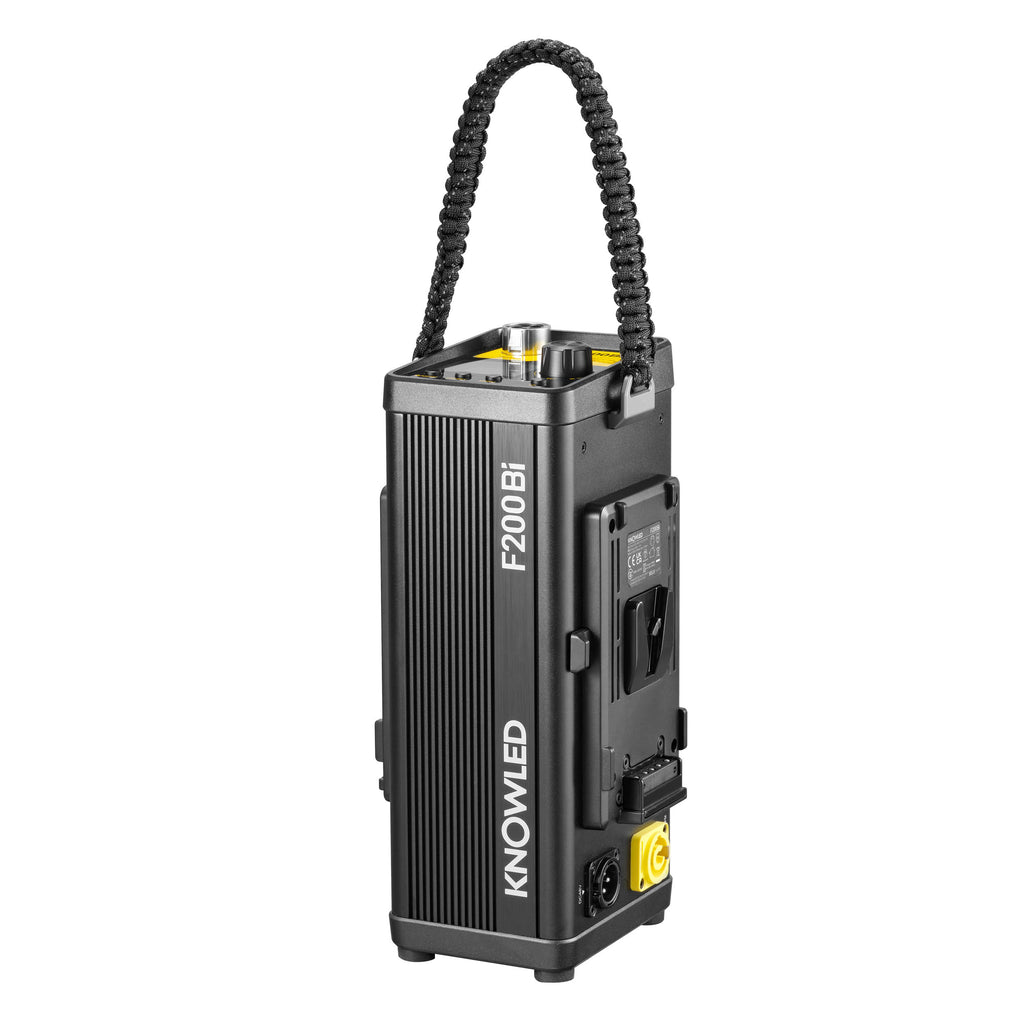

  • 1x Controller Box
  • 1x X-Bracket
  • 1x 3m Connection Cable
  • 1x 5m Power Cable

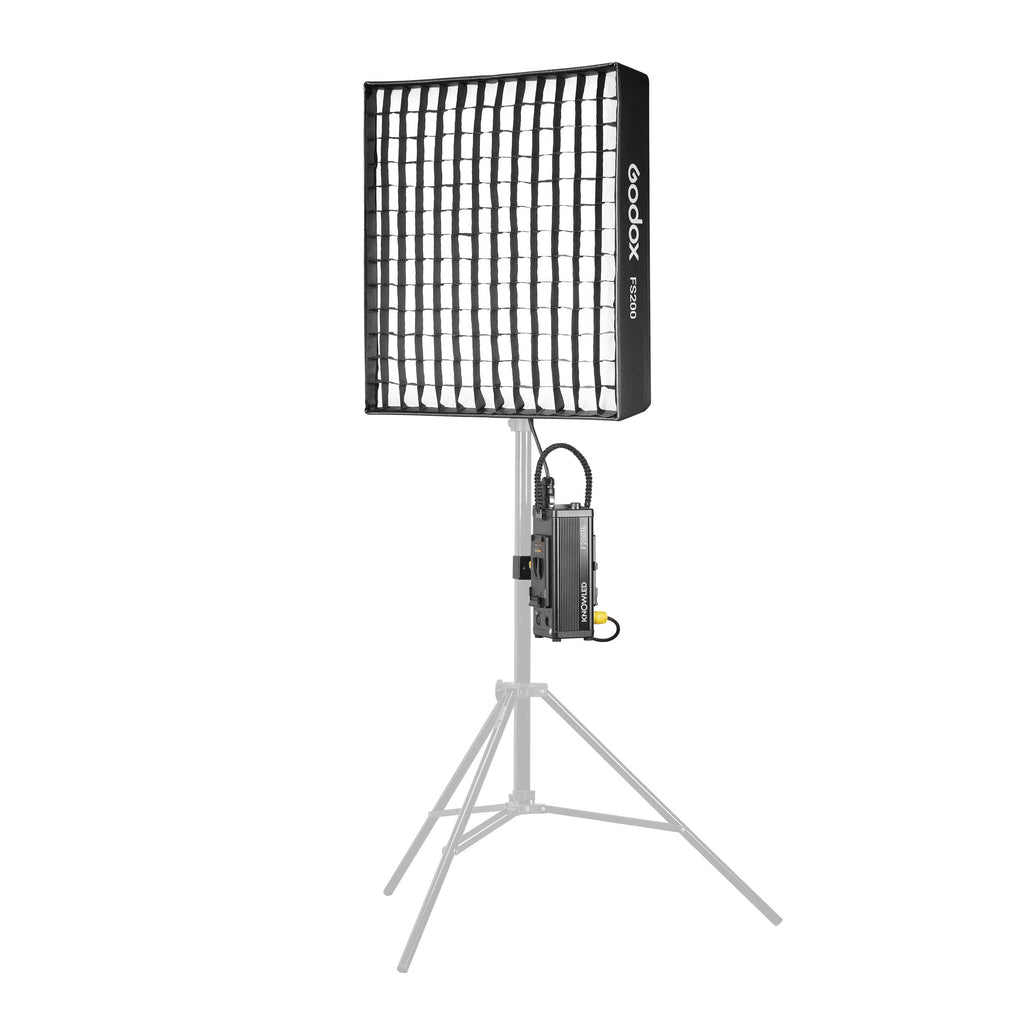

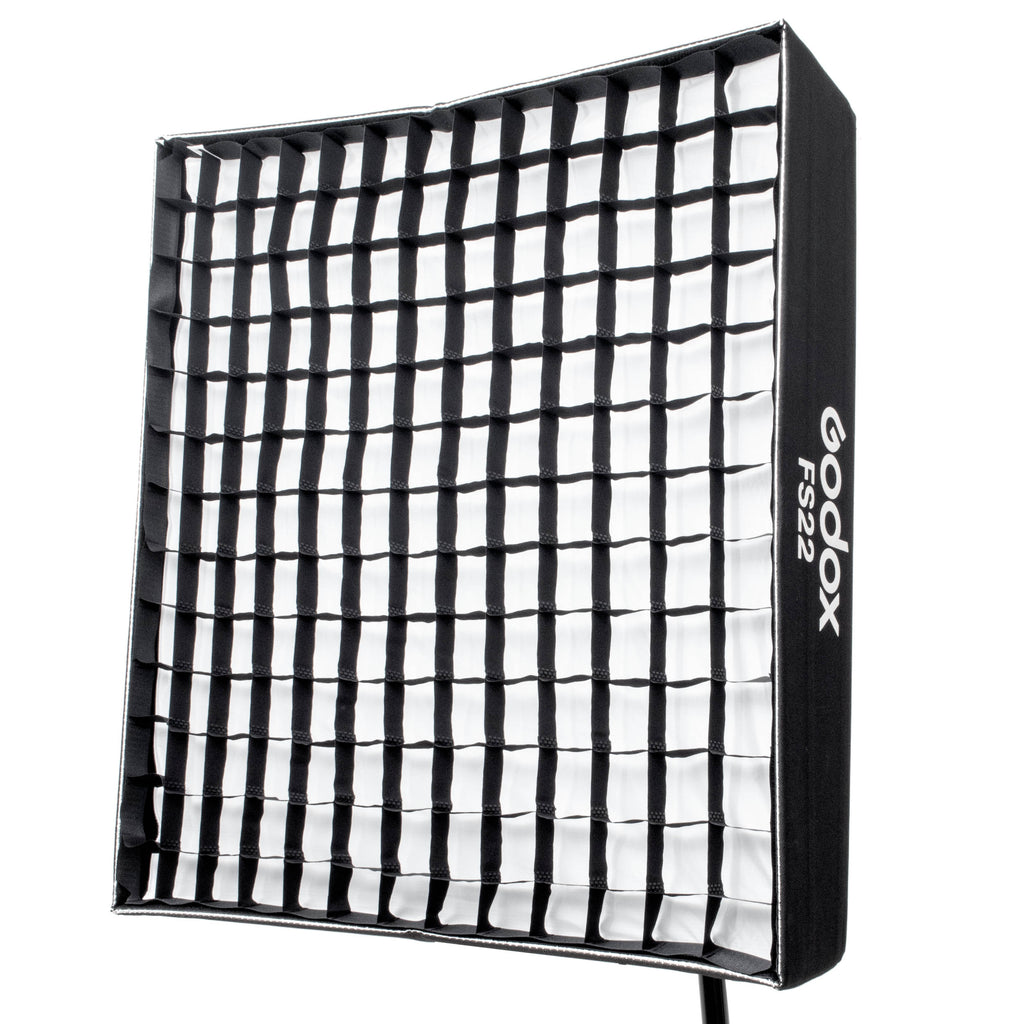

  • 1x FS200Bi Softbox With Grid
  • 1x Adapter Holder
  • 1x CB87 Carry Bag


Max. Power Output200W
Colour Temperature Range2700-8500K
Brightness (Lux)1130 @3m (5600K)
DMX 512 SupportYes (Via a 5-Pin XMR connector
CRMX SupportYes (with TimoLink RX)

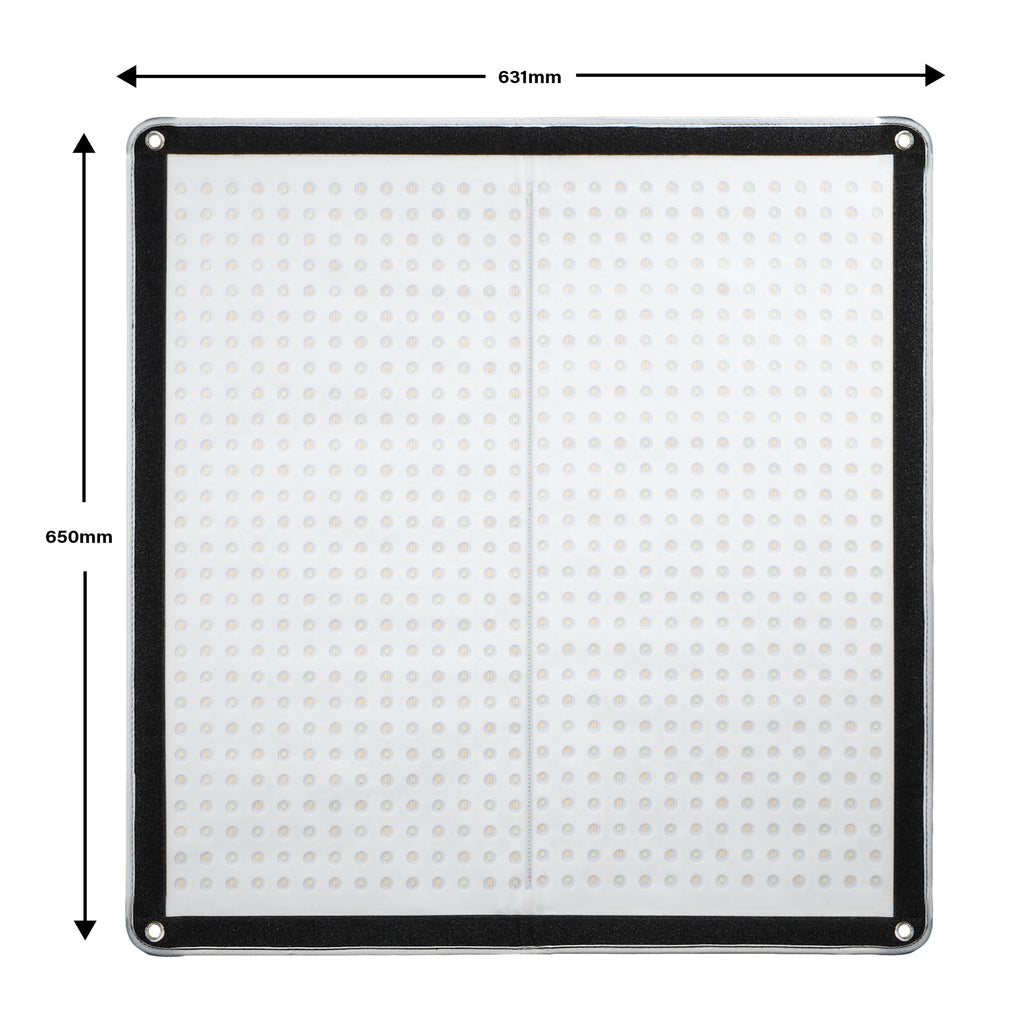

Light Body Dimensions650mm x 631mm x 29mm
Controller Dimensions124mm x 132mm x 270mm
Light Body Net. Weight1.83kg (Including X-Bracket)
Controller Box Net. Weight2.77kg
Box Weight

Box Dimensions

Approximately    Height  75cm  Width  39cm Length   20cm
