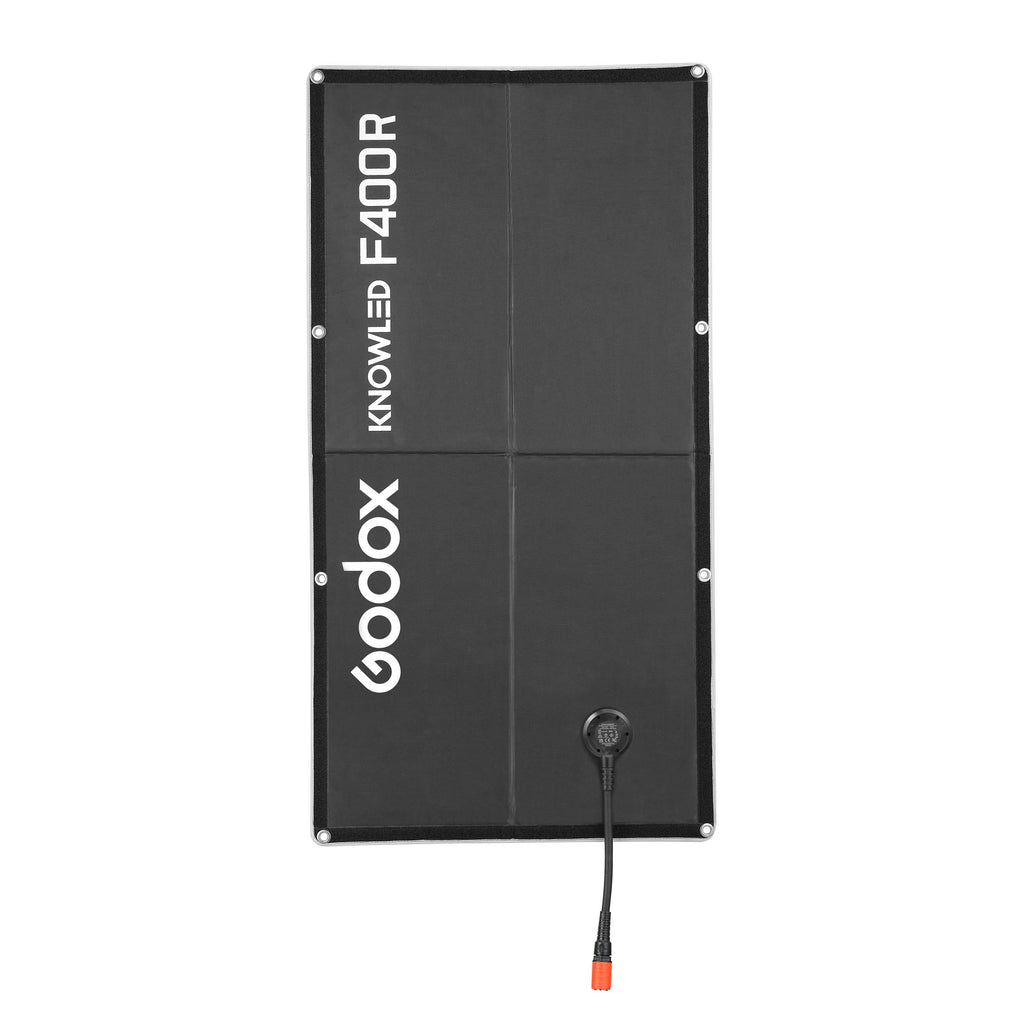

KNOWLED F400R 2'x4' IP54 Rated Flexible RGB Cine LED Mat Panel

SKU: GD-F400R

£2,207.99

Tax included. Shipping calculated at checkout.

  • Out of stock, pre-order available
  • Looking to hire? - More Info
Add Extended Warranty:
£331.20
Add Accessories:
£48.00
£183.99
£59.99
Your Total:
  • Verified Secure Shopping

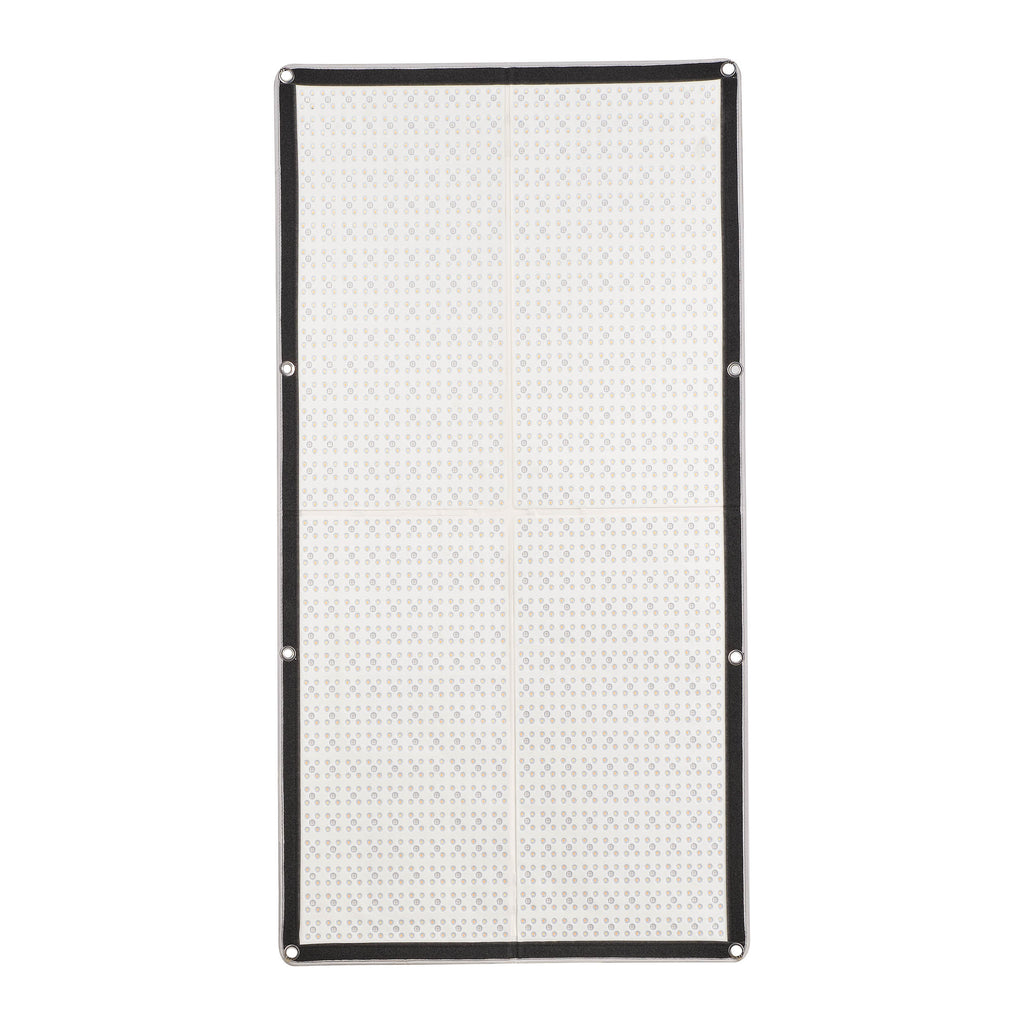

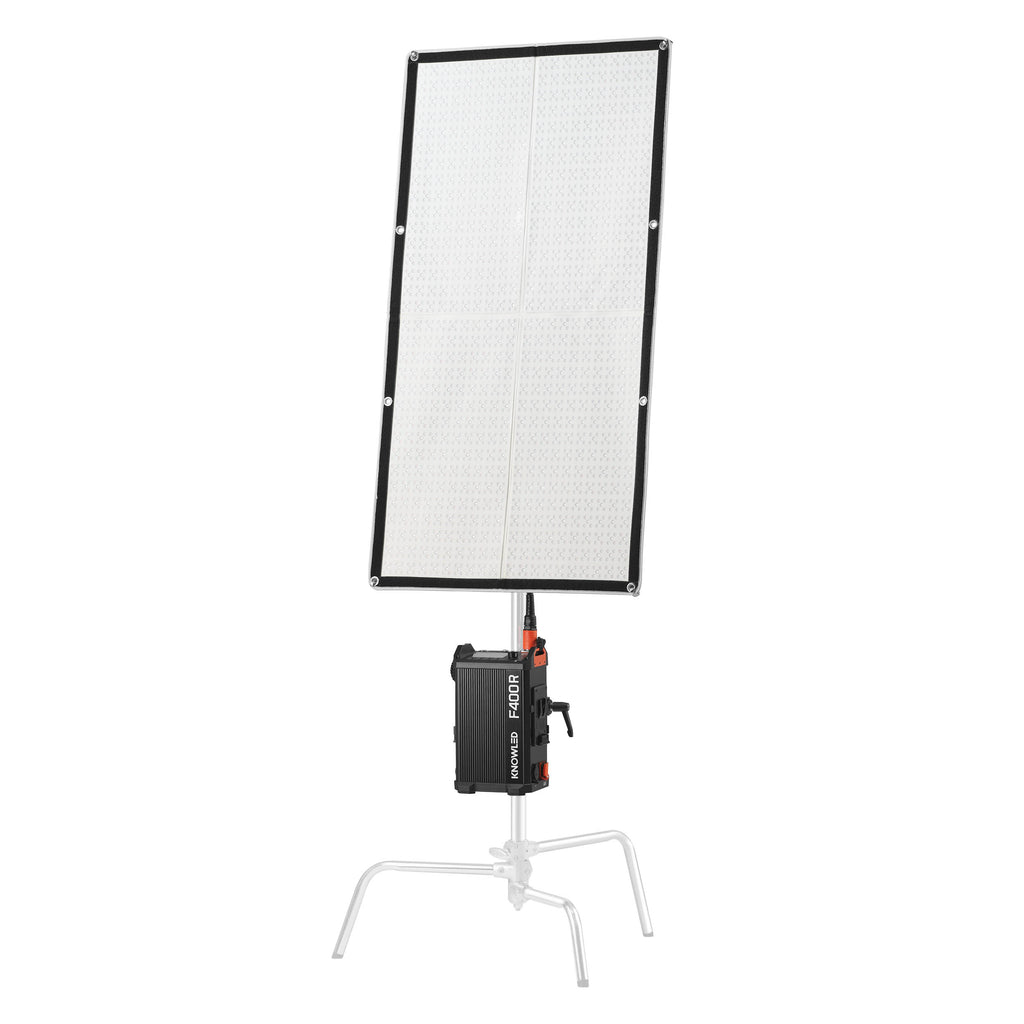

The Godox F400R 2x4' is an 460W IP54 waterproof, flexible, lightweight, powerful, and versatile RGB cine LED light mat. It has a CRI of ≥ 96 and a TLCI of ≥ 98 for impeccable colour rendition. It supports industry-standard protocols such as DMX512 and CRMX, as well as control via the Godox Light App and Bluetooth. With its IP54 weather-resistance rating, the Godox F400R inflatable light mat is ideal for large-scale film and TV productionsbroadcasting, and commercial video productions, no matter if you are shooting in a controlled studio or outdoors on location.

Full-Colour Brilliance In Every Scene

The Godox F400R continues KNOWLED's legacy of great brightness and saturation, delivering cinema-grade colour and light intensity. With a wide colour-temperature range of 1,800-10,000K, as well as Green/Magnenta adjustment, this foldable LED light mat is perfect for illuminating people, rendering skin tones, and producing dynamic scene lighting.

Godox F400R 2'x4' IP54 Foldable RGB Cine LED Light Mat Panel

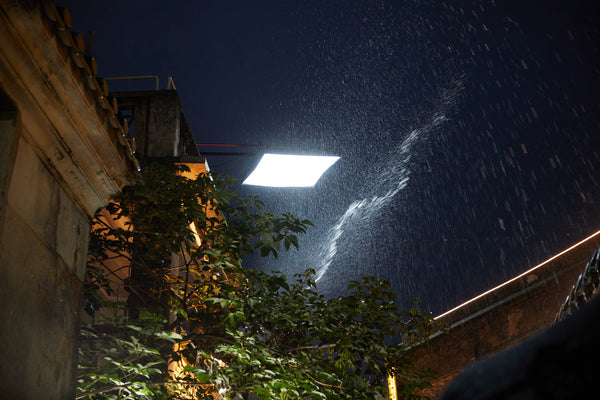

Full IP54 Weather-Resistance

The F400R cine LED mat panel is designed to last with its IP54 certified, meaning that it is completely protected from dust and water from the light head down to the controller box. It ensures you get the best, most reliable lighting performance, whatever the weather.

Godox F400R 2'x4' IP54 Foldable RGB Cine LED Light Mat Panel

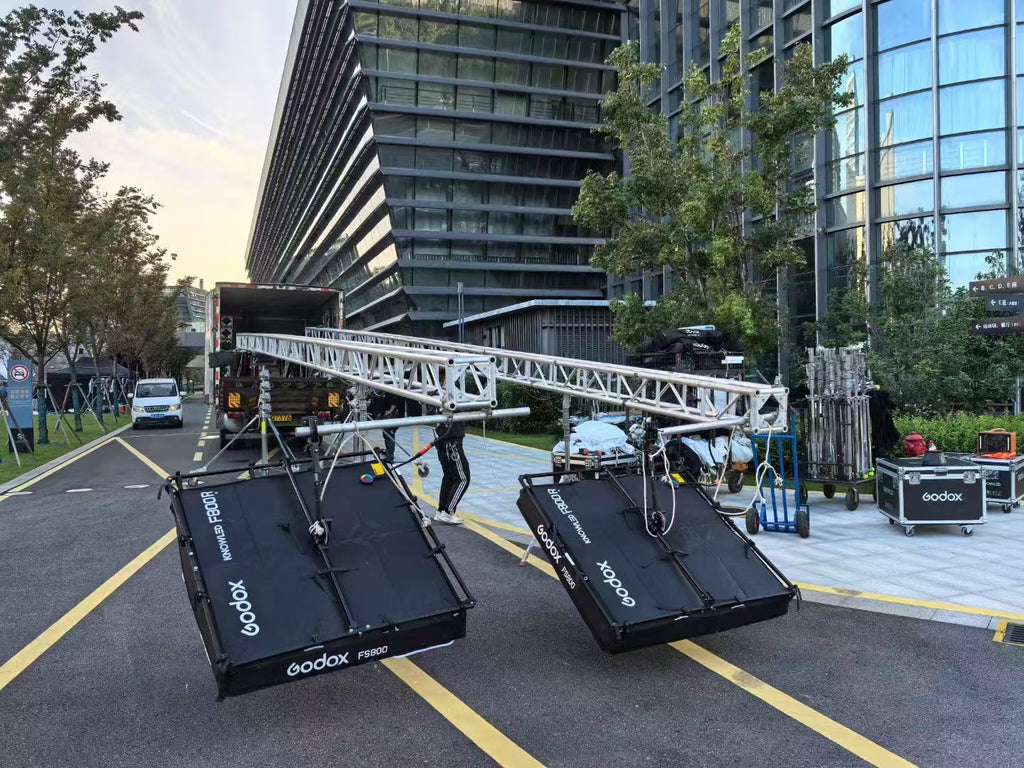

New Enhanced Bracket

The KNOWLED RGB F-series panel comes with a newly upgraded metal bracket with added rigidity and physical protection while still maintaining its ease of use. The redesigned, flatter X-bracket allows the light mat to fit into tighter spaces, offering increased versatility.

Godox F400R 2'x4' IP54 Foldable RGB Cine LED Light Mat Panel

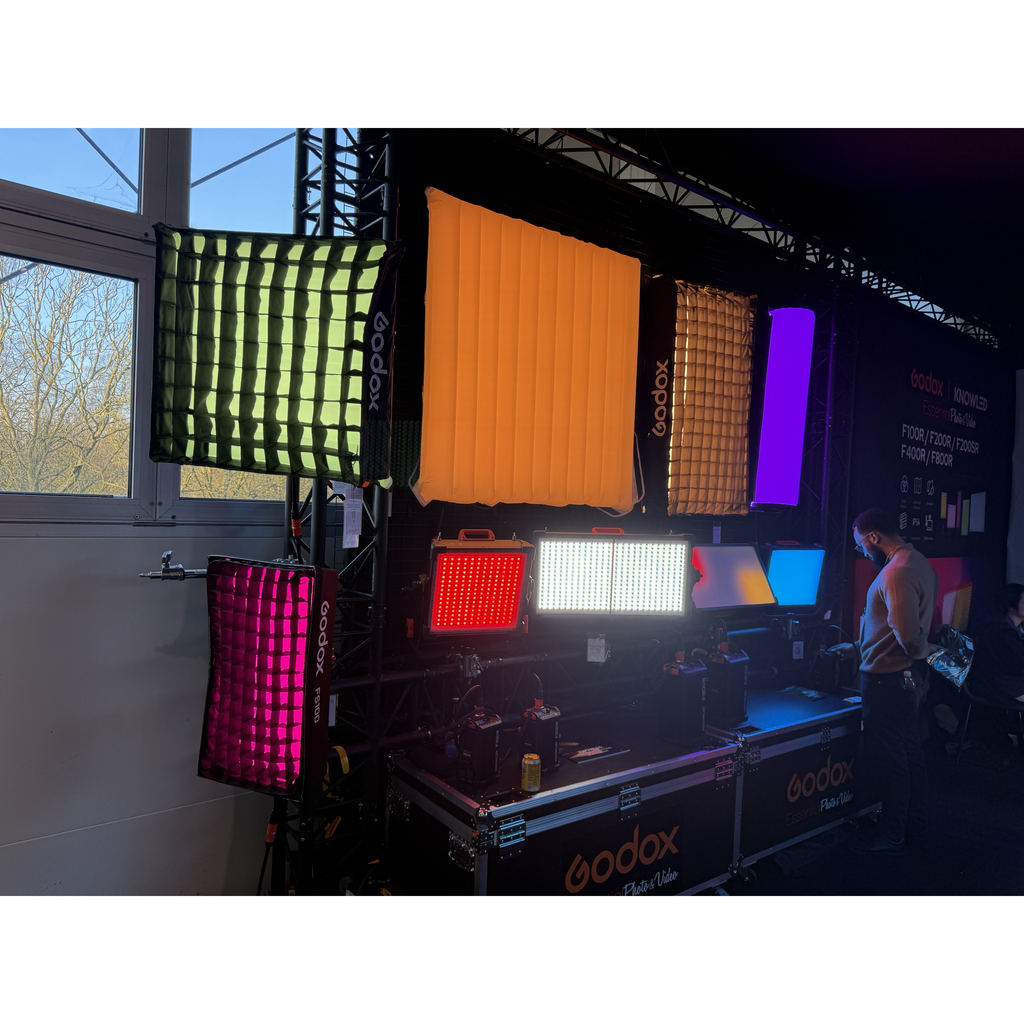

Available in Five Sizes

The KNOWLED RGB F-Series is available in five sizes, each designed to fit industry-standard diffusion fabrics and truss systems. These tunable-color light mats are consistent across the entire range, making it easy to swap sizes or power arrays on set. Each size can also be linked together to create custom lighting setups. All panels fold down for hassle-free storage and transportation. These LED light mats' sizes include the 1'x2' F100R, the 2'x2' F200R, the 1'x4x F200SR, the 2'x4' F400R, and the 4'x4' F800R.

Godox F400R 2'x4' IP54 Foldable RGB Cine LED Light Mat Panel

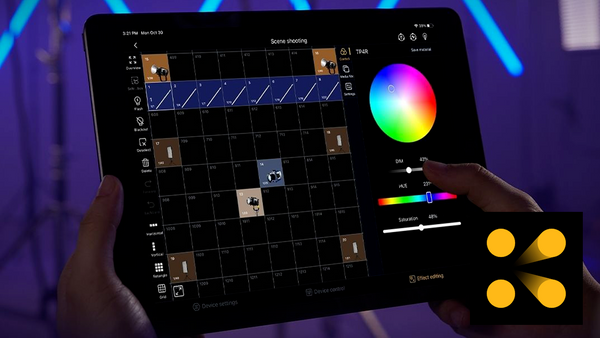

Multiple Lighting Controls

The Godox F400R features a built-in LumenRadio module for stable and efficient wireless connection via the CRMX protocol. This cine LED mat panel also supports Bluetooth connectivity and on-board controls. It is also compatible with Ethernet Art-Net and ACN protocols.

KNOWLED F400R 2'x4' IP54 Rated Flexible LED Mat

Power, Anytime, Anywhere

The F400R cine LED light mat can be powered by V-mount batteries, which makes it perfect for use in locations where you do not have easy access to mains AC power.

KNOWLED F400R 2'x4' IP54 Rated Flexible LED Mat

Unrivalled Cinema-Grade Colour Accuracy

The Godox F400R LED light mat has a CRI of ≥96+ and a TLCI of ≥97. This means that the F400R cine mat panel will render colours accurately, making it ideal for broadcast usage. This inflatable light mat is perfect for illuminating TV studios and movie sets.

KNOWLED F400R 2'x4' IP54 Rated Flexible LED Mat

Colour Consistency Across All Units.

The KNOWLED RGB F-series has been engineered to produce impeccable colour consistency with no visible colour shifts throughout the full range. Whether you are using one of the larger panels alongside one of the smaller panels, you can rest assured that KNOWLED's advanced Colour Calibration Management system delivers reliable, professional performance with all of your lighting projects.

Endless Shapes, Compact Size

The Godox F-series inflatable light mat can be used with or without the airbag attached or mounted to its frame. The airbags inflate and deflate quickly, making the lights more compact and space-efficient compared to traditional diffused setups. When not in use, the LED light mat folds down for easy storage. Store the ultra-thin mat in your travel case for shipping to save space, ensuring quick setup and efficient storage.

KNOWLED F400R 2'x4' IP54 Rated Flexible LED Mat

The Godox F400R flexible LED light mat is the perfect broadcasting, corporate video, YouTube, cinematography, Chroma Key green screen, as well as for photography. Whether you’re a seasoned professional or an enthusiast, you can’t really go wrong with the F400R cine LED mat panel.

What's In The Box?

Godox F400R 2'x4' IP54 LED Mat Light

Please Note: From 10th October 2024, Godox Lighting Units come with a 1-Year Warranty Period. For further information, please visit our Warranty Page: https://www.essentialphoto.co.uk/pages/warranty

Features

  • Full RGB Colour
  • Full IP54 Weather Resistance
  • New and Improved X-Bracket Design
  • CRI of 96+ and TLCI of 97+
  • Available in five-sizes
  • DMX, CRMX and Godox Light App Compatible
  • Can be powered by V-Lock Batteries

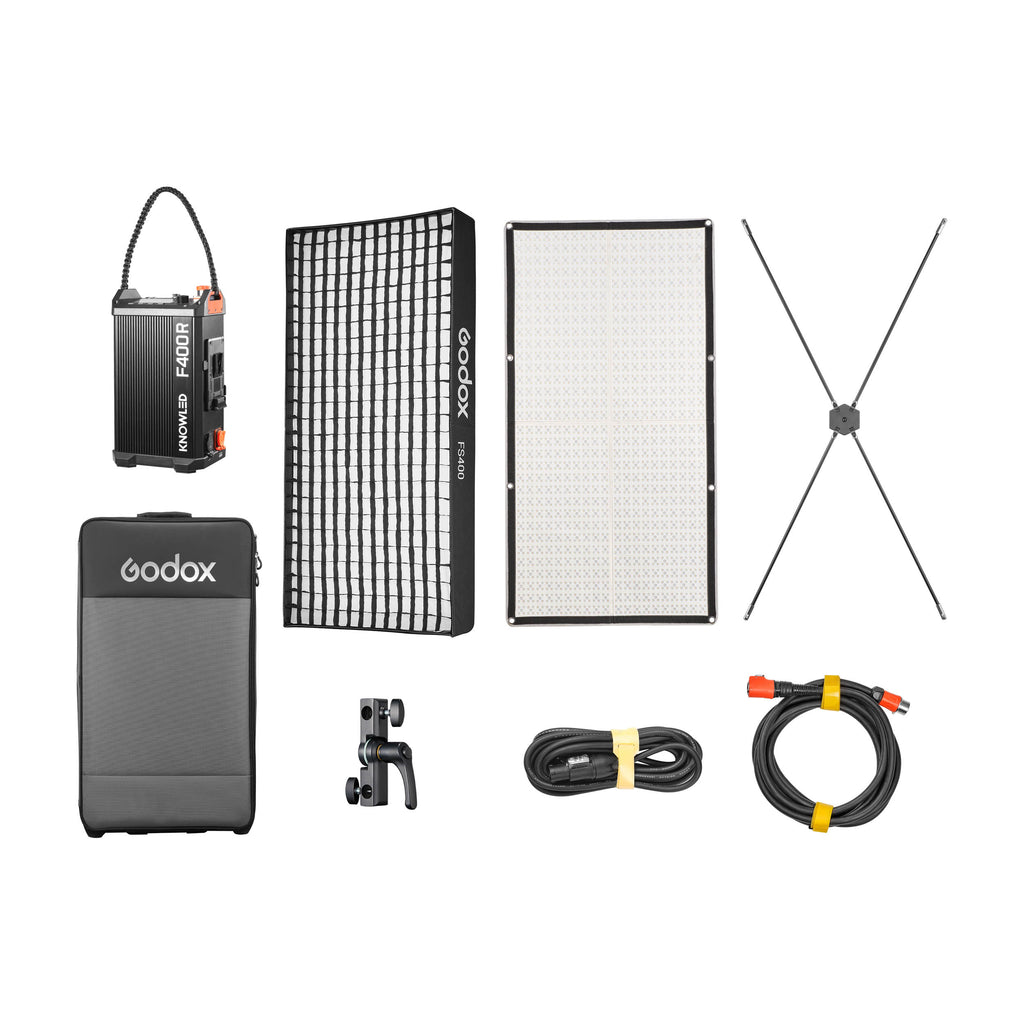

What’s In the Box

  • 1x KNOWLED F400R Panel
  • 1x Controller Box
  • 1x X-Bracket
  • 1x DC Connection Cable
  • 1x Mains Power Cable

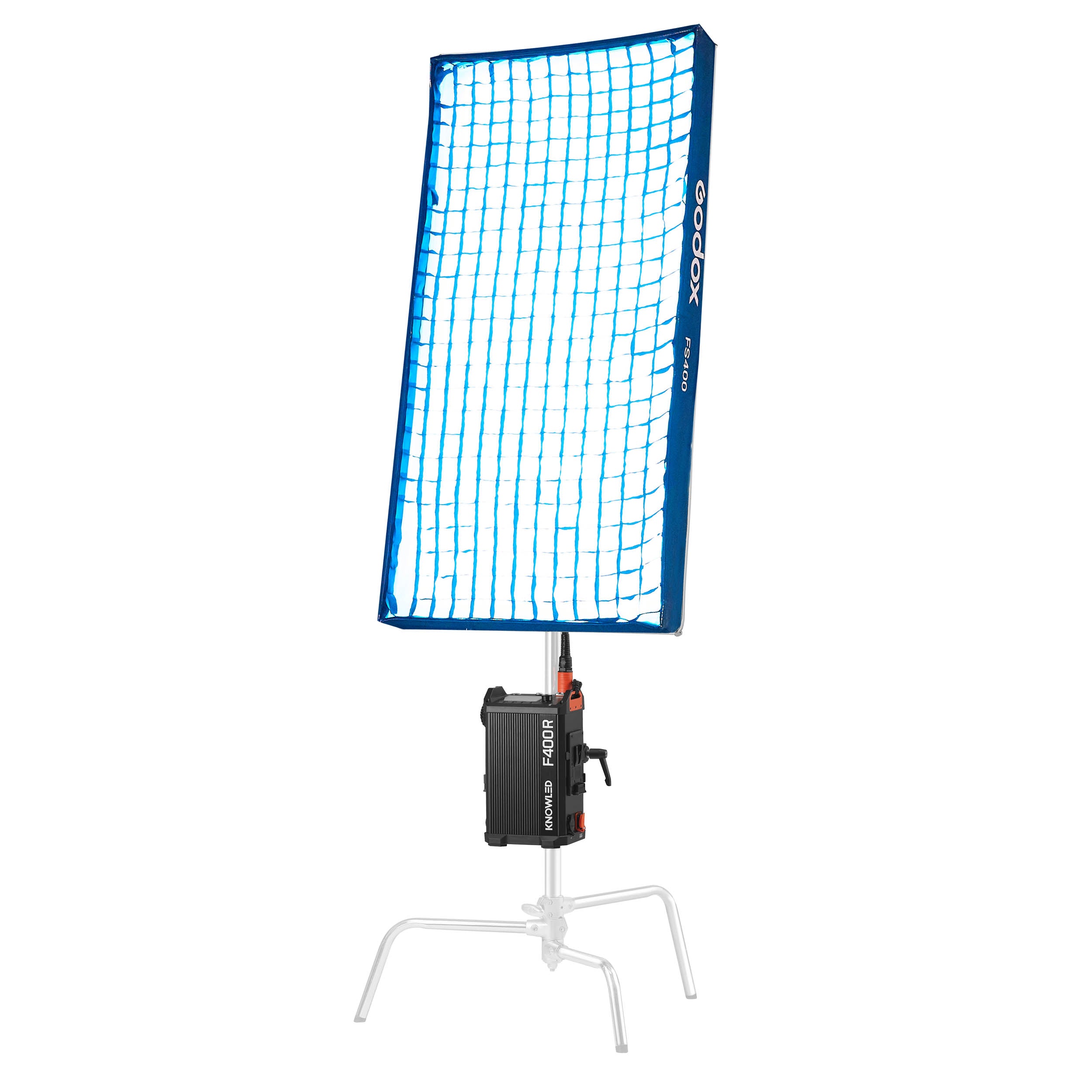

  • 1x FS100 Softbox With Grid
  • 1x Adapter Holder
  • 1x Skirt
  • 1x Carry Case

Specifications

Power Supply 100V-240V~50/60Hz
Controller Input Power 460W
Colour Temperature Range 18,00-10,000K
Green/Magenta Adjustment -100% ~ 100%
Brightness Range 0-100% (in 0.1% Increments)
Dimming Curves Linear, S-Curve, Exponential, Logarithmic
CRI ≥96
TLCI ≥98
Beam Angle 120°
Weather Resistance IP54
Controlling Methods DMX512 Control, Supports RDM Protocols, LumenRadio CRMX, Ethernet (supports Art-Net& sACN Protocols) Bluetooth App Control
Bluetooth Transmission Range 30m
USB-A Port Firmware Upgrade/ 5V 1.5A Power Supply
Working Environment Temperature -20°C ~ 45°C
Light Body Dimensions ≈63.7cm x ≈122cm
Controller Dimensions ≈20.8cm x ≈16.1cm x ≈32.2
Light Body Net. Weight ≈1.8kg
Controller Box Net. Weight ≈5.8kg



Photometric Data

Colour Temperature Units 1m (Normal) 1m (Highspeed) 3m (Normal) 3m (Highspeed) 5m (Normal) 5m (Highspeed)
1800K lux 3,690 5,400 589 766 239 309
fc 343 502 55 71 22 29
2800K lux 9,710 10,600 1,350 1,510 547 613
fc 874 985 126 141 51 57
3200K lux 10,500 11,700 1,510 1,670 607 685
fc 978 1,090 140 155 56 64
4300K lux 12,500 13,700 1,790 1,960 722 789
fc 1,160 1,270 167 182 67 73
5600K lux 13,300 14,400 1,900 2,070 768 833
fc 1,230 1,340 177 194 71 77
6500K lux 11,400 12,000 1,630 1,790 657 724
fc 1,060 1,120 151 166 61 67
7500K lux 10,700 11,800 1,530 1,680 618 679
fc 996 1,090 142 156 57 63
8500K lux 11,200 12,500 1,590 1,790 643 722
fc 1,040 1,160 149 166 60 72
10,000K lux 11,200 12,700 1,590 1,620 643 733
fc 1,040 1,180 148 169 60 68
R (Red) lux 1,750 247 100
fc 163 23 9
G (Green) lux 3,970 574 231
fc 369 53 22
B (Blue) lux 879 126 51
fc 82 12 5
