Godox

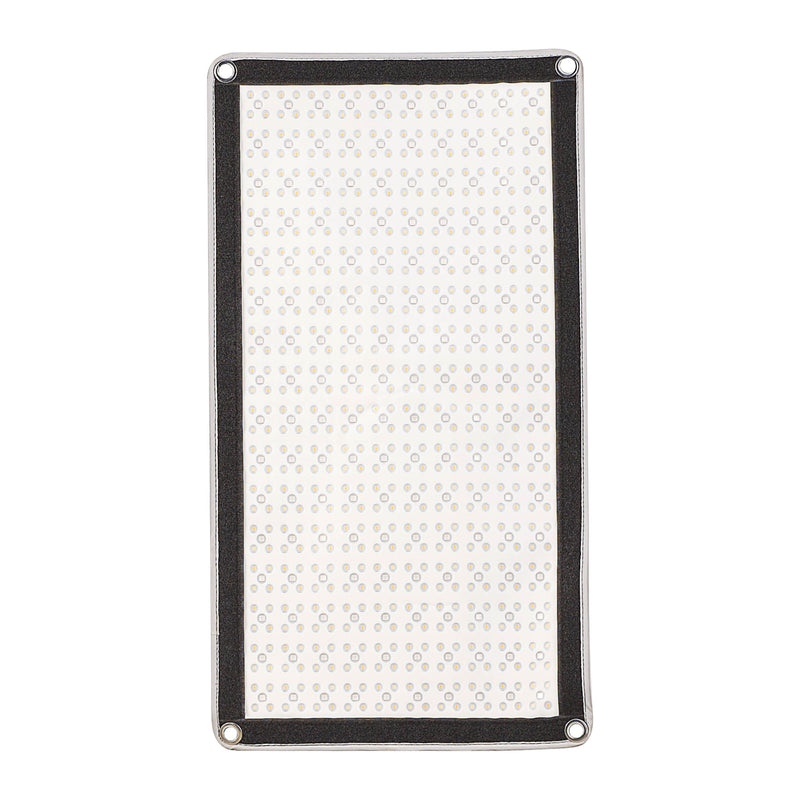

KNOWLED F100R 1'x2' IP54 Rated Flexible RGB Cine LED Mat Panel

SKU: GD-F100R

£914.39 £1,015.99 SAVE:£101.60
On Sale

Tax included. Shipping calculated at checkout.

  • Out of stock, pre-order available
Add Accessories:
£665.99 £739.99
Your Total:
  • Special Order Available. Estimate Delivery Date: 2-4 Working Weeks (Subject to Change)
  • Verified Secure Shopping

The Godox F100R is a 1'x2' IP54 Ultra-Thin Flexible RGB LED Light Mat that has been specially designed to fit the needs of the film and television industry. This 100W LED features an ultra-slim profile, and flexible design, allowing it to be placed in positions that are either very difficult or impossible for regular video light fixtures. It has a CRI of ≥96 and a TLCI of ≥98 for impeccable colour rendition. It supports Industry-Standard Protocols such as DMX512, and CRMX as well as control via the Godox Light App via  Bluetooth. With its IP54 weather-resistance rating, the F100R is ideal for large-scale Film and TV productions and Broadcasting and Commercial Video productions no matter if you are shooting in a controlled studio, or outdoors on location.

Full-Colour Brilliance In Every Scene

The F100R ultra-thin LED light mat continues KNOWLED's Legacy of great brightness and saturation, delivering cinema-grade colour, and light intensity. With a wide colour-temperature range of 1,800-10,000K, as well as Green/Magenta adjustment, the Godox KNOWLED RGB F-Series is perfect for illuminating people, rendering skin tones, and producing dynamic scene lighting.

Godox F100R 1'x2' IP54 Ultra-Thin Flexible RGB LED Light Mat

Full IP54 Weather-Resistance

The KNOWLED F100R flexible light mat is IP54 certified, meaning that it is completely protected from dust and water from the light head, down to the controller box. This helps ensure you get the best, most reliable lighting performance, whatever the weather.

Godox F100R 1'x2' IP54 Ultra-Thin Flexible RGB LED Light Mat

New Enhanced Bracket

The KNOWLED RGB F-Series panels now come with a newly upgraded metal bracket with added durability while still maintaining its ease of use. The new, flatter X-Bracket design also enables you to fit the light mat into tighter spaces, making it even more versatile.

Godox F100R 1'x2' IP54 Ultra-Thin Flexible RGB LED Light Mat

Available in Five Sizes

The KNOWLED RGB F-Series is available in five sizes, each of which is designed to fit industry-standard diffusion fabrics and truss systems. Each size can be linked together to form custom lighting setups. All sizes can be folded down for hassle-free storage and transportation. These sizes include the 1'x2' F100R, the 2'x2' F200R, the 1'x4x F200SR, the 2'x4' F400R, and the 4'x4' F800R.

Godox F100R 1'x2' IP54 Ultra-Thin Flexible RGB LED Light Mat

Multiple Lighting  Controls

The Full-Colour KNOWLED F-Series features a built-in LumenRadio module, ensuring you get a stable and efficient wireless connection using the CRMX protocol. The F100R ultra-thin LED light mat also supports Bluetooth connectivity and on-board controls.

KNOWLED F100R 1'x2' IP54 Rated Flexible RGB  Cine LED Mat Panel

Power, Anytime, Anywhere

The F100R RGB light mat can be powered by V-mount batteries, which makes it perfect for use in locations where you do not have easy access to mains AC power.

KNOWLED F100R 1'x2' IP54 Rated Flexible RGB  Cine LED Mat Panel

Unrivalled Cinema-Grade Colour Accuracy

The F100R ultra-thin LED light mat has a CRI (Colour Rendition Index) of ≥96+ and a TLCI (Television Lighting Consistency Index) of ≥97. This means that the Godox F100R RGB light mat will render colours accurately, making it ideal for broadcast usage. Perfect for illuminating, TV studios, and movie sets.

Image Taken Using KNOWLED F100R 1'x2' IP54 LED Mat Panel

Colour Consistency Across All Units.

The KNOWLED RGB F-Series have been engineered to produce impeccable colour consistency with no visible colour shifts throughout the full range. Whether you are using one of the larger panels alongside one of the smaller panels, you can rest assured that KNOWLED's advanced Colour Calibration Management system delivers reliable, professional performance with all of your lighting projects.

Image Taken Using F100R LED Mat

The Godox F100R ultra-thin LED light mat is the perfect Broadcasting, Corporate video, YouTube, Cinematography, Chroma Key green screen as well as for photography. Whether you’re a seasoned professional or an enthusiast, you can’t really go wrong with the F100R RGB LED mat.

What's In The Box?

GODOX KNOWLED F100R RGB LED Light Mat Box Content



Please Note: From 10th October 2024, Godox Lighting Units come with a 1-Year Warranty Period. For further information, please visit our Warranty Page: https://www.essentialphoto.co.uk/pages/warranty

Features

  • Full RGB Colour
  • Full IP54 Weather Resistance
  • New and Improved X-Bracket Design
  • CRI of 96+ and TLCI of 97+
  • Available in five-sizes
  • DMX, CRMX and Godox Light App Compatible
  • Can be powered by V-Lock Batteries

What’s In the Box

  • 1x KNOWLED F100R Panel
  • 1x Controller Box
  • 1x X-Bracket
  • 1x DC Connection Cable
  • 1x Mains Power Cable
  • 1x FS100 Softbox With Grid
  • 1x Adapter Holder
  • 1x Carry Case

Specifications

Power Supply 100V-240V~50/60Hz
Controller Input Power 130W
Colour Temperature Range 18,00-10,000K
Green/Magenta Adjustment -100% ~ 100%
Brightness Range 0-100%
Dimming Curves Linear, S-Curve, Exponential, Logarithmic
CRI ≥96
TLCI ≥98
Weather Resistance IP54
Controlling Methods DMX512 Control, Supports RDM Protocols, LumenRadio CRMX, Bluetooth App Control
Bluetooth Transmission Range 30m
USB-A Port Firmware Upgrade/ 5V 1.5A Power Supply
Working Environment Temperature -20°C ~ 45°C
Light Body Dimensions ≈34.5cm x ≈63.6cm
Controller Dimensions ≈15.4cm x ≈12.8cm x ≈23.2
Light Body Net. Weight ≈0.6kg
Controller Box Net. Weight ≈2.8kg



Photometric Data

Colour Temperature Units 1m (Normal) 1m (Highspeed 2m (Normal) 2m (Highspeed 3m (Normal) 3m (Highspeed
1800K lux 899 1,070 227 286 100 131
fc 84 99 21 27 9 12
2800K lux 2,920 3,570 774 961 346 440
fc 272 331 72 89 32 41
3200K lux 3,310 3,520 879 946 392 435
fc 307 327 82 88 36 40
4300K lux 3,470 4,340 921 1,170 410 536
fc 322 403 86 108 38 50
5600K lux 3,840 4,340 1,020 1,270 454 585
fc 357 440 95 118 42 54
6500K lux 3,510 4,080 933 1,100 416 504
fc 326 379 87 102 39 47
8500K lux 3,390 3,720 902 1,000 403 460
fc 315 346 84 93 37 43
10,000K lux 3,520 3,740 937 1,010 419 460
fc 327 348 87 94 39 43
R (Red) lux 432 118 54
fc 40 11 5
G (Green) lux 829 223 102
fc 40 11 5
B (Blue) lux 191 52 24
fc 18 5 2
