2.4GHz PRO AC WIRELESS 16 Channel Radio Flash Trigger Only (XT16)

SKU: M-060024


Tax included. Shipping calculated at checkout.

  • In Stock, Ready to ship
  • Try before you buy - More Info
Add Accessories:
Your Total:
  • Verified Secure Shopping

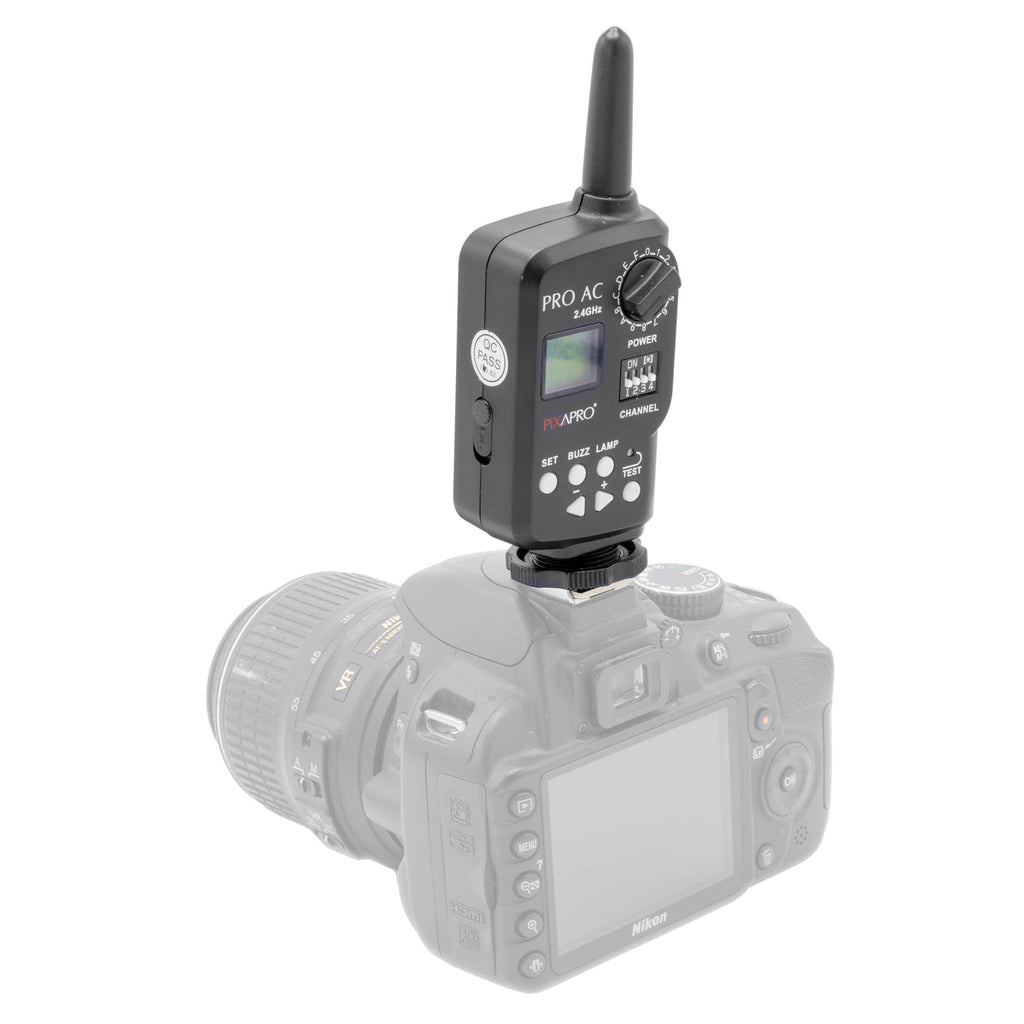

The PIXAPRO PRO AC (Godox XT16) Flash Trigger is a 16-channel 2.4GHz radio flash trigger that enables you to trigger PiXAPRO or Godox Flashes that have a built-in 2.4GHz flash-receiver, or flashes that have a PRO AC 2.4GHz receiver plugged into it. It supports up to 16 flash groups and  16 channels, enabling you to control your flash(es) remotely.


PiXAPRO ONE-System and Godox X-System Compatible.

The PRO AC Trigger communicates with the flash using the 2.4GHz Radio Waveband and has a transmission range of up to 50m in an open area. This means it triggers flashes over relatively long distances.

Line-Of-Sight Not Required

Since the Pro AC trigger works using radio signals, it does not require direct line-of-sight as the older optical and infrared flash triggers did. This enables you to position your flashes behind walls and use them in bright sunlight, while still being able to trigger your flashes. This opens up a whole new world of possibilities for your photography projects.

Universal Single-Pin Hotshoe

The PRO AC Trigger uses a universal single-pin hot shoe connection, meaning it is compatible with virtually any camera with a hot shoe. (Please note, some entry-level DSLRs such as the EOS250D, 2000D, and 4000D lack the centre-pin contact that this trigger requires to work. In this case, we would recommend either the ST-III+ or ST-IV triggers).

16 Selectable Channels

The PRO AC 2.4GHz Flash Trigger (Godox XT16) features 16 selectable channels. To sync your trigger with your flash, simply set them both to the same channel, and you’re ready to go. The Channels are selectable using the white dipswitches located at the face of the trigger (Please see the diagram below for the channel switch combinations).

A diagram showing the different dipswitch combinations needed for different channels

16 Flash Groups

The PRO AC 2.4GHz Flash Trigger also supports up to 16 flash groups. This enables you to individually control up to 16 groups of flashes remotely from the trigger. If you would like to control each flash in your setup individually, then simply set each flash to a different group. If you would like to set multiple flashes together, then set each light to the same flash group.

The PRO AC 2.4GHs Studio Flash Trigger system (XT16) is ideal for photographers that have a PiXAPRO or Godox Studio Flashes, (such as the Pixapro Lumi and Kino Series, as well as the Godox MS, SK, DP-Series, etc.)  who want a basic trigger to get started with. It is also great for Studio owners who rent out their studios to other photographers, due to the universal nature of its single-pin hot shoe.

Please Note: PiXAPRO Flash and Triggering Systems are fully compatible with Godox 2.4GHz Triggers, which will allow you to mix both Godox and PiXAPRO Equipment together without issue.

PLEASE NOTE: The AD-E1 Adapter from Canon is required for use with the Canon EOS R50, as its hotshoe lacks the necessary contact pins.


  • 2.4GHz Wireless Radio Transmission
  • 16 Groups
  • 16 Channels
  • Universal Single-Pin Hot Shoe
  • Working Range of up to 50m (in an open area)

What’s In the Box

  • 1x PRO AC 2.4GHz Wireless Flash Trigger Transmitter


Manual Flash ControlYes
Transmitter power supply3V (2*AA batteries)
Receiver power supply5V (powered by flashes)
Transmitter frequency2.4GHz wireless remote system
Max. Working distance50m/164ft (in open areas)
Control on flashesFlash output power, Modelling light on/off, Buzzer on/off, Flash triggering
Max sync speed1/250s
No. of Channels16
Box Weight  0.1kg
Box Specification  Approximately    Height:   4cm   Width:  6cm    Length:  16cm
