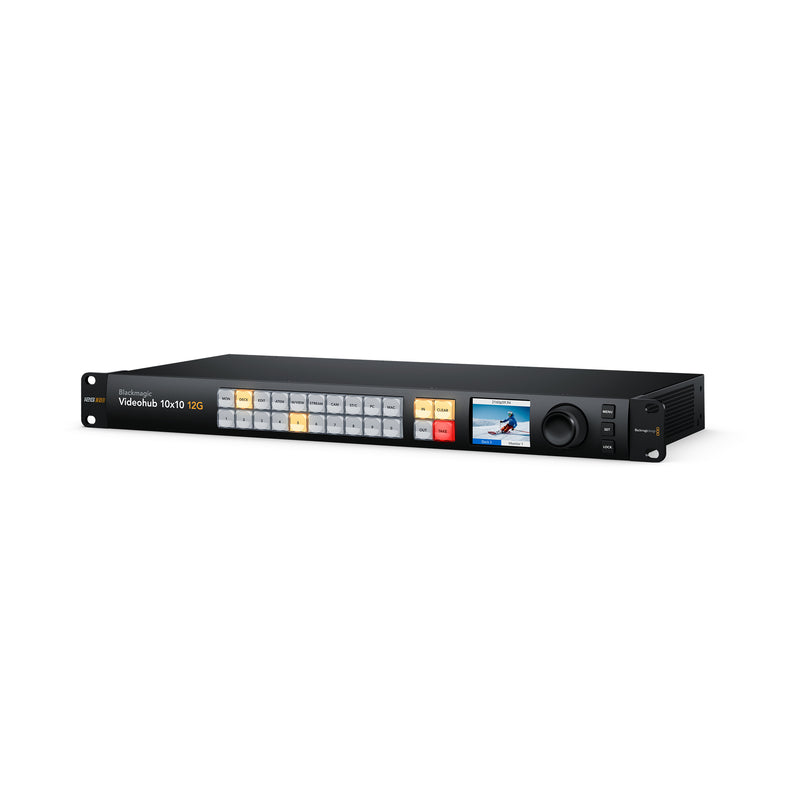

The Blackmagic Design Videohub 10x10 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It features 10 12G-SDI inputs and outputs, plus reference connections in a compact 1U design. The front panel includes an LCD for live video previews, routing labels, and quick selection buttons, as well as a soft-coated spin knob for precise control. With Ethernet connectivity, it supports remote operation via hardware or software panels. The Videohub supports SDI re-clocking and all SDI video standards up to 2160p60.
Built-in SDI re-clocking ensures signal integrity over long cables by regenerating video signals, while embedded audio supports up to 32 channels, ensuring perfect audio-video sync.
Customisable via software, this Blackmagic Design Videohub 12G video router lets you set up labels, configure inputs/outputs, and update firmware. External control is supported via hardware panels like the Videohub Master Control Pro or through software available for Mac, Windows, and iPad.
A free SDK and simple text-based protocol allow developers to integrate the router into advanced workflows or broadcast automation systems, making it highly versatile for custom setups.
With support for 13 languages, deeper colour precision (10-bit and 4:4:4 12-bit), and routing for multiple formats, the Blackmagic Design Videohub 10x10 12G is a powerful, versatile zero latency video router for any professional studio.
PLEASE NOTE: This particular product is part of our “Special Order” selection, so we may not hold stock for this and it is placed to order. If you are interested in this item, you can place this order as a pre-order, and we will special order your product directly from the manufacturer. This should take approximately 10-14 working days to be delivered, but please note this is subject to change.
| SDI Video Inputs | 10 |
| SDI Video Outputs | 10 |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Video Input Re-Sync | None |
| SDI Reclocking | On all SDI outputs |
| Reference Inputs | Tri-Sync or Black Burst |
| Reference Outputs | Reference terminating loop output |
| Ethernet | Supports 10/100/1000 BASE-T |
| Computer Interface | USB-C |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 2080p24, 1080p25, 1080p29.97, 1080p30 1080p47.95, 1080p48, 1080p50, 1080p59.94, 10080p60 1080PsF23.98, 1080PsF24, 1080pF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards | 2160p23.98 DCI, 2160p24, 2160p25, 2160p29.97, 2160p303, 2160p47.95 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601 |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit. |
| SDI Video Sampling | YUV 4:2:2 and RGB 4:4:4 |
| SDI Colour Precision | 10, 12-bit RGB 4:4:4 in all HD and 2K modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes |
| SDI Colour Space | REC 601, REC 709, REC 2020 |
| SDI Auto Switching | Automatically selects between 270Mb, SD-SDI, 1.5G HD-SDI 3G level A and level B HD-SDI, 6G HD-SDI, 12GG-SDI and DVB-ASI on each input so that each input can be running a different television standard |
| SDI Metadata Supports | Video payload identification ancillary data as per SMPTE 352M |
| Built-in Control Panel | 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch colour display |
| External Control Panel | Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol |
| Control Panel Connection | Ethernet |
| Software Control | Router control included free for Mac and Windows |
| Internal Software Upgrade | Via included updater application |
| Compatible With | Mac 12.0 Monterey. Mac 13.0 Ventura or later. Windows 10, 64-bit. Windows 11. |
| Displays | Built in 2.2 inch LCD for video and menu settings. |
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz IEC power cable required. |
| Power Fail Protection | Crosspoint connections preserved and restored instantly at power on. |
| Power Usage | 20.8 W max. |
| Physical Installation | 1 rack unit height. |
| Length | 482mm |
| Width | 236.14mm |
| Height | 44.2mm |
| Weight | 3kg |
| Operating Temperature | 0° to 40C (32 to 104 F) |
| Storage Temperature | -20 to 60 C (-4 to 140 F) |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Manufacturer's Warranty |
