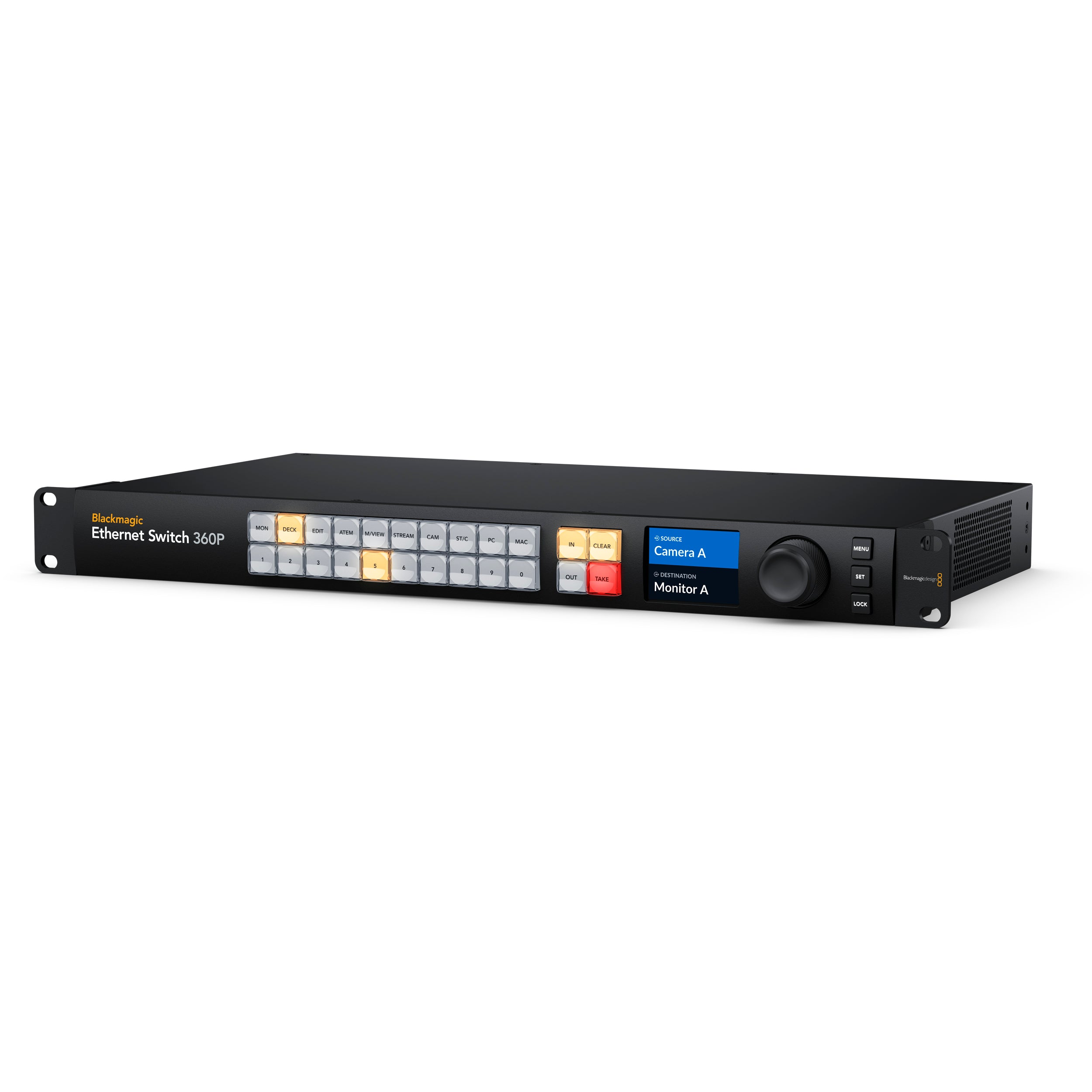

The Blackmagic Design Ethernet Switch 360P is a high-performance, low-latency switch designed for the film and TV industry. It features 16 10G Ethernet ports, 2 100G QSFP sockets, and a router panel for easy 2110 IP multicasting setup. With rear-mounted connections for a tidy, secure setup, it offers a simple plug-and-play solution for television production.

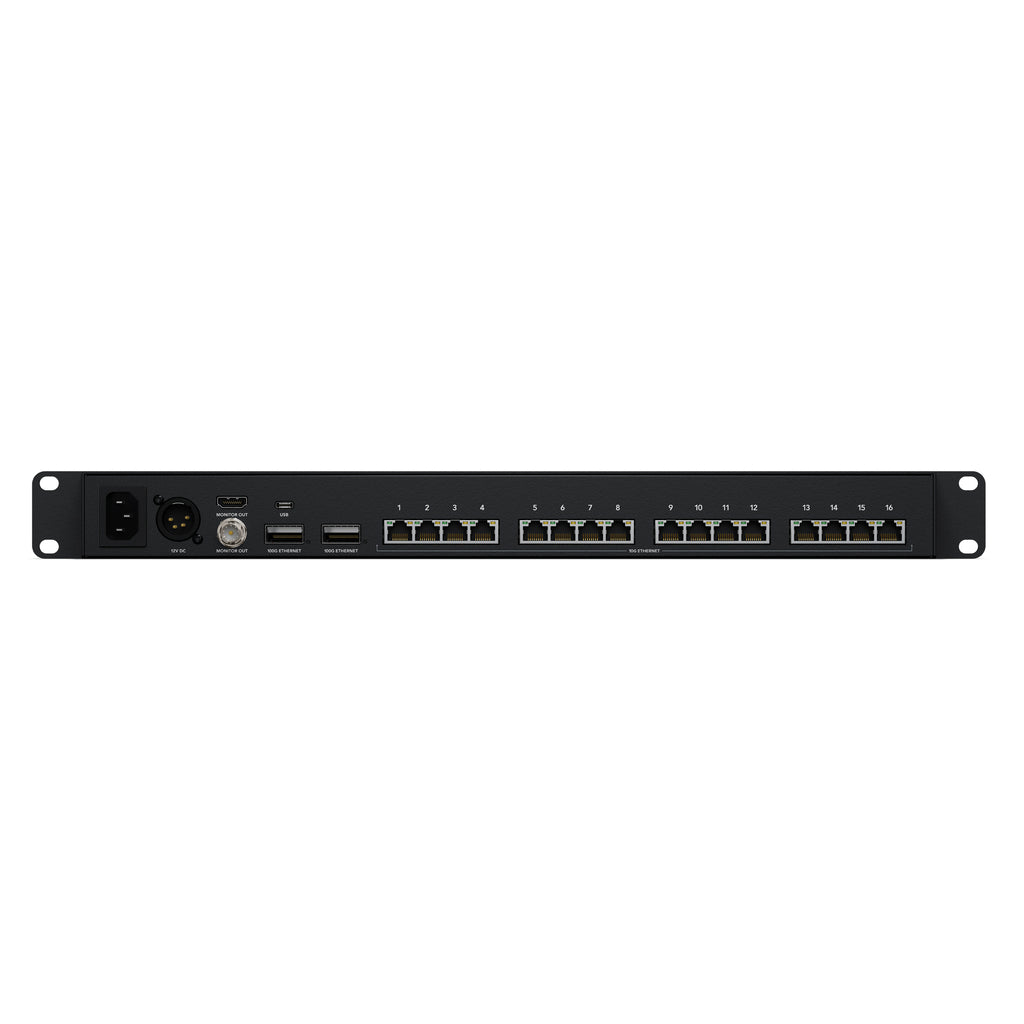

The Blackmagic Ethernet Switch 360P is designed specifically for the TV industry, with all network connections on the rear for easy cable management, matching your broadcast equipment's ports. Unlike standard switches with front connections, which create cable mess, this setup ensures secure cabling. It also features familiar Videohub-style router settings, so you can update SMPTE-2110 IP multicast without an IT team.
The Blackmagic Ethernet Switch 360P offers 16 independent 10G Ethernet ports with RJ-45 connectors. Designed for TV, it has rear-mounted connections for easy cable management and interleaved ports for space to disconnect cables. With ample 10G ports, it's perfect for building large HyperDeck ISO recorder arrays.
The Blackmagic Ethernet Switch 360P includes two 100G Ethernet connections for high-speed linking between multiple switches. Use copper cables or optical fiber QSFP modules to connect switches over long distances. For large ISO recording and live replay systems, a Blackmagic Cloud Store Max can connect directly to the 100G port, enabling multiple Ultra HD recording streams.

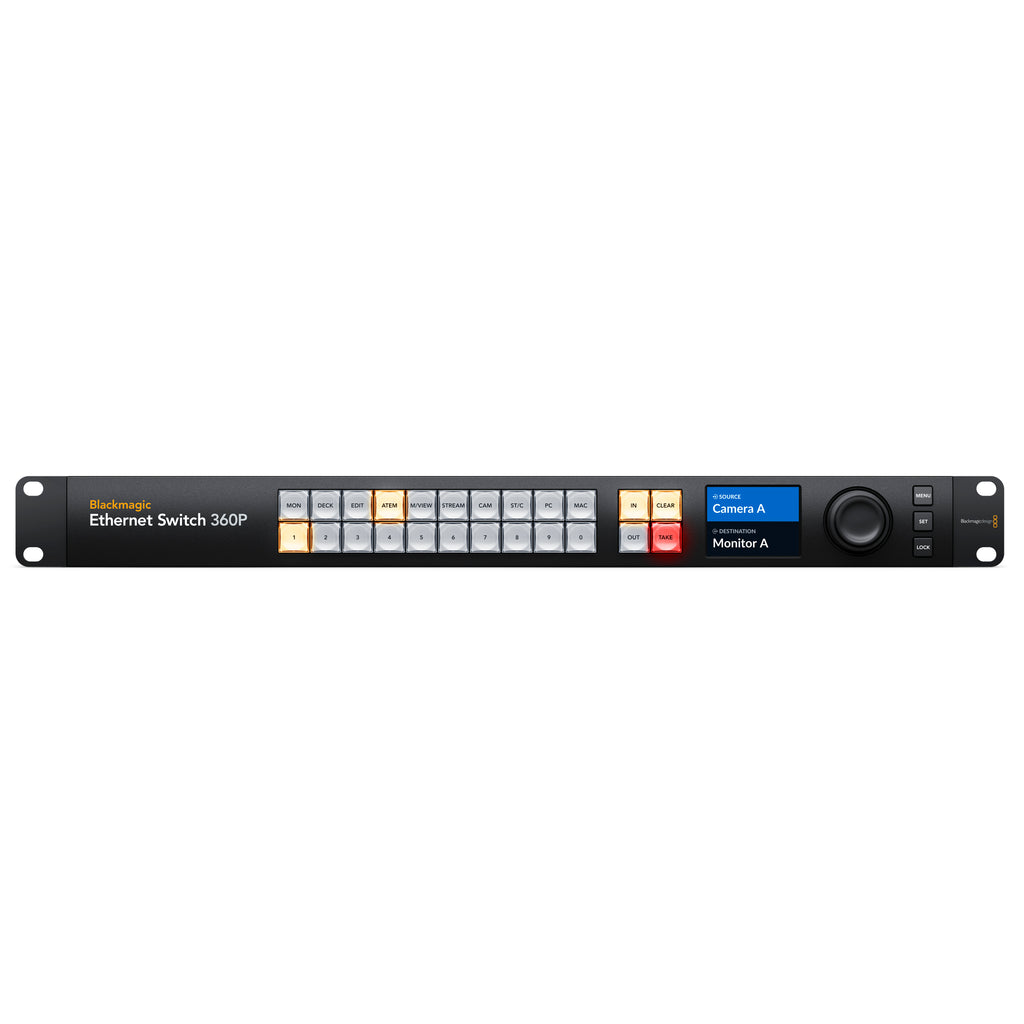

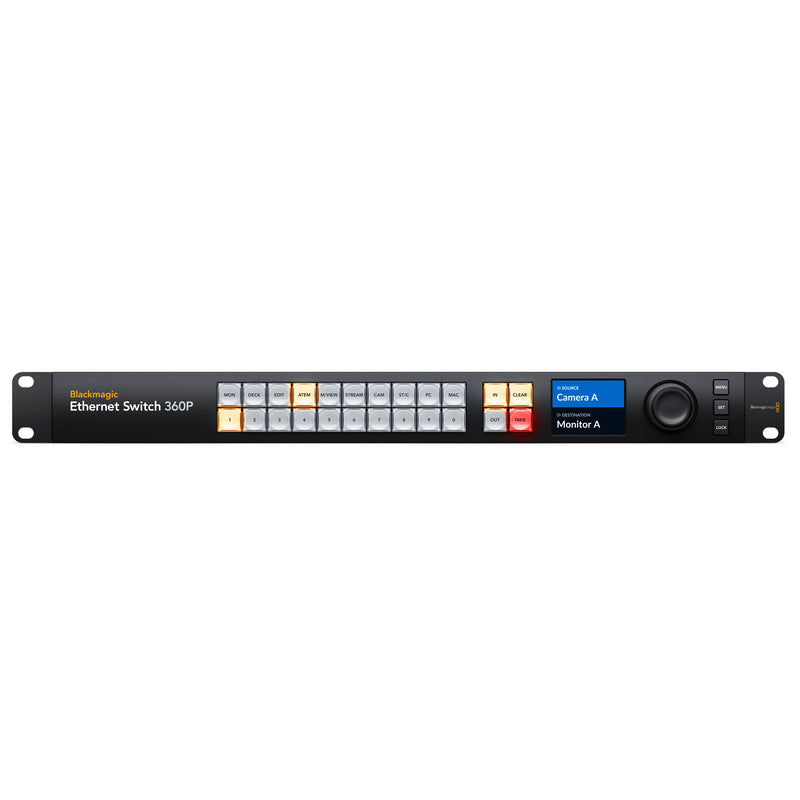

Create self-contained 2110 IP systems thanks to the router control panel. It's the same familiar front panel as our Videohub routers, with a metal spin knob, colour LCD, and shortcut buttons. Just scroll through IP video sources and press the take button to connect. The Blackmagic Ethernet Switch 360P automatically configures multicast settings in the background, with new devices appearing in the list as they're connected.
The built-in front control panel allows you to route video and automatically handles 2110 IP multicast settings, eliminating the need for external computers or IT setup. Similar to a Blackmagic Videohub router, it features a spin knob for browsing, direct entry buttons for quick access, and an LCD to display labels and adjust settings.
The Blackmagic Ethernet Switch 360P features an HDMI output that displays the status of each Ethernet connection on any HDMI TV or monitor. It shows link speed, data transfer speed, and a live data graph for each port, helping identify bandwidth issues or data stalls, especially during multiple recording streams. The monitor output also shows the switch’s custom name and connected 2110 IP device names.
Please note, this particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 10-14 working days to be delivered, but please note this is subject to change.
| Connections | |
| 10G Ethernet Ports | 16x 10Gb/s RJ‑45 connectors supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
| 100G Ethernet Ports | 2x 100Gb/s QSFP connectors supporting 10/100/1000/10G/100G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
| SDI Monitor Outputs | 1 |
| HDMI Monitor Outputs | 1 |
| Computer Interface | USB‑C |
| IP Video Compliance | |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2), ST 2059‑1, ST 2059‑2 |
| NMOS IS-04 Discovery and Registration | v1.3.2, Peer-to-peer via mDNS/DNS‑SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP‑002‑01 | Natural Grouping |
| NMOS BCP‑004‑01 | Receiver capabilities |
| Displays | |
| SDI Monitor Out Standards | 1080p50, 1080p59.94, 1080p60 |
| HDMI Monitor Out Standards | 1080p50, 1080p59.94, 1080p60 |
| Monitor Out Displays | Device Name, network connections, network activity. |
| Front Panel Display | Built in 2.2 inch LCD for video and menu settings. |
| Control | |
| Built in Control Panel | 24 buttons for local control of Blackmagic Ethernet Switch 360P with 3 buttons and search dial for video and menu settings menu control. 2.2 inch colour display. |
| Software | |
| Software Control | Internal Software Upgrade Via included updater application |
| Operating Systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11. |
| Other Specifications | |
| Power Supply | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| Power Inputs | 1 x IEC C14 mains input. 1 x 4-pin XLR +12V DC input. |
| Physical Installation | 1 rack unit |
| Dimensions | 482mm x 236mm x 44mm |
| Weight | 2.92kg |
| Operating Temperature | 5° to 40° C (41° to 104° F) |
| Storage Temperature | ‑20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non‑condensing |
| Manufacturer Code | DWCSWA/MODC360P |
