Swit

FM-215HDR 21.5 inch 1000nits 12G-SDI HDR QD-LED Field Monitor

SKU: SWI-FM-215HDR

£1,998.99

Tax included. Shipping calculated at checkout.

  • Stock Available, Delivery Due in 3-7 Working Days
Add Accessories:
£109.99
£171.99
£739.99
Your Total:
  • Stock Available, Delivery Due in 3-7 Working Days
  • Verified Secure Shopping

The SWIT FM-215HDR 21.5-inch HDR Field Monitor features a 1920×1080 Full HD LCD panel. Its LED backlight and a maximum brightness of 1000 nits, which makes it bright enough to be used outdoors. It has a contrast ratio of 1000:1 and a wide viewing angle of 178° enabling you to get an accurate full-colour experience, no matter where you are viewing the monitor from. Perfect for use in Broadcasting and Film Production.

21.5” Field Production Monitor 4K inputs, 1000nits, HDR, Multi-view

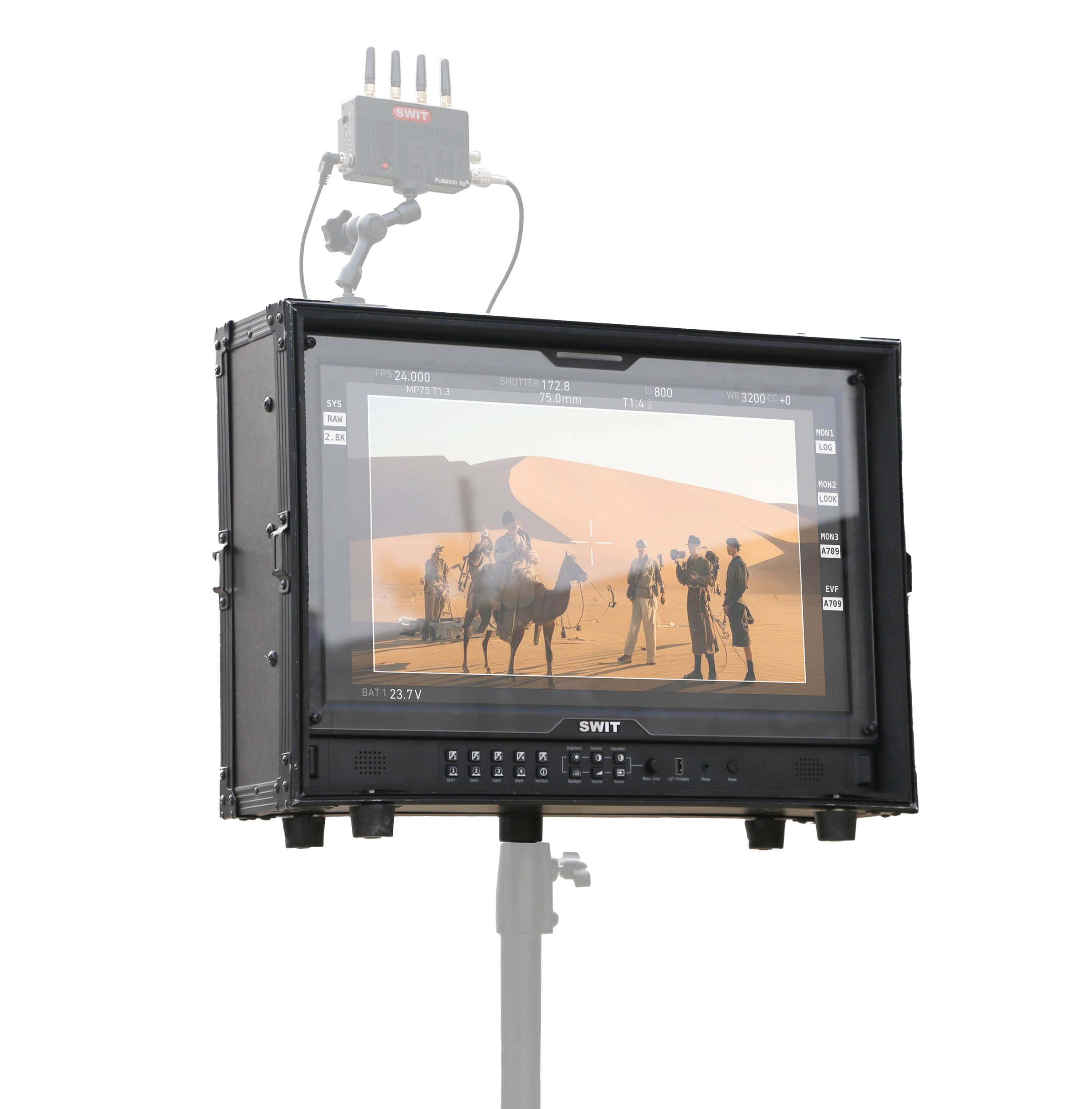

FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for a film set or live streaming productions, go with a flight case, and screen protector and could be installed on a C-stand for convenience field video productions.

SWIT FM-215HDR 21.5-inch HDR Field Monitor

1,000nits Sunlight View HDR

The SWIT FM-215HDR monitor uses an advanced Quantum Dot LED (QD-LED) panel, with a brightness of  1000nits, making it bright enough to be easily viewable, even in outdoor sunlight. It also supports PQ/HLG/S-log3 HDR monitoring.

SWIT FM-215HDR 21.5-inch HDR Field Monitor

All 4K Input Interfaces

The Swit FM-215HDR 21.5-inch field monitor supports various 4K video inputs, including the following:

  • 12G-SDI 4K in and out
  • 4× 3G-SDI Quadlink 4K input
  • HDMI® 2.0 4K input
SWIT FM-215HDR 21.5-inch HDR Field Monitor

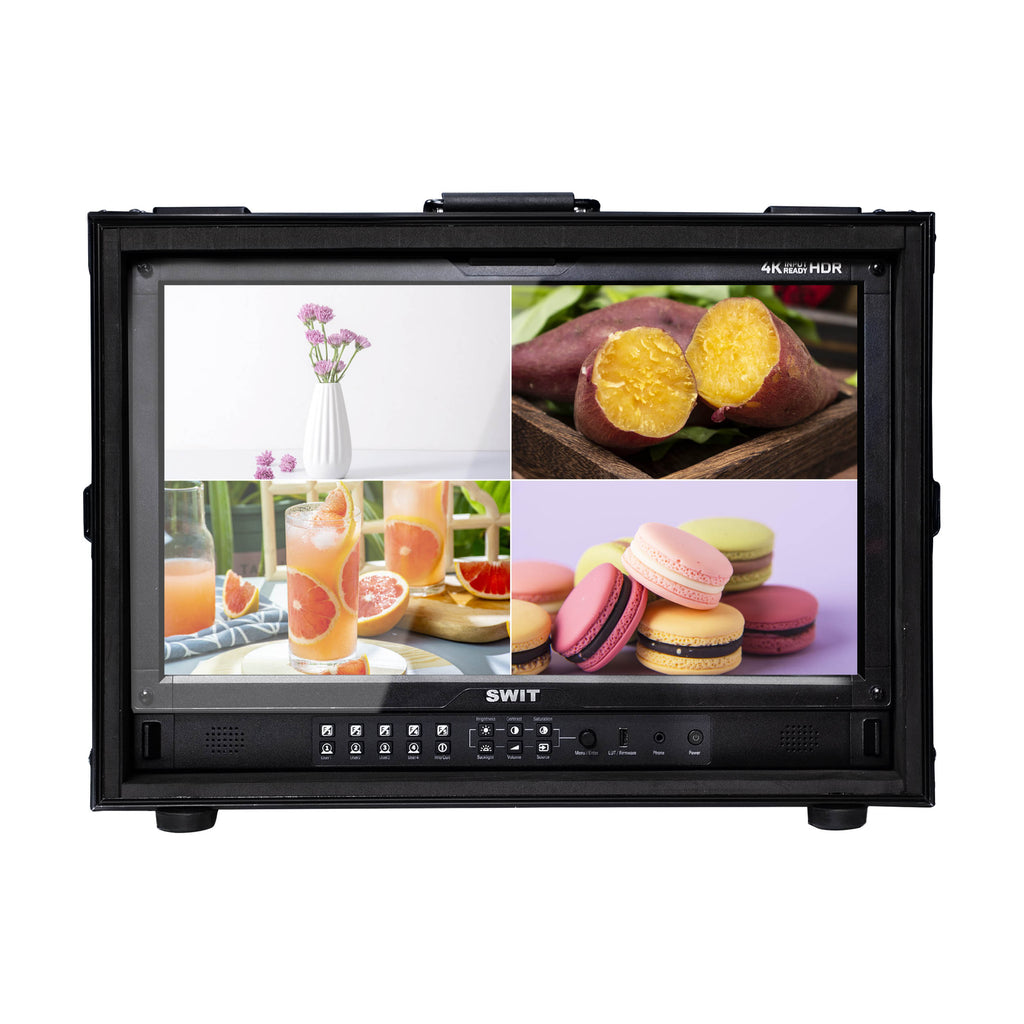

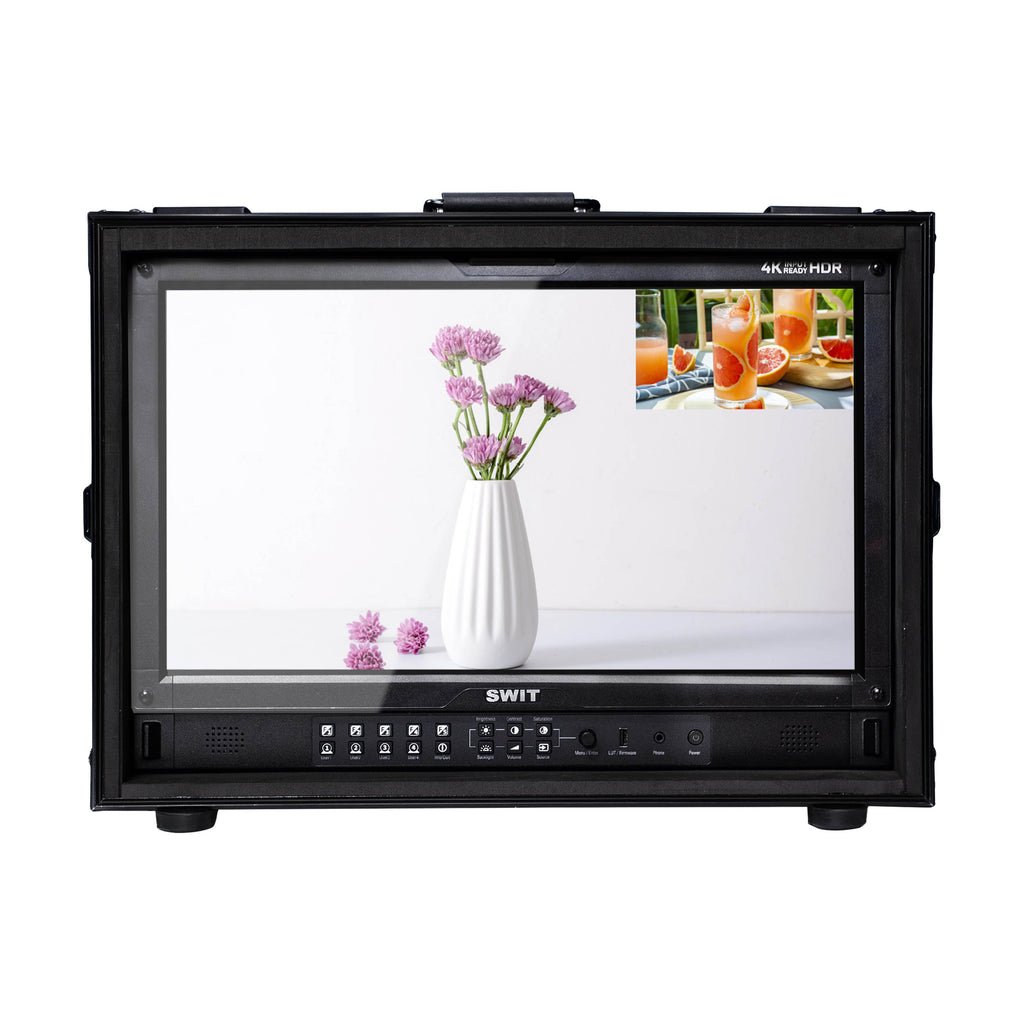

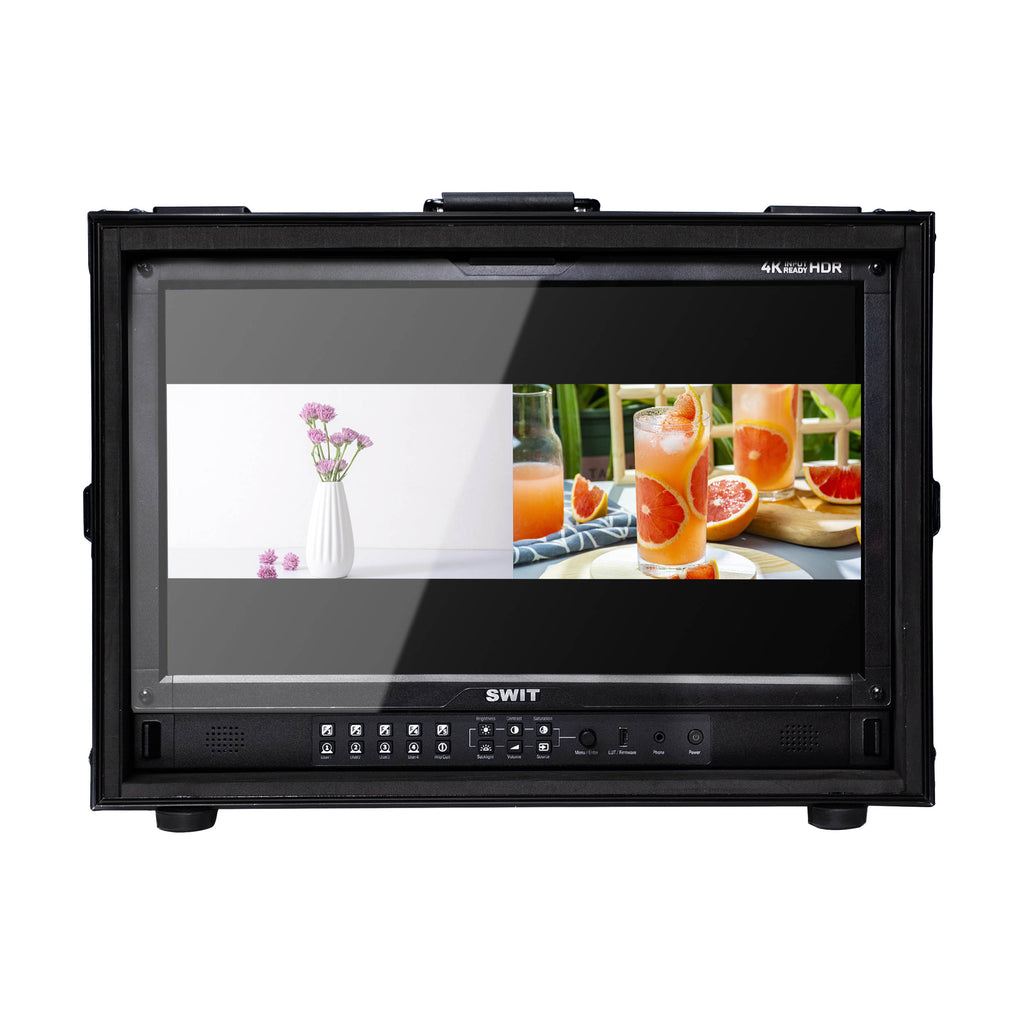

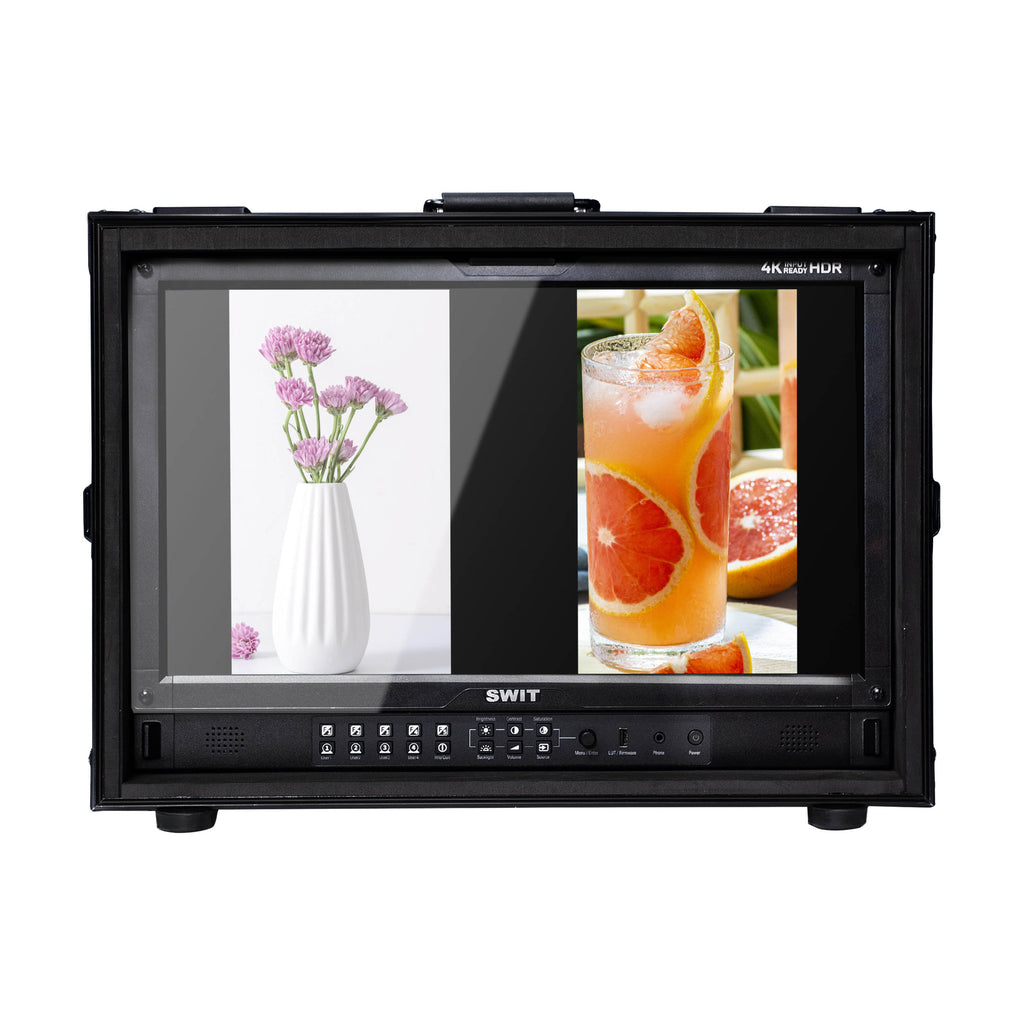

Multiview Display Mode

supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, and colour gamut independently for each input.

SWIT FM-215HDR 21.5-inch HDR Field Monitor

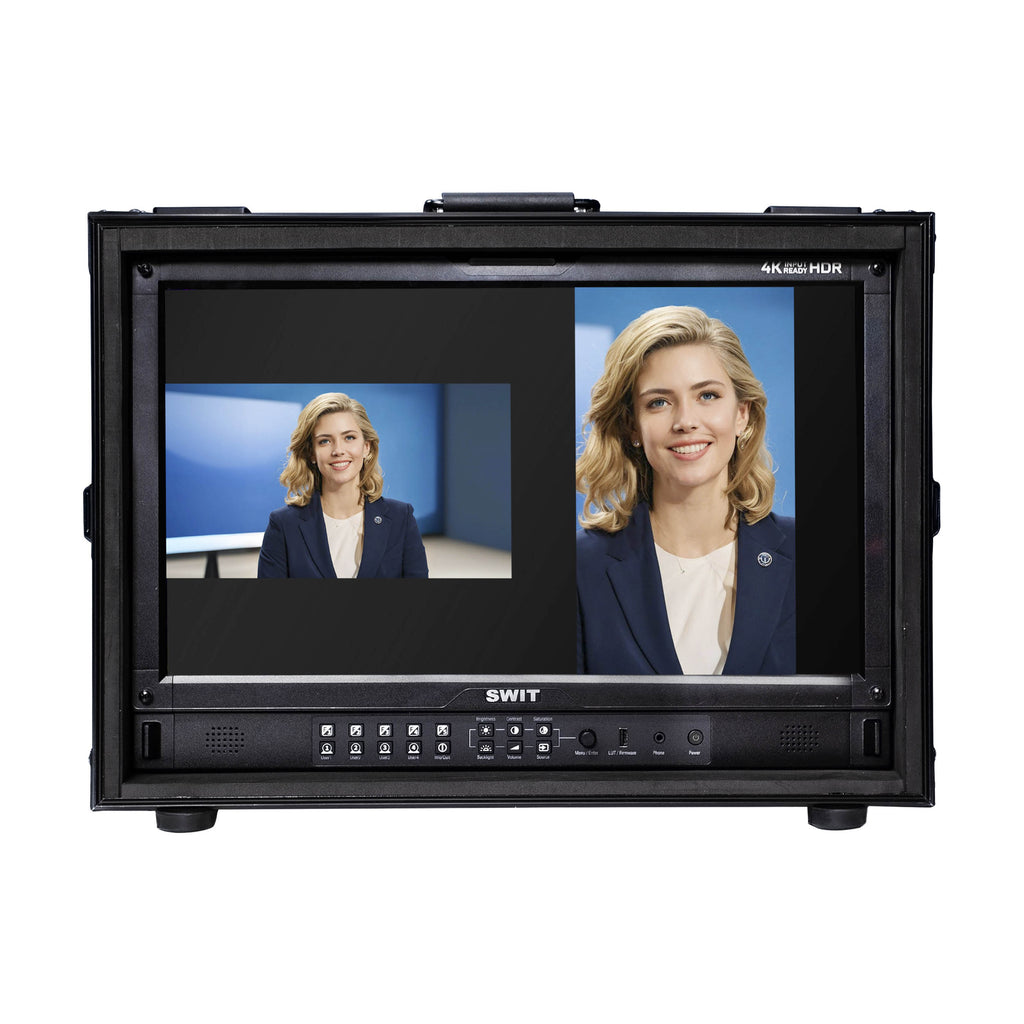

H/V Multi-platform Livestreaming View

1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform live streaming productions.

SWIT FM-215HDR 21.5-inch HDR Field Monitor

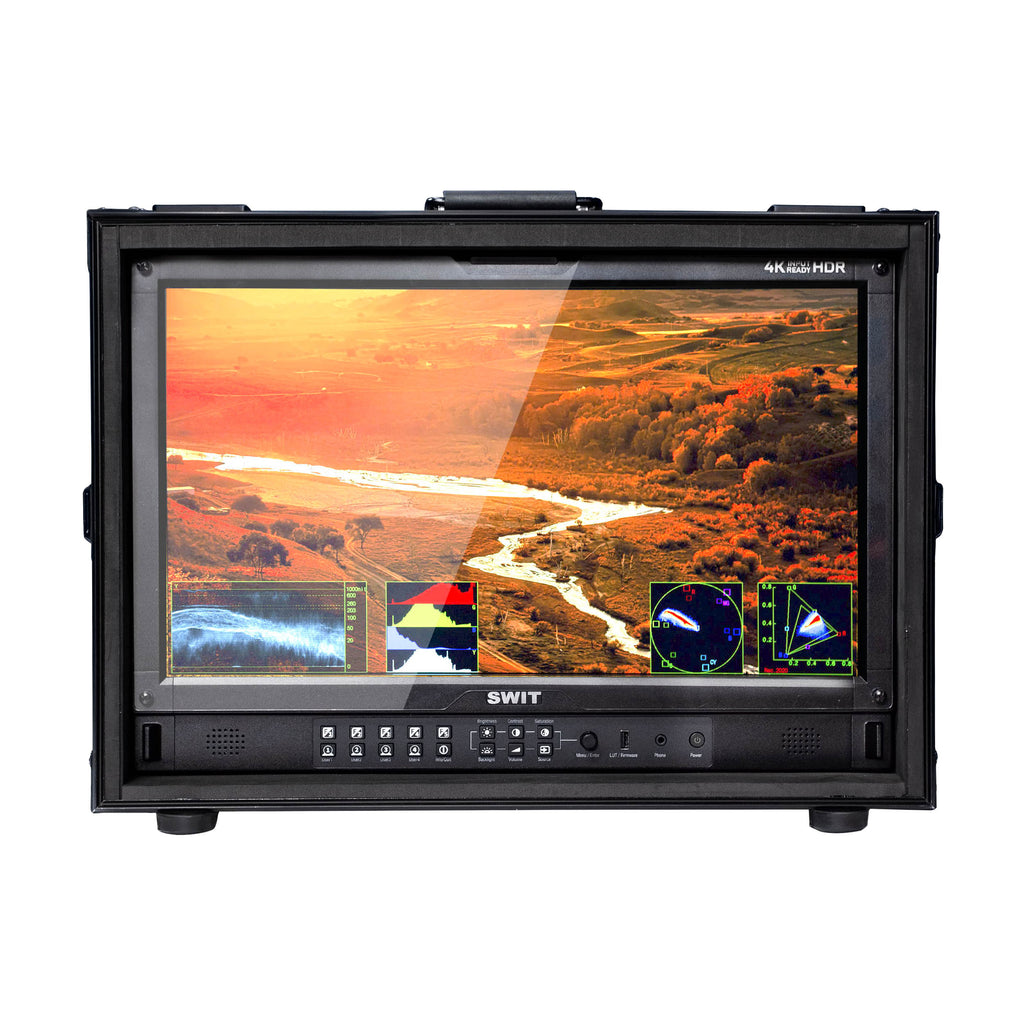

Multiple Video Analysis Patterns

SWIT FM-215HDR 21.5-inch HDR Field Monitor

Go with Flight Case

The FM-215HDR monitor is shipped with a strong aluminium flight case, for all-around protection on a film set.

SWIT FM-215HDR 21.5-inch HDR Field Monitor

Equipped with Screen Protector

The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

SWIT FM-215HDR 21.5-inch HDR Field Monitor

2× Top Cheese Boards

On the top of the flight case, 2× cheese boards are provided to install accessories like a wireless video receiver, with multiple 1/4” and 3/8” screw threads.

Optional VESA to C-stand Bracket

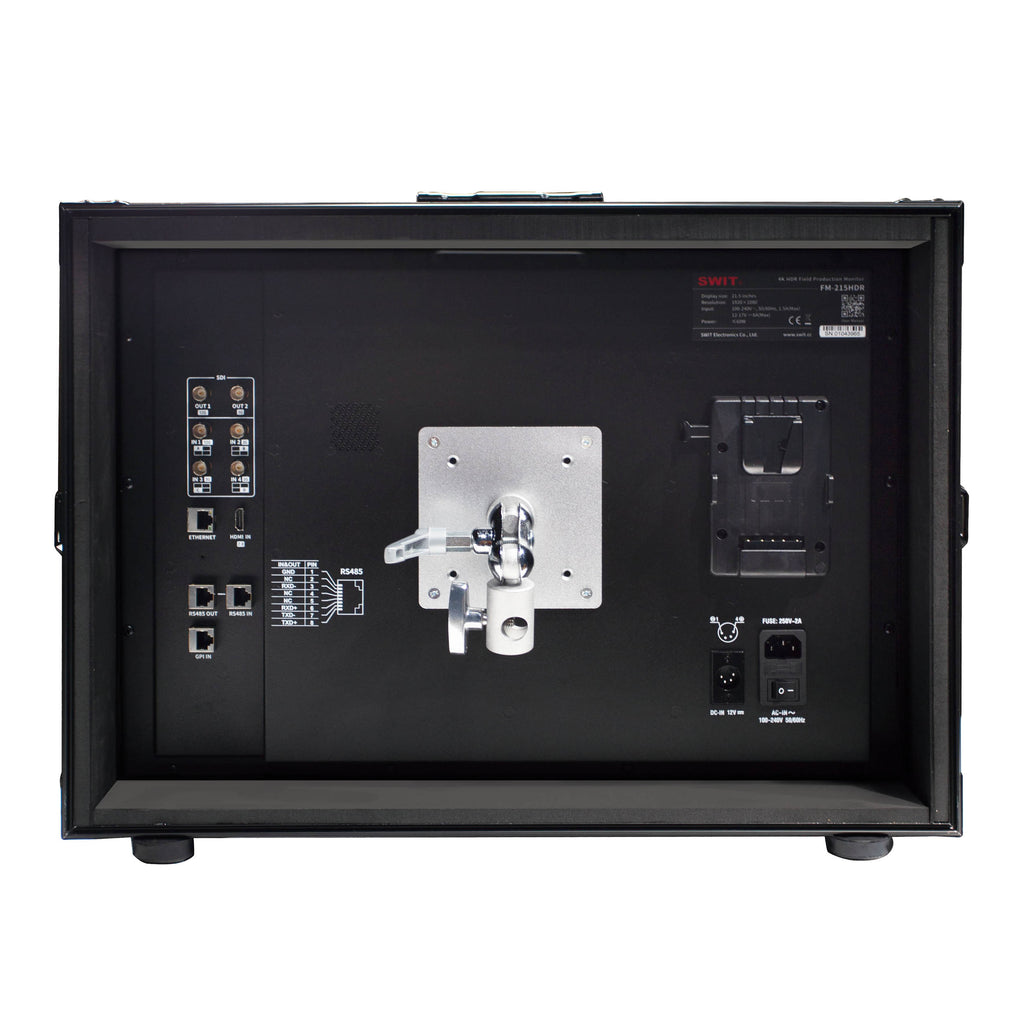

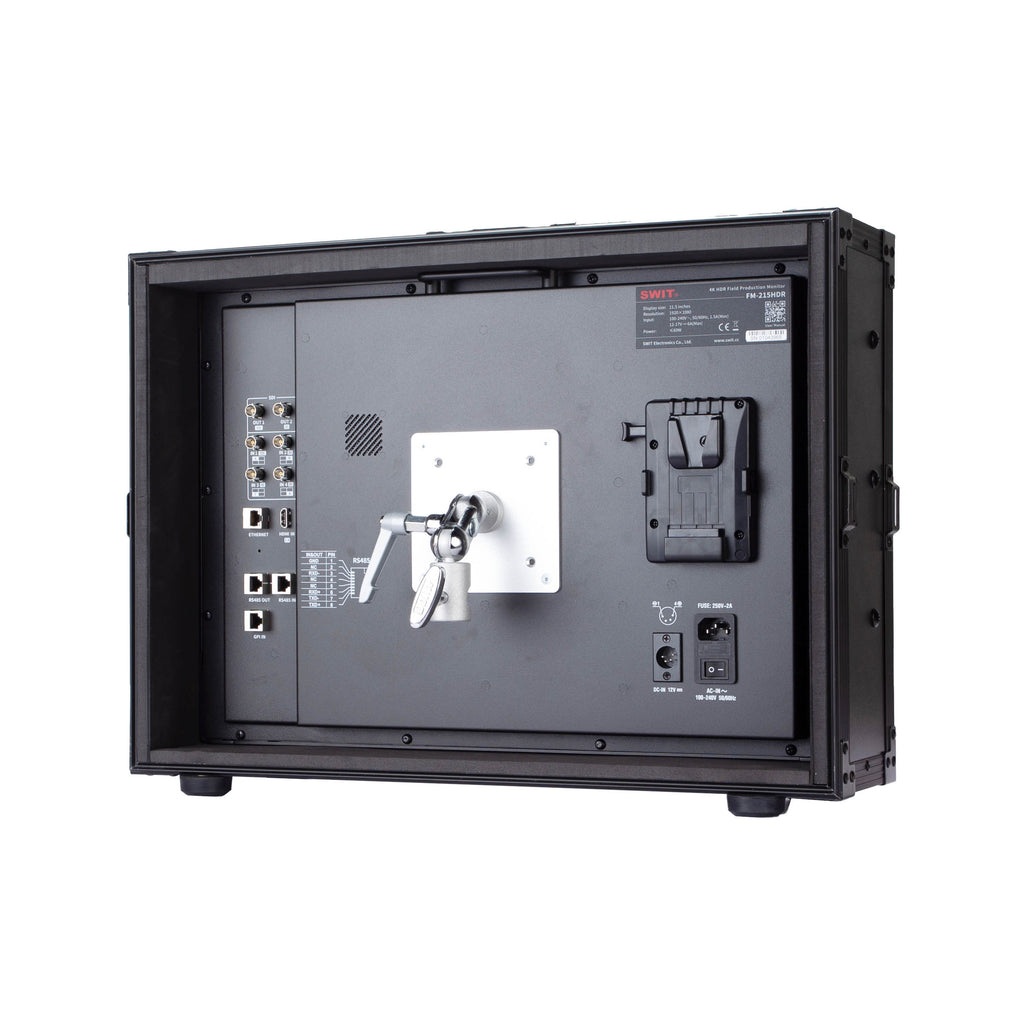

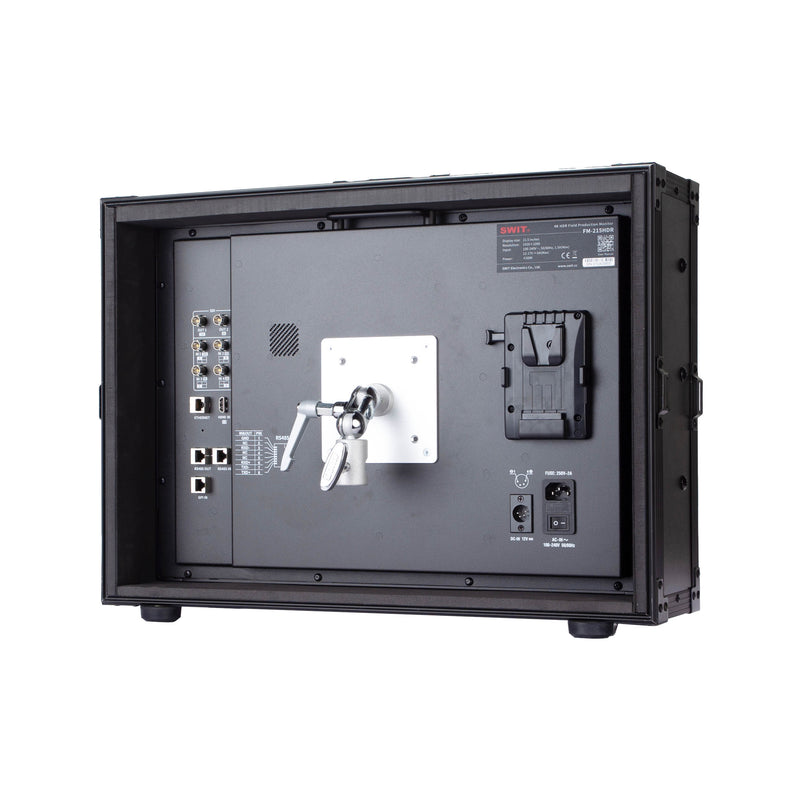

The monitor comes with a standard 10×10 VESA mount and provides VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket.

SWIT FM-215HDR 21.5-inch HDR Field Monitor
Please note, from 4th September 2024, due to the unique design & packaging of this product, this item will feature a 14-day return Period if it remains unopened & in its sealed packaging. Once this item has been unsealed and opened, it is no longer covered by our returns policy.

Features

  • 21.5-inch 1920×1080 QD-LED Panel
  • 1000nits high bright PQ/HLG HDR
  • 100% DCI-P3 wide color gamut coverage
  • VICO 1.97 A-class Eye Protecting LCD
  • 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
  • 4-ch SDI/HDMI® mixed formats multiview
  • Any 2 inputs mixed PBP or PIP view
  • Horizontal and Vertical (cropped) PBP view
  • Zero latency video processing (0.01frame)
  • 3D LUT Auto Self-calibration without PC
  • Built-in Multi-camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Focus assist / False colour / Zebra
  • With flight case and screen protector
  • Optional VESA to C-stand adaptor

What’s In the Box

  • 1x FM-215HDR Field Monitor
  • 1x Aluminium Flight Case

Specifications

Display

Panel typeQD-LED
Size21.5 inches
Display area476×268mm
Resolution1920×1080
Aspect ratio16:9
Brightness1000nits
Contrast1000:1
Color depth10-bit
Signal process18-bit
Viewing angle178°(H) /178°(V)



Input

BNC ×112G/6G/3G/HD/SD-SDI input
BNC ×33G/HD/SD-SDI input
HDMI® ×1HDMI® 2.0 input
RS485 ×1TSL 3.1/4.0 UMD input
RS485 ×1GPI (Tally) input
RJ45 ×11000M Ethernet input for Webserver IP control



Output

BNC ×112G/6G/3G/HD/SD-SDI loop output
BNC×13G/HD/SD-SDI loop output
RS485 ×1TSL 3.1/4.0 UMD output
Analog audio3.5mm headphone and speaker



Video Format

SDI 14096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
SDI 2/3/42048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
Quad Link 4K (Each channel)2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)



General

Input voltageDC 12V-17V, AC 100-240V, 50/60Hz
Power consumption60W
Working temperature0°C~+50°C
Working humidity10%~90%
Storage temperature-15°C~+60°C
Storage humidity10%~90%
Dimensions570×405×260mm (with case)
Net weight (main body)14kg (with case)
