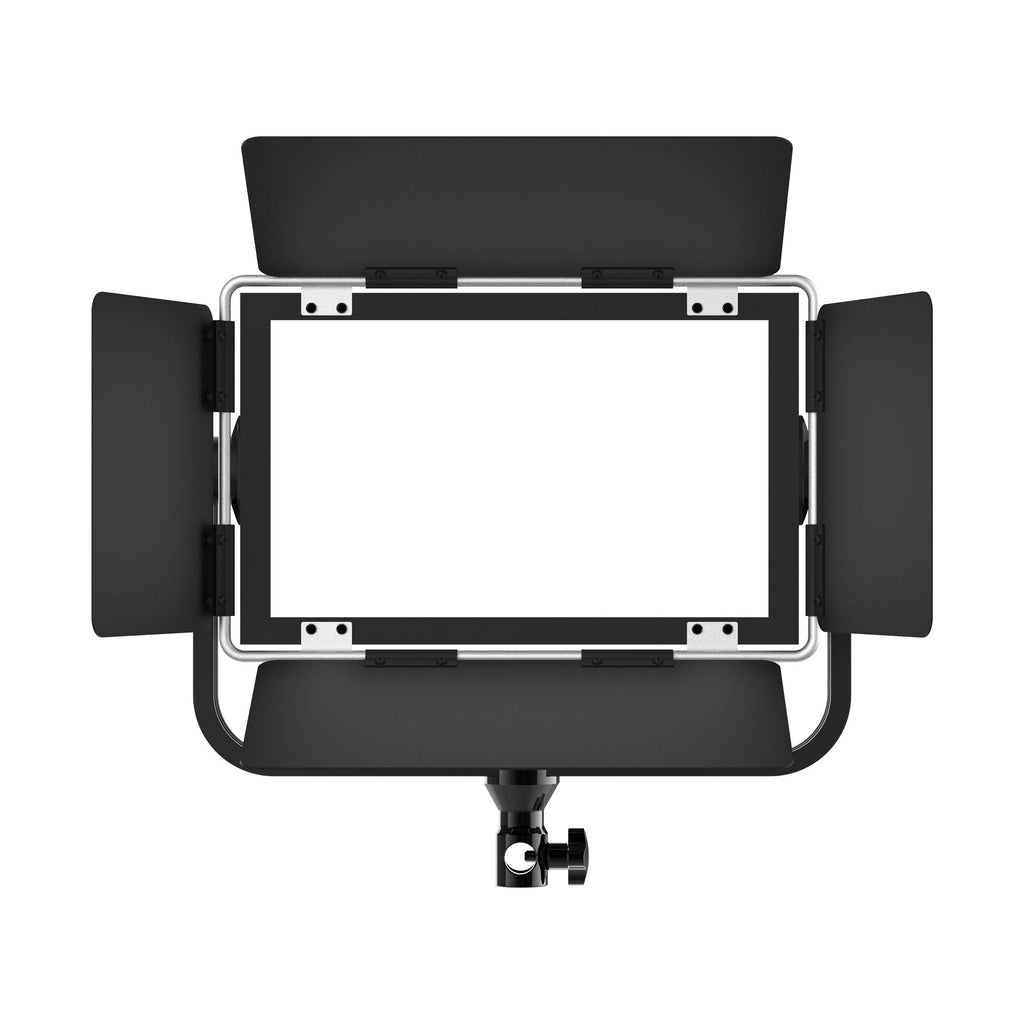

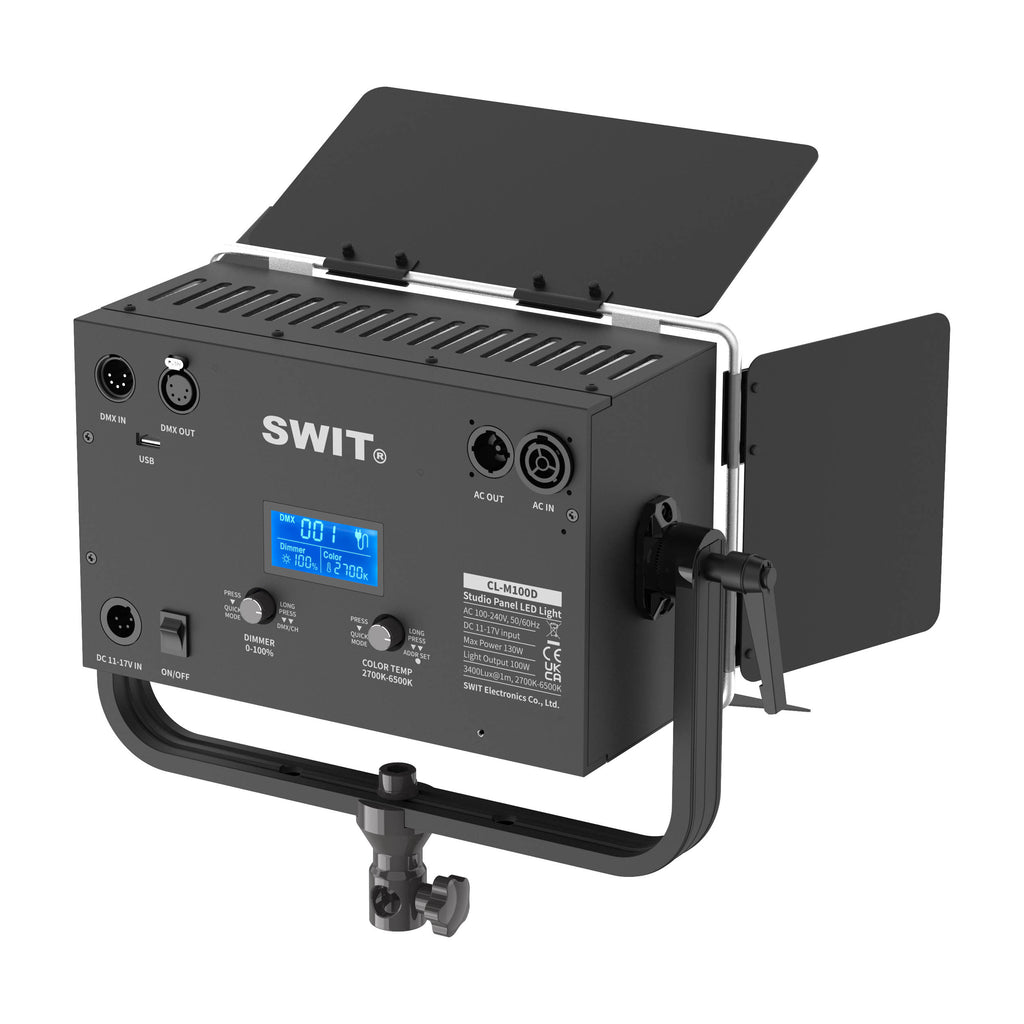

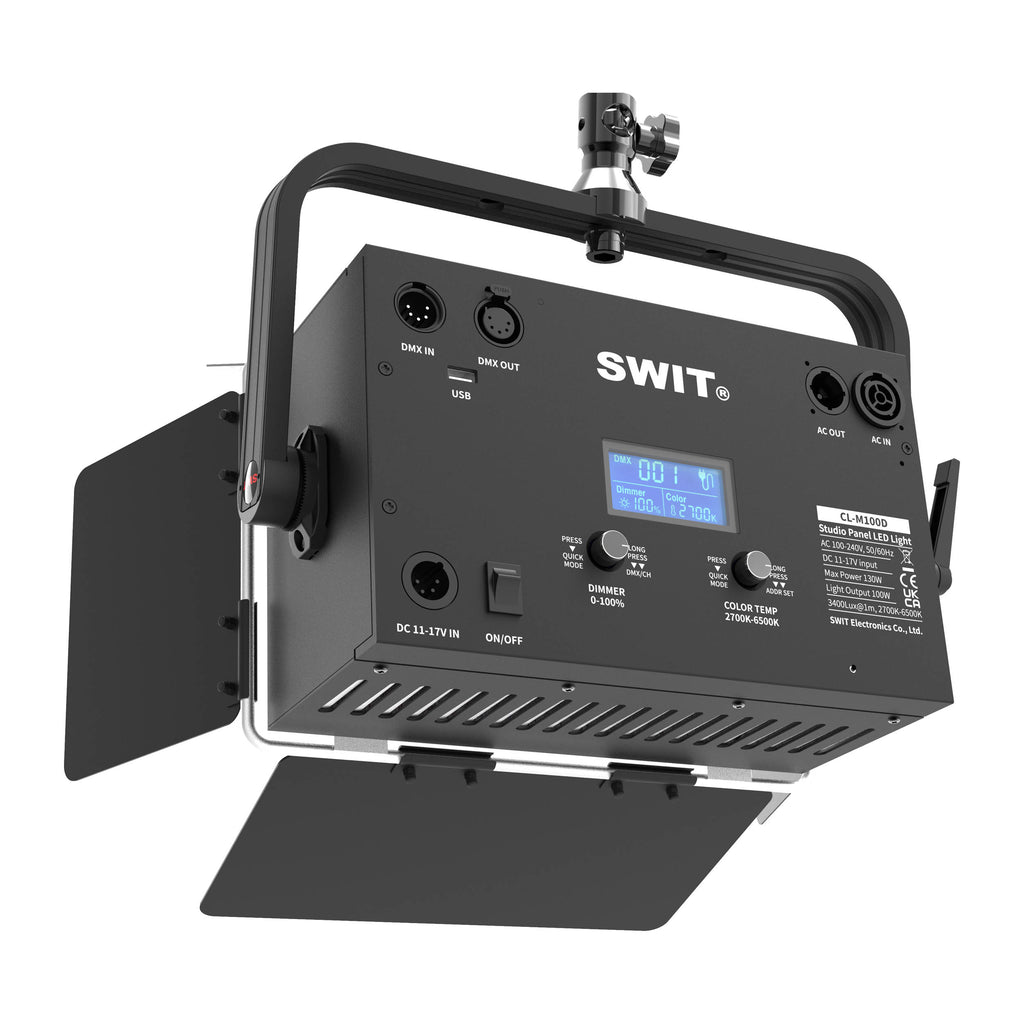

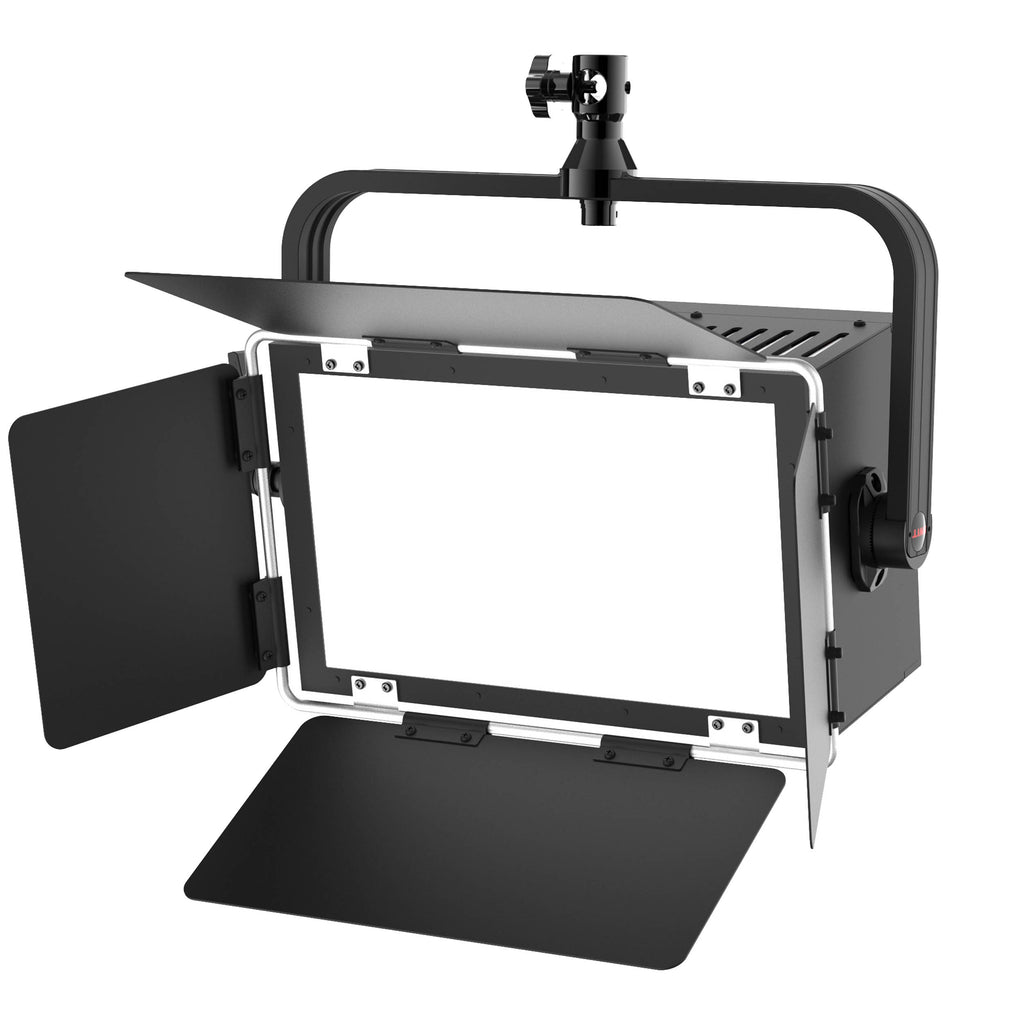

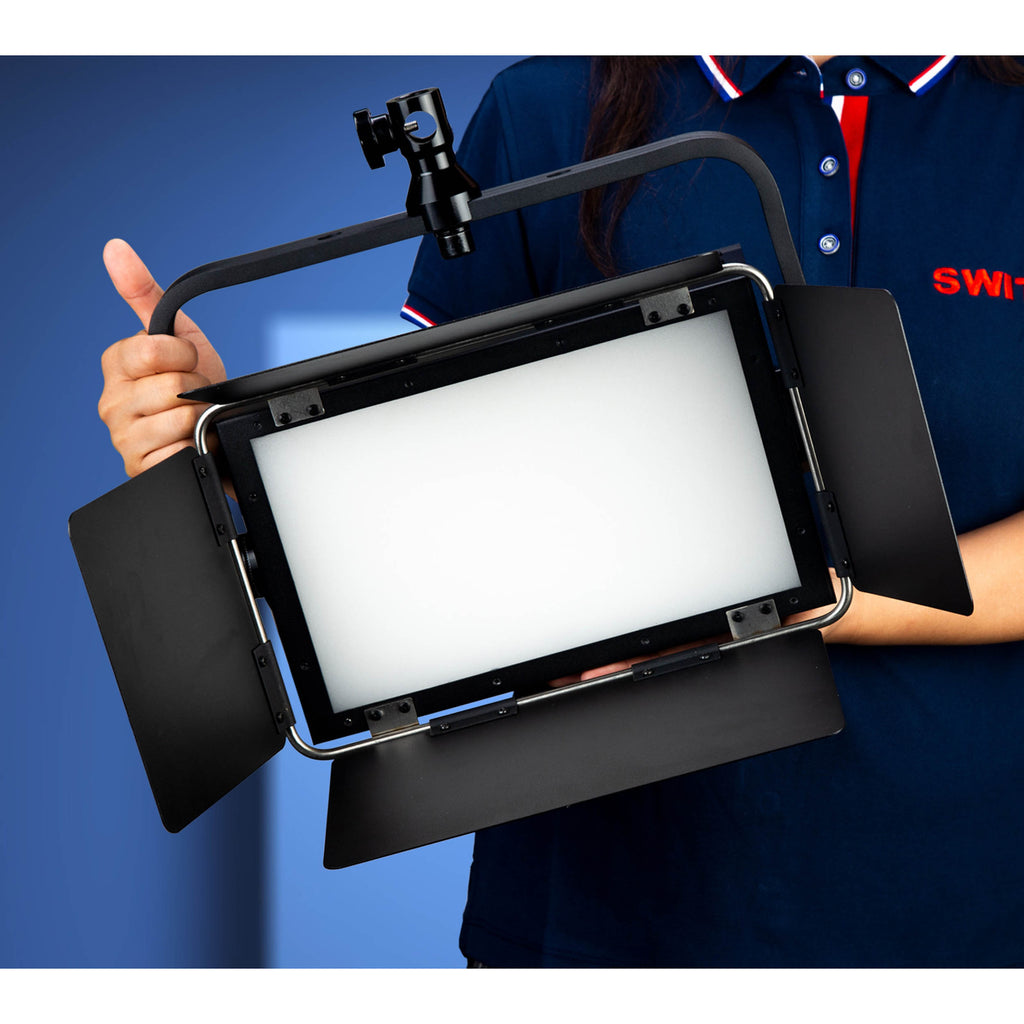

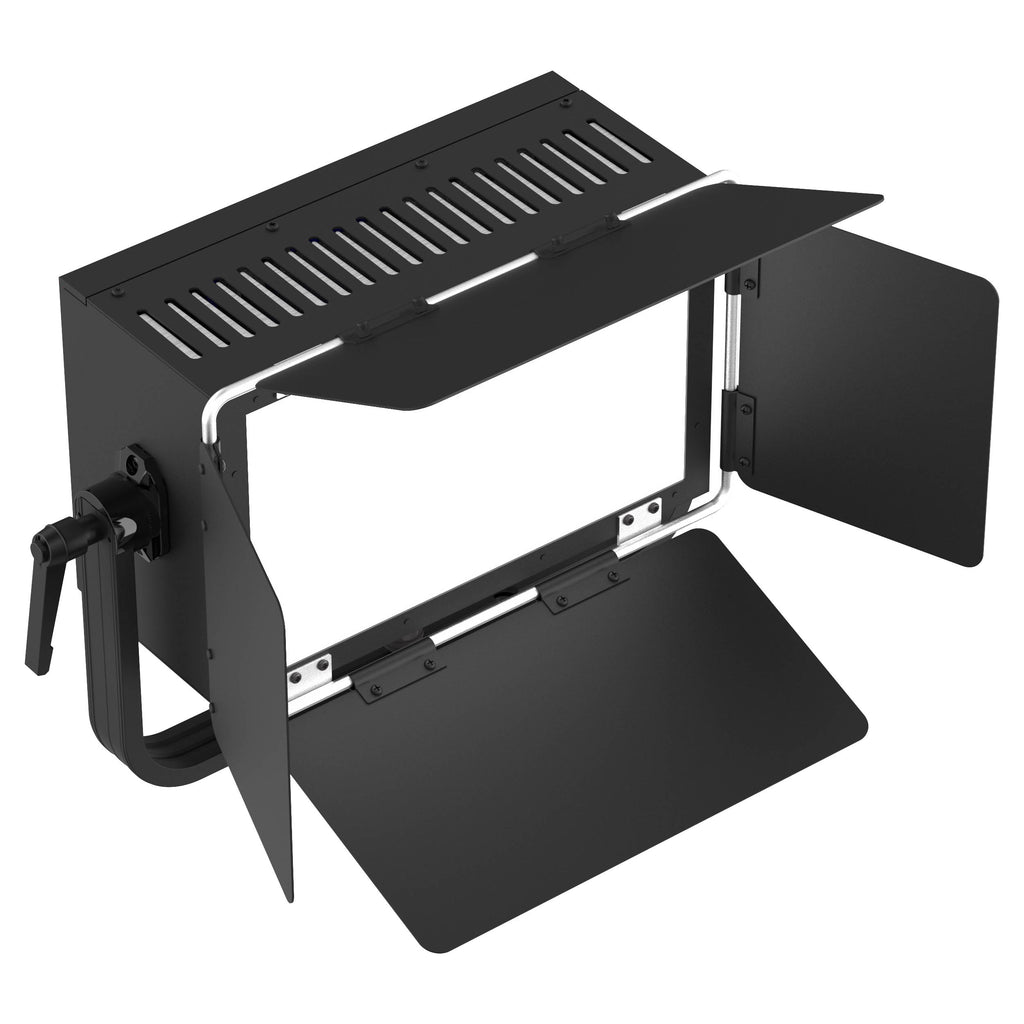

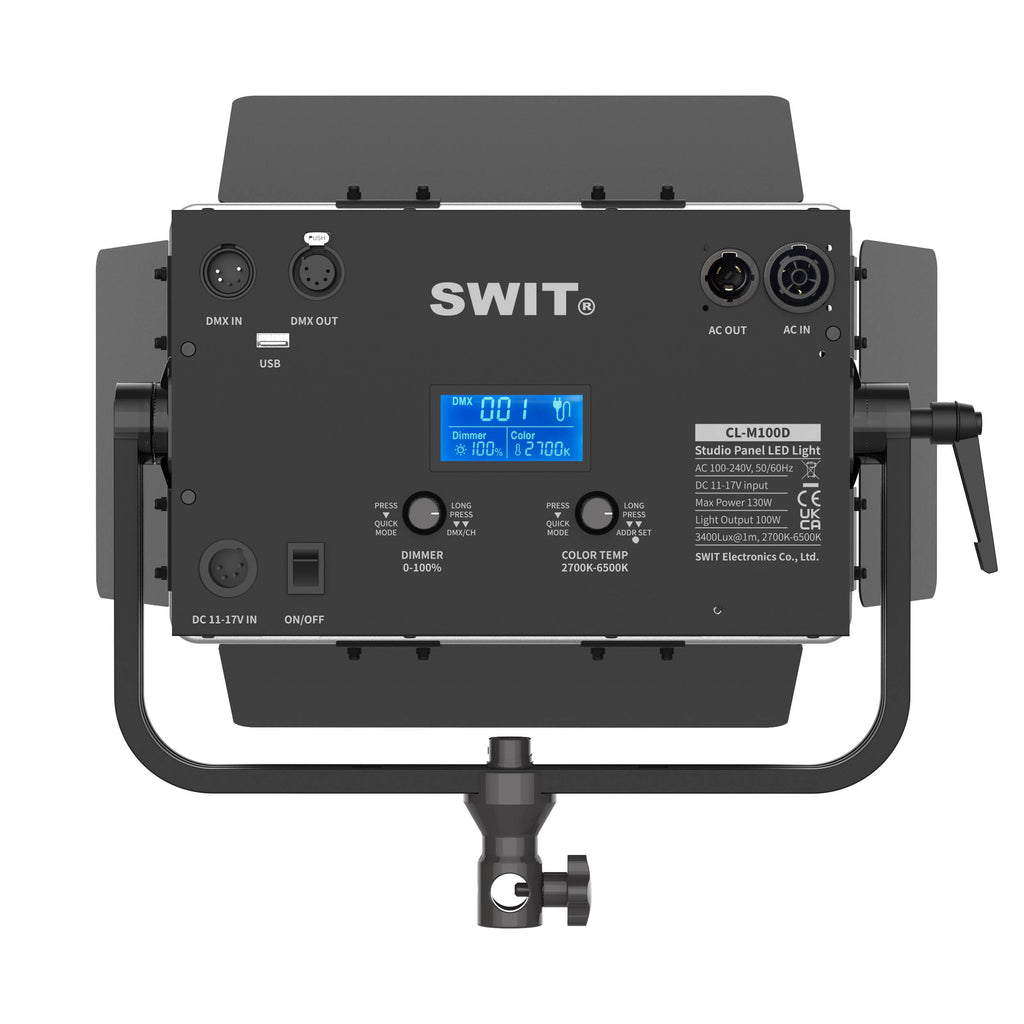

SWITCL-M100D 100W Mini Size Studio SMD LED Light

The CL-M100D is a compact 100W bi-colour SMD LED panel designed for professional video, broadcast, live streaming, theatre, and film production. Built for environments where space is limited, it delivers high-output, soft, and consistent lighting while remaining completely fanless for silent operation.

With 576 surface-mounted LEDs, the CL-M100D produces smooth, even illumination with excellent colour accuracy. Its bi-colour range from 2700K to 6500K allows fast adaptation between warm and daylight-balanced lighting without gels, making it suitable for mixed lighting environments and controlled studio setups.

Despite its small form factor, the unit delivers strong output and professional control options including DMX512, onboard LCD monitoring, and flexible AC or DC powering for studio or location work.

Who this is for

Ideal for cinematographers, broadcasters, content creators, and studio teams who need a compact, silent LED panel with accurate colour reproduction and full remote control capability. Particularly effective in low-ceiling studios, tight sets, and green screen environments.

At a glance

• 100W bi-colour LED panel (2700K–6500K)
• 576 SMD LEDs for smooth, even output
• 3400 lux @ 1 metre
• CRI 98 / TLCI 99 for accurate colour rendering
• Fanless design for silent operation
• 62° half-peak beam angle
• 0–100% flick-free PWM dimming
• DMX512 control with in/out connectivity
• PowerCON TRUE1 AC input/output loop support
• 4-pin XLR DC input for battery operation
• LCD display for real-time settings and status

How it works / component breakdown

The CL-M100D uses two LED arrays (warm 2700K and cool 6500K) combined to deliver smooth bi-colour mixing across the full range. The output is controlled via onboard knobs, LCD interface, or external DMX512 systems for integrated lighting control.

A fin-based passive cooling system eliminates the need for fans, allowing silent operation while maintaining consistent performance at full 100W output.

Power flexibility includes standard AC via PowerCON TRUE1 connectors or DC input via 4-pin XLR when used with compatible battery systems.

Why choose this product or kit

This panel is designed for productions that require clean, accurate light without noise interference. The high CRI and TLCI ratings ensure natural skin tones and reliable colour reproduction for camera work, while the compact form factor makes it easy to rig in restricted spaces.

The combination of DMX control, onboard display, and flexible power options makes it suitable for both fixed studio installations and mobile production setups.

Ideal uses

• Broadcast and studio lighting
• Green screen and chroma key setups
• Live streaming and content creation
• Film and interview lighting
• Theatre and stage applications
• Low-ceiling or tight space rigs

FAQs

Does it make any noise?
No. The unit is fully fanless and operates silently.

Can it run on batteries?
Yes. It supports 11–17V DC input via 4-pin XLR with compatible battery plates and D-tap cables.

Is it suitable for broadcast work?
Yes. High CRI 98 and TLCI 99 make it suitable for professional broadcast and studio environments.

Can it be controlled remotely?
Yes. It supports DMX512 with in/out and group control functionality.
