The SWIT CL-M100C is a compact 100W RGBW SMD LED panel designed for professional broadcast, film, live production and theatre environments. Built in a mini 1:1/2 form factor, it is especially suited to low-ceiling studios and space-restricted rigs where full-size fixtures are impractical.
Despite its small footprint, it delivers high-intensity output with precise colour control, fanless silent operation, and advanced DMX and app-based control options for flexible on-set integration.
Ideal for lighting designers, filmmakers, broadcasters and live production teams who need a powerful but compact RGBW panel for controlled environments, especially where silence, colour accuracy and space efficiency are critical.
The CL-M100C combines 170 RGB LEDs and 340 white LEDs into a single panel architecture designed to maximise both colour and white-light performance. Unlike standard RGB panels, SWIT’s Time Division Drive technology allows full power allocation to RGB channels, maintaining high brightness even in saturated colour output.

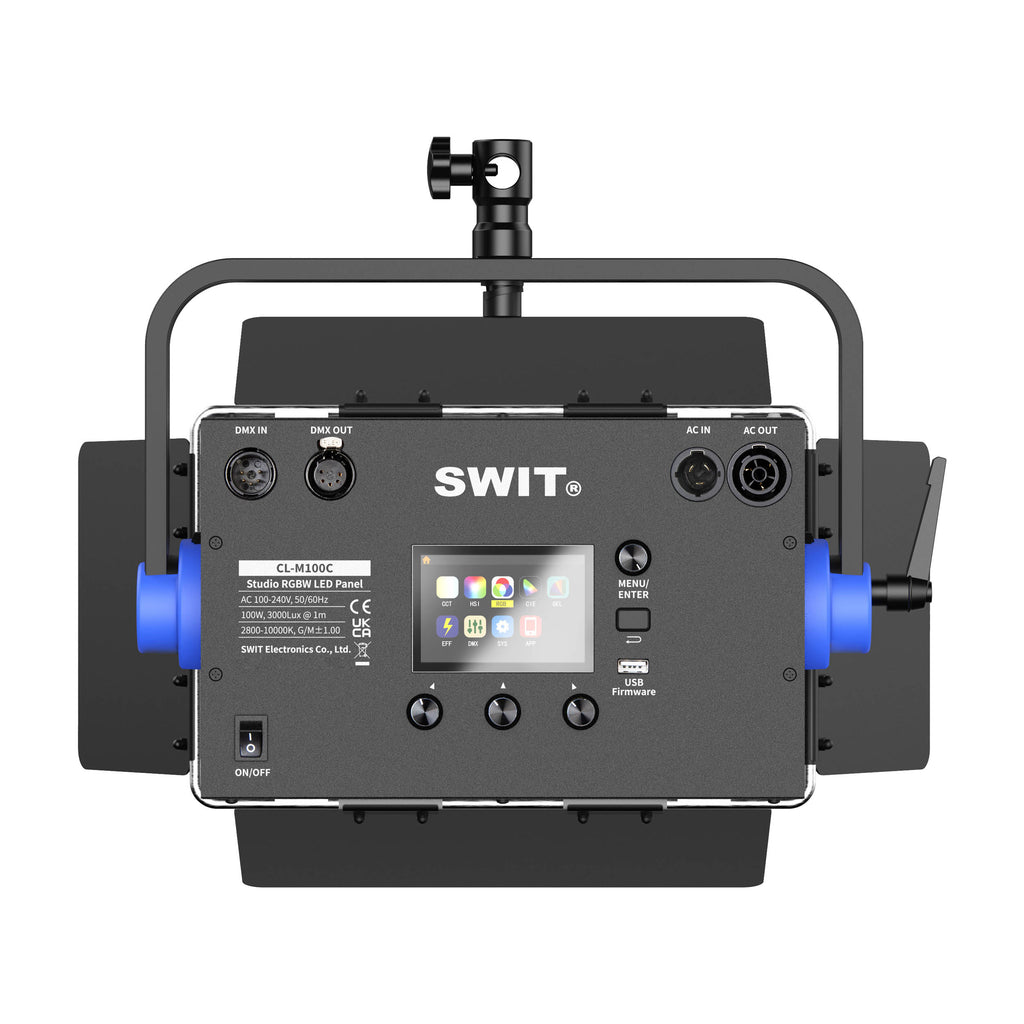

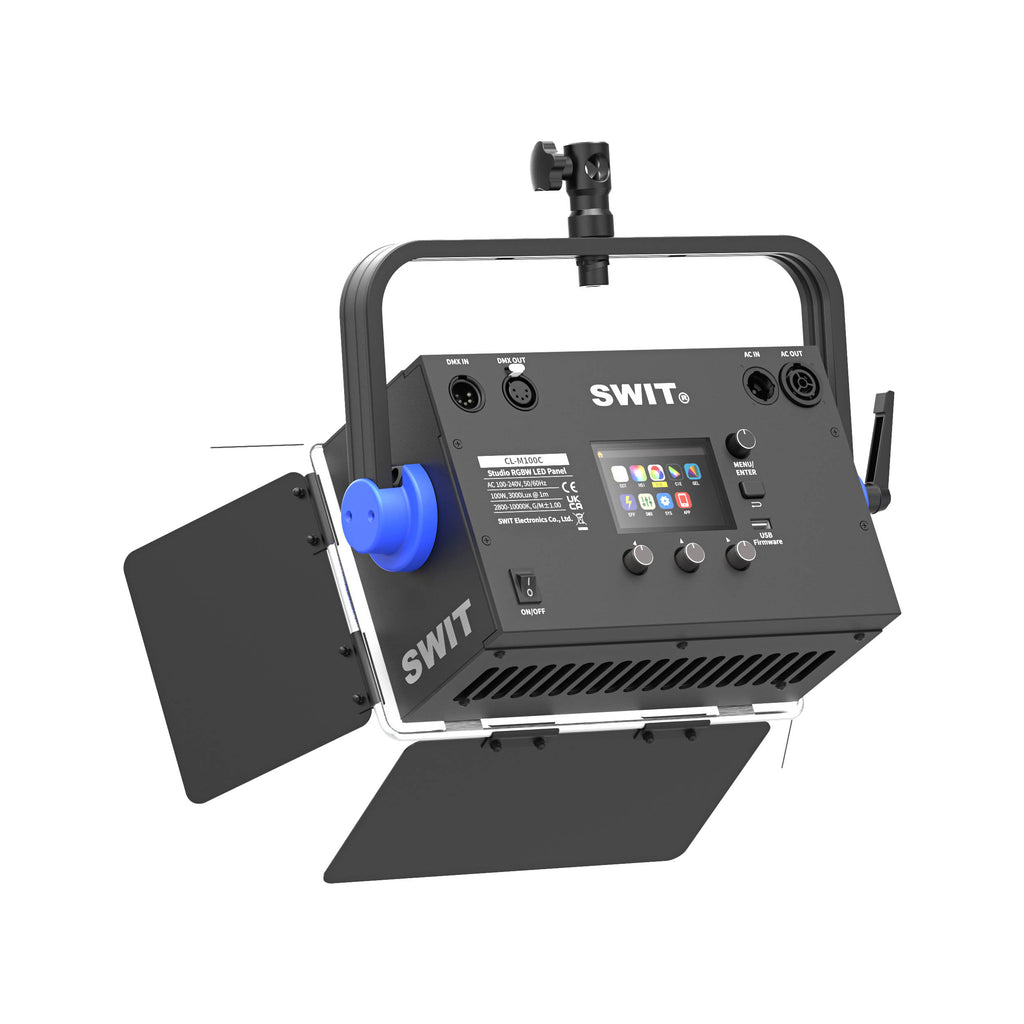

The rear control system includes a 3.5-inch colour LCD interface for direct adjustments, along with DMX512 input/output for integration into professional lighting rigs. Bluetooth control via iOS and Android apps adds remote flexibility for fast on-set changes.

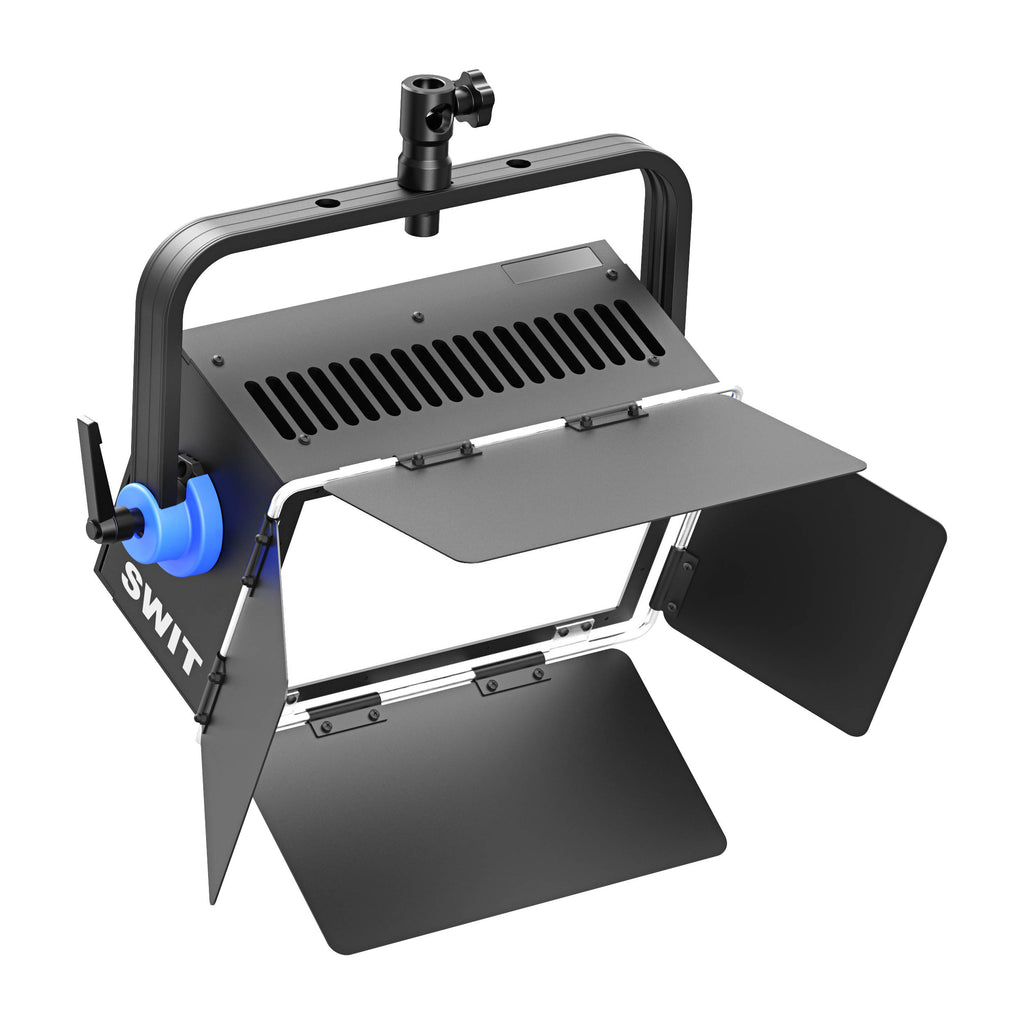

A fin condenser cooling system replaces active fans, enabling silent operation without compromising output.
This panel is designed to solve two common production problems: lack of space and unwanted noise. Its compact housing allows installation in tight studio ceilings or overhead rigs, while the fanless design ensures complete silence during recording.
The Time Division Drive system is a key advantage, maintaining strong colour intensity where traditional RGB panels typically lose brightness. This makes it more consistent for creative colour work, gels and stylised lighting setups.
Does it support professional control systems?
Yes, it supports DMX512 with multiple bit-depth control options for integration into lighting desks and rigs.
Can it be used for colour effects as well as white light?
Yes, it supports RGB, HSI, CIE, GEL and effect modes with built-in gel libraries.
Is it silent during operation?
Yes, the fanless design ensures completely silent performance
| Specification | Details |
|---|---|
| LED | 170pcs RGB + 340pcs W |
| Illuminance | 3000Lux @ 1m |
| Beam Angle | 62° half peak |
| Color Temperature | 2800K ～ 10000K, G/M ±1.00 |
| CRI | 96 |
| TLCI | 93 |
| Power | 100W |
| USB | USB-A power out & firmware update |
| DMX | DMX512, 5pin XLR IN & OUT |
| AC Power | PowerCON TRUE1 AC 100–240V 50/60Hz input & output |
| Dimensions | 275 × 175 × 130mm; Shipping carton 450 × 200 × 370mm |
| Lighting Area | 245 × 146mm |
| Weight | Net 5.1kg; With package 6.75kg |
