SwitS-8082S 95Wh 14.4V V-Mount Battery

The SWIT S-8082S is a compact 14.4V 95Wh V-mount lithium-ion battery designed for professional video cameras and compatible production equipment. Built using twelve 18650 battery cells, it provides 95Wh / 6.6Ah capacity and up to 150W total output, giving it the power required for professional camera setups while maintaining a relatively compact form factor.

SWIT specifies approximately three hours of operation with a typical 30W ENG camera. A built-in D-Tap socket provides an additional power connection for compatible accessories, while four LED indicators make it easy to check remaining battery capacity before or during a shoot.

Who this is for

The S-8082S is designed for camera operators, broadcasters and production crews looking for a compact V-mount battery for professional video equipment. Its combination of 95Wh capacity, 150W total output and D-Tap connectivity makes it suitable for camera rigs where both the camera and additional accessories require portable power.

At a glance

• 14.4V V-mount lithium-ion battery
• 95Wh / 6.6Ah capacity
• Twelve 18650 battery cells
• Up to 150W total output
• Up to 150W / 12A via battery electrodes
• D-Tap output up to 120W / 10A
• Approximately three hours of operation with a 30W ENG camera
• Built-in D-Tap accessory output
• Four-level LED capacity indicator
• Standard Sony V-mount connection
• Metal V-wedge
• Compact 134 × 88 × 52mm design
• 710g net weight
• Multiple circuit protections

How it works

95Wh capacity for professional camera equipment

The S-8082S combines twelve 18650 lithium-ion cells to provide 95Wh / 6.6Ah capacity at a nominal voltage of 14.4V. SWIT specifies approximately three hours of operation when powering a typical 30W ENG camera, providing a useful indication of expected runtime in a conventional camera application. Actual runtime will depend on the power consumption of the connected equipment.

Up to 150W total output

The battery supports up to 150W total output, with the main battery electrodes rated for up to 150W / 12A. This higher power capability makes the S-8082S suitable for professional camera systems and associated equipment requiring more than basic low-power battery operation.

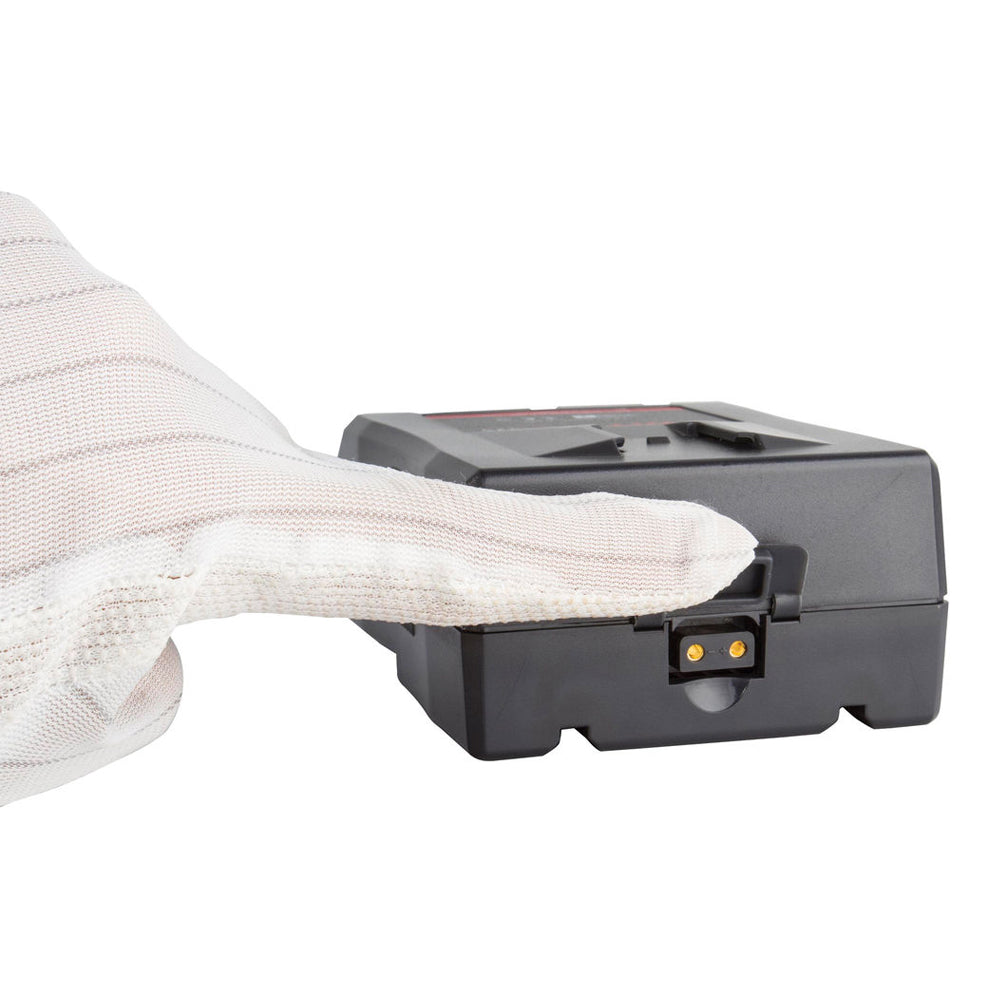

Built-in D-Tap accessory power

A D-Tap socket is built into the battery, providing a convenient way to power compatible accessories directly from the same battery used by the camera. The D-Tap connection is rated for up to 120W / 10A and can be used with compatible equipment such as monitors, wireless transmitters and on-camera lighting. This helps simplify mobile camera rigs by reducing the need for separate batteries for individual accessories.

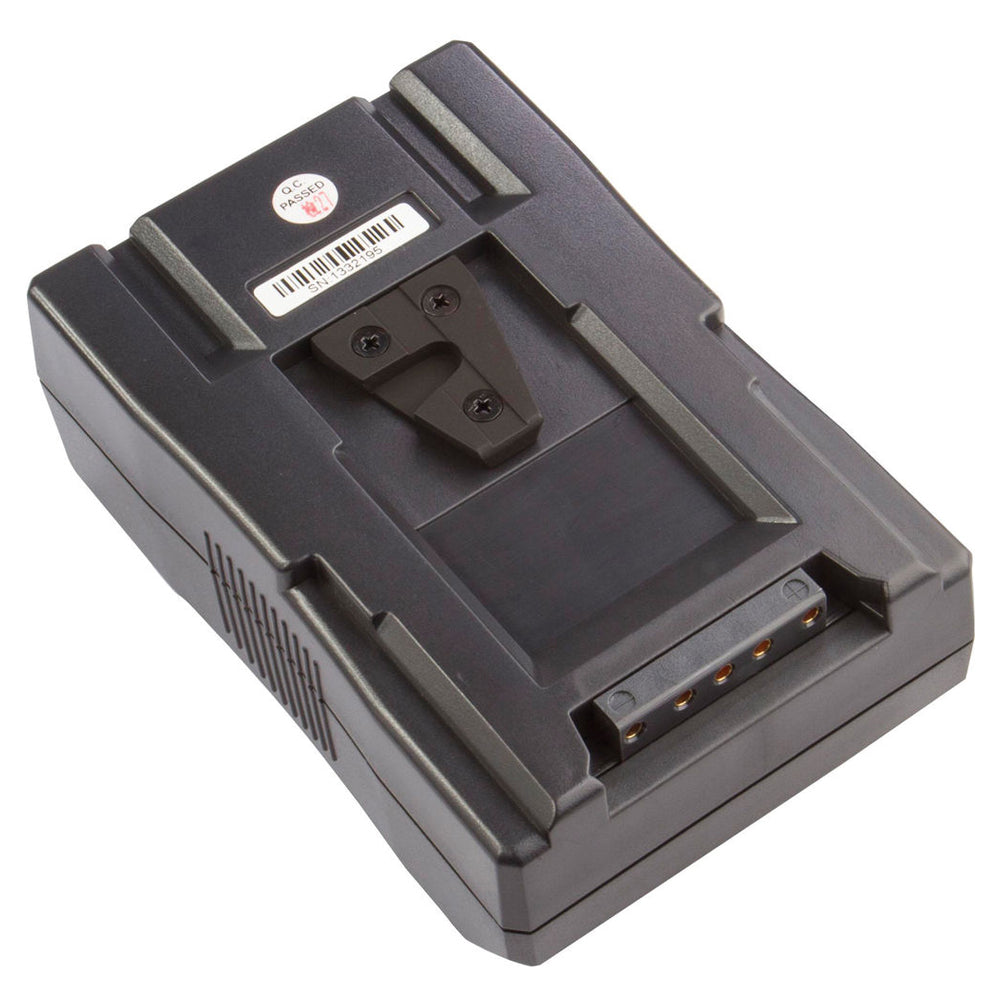

Reliable V-mount connection

The S-8082S uses a standard Sony V-mount connection with a metal V-wedge designed to provide reliable attachment to compatible equipment.

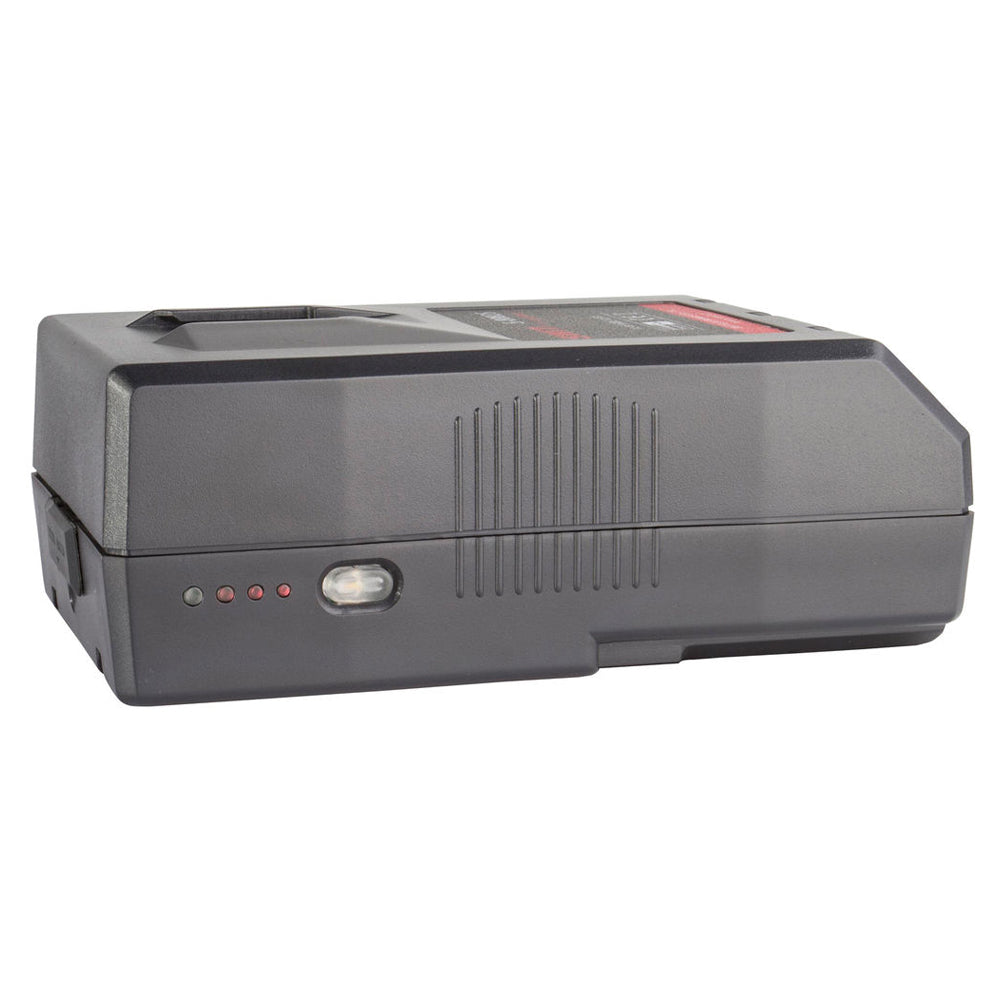

Four-level LED capacity indicator

Four LEDs on the side of the battery provide a quick visual indication of remaining capacity. This makes it easy to check the approximate charge level before choosing a battery for a camera setup.

Why choose this product?

The S-8082S provides a useful combination of capacity, output and portability for professional V-mount camera systems. Its 95Wh / 6.6Ah capacity is combined with up to 150W total output, while the integrated D-Tap connection allows compatible camera accessories to share the same portable power source. At 710g and measuring 134 × 88 × 52mm, it provides this capability in a compact format suited to mobile production and everyday camera use.

Ideal uses

• ENG cameras
• Professional V-mount cameras
• Broadcast production
• Location filming
• Camera monitors
• Wireless video transmitters
• On-camera lighting
• Mobile camera rigs
• D-Tap-powered camera accessories
