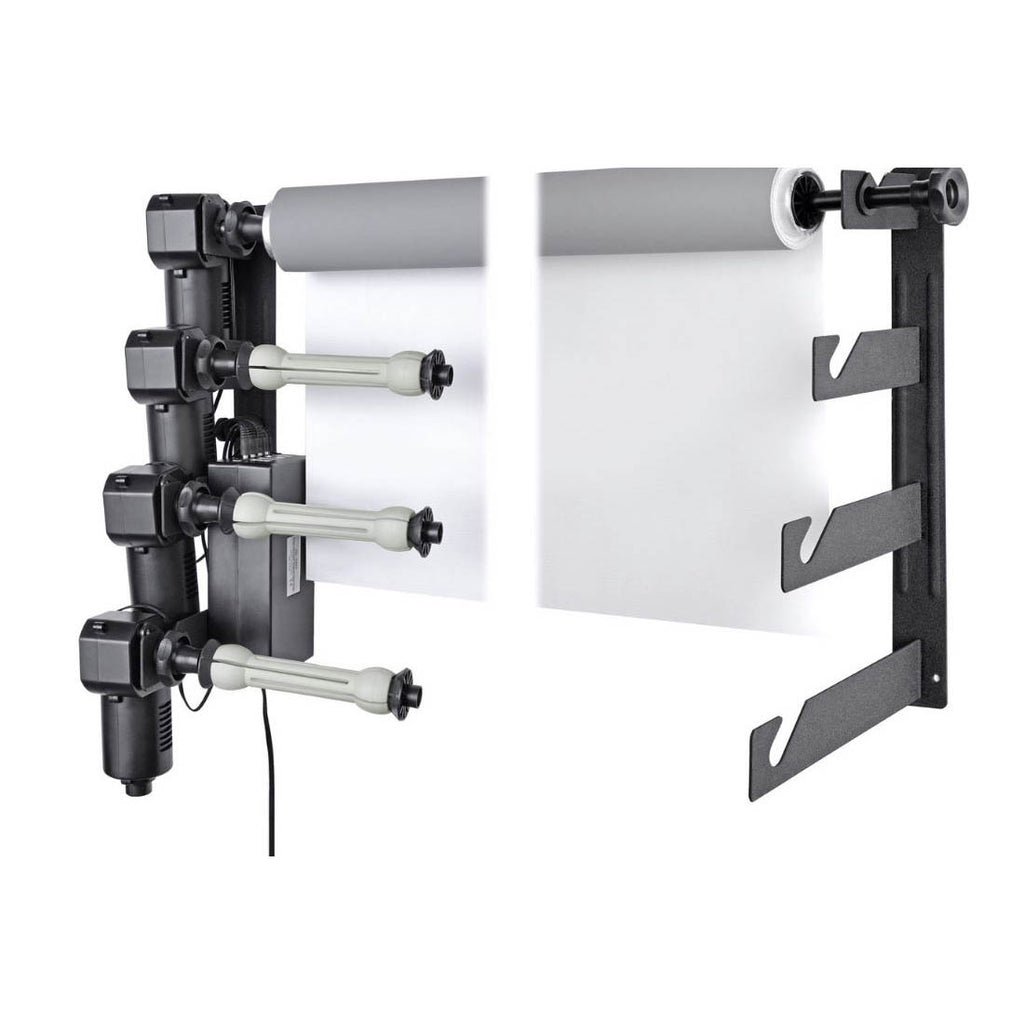

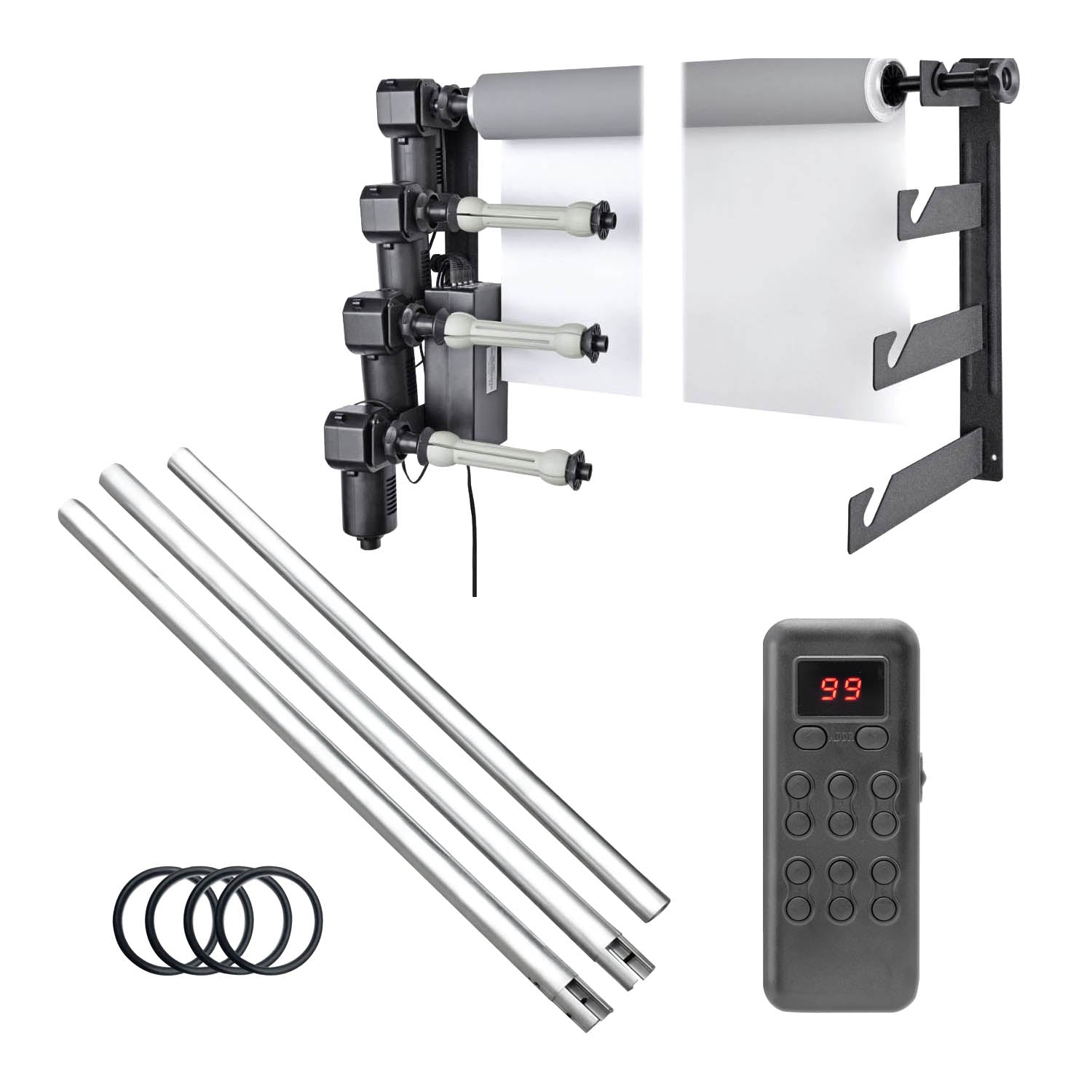

The PiXAPRO Quad Motorised Backdrop Drive System with Wireless Remote Control and Metal Crossbars is the ideal solution for photography studio owners who like to keep their vinyl, Canvas or Seamless Paper Backdrops set up for extended periods. This durable, motorised backdrop system supports up to four backdrops at once, each up to 3m wide or 10kg in weight, allowing for quick background changes with minimal effort. The included wireless remote makes adjusting your setups easy, while the metal crossbars prevent sagging, which is especially important when backdrops are left up permanently or for long periods. Ideal for photographers, videographers, and studio owners who rent out their studio.

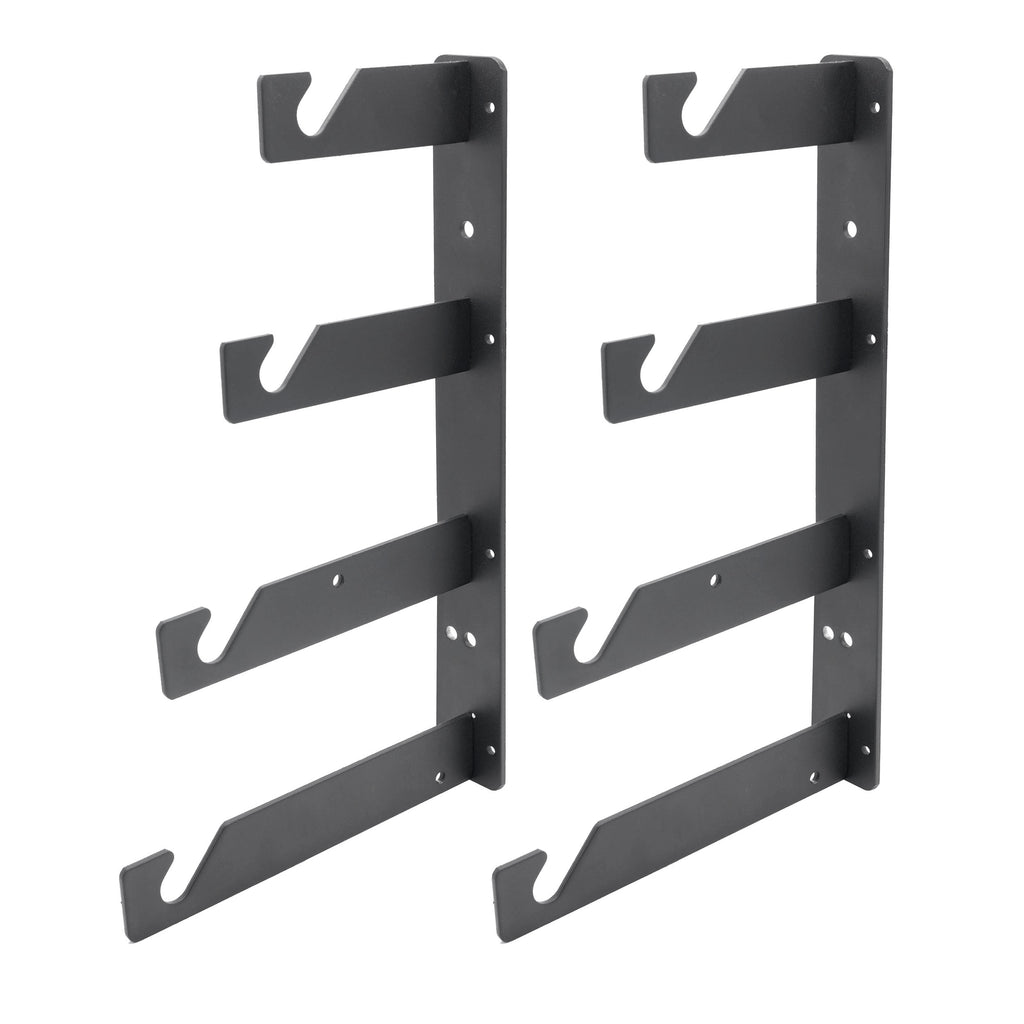

This set comes with a pair of durable metal wall brackets, which you use to mount your motorised drive system to a solid concrete wall or ceiling (Not suitable for plasterboard walls or suspended ceilings).
Each pair of hooks on the wall bracket enables you to mount a pair of expansion drive shafts, each of which features a motor drive, allowing you to roll or unroll your backgrounds with the greatest of ease.

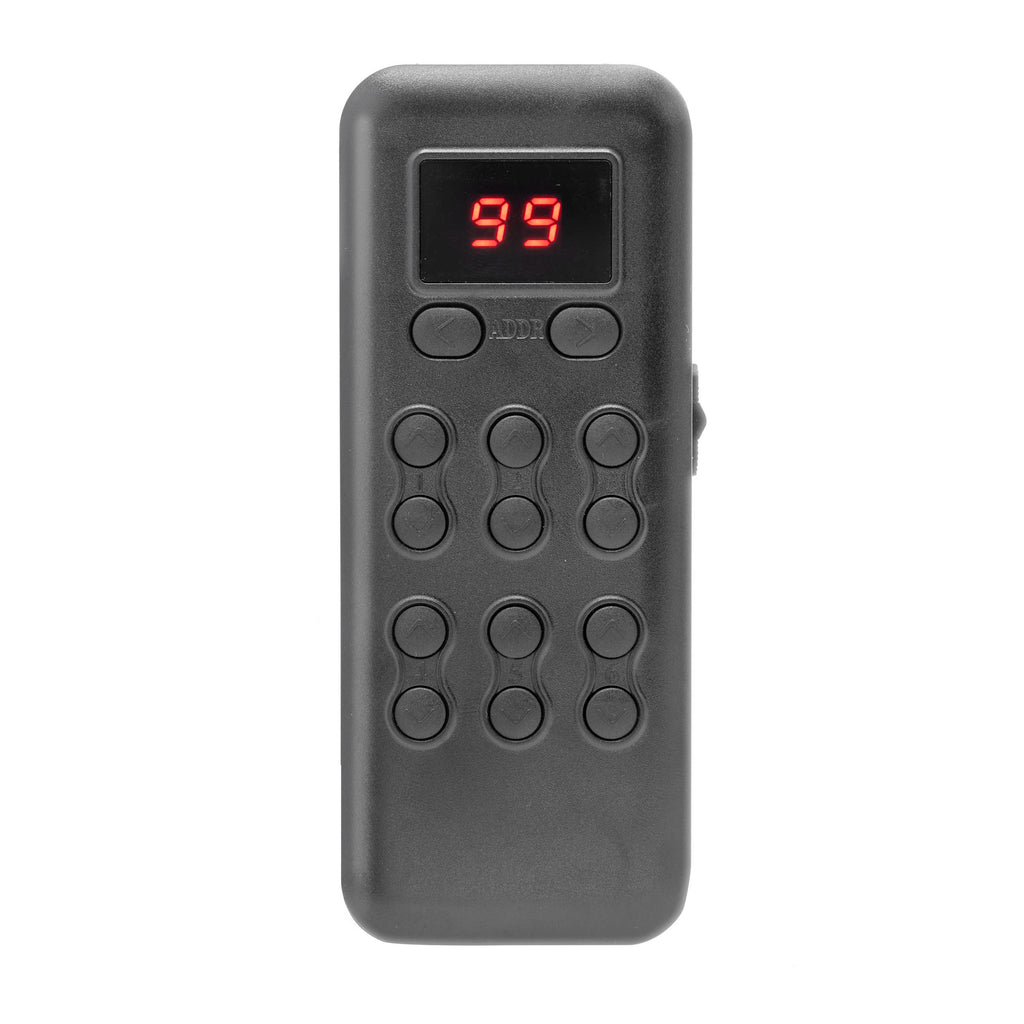

The whole background system is controlled via a wireless remote control system with 99 channels to choose from.

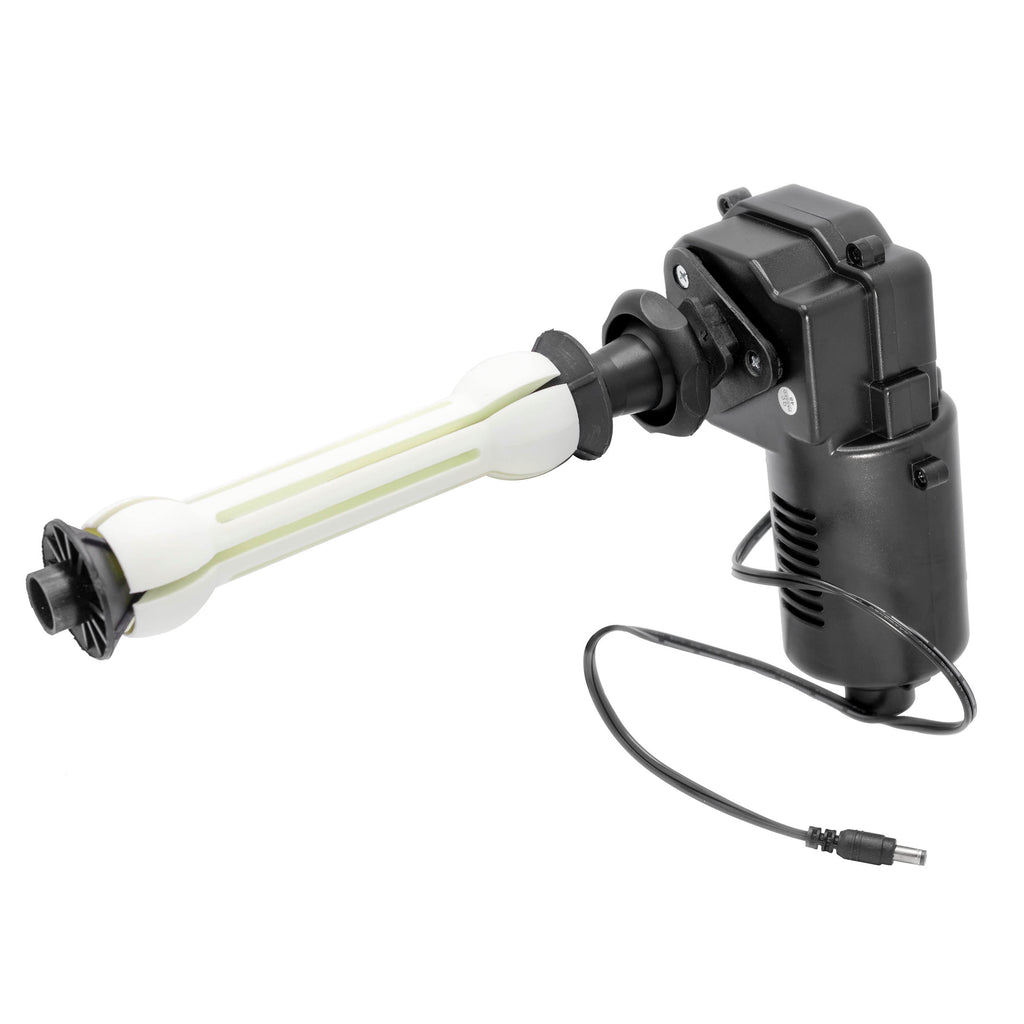

Each expansion drive shaft has a durable build quality and can be used with any seamless paper or vinyl background with a core diameter between 50-65mm, with a maximum weight of 10kg per background.
One of the major issues of leaving studio backdrops that have a cardboard core up for long periods is that they can start to sag since nothing is supporting the backdrop in the centre. This can cause rippling, deformation of the background, rendering it unusable. The PiXAPRO Metal Crossbar Tube will give the needed support in the centre, preventing this from happening.

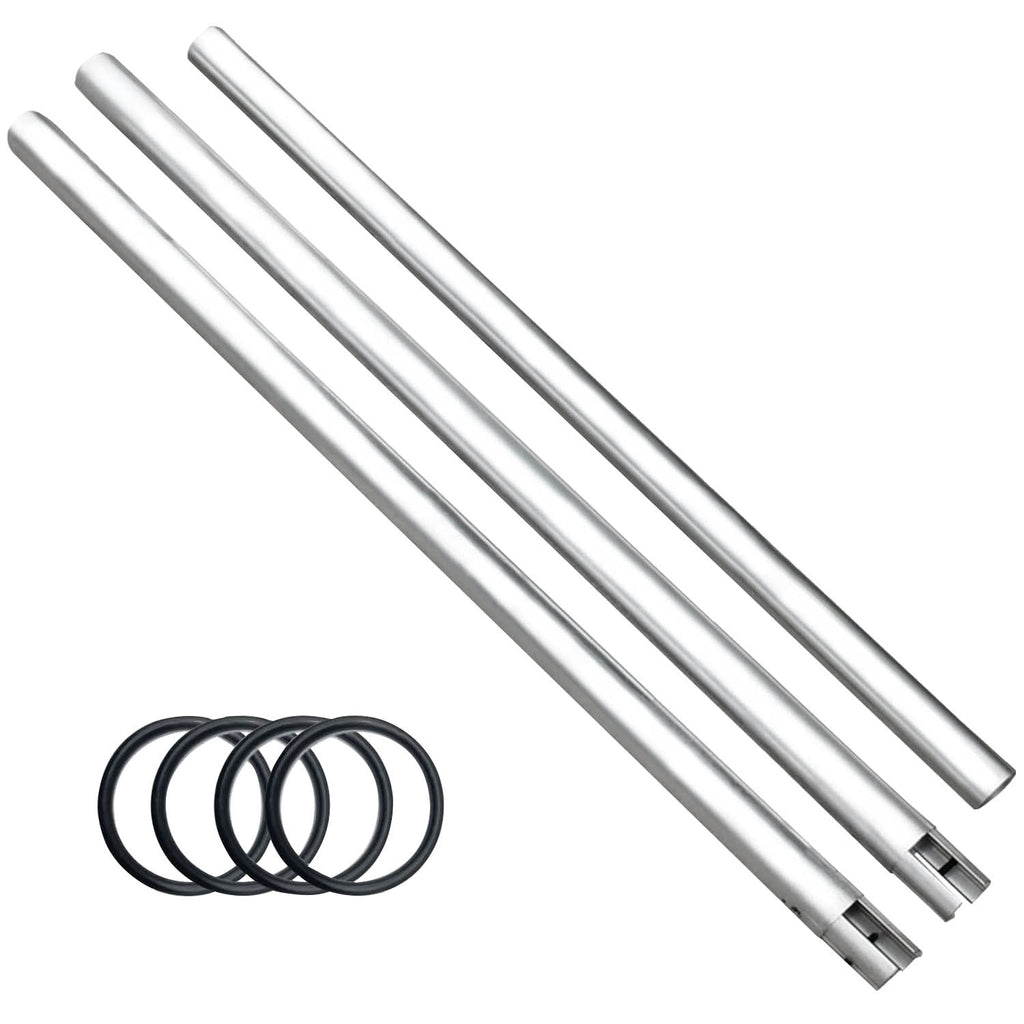

Measuring 3 metres (9.8ft) in length, the PiXAPRO Metal Crossbar Tube can be used with any background roll up to 3m in width. This allows you to use backgrounds of any standard size together with your expansion drive system.
The PiXAPRO Metal Crossbar Tubes are made from 100% high-strength aluminium, which makes them highly durable, yet relatively lightweight. This ensures that the crossbars will serve you well for many years to come.
The PiXAPRO metal crossbar tubes come in three sections, each of which is approximately 100cm in length. To assemble, simply insert one tube into the other, along the screw holes and then use an allen key to secure the crossbar sections in place, and you're ready to go.
The PiXAPRO Motorised Expansion-Drive Background Support System with Aluminium Crossbars is an essential accessory for the busy photographic or video production studio owners, who like to leave their seamless paper, canvas or vinyl backdrops up for extended periods
For more information on the products included in this kit, please see the links below:
| Bracket Dimensions | 40cm x 23.7 x 4.5cm |
| Motorised Drive Shaft dimensions | 30cm x 19cm x 9.1cm |
| Control Panel Dimensions | 22cm x 10.7cm x 4.5cm |
| Non-Motorised Shaft Length | 33cm |
| Background Expansion Drive Min. Core Diameter | 45mm |
| Background Expansion Drive Max. Core Diameter | 72mm |
| Remote channels | 99 |
| Box Weight | 11kg |
| Power Cable Length | ≈1.9m |
| Power Cable Connection Type | IEC320 |
| Box Specifications | Height: ≈38cm Width: ≈26cm Length: ≈50cm |
| Designed For | Studio Backgrund Expansion Drive Systems |
| Suitable Bbackground Types | Seamless Paper Backdrops, Canvas Backdrops, Vinyl Backdrops with a Cardboard Core |
| Material | Aluminium |
| Number of Sections | 3x |
| Section Length | ≈100cm |
| Tube Diameter | ≈4.8cm |
| Max. Length | ≈3m |
