PHOTOOLEXPHOTOOLEX X2077 Pro 80W RGB LED Panel Light with Modifier Kit

The PHOTOOLEX X2077 Pro RGB LED Panel Light with Modifier Kit combines adjustable white light, creative RGB colour, and three included light-shaping accessories for photography and video. It delivers up to 40W on its built-in battery or up to 80W with suitable external power, with 2500K–9900K colour temperature adjustment, CRI 96 and TLCI 98.

Soften the light for an interview with the silicone diffuser, restrict spill for a product shot with the honeycomb grid, or shape illumination using the four-leaf barndoors. Switch to RGB colour for a background accent, then adjust the settings from your shooting position using Bluetooth and the PHOTOOLEX app.

Key benefits

• White light and creative colour: Adjust CCT from 2500K to 9900K or use HSI controls for hue, saturation and intensity.
• Colour accuracy: CRI 96 and TLCI 98 ratings support natural-looking colour reproduction.
• Three modifiers included: four-leaf barndoors, a honeycomb grid and a silicone diffuser provide control over light direction, spill and softness.
• Portable battery operation: the integrated 36Wh rechargeable battery supports cable-free use at up to 40W.
• Higher output with external power: suitable external power enables operation at up to 80W.
• Remote or onboard adjustment: Bluetooth app control, dual control knobs and a 1.4-inch colour display offer flexible access to settings.
• Creative video effects: 21 preprogrammed lighting effects include flash, television, police car, fireworks and colour gradients.
• Flexible positioning: aluminium alloy housing with three 1/4-inch-20 female mounting threads.

Included modifiers: soften, shape and control light

Four-leaf barndoors help restrict light spread and direct illumination towards the subject. The honeycomb grid narrows the spread to reduce unwanted spill on surrounding areas. The silicone diffuser softens the LED output for portraits, close-up filming and product details.

For interviews, portraits and product photography

Use the X2077 Pro for talking-head videos, interviews, portraits, tabletop product photography, social media content and filmmaking. Adjustable white light helps you adapt to different scenes, while RGB and HSI controls create coloured backgrounds and accents. Brightness adjusts from 0 to 100%.

Power options: 40W internal battery or up to 80W external

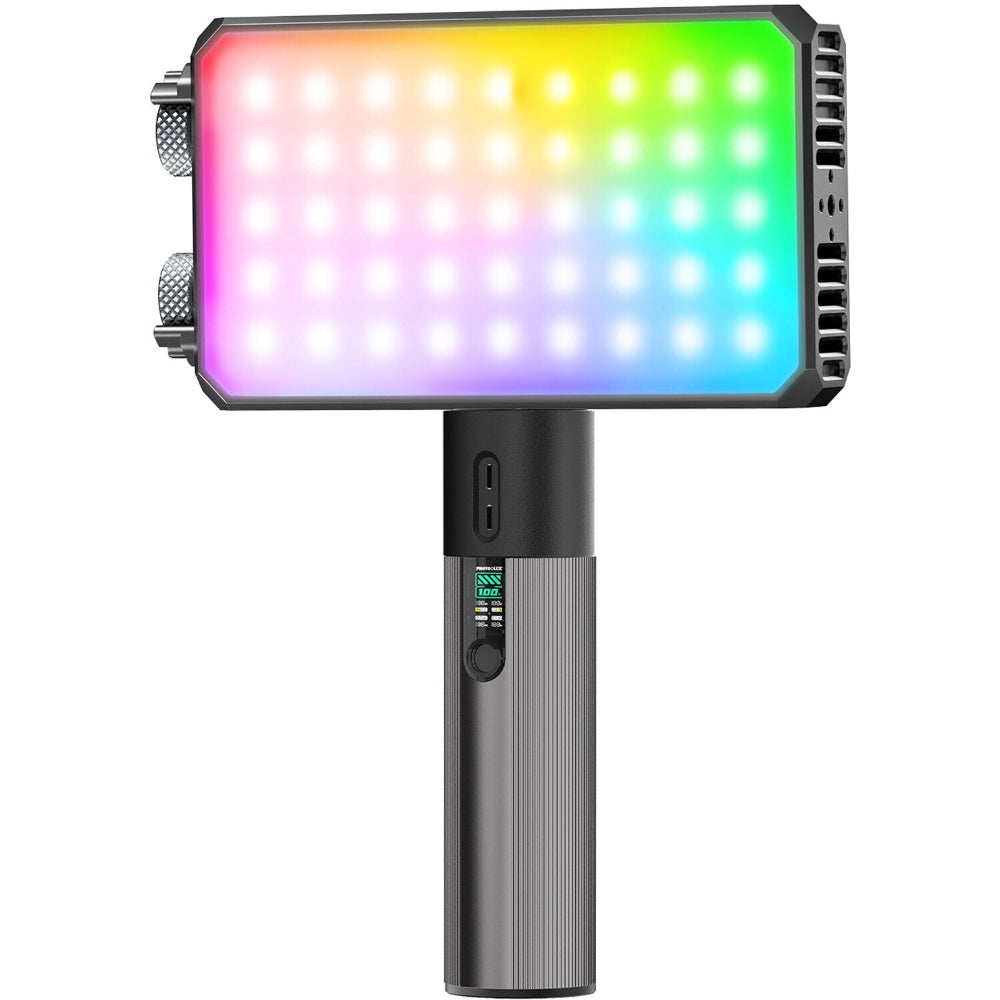

The built-in 7.2V, 5000mAh / 36Wh battery supports operation at up to 40W. For up to 80W operation, use a suitable external power source. The panel supports USB-C power and the optional PHOTOOLEX 72Wh Energy Bar Pro through its Easy Link connection. The external battery is not included in this kit.

Check the manufacturer's power-supply and cable requirements before selecting external power. A USB-C connector alone does not guarantee maximum output. Listed battery runtime is up to 43 minutes at 50% brightness; actual runtime depends on settings and operating conditions.

Brightness and colour specifications

At 6500K, the listed illuminance is 2280 lux at 1 metre and 11,000 lux at 0.5 metre. These are measurements at different distances, not interchangeable brightness figures.

• Brand and model: PHOTOOLEX X2077 Pro
• Colour temperature: 2500K–9900K in CCT mode
• Colour accuracy: CRI 96 / TLCI 98
• RGB control: HSI, up to 36,000 colour combinations
• Dimming: 0–100%
• Lighting effects: 21 presets
• Internal battery operation: up to 40W
• External power operation: up to 80W with suitable power
• Built-in battery: 7.2V, 5000mAh / 36Wh

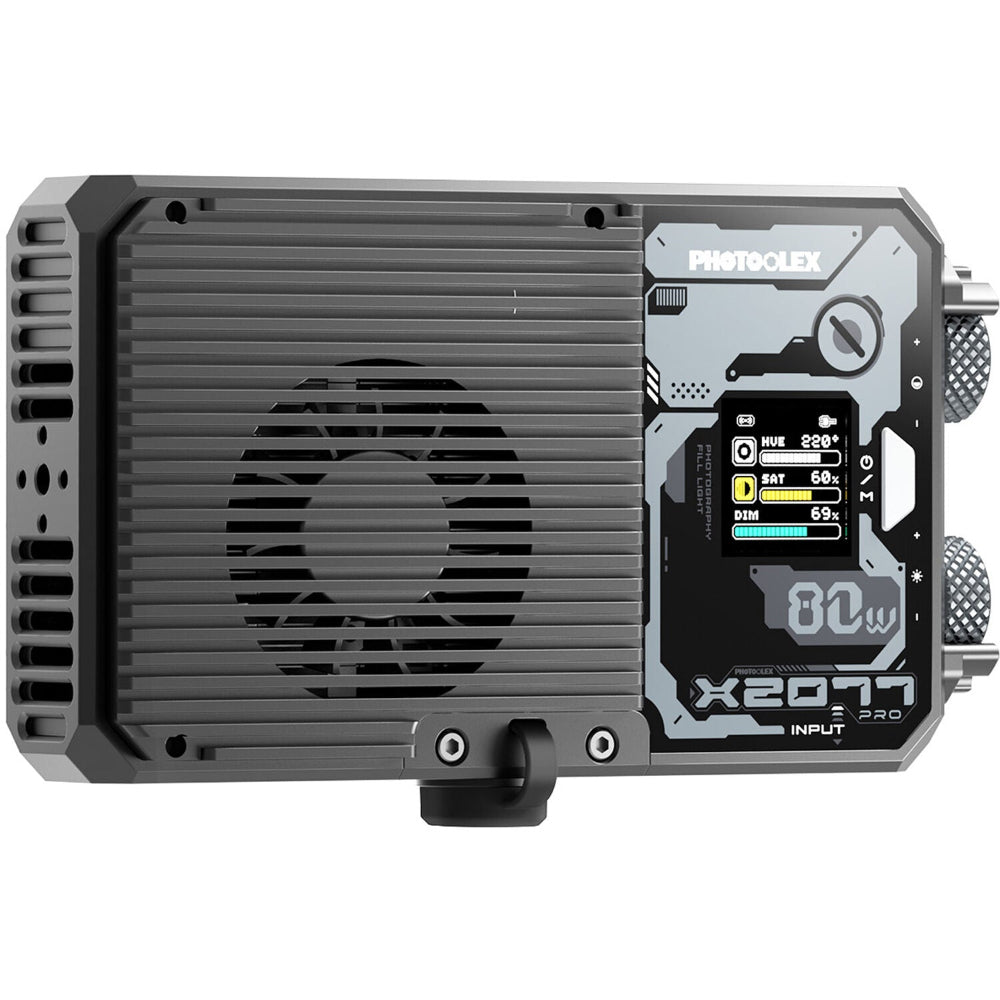

• Controls: dual knobs, 1.4-inch colour display and Bluetooth app
• App: PHOTOOLEX for Android and iOS
• Cooling: fan cooling
• Housing: aluminium alloy
• Mounting: 3 × 1/4-inch-20 female threads
• Fixture dimensions: 18.5 × 11.16 × 3.65cm
• Listed fixture weight: 788g

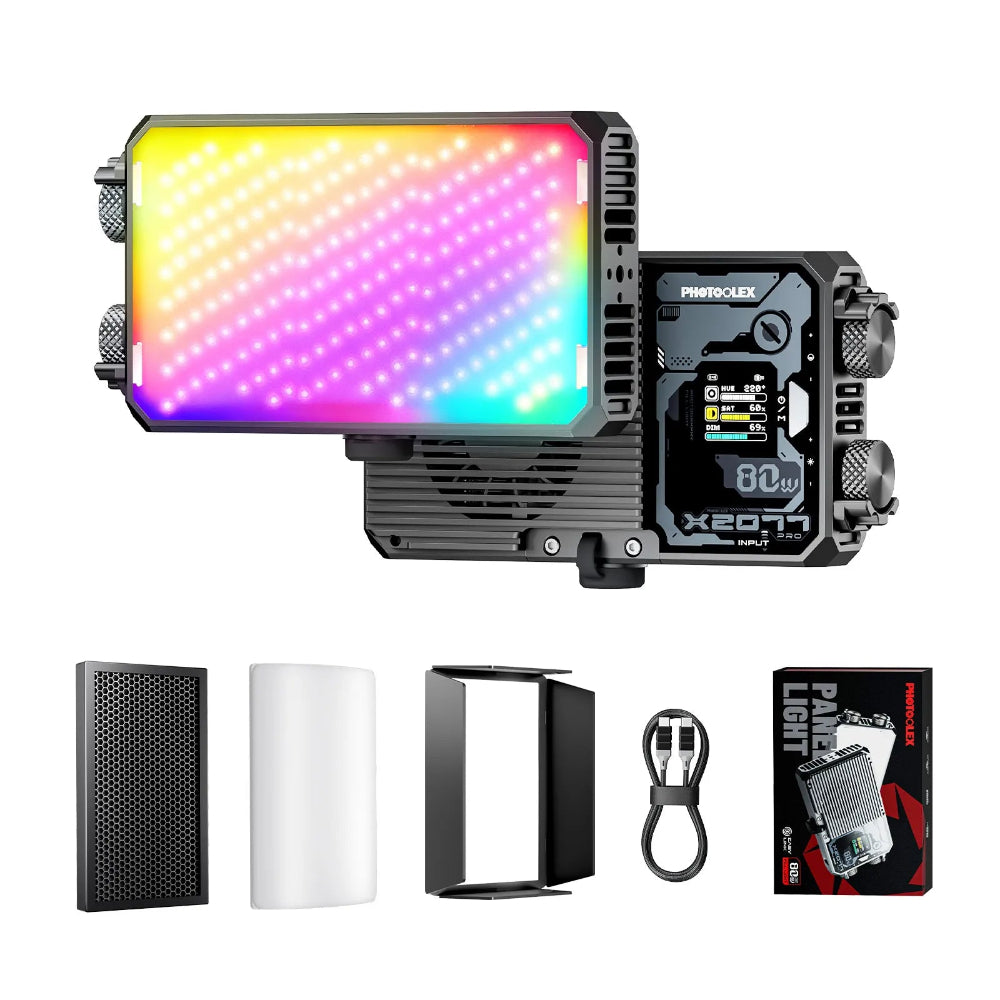

What's in the Box?

• 1 × PHOTOOLEX X2077 Pro RGB LED Light Panel
• 1 × Four-Leaf Barndoors
• 1 × Honeycomb Grid
• 1 × Silicone Diffuser
• 1 × USB-C Charging Cable

Storage case and optional Energy Bar Pro battery are not included.

Frequently asked questions

Does the X2077 Pro deliver 80W on its built-in battery?

No. Internal battery operation supports up to 40W. Up to 80W operation requires suitable external power.

Are the diffuser, grid and barndoors included?

Yes. This modifier kit includes a silicone diffuser, honeycomb grid and four-leaf barndoors alongside the panel and USB-C charging cable.

Can I control the light from my phone?

Yes. Bluetooth connectivity supports remote adjustment through the PHOTOOLEX app for Android and iOS. Onboard controls are also available.

What is its brightness at 1 metre?

The listed illuminance is 2280 lux at 1 metre at 6500K. The 11,000 lux specification is measured at 0.5 metre at 6500K.

Can it produce both white and coloured light?

Yes. CCT mode provides adjustable 2500K–9900K white light, while RGB and HSI controls provide creative colour options.

Choose the X2077 Pro Modifier Kit for portable RGB lighting with included light-shaping accessories, app control and flexible internal or external power options.
