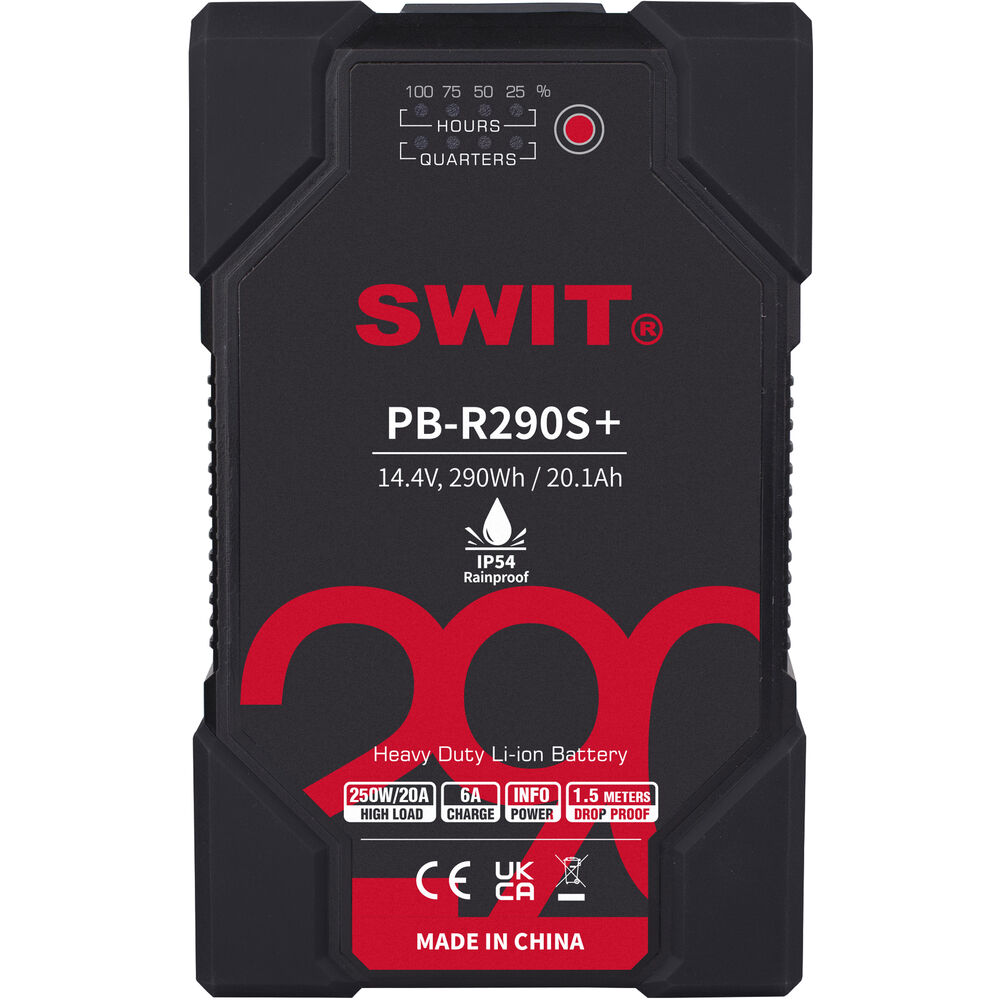

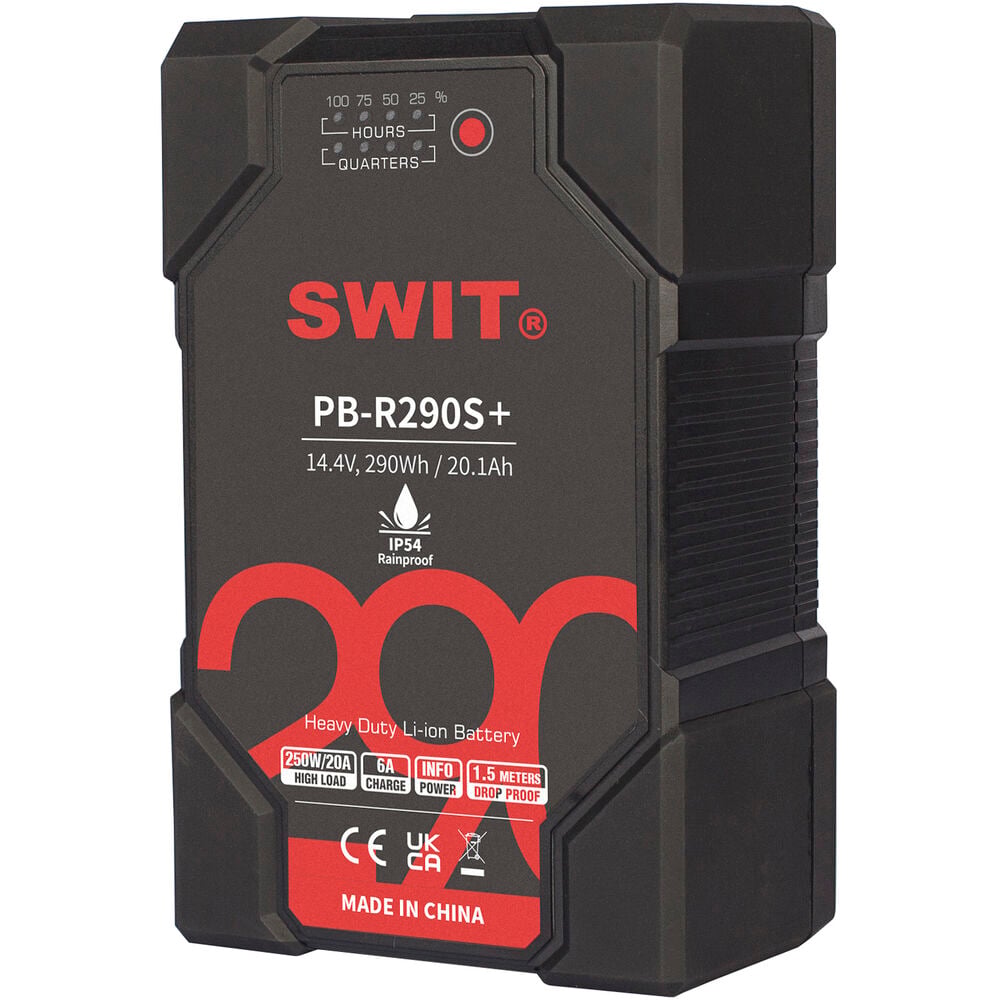

SwitPB-R290S+ 290Wh Heavy Duty IP54 Battery Pack

The SWIT PB-R290S+ is a 290Wh heavy-duty V-mount battery designed for professional cine and ENG cameras, particularly in demanding field and location environments.

Its dual-housing sealed construction provides IP54 protection against dust and water, while the robust design is built to withstand drops of up to 1.5 metres. This makes the PB-R290S+ well suited to outdoor productions where batteries are regularly exposed to challenging weather and physical handling.

With 290Wh / 20.1Ah capacity, the battery delivers a constant high load of up to 250W / 20A and a peak output of up to 305W. This provides the power required for high-draw cinema cameras and additional on-camera equipment.

The PB-R290S+ also supports 6A fast charging, features an eight-LED digital power display and can communicate remaining run-time information to compatible Sony and RED camera systems.

Who this is for

The PB-R290S+ is designed for cinematographers, ENG camera operators, field production teams and rental environments requiring substantial capacity, high output and additional environmental protection.

Its 290Wh capacity is particularly useful for longer shooting periods and power-hungry camera configurations, while the IP54 construction and 1.5m drop resistance make it suited to demanding outdoor and location production.

At a glance

• Heavy-duty V-mount battery

• 290Wh / 20.1Ah capacity

• 24 x 18650 battery cells

• 250W / 20A continuous high-load output

• Up to 305W peak output

• 24A over-current protection

• IP54 dust and water protection

• Dual-housing sealed construction

• Designed to withstand drops up to 1.5 metres

• Supports 6A fast charging

• Approximately 2.5 hours to 80% with compatible fast charger

• Approximately 3.8 hours for a full charge with compatible fast charger

• Eight-LED digital power indicators

• Remaining run-time indication while discharging

• Sony and RED viewfinder power information

• Intelligent SMBUS communication

• D-Tap accessory output

• D-Tap maximum output current of 10A

• V-mount connection

• Multiple circuit protections

How it works / component breakdown

290Wh high-capacity power

The PB-R290S+ uses 24 18650 battery cells to provide 290Wh / 20.1Ah capacity.

This substantial capacity is designed for professional cine and ENG camera systems where longer operating times are required.

The supplied figures state approximately 11 hours of operation with a normal ENG camera and approximately 3.5 hours with an ARRI ALEXA. Actual run time will depend on the power consumption of the connected equipment.

250W continuous high-load output

The PB-R290S+ provides at least 250W / 20A continuous output, including at low remaining capacity.

Peak output is rated up to 305W, with over-current protection specified at 24A.

This high-load capability allows the battery to support power-hungry cinema cameras while simultaneously supplying additional on-camera equipment.

IP54 environmental protection

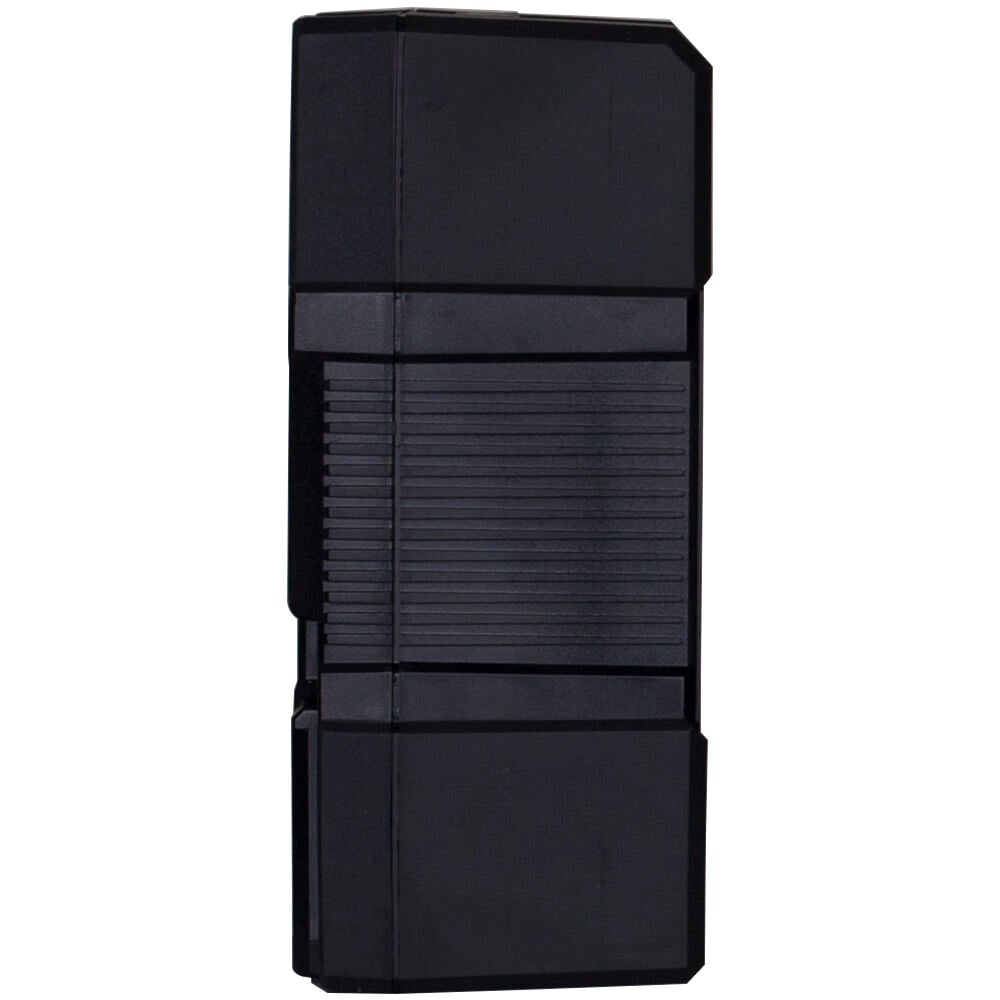

The PB-R290S+ uses a sealed dual-housing structure to provide IP54 protection against dust and water.

This construction is intended for professional field use in challenging conditions, including productions where equipment may be exposed to rain, snow and other inclement weather.

1.5m drop resistance

The dual housing incorporates a protective rubber cover and is designed to withstand drops from up to 1.5 metres at different angles.

This added physical protection is useful for field, ENG and location environments where batteries are frequently transported, fitted, removed and handled throughout the production day.

6A fast charging

The PB-R290S+ supports 6A fast charging with compatible SWIT PC-P461S and S-3812S chargers.

Using a compatible 6A charger, the battery can be charged from empty to approximately 80% in 2.5 hours and fully charged in approximately 3.8 hours.

This reduces turnaround time for a high-capacity 290Wh battery and can be particularly useful when rotating multiple batteries during longer shoots.

Eight-LED digital power display

Eight LED indicators provide more detailed battery information than a conventional basic power gauge.

When the battery is idle or charging, the LEDs indicate its current capacity percentage.

During discharge, the LEDs display estimated remaining run time based on the current power draw, with the supplied specification stating an accuracy interval of 15 minutes.

Sony and RED viewfinder information

Intelligent SMBUS communication provides compatibility with Sony and RED camera information systems.

When used with compatible cameras, remaining battery time can be displayed through the camera viewfinder, allowing operators to monitor available run time without checking the battery itself.

D-Tap accessory power

A D-Tap DC output socket is positioned on the top of the battery for powering compatible on-camera equipment.

The D-Tap connection supports a maximum output current of 10A, providing a convenient way to run additional production accessories from the main camera battery.

Multiple circuit protections

The PB-R290S+ incorporates multiple circuit protections for professional operation, including 24A over-current protection.

Why choose the SWIT PB-R290S+?

The PB-R290S+ combines substantial 290Wh capacity with the physical protection required for demanding professional field production.

Its 250W continuous output makes it suitable for high-power cinema cameras and accessory-heavy rigs, while IP54 protection and 1.5m drop resistance provide additional resilience for outdoor and location use.

The eight-LED digital display and Sony/RED viewfinder integration make remaining power easier to monitor, while 6A fast charging helps reduce turnaround time between uses.

Ideal uses

• Digital cinema cameras

• ENG cameras

• High-power cine camera systems

• Outdoor filming

• Field production

• Documentary production

• Location shoots

• Camera rigs with powered accessories

• Broadcast production

• Rental equipment fleets

• Demanding production environments
