The OSEE Mega 22S is a 21.5-inch production monitor designed for demanding on-set and outdoor monitoring workflows. Combining a bright 1500nit display with integrated self-calibration technology, it delivers accurate colour reproduction without requiring a separate computer for calibration.
Built around a Full HD IPS panel with 100% Rec.709 colour coverage, the Mega 22S supports 4K HDMI input, 3G-SDI connectivity, HDR monitoring, camera log support, and custom 3D LUT workflows. Its rugged metal uni-body construction and dedicated Pelican 1600 foam insert make it well-suited to mobile production environments.

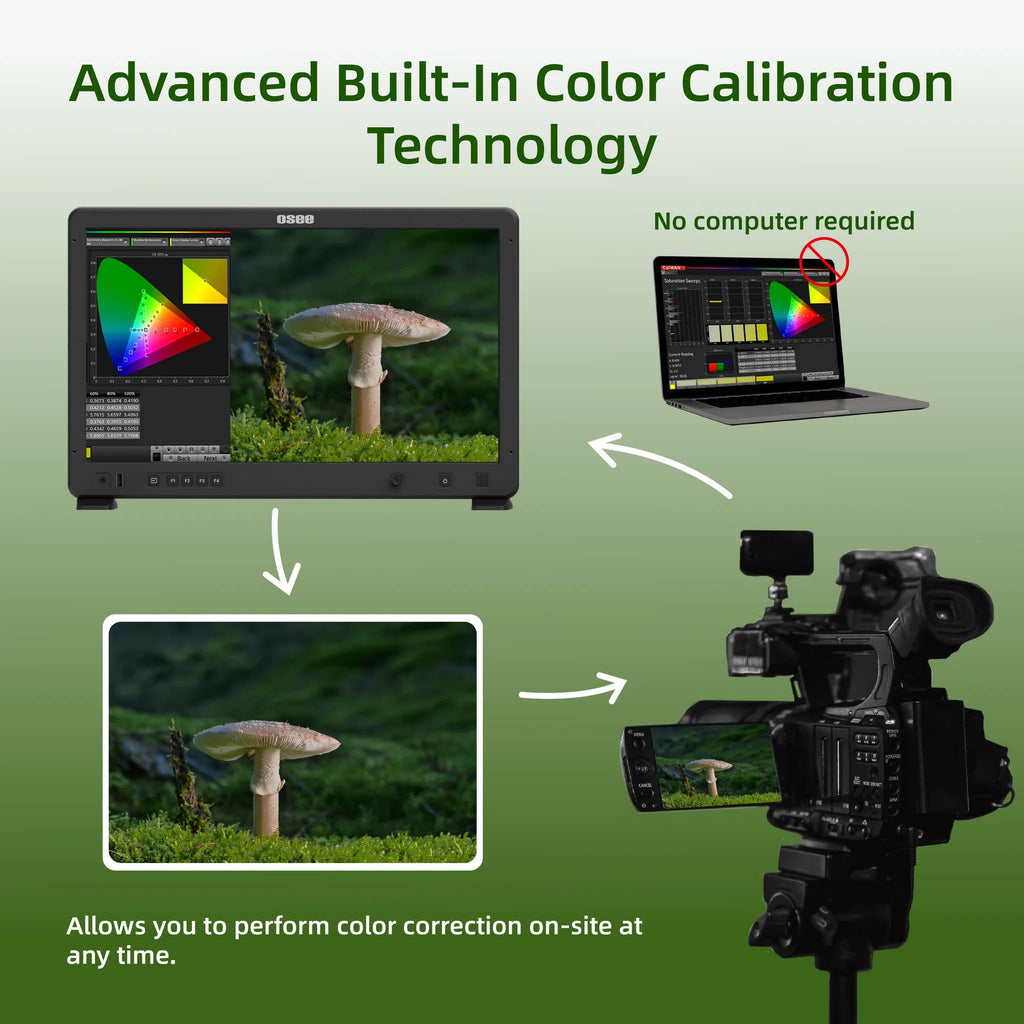

The Mega 22S features built-in colour calibration technology that allows the monitor to correct colour inaccuracies directly from the display itself. This removes the need for an external computer during calibration and helps maintain consistent colour accuracy on location.
With a 1500 nit brightness output and IPS panel technology, the Mega 22S remains clearly visible in bright daylight conditions. The included sun hood further improves visibility during exterior shoots.
Support for HLG, PQ HDR, camera log formats, and user-uploaded 3D LUTs allows crews to preview accurate looks and colour pipelines directly on set. The 22-bit precision processing and tetrahedral 3D-LUT interpolation help preserve subtle tonal detail and colour transitions.

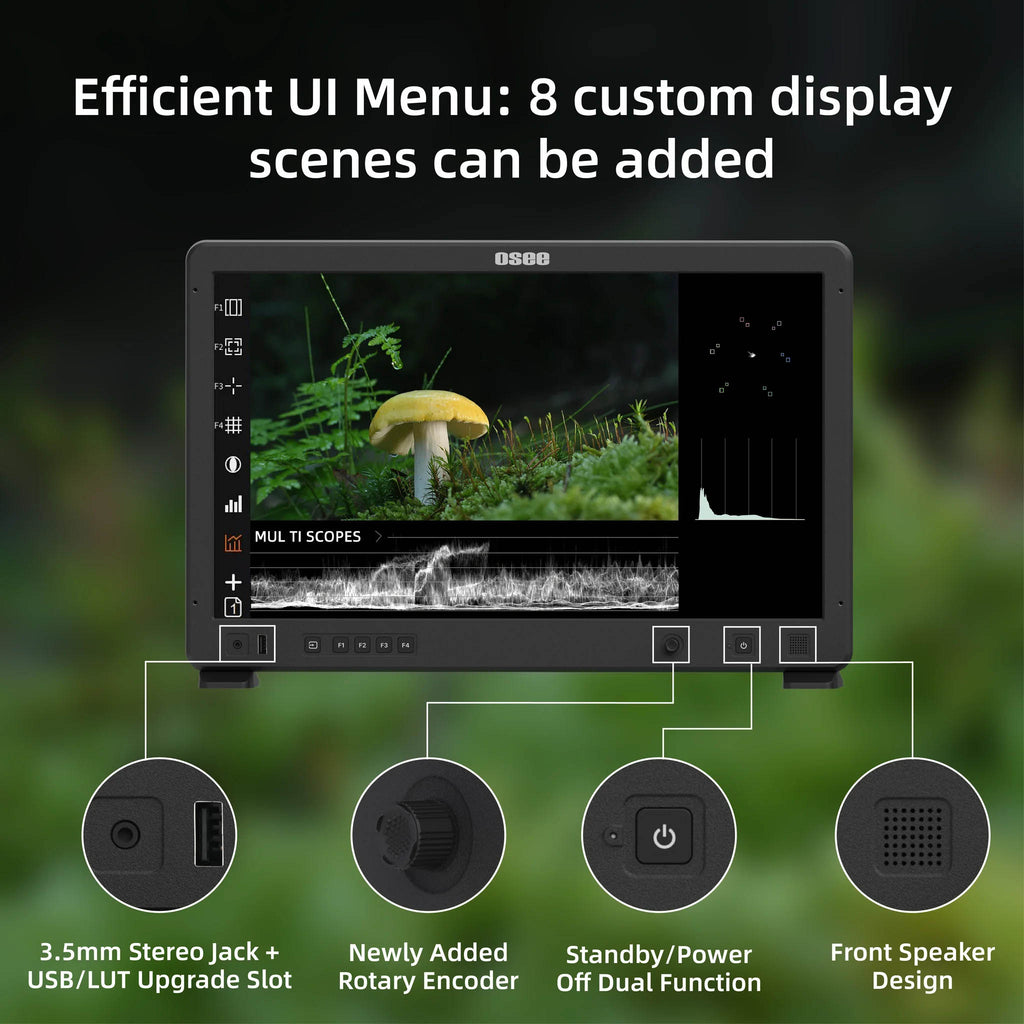

Powered by OSEE Swift OS, the monitor supports up to eight configurable analysis tool sets, with eight tools available in each set. This allows operators to switch quickly between monitoring configurations depending on the shooting setup or operator role.
The Mega 22S is designed to simplify professional monitoring workflows while maintaining colour accuracy in changing production environments. Its combination of self-calibration, HDR support, high brightness output, and flexible monitoring tools makes it a practical solution for productions that need dependable on-set monitoring without adding unnecessary setup complexity.

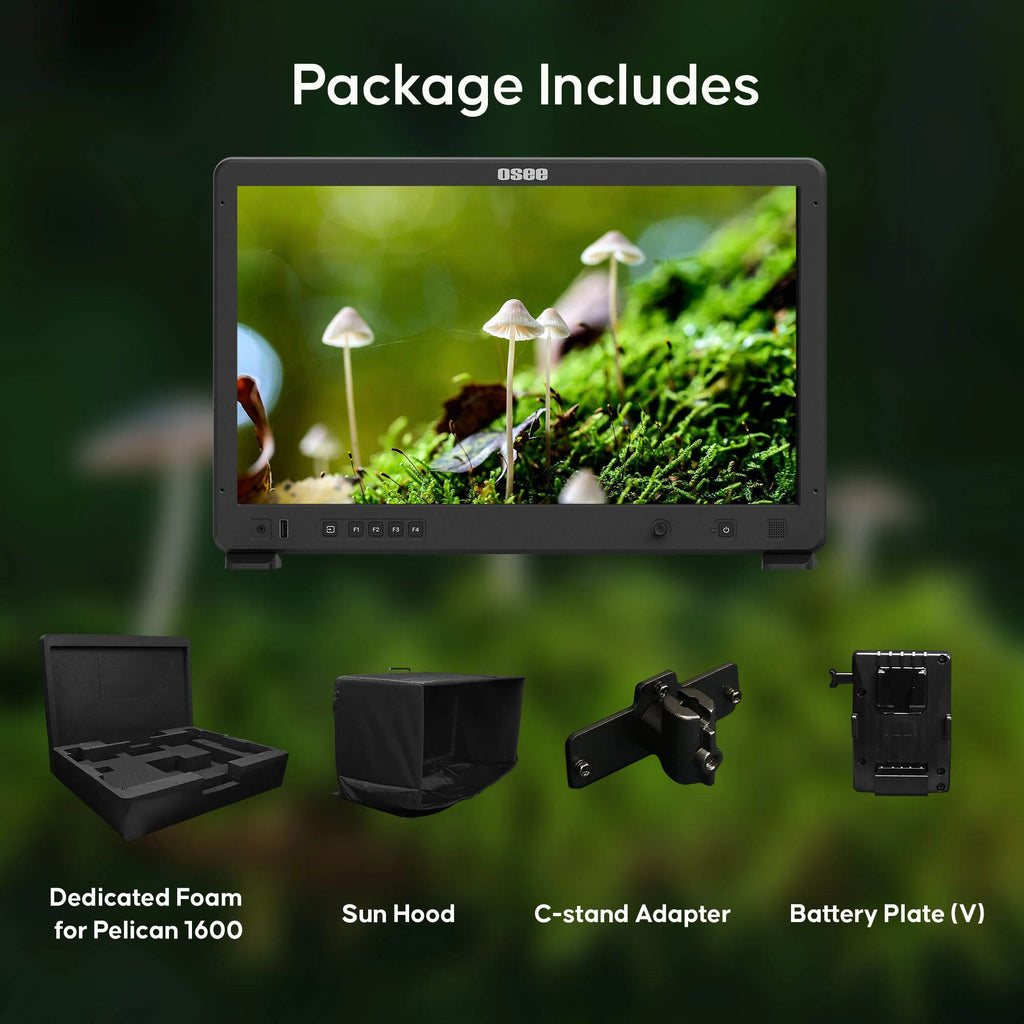

The rugged metal housing and dedicated Pelican 1600 foam insert also make it easier to transport safely between locations and productions.
No. The monitor features integrated self-calibration technology that allows colour correction directly within the monitor itself.
Yes. The 1500nit brightness output and included sun hood are designed to improve visibility in daylight conditions.
Yes. The Mega 22S supports up to 10 user 3D LUTs loaded via USB.
The monitor supports HLG and PQ HDR monitoring modes.
The monitor supports 4K HDMI input and 3G-SDI input.

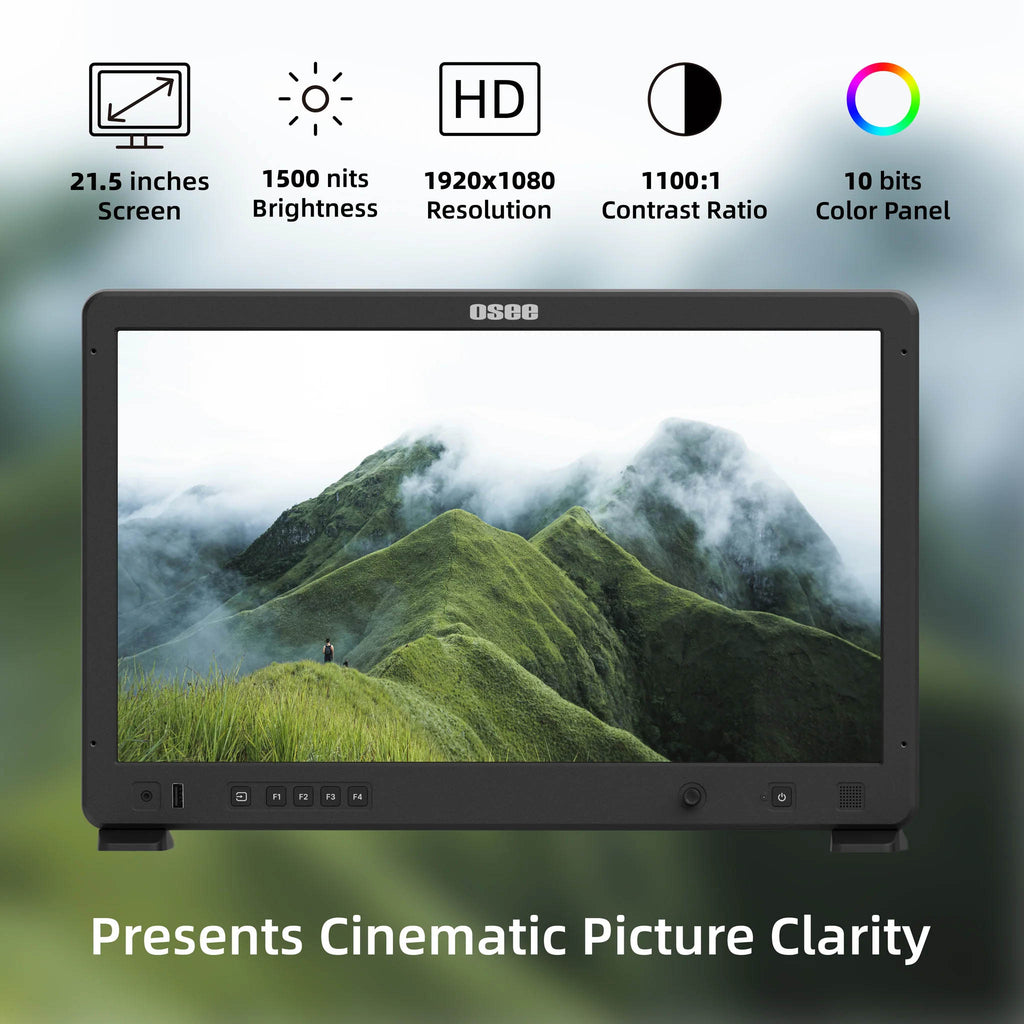

| Panel Size | 21.5 inch |
| Resolution | 1920 x 1080 |
| Brightness | 1500 nits |
| Colour Bit Depth | 10-bit |
| Contrast | 1100:01:00 |
| HDMI |
4K (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30P UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30P 2K (2048 x 1080): 23.98 / 24 / 25 / 50 HD (1920 x 1080): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60P, 50 / 59.94 / 60i HD (1280 x 720): 50 / 59.94 / 60P |
| SDI |
2K (2048 x 1080): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60P 23.98 / 24 / 25 / 29.97 / 30Psf HD (1920 x 1080): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60P, 50 / 59.94 / 60i HD (1280 x 720): 50 / 59.94 / 60P |
| SDI | 2 x 3G / HD / SD-SDI signal inputs / outputs, |
| HDMI | 1 x 4K@30 HDMI input |
| 3D-LUT | 10 User 3D LUTs |
| Standard Log |
2.2, 2.4, HLG, PQ ARRI Log C BMD Film, 4K Film, 4.6K Film Canon C Log, C Log2, C Log3 Fuji F-LOG Nikon N-LOG Panasonic V-LOG RED Log3G12, Log3G10, RedLogFilm Sony S-Log, S-Log 2, S-Log 3 DCI 2.6 |
| Power Supply | 100–240V (50/60Hz) AC / 11–17V / 5A (XLR Pin 4) |
| Power Consumption | 46W |
| Item Weight | 6.7kg |
| Shipping | 9.5kg |
| Framing and Exposure |
Aspect, Safe, Centre, Crosshatch, Anamorphic False Colour, Zebra, Waveform, Vector, Histogram |
| Focus | Focus Assist, Peaking, DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter (Only SDI), Time Code (Only SDI) |
