Hollyland

Hollyland Pyro 5 HL-8830 5.5" 4K HDMI Wireless Touchscreen Video Monitor (SPECIAL ORDER)

SKU: HL-Pyro5

£376.38

Tax included. Shipping calculated at checkout.

  • Special Order Available. Please Contact Us for Further Details
  • Special Order Available. Please Contact Us for Further Details
  • Verified Secure Shopping

The Hollyland Pyro 5 HL-8830 5.5" 4K HDMI Wireless Touchscreen Video Monitor is a powerful 5.5-inch wireless video monitor built for high-performance, on-set production. Designed for filmmakers, videographers, and content creators, it features dual-band wireless transmission, Broadcast Mode for 4-way monitoring, and direct camera control, all in one compact device. With a 1500-nit daylight-viewable touchscreen, smart channel selection, and support for proxy recording, real-time overlays, and RTMP live streaming, the Pyro 5 goes far beyond traditional field monitors. It’s your all-in-one production hub, streamlining camera work, monitoring, and sharing in real time.



Wi-Fi Broadcast Technology

Featuring advanced Wi-Fi Broadcast technology, it enables one transmitter to connect with up to four receivers simultaneously, delivering stable, low-latency video transmission in real time.

Broadcast Mode Activated

In Broadcast Mode, the Hollyland Pyro 5 enables one transmitter to wirelessly connect with up to four receivers, making it perfect for multi-camera setups. With intelligent camera view switching and automatic frequency hopping, it ensures stable, real-time video transmission even in challenging environments. Enjoy reliable performance with a range of up to 200 meters line-of-sight or 100 meters back-to-back.

Extended Range with Broadcast Mode Off

Even with Broadcast Mode deactivated, the Hollyland Pyro 5 continues to support 1-to-4 wireless video transmission, maintaining flexibility for various production needs. In this mode, the system delivers an extended transmission range, up to 400 meters line-of-sight and 150 meters back-to-back.

Direct Camera Control Touchscreen Access

The Hollyland Pyro 5 features a responsive 5.5-inch touchscreen display that puts real-time camera control at your fingertips. Easily adjust shutter speed, aperture, ISO, focus, focus mode, white balance, and record trigger, all directly from the monitor.

Built-In Proxy Recording with Timecode Sync

Capture proxy video files directly to an SD card or USB drive while monitoring footage in real time. Files are automatically organized into folders for quick access and streamlined post-production. Now with embedded timecode sync, your proxy footage is perfectly aligned with your camera’s original recordings, ensuring faster, more accurate editing.

Multi-Cam Switching

The Hollyland Pyro 5 supports instant switching between multiple camera groups, making it ideal for fast-paced live productions, multi-angle shoots, and event coverage. Effortlessly toggle between different camera feeds in real time, ensuring smooth operation during live streaming, broadcasts, or multi-cam filming environments.

1500-Nit Daylight-Viewable Display

The Hollyland Pyro 5 features a high-brightness 1500-nit touchscreen display, delivering crystal-clear visibility in direct sunlight and challenging outdoor lighting conditions.

Auto Frequency Hopping

The Hollyland Pyro 5 features advanced Auto Frequency Hopping technology, continuously scanning and monitoring signal strength and interference across multiple frequency bands. This smart system automatically selects the optimal wireless channel for stable, interference-free video transmission.

Smart Channel Selection

At startup, the Hollyland Pyro 5 automatically scans and locks onto the best available frequency channel to ensure optimal wireless signal strength and stable video transmission. Users can also manually scan and switch channels directly from the receiver, supported by visual signal strength indicators for each frequency.

Choose Between High-Fidelity or Ultra-Low Latency

The Hollyland Pyro 5 lets you customize your video monitoring experience by selecting between high-fidelity visuals for stunning image clarity or ultra-low latency mode for real-time responsiveness.

Advanced Image Analysis for Fast On-Set Decisions

The Hollyland Pyro 5 offers advanced image analysis tools that deliver high accuracy and a user-friendly interface. Designed for efficiency, these tools streamline colour grading, focus checks, and exposure adjustments, helping you maintain creative control throughout your shoot.

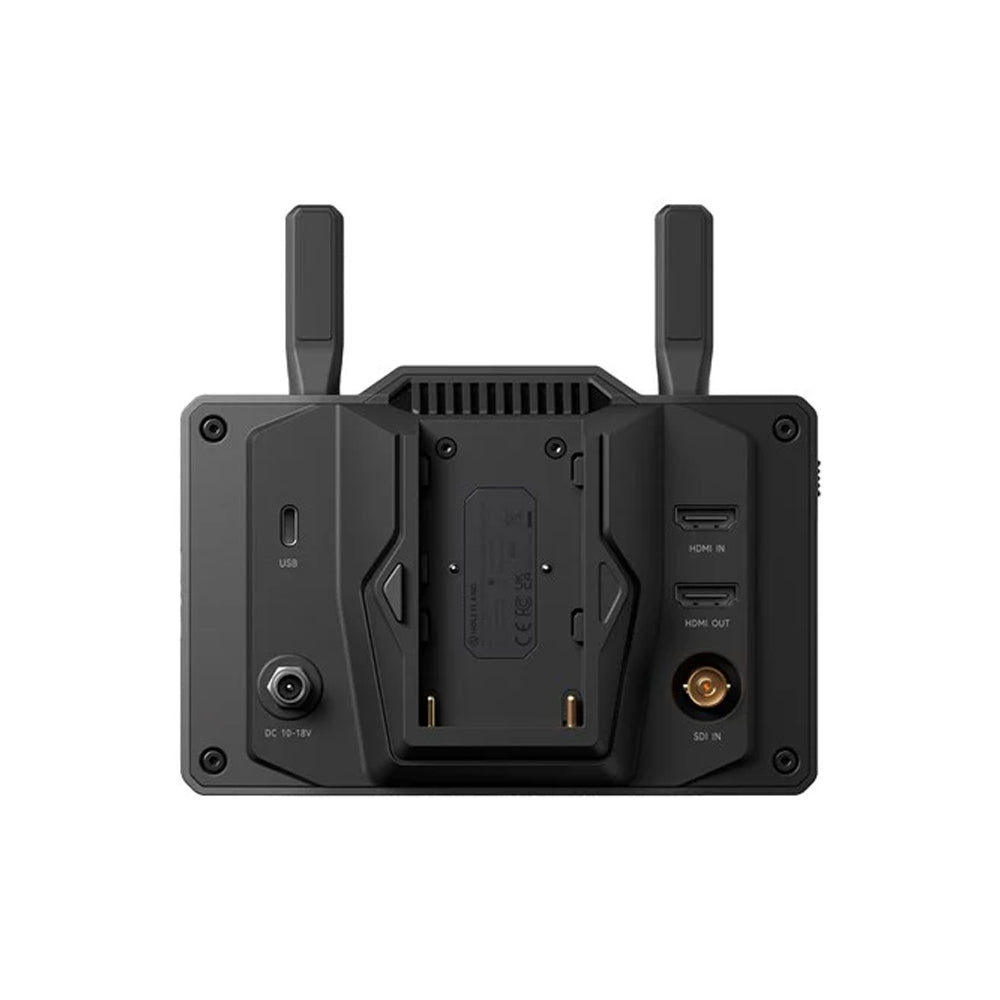

HDMI & SDI Ports

The Hollyland Pyro 5 features both HDMI and SDI loop-out ports, allowing effortless connection to a wide variety of professional cameras, monitors, and broadcast equipment.

Lock Pairing

When using multiple Hollyland Pyro 5 systems on the same set, Lock Pairing technology ensures each receiver remains securely paired with its original transmitter. This prevents signal interference, cross-connection issues, and ensures stable, reliable video transmission.

Rugged Durability and Portable Design

The Hollyland Pyro 5 features a durable dual-injection molded shell that keeps the monitor lightweight yet tough enough to withstand the harshest shooting conditions. Its easy-install antennas simplify setup, transport, and storage, making it ideal for on-location filming, run-and-gun productions, and demanding outdoor shoots.

Go Live Anywhere with RTMP Streaming

The Hollyland Pyro 5 supports RTMP streaming, enabling you to broadcast live directly to platforms like Zoom, YouTube Live, TikTok, and more using the HollyView App. Simply connect a 4G LTE Wi-Fi modem, enter your stream key, and start streaming—no complicated setup required.

Features

  • 5.5-Inch High-Brightness Display (1500 nits)
  • Full Camera Control
  • Efficient Proxy Recording
  • Integrated Pyro Ecosystem
  • Dual-Band Wireless & Ultra-Low Latency
  • Professional SDI & HDMI Ports

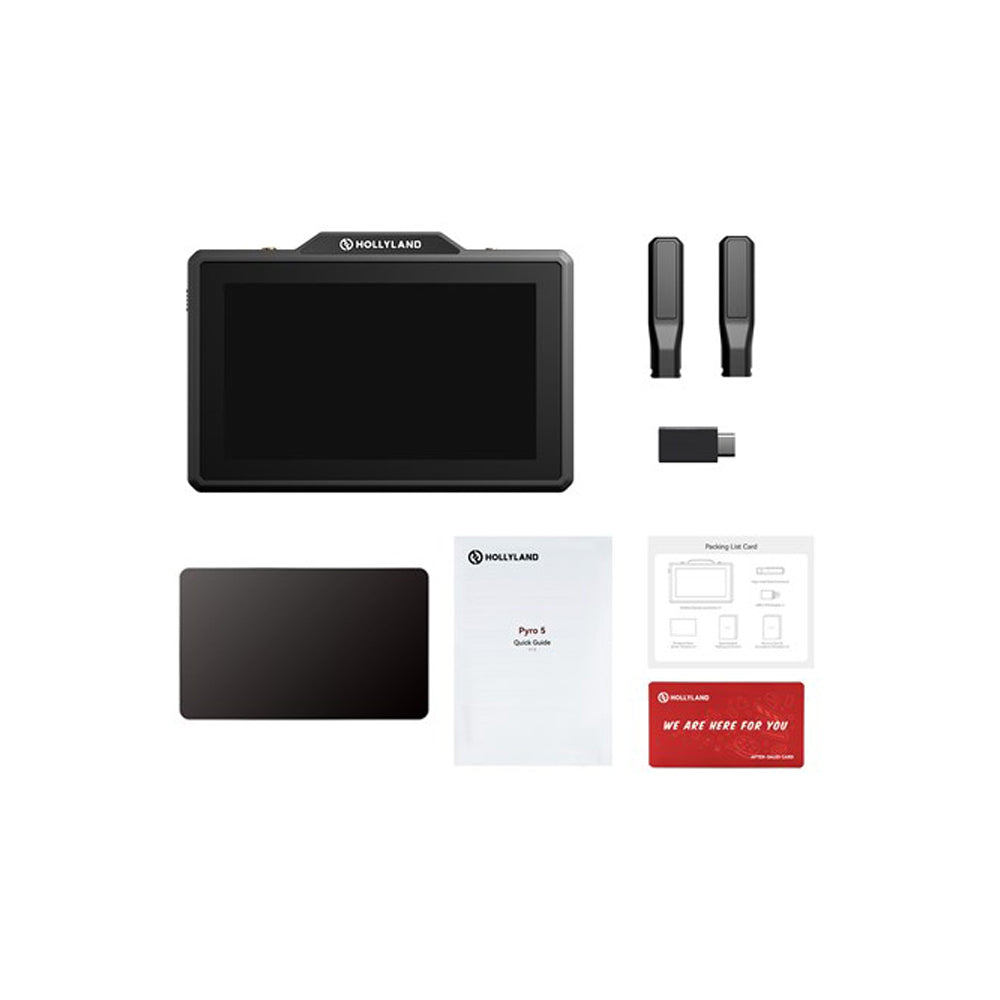

What’s In the Box

  • 1x Pyro 5 Wireless Transceiving Monitor
  • 2x Easy-Install Short Antenna
  • 1x Quick Guide
  • 1x Warranty Card
  • 1x Tempered Glass Screen Protector
  • 1x Packing List Card
  • 1x USB-C OTG Adapter

Specifications

Input Port
Transmitter Mode: HDMI 1.4b, 3G-SDI IN
Output Port
Transmitter Mode: Loop-Out HDMI 1.4b. Receiver Mode: HDMI 1.4b.
Audio-Video Parameters
Colour Depth Capability: HDMI Input: YUV422/YUV444 8BIT. Input Audio Format: HDMI 1.4b 8-Channel. Output Audio Format: HDMI 1.4b 8-Channel
Antenna
SMA Male
Power Input
DC Input (2.0mm core socket)
Headphone Jack
3.5mm
Upgrade Port
USB-C (USB 2.0 OTG) / SD Card Slot
Screen Size
5.5” Touchscreen
Screen Resolution
1920 x 1080 Pixels
Colour Gamut
Rec.709
Aspect Ratio
16:9
Screen Brightness
1,500 nits
Contrast Ratio
1000:1
Power Input Voltage
NPF: 6V~16V
Video Processing Technology
Video Bitrate: Maximum 12 Mbps. Video Encoding Format: H.264
Power Consumption
Transmitter Mode: <14W. Receiver Mode: <16.5W
Net Weight
≈538g (19oz)
Dimensions (LxWxH)
180x127x45.8mm
Operating Frequency
5.150~5.250GHz, 2.412~2.484GHz, 5.250-5.350GHz, 5.470~5.600GHz, 5.600~5.725GHz, 5.725~5.850GHz
Transmit Power
Transmitter Mode: < 23dBm
Receiver Sensitivity
Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm
Transmission Latency
≈60ms (Tested in a laboratory environment with 1080P60 signal transmission)
Bandwidth
Unicast: 20 MHz Broadcast: 40 MHz
Operating Temperature
- 10°C - 45°C
Storage Temperature
- 40°C - 60°C
HDMI Input
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60
HDMI Loopout/Output
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60
SDI Input
1080p50/59.94/60 (Level A), 1080p50/59.94/60 (Level B), 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080psf23.98/24, 1080psf25/29.97/30, 720p50/59.94/60
SDI Loopout/Output
1080p50/59.94/60 (Level A), 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080psf23.98/24, 1080i50/59.94/60, 720p50/59.94/60
Manufacturer CodeHL-8830
