GODOX

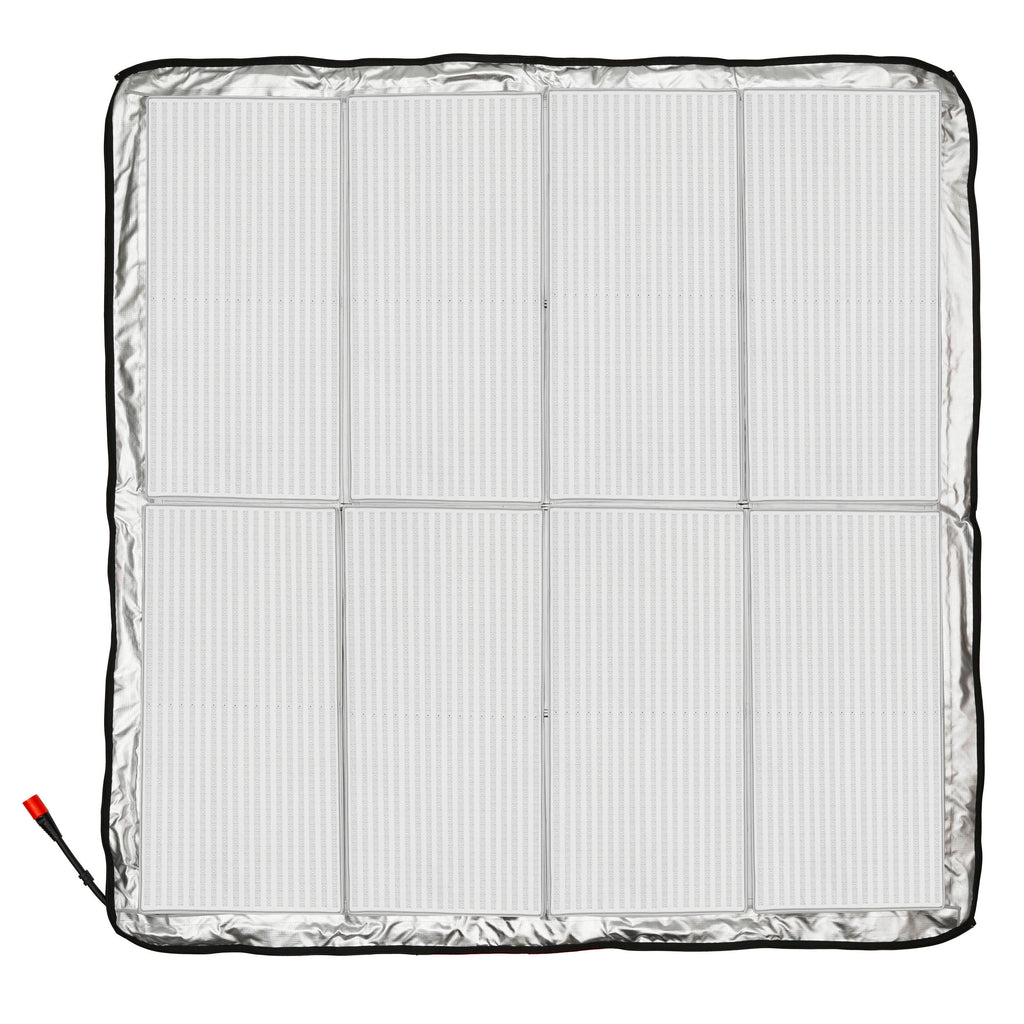

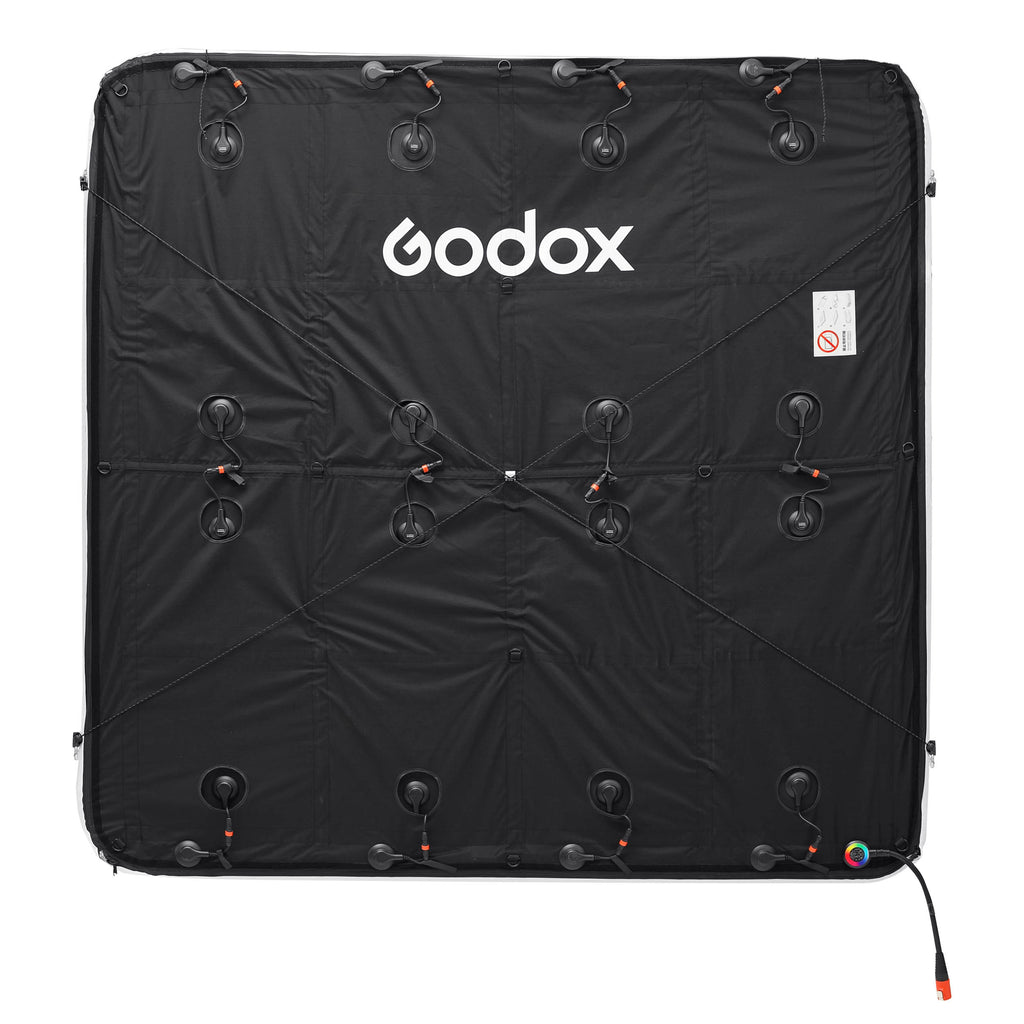

KNOWLED AM1600R 88K 8'x8' 1600W IP54 Weatherproof Inflatable RGB LED Cine Light Mat

SKU: GD-AM1600R-88K

£8,500.00

Tax included. Shipping calculated at checkout.

  • Out of stock, pre-order available
Add Extended Warranty:
£1,275.00
  • Verified Secure Shopping

The Godox KNOWLED AM1600R 88K 8'x8' 1600W Inflatable RGB LED Cine Light is a high-performance, weather-resistant lighting solution designed for professional film and television production. This powerful full-colour RGB LED mat panel delivers outstanding colour accuracy with a CRI of ≥96 and a TLCI of ≥95, ensuring true-to-life colour rendering on set. Lightweight and portable, its inflatable design makes it easy to set up in both studio environments and challenging outdoor locations. With an IP54 weatherproof rating, it’s built to withstand demanding production conditions. The AM1600R supports industry-standard DMX512 and CRMX protocols as well as convenient wireless control via the Godox Light App using Bluetooth. Ideal for cinematographers, gaffers, and lighting technicians working on feature films, TV series, commercials, and broadcast productions, the Godox KNOWLED AM1600R combines flexibility, durability, and professional-grade performance in one innovative lighting tool.

Large-Scale Cinematic Lighting Solution

The AM1600R's 1600W of raw output produces soft, full-colour lighting with CCT, HSI, RGBW, GEL, and FX colour modes. Its Green/Magenta adjustment allows for exact tint calibration to match the ambient lighting of any shooting environment. Its large size, combined with its 4x8 diffuser, enables it to produce soft, smooth, evenly diffused lighting.

A GODOX KNOWLED AM1600R being used to illuminate a motorbike from overhead

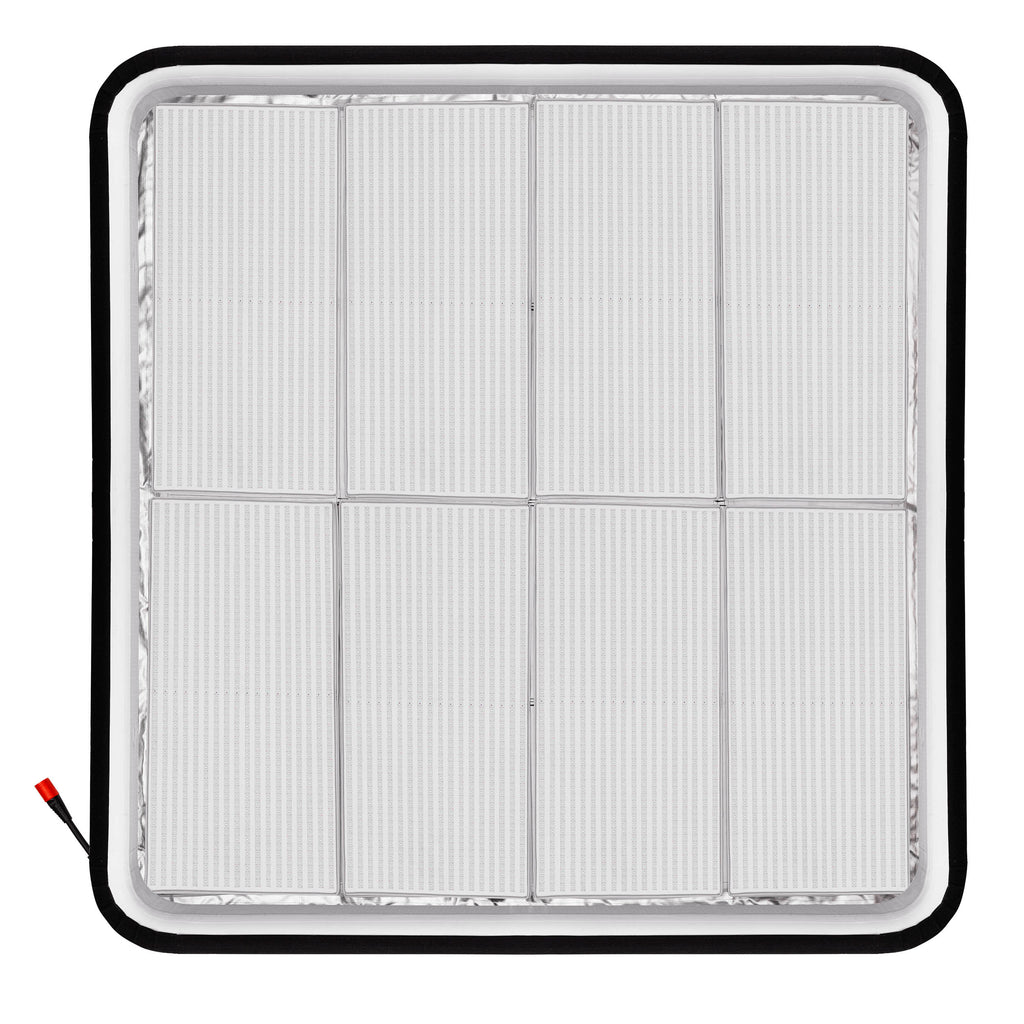

Modular Design

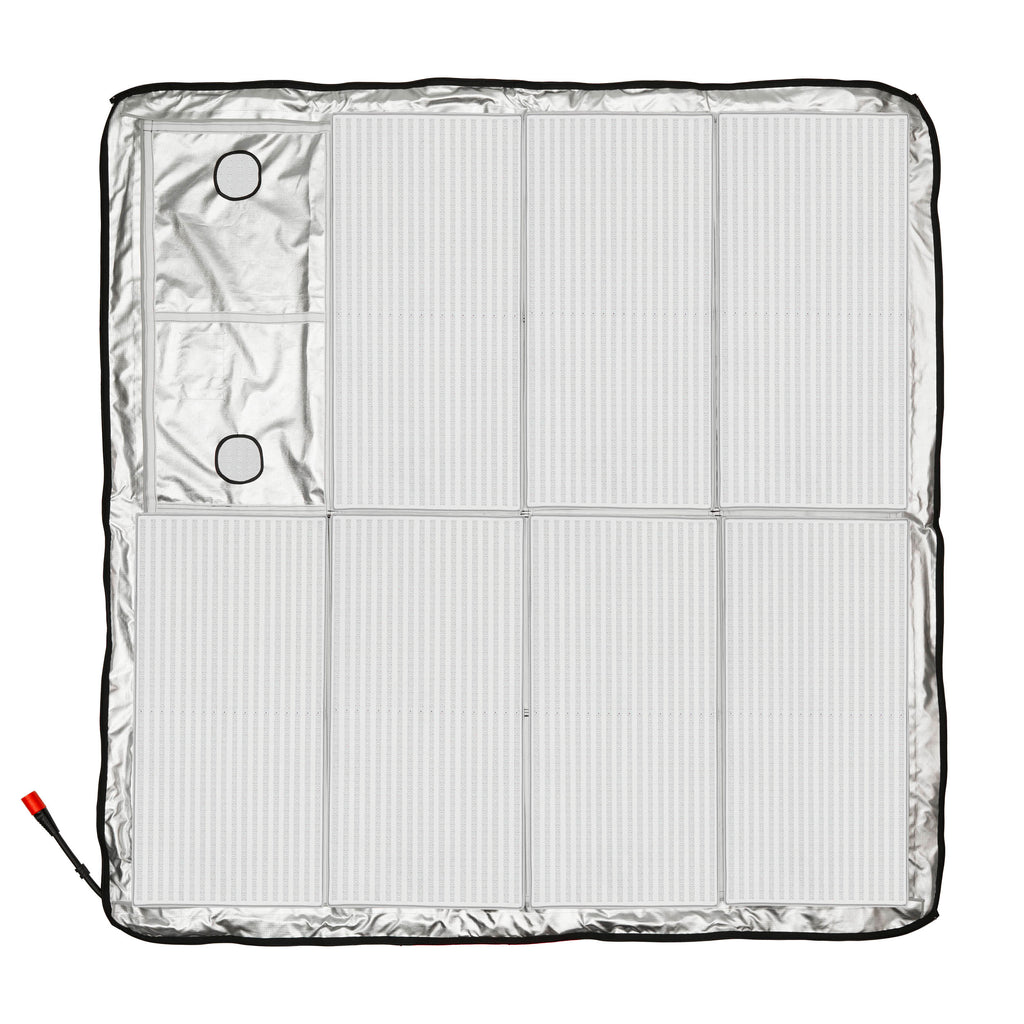

The KNOWLED AM1600R comes in two sizes: an 8’x8’ model for increased brightness and an 8’x8’ version that delivers softer light with broader coverage. Both variants share the same controller box, simplifying the process of assembling large light arrays. Its modular design features Velcro fasteners for quick panel swaps, while D-rings on the rear facilitate easy connection or extension of panels to accommodate various shooting needs.

Two GODOX KNOWLED AM1600R panels being connected together to build a larger array

Resist Wear, Tear, and Scratches

The KNOWLED AM1600R's inflatable butterfly frame uses advanced materials made with precision manufacturing to dramatically improve scratch and abrasion resistance, ensuring you get many years of use out of it. This helps tackle the common issue of air leaks and punctures due to damage that has occurred on set

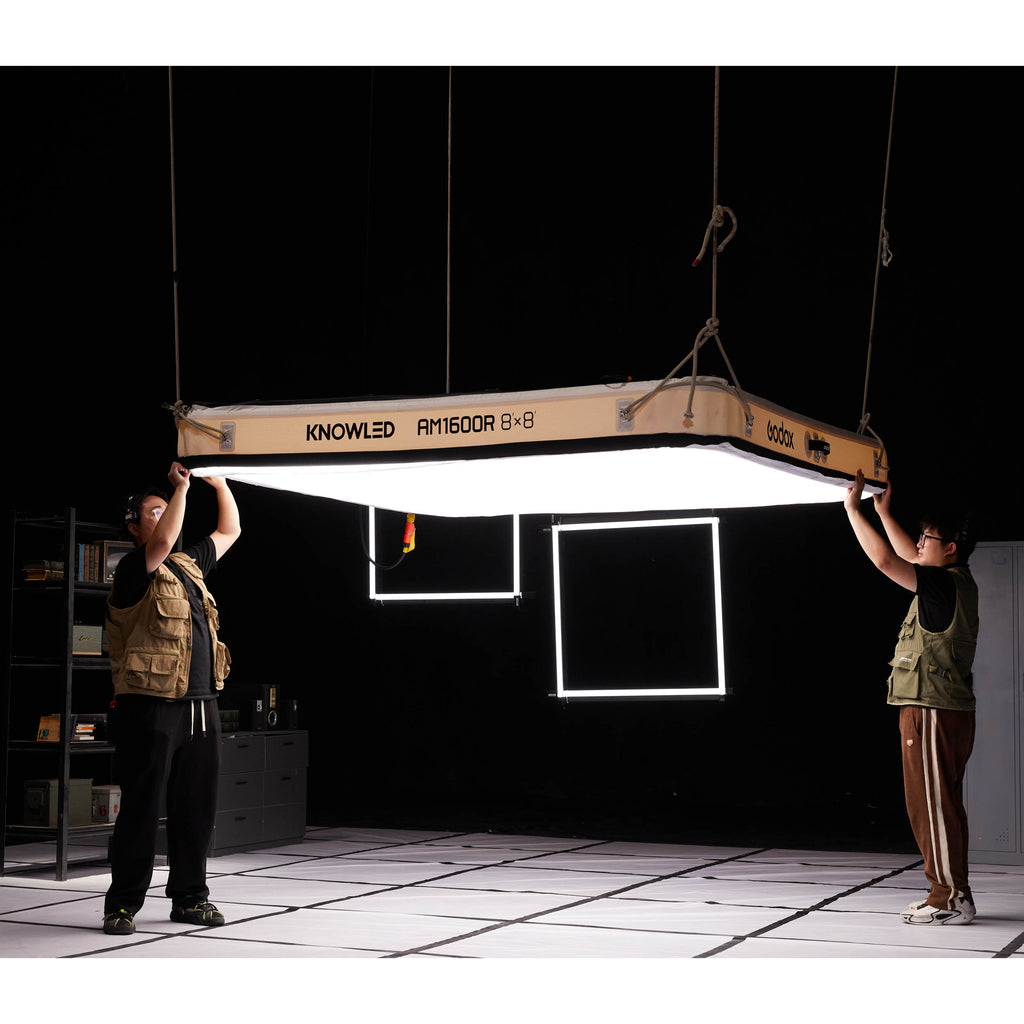

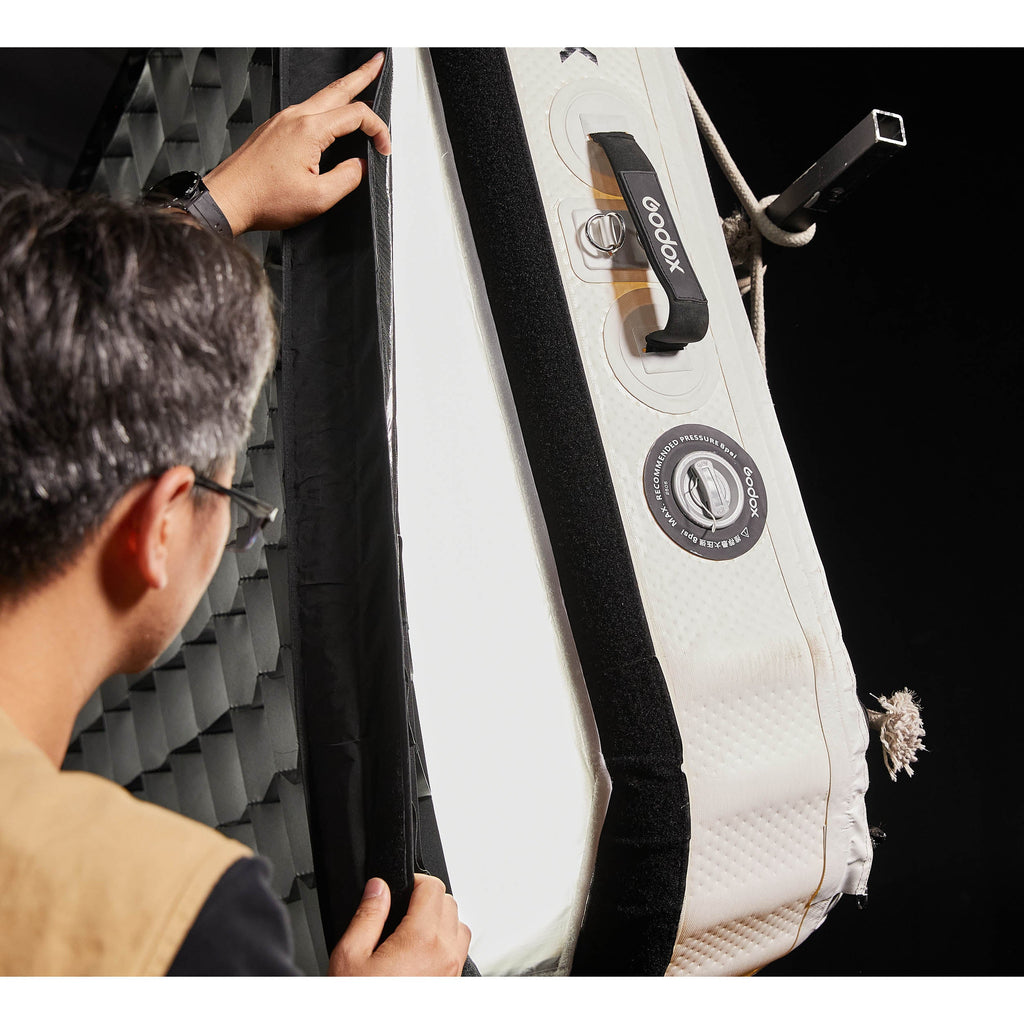

A gaffer setting up a A GODOX KNOWLED AM1600R Inflatable Light Panel

No Truss? No Hassle!

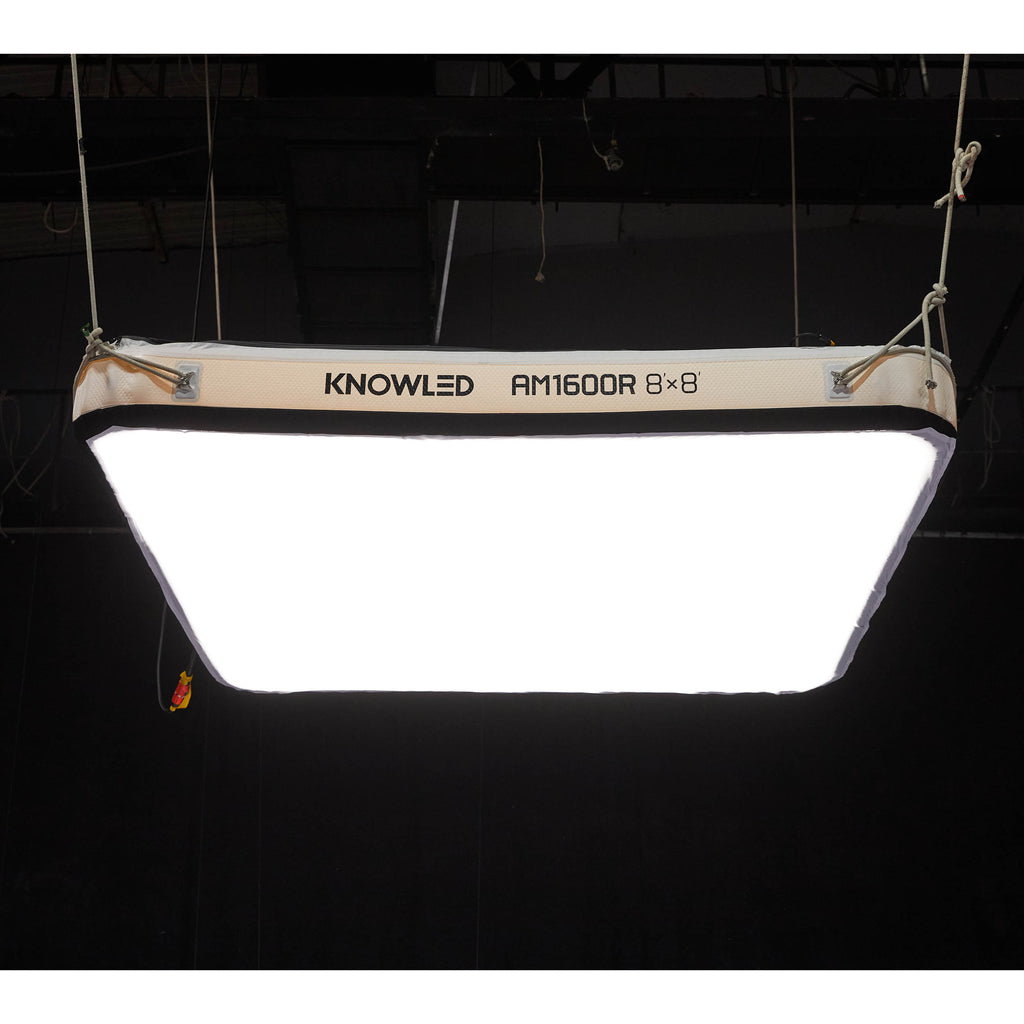

Thanks to its robust durability and structural integrity, the AM1600R can be safely suspended without requiring truss supports or rigging. Simply connect the included pump to 8 Psi, and the light is ready for use in as little as three minutes. This makes it an excellent choice for shoots in locations where truss systems are impractical or unavailable.

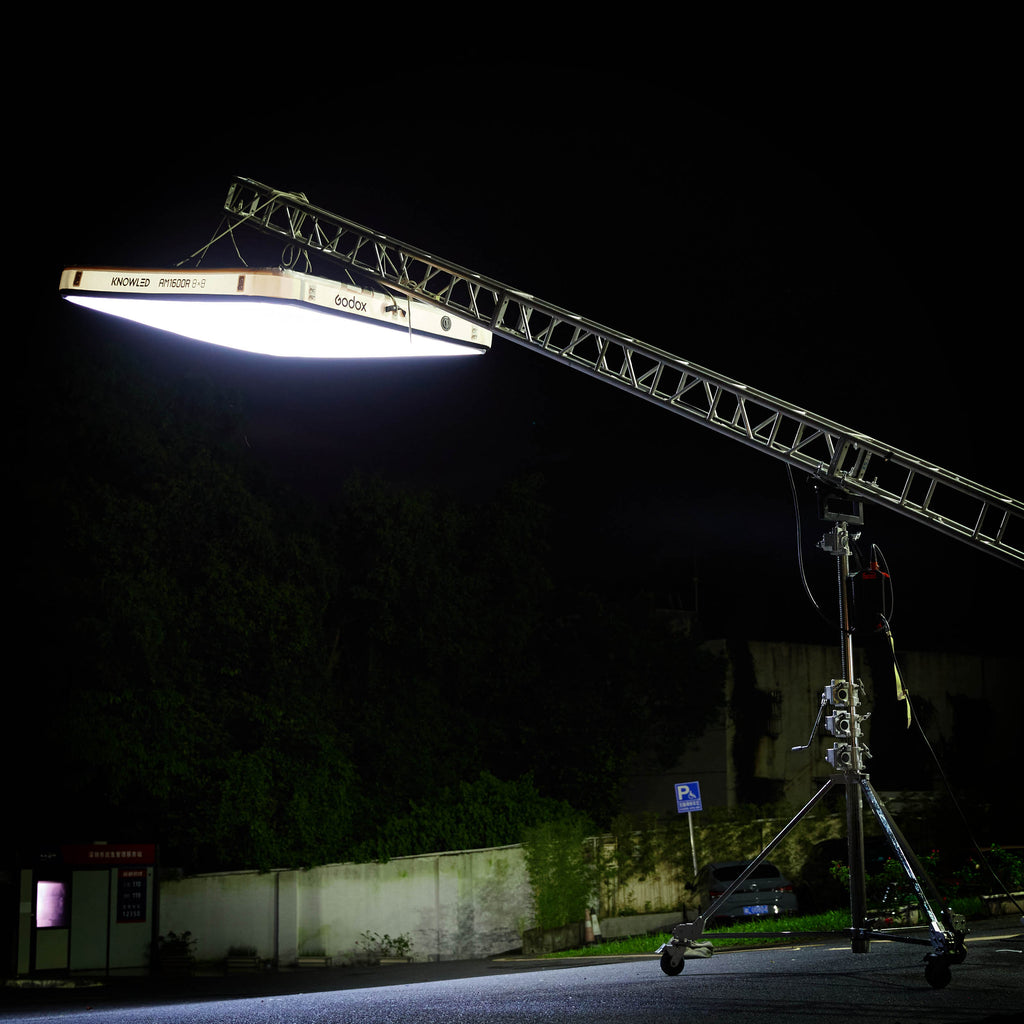

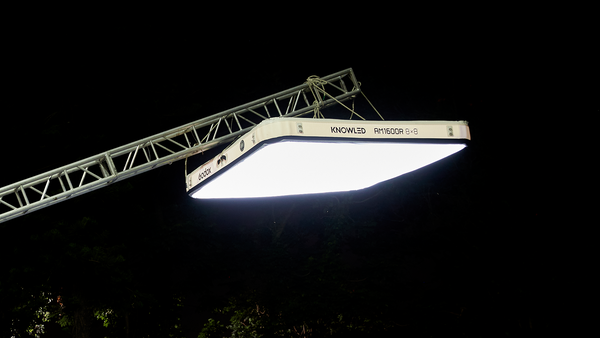

A GODOX KNOWLED AM1600R mounted to a crane outdoors

Lasts Up To 15 Days Without Re-Inflation

The KNOWLED AM1600R has been engineered for superior airtightness, maintaining its form for up to 15 days without requiring re-inflation. This reliability eliminates the need for daily air top-ups, making it ideal for extended production schedules.

A GODOX KNOWLED AM1600R being used on a movie set with the Skirt attached

Plethora of Detachable Accessories

The AM1600R includes a variety of modifiers that can be used individually or in combination, giving you access to an extensive array of lighting options. These accessories include Diffusers, Skirts, Grids, Lantern diffusers, and more, opening up a world of lighting possibilities.

Showing all of the modifiers available for the KNOWLED AM1600R -Series

Full IP54 Weather-Resistance

The AM1600R-Series Inflatable light mat is designed to last with its IP54 certification, meaning that it is completely protected from dust and water from the light head down to the controller box. It ensures you get the best, most reliable lighting performance.

A GODOX KNOWLED AM1600R being used in the rain to show its IP54 weatherproof rating

Every Pro Control You Need

The AM1600R supports all standard professional control options for seamless integration into any movie production lighting setup. These options include CRMX, DMX, Ethernet, the KNOWLED App, and onboard controls, ensuring reliable multi-light synchronisation and accurate, real-time adjustments. Perfect for use on busy film sets.

A GODOX KNOWLED AM1600R being controlled using the Godox KNOWLED app

Foldable Design Enhances Mobility

To solve the storage and transport challenges of large-scale lighting setups, the AM1600R is fully foldable — including the light panels, inflatable butterfly frame, and accessories. The custom flight case holds the complete system. Wherever your shoot takes you, just pack it up and go.

A GODOX KNOWLED AM1600R being folded on the floor of a film studio by a gaffer

Efficient, Cost-Effective Maintenance

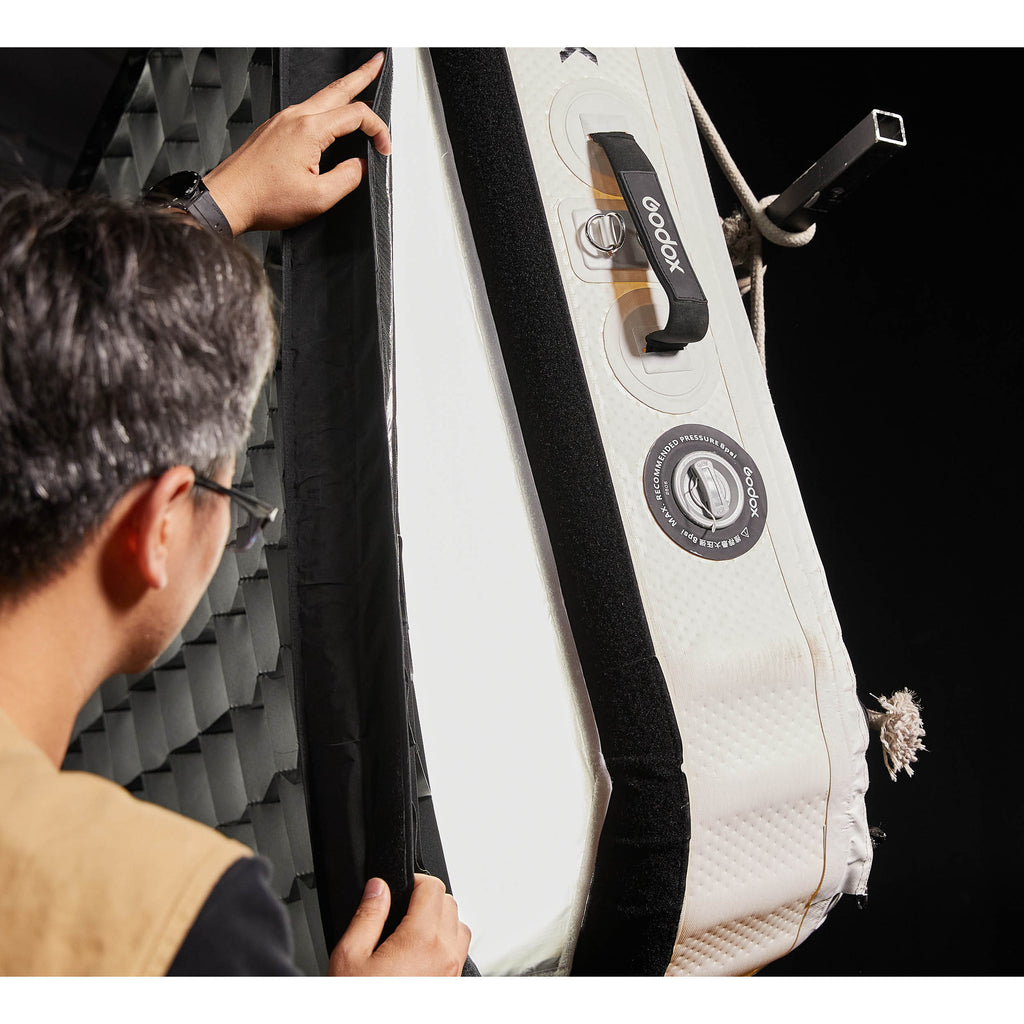

The AM1600R's Velcro-secured modular design allows for quick and easy panel replacements, helping to save time and reduce costs during production. It also comes with a repair kit to swiftly address any air leaks in the inflatable butterfly frame. Additionally, all accessories are fully detachable, making cleaning and replacement a straightforward process.

Showing different ways the GODOX KNOWLED AM1600R can be maintained

The Godox KNOWLED AM1600R 88K 8'x8' 1600W Inflatable RGB LED Cine Light is the perfect broadcasting, corporate video, YouTube, cinematography, Chroma Key green screen, as well as for photography. Whether you’re a seasoned professional or an enthusiast, you can’t go wrong with the KNOWLED AM1600R 88K Inflateable LED Light mat.

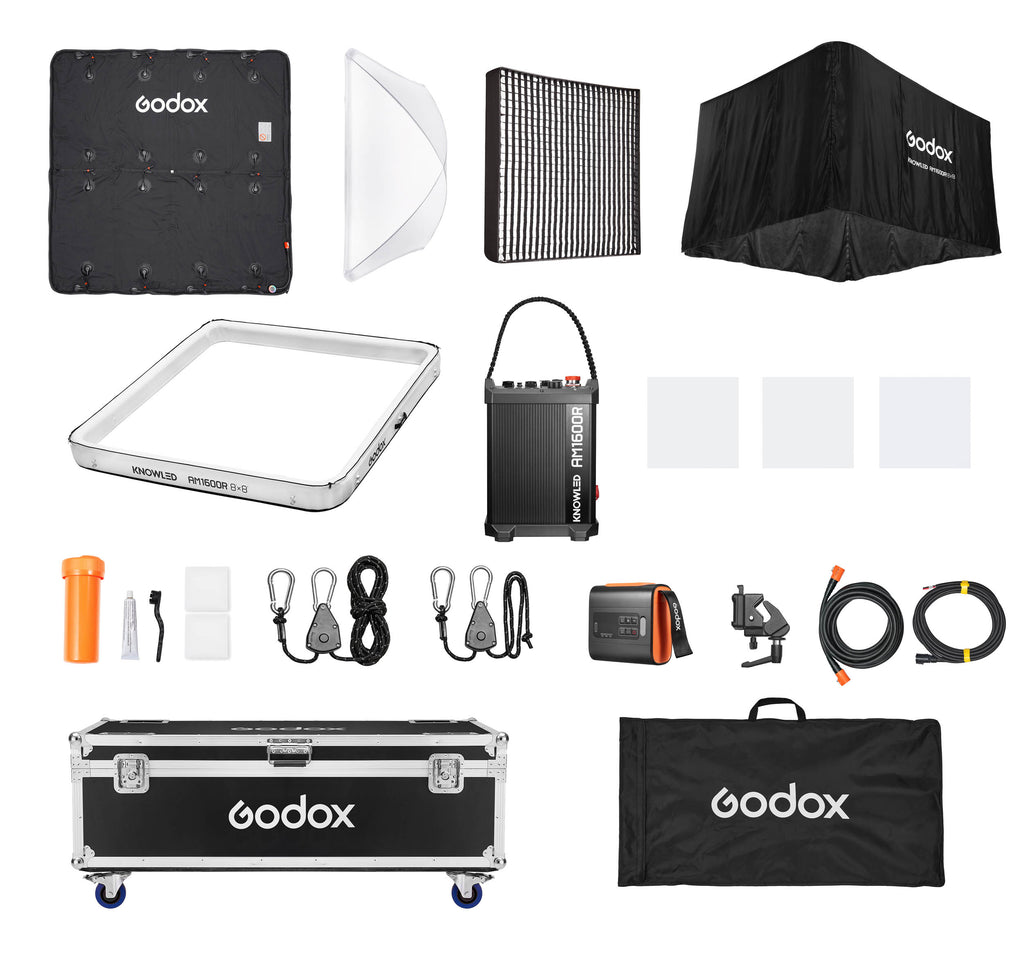

What's In The Box?

KNOWLED AM1600R 88K 8'x8' RGB LED Light Mat Box Content

Features

  • Large Inflatable 8'x8' Panel Design: Expansive surface area provides ultra-soft, diffused light, ideal for key lighting large scenes or talent.
  • Full RGB and Color-Temperature control
  • Perfect for any Weather conditons with its IP45 Weather Resistance Rating
  • CRI ≥96 and TLCI ≥95 for exceptional colour accuracy
  • Supports DMX512 and LumenRadio CRMX for seamless integration with professional lighting setups
  • Compatible with the Godox Light App for easy remote control and scene adjustments.
  • Quick set-up and easy portability
  • Plethora of mounting Options
  • Ideal For: Film production, TV series, commercial shoots, live broadcasting, and on-location video projects. large commercial photoshoots.

What’s In the Box

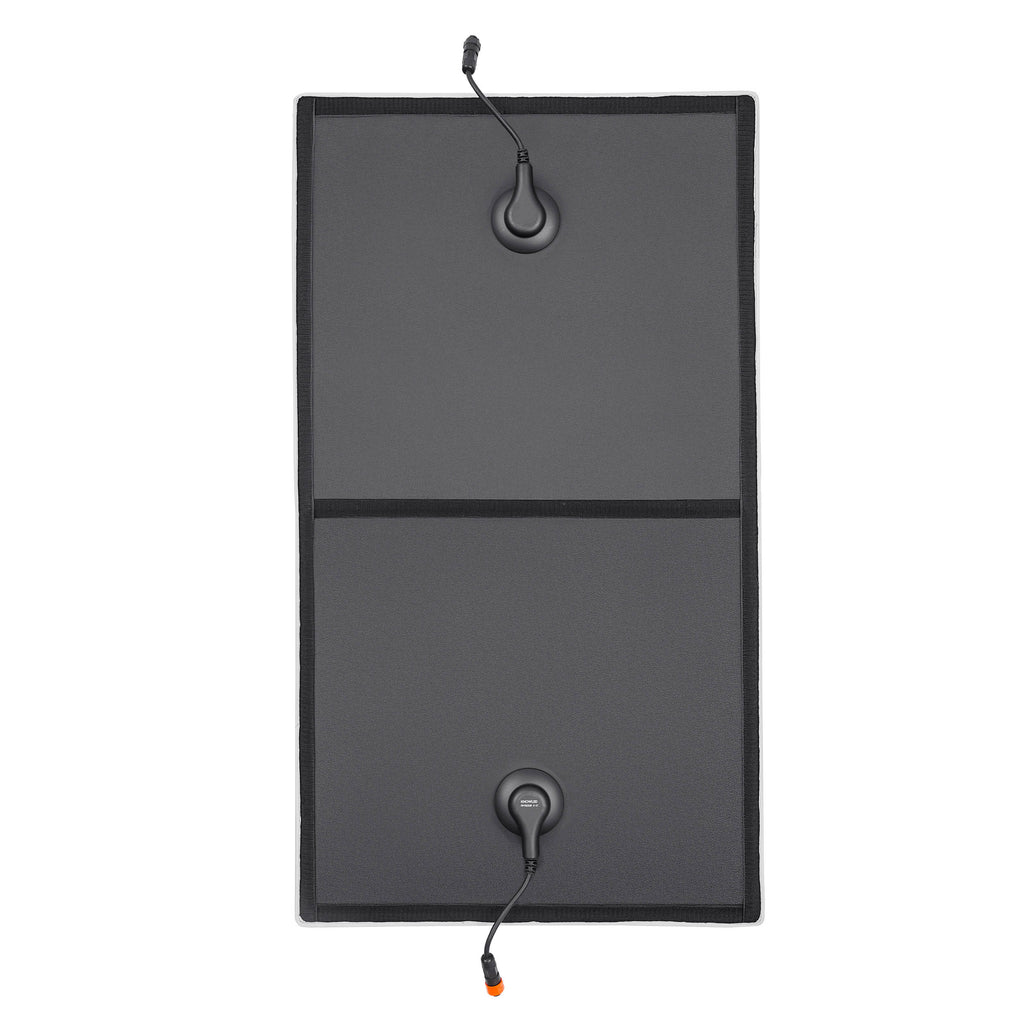

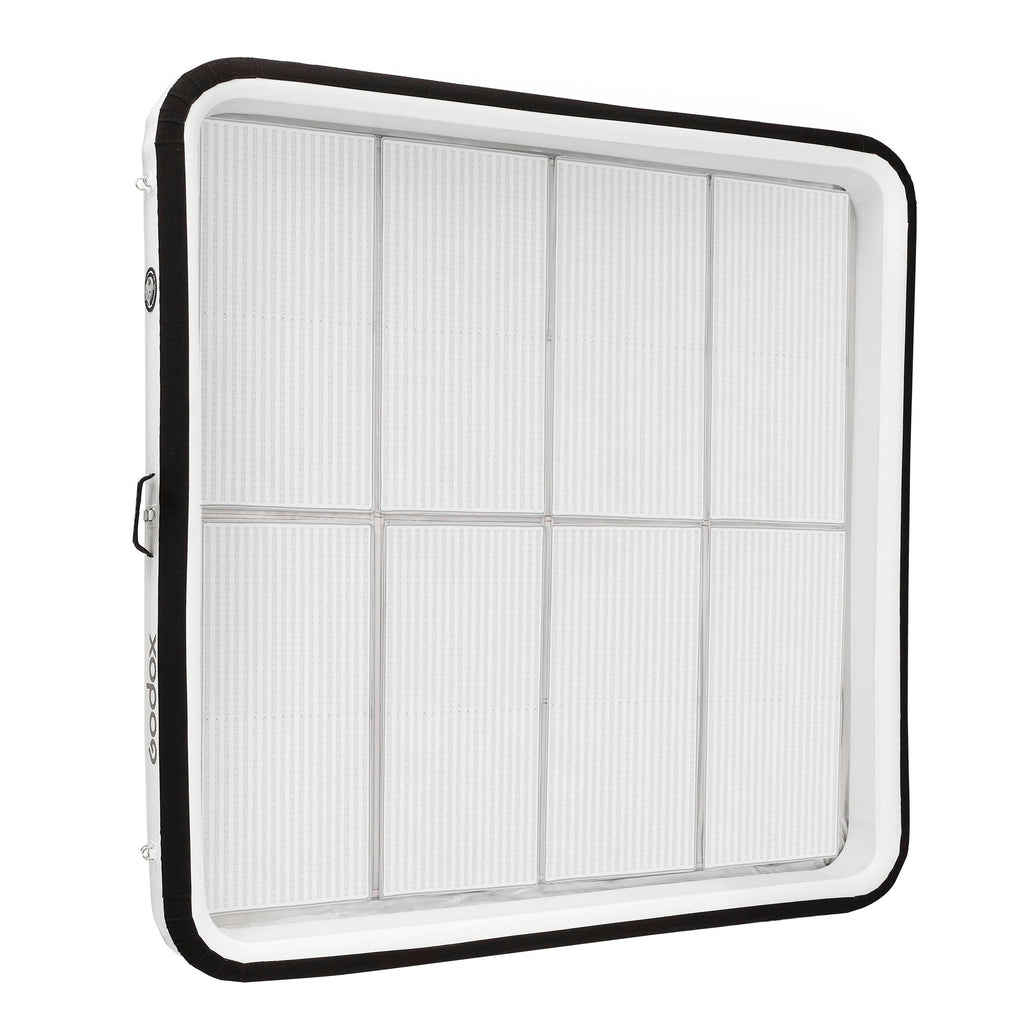

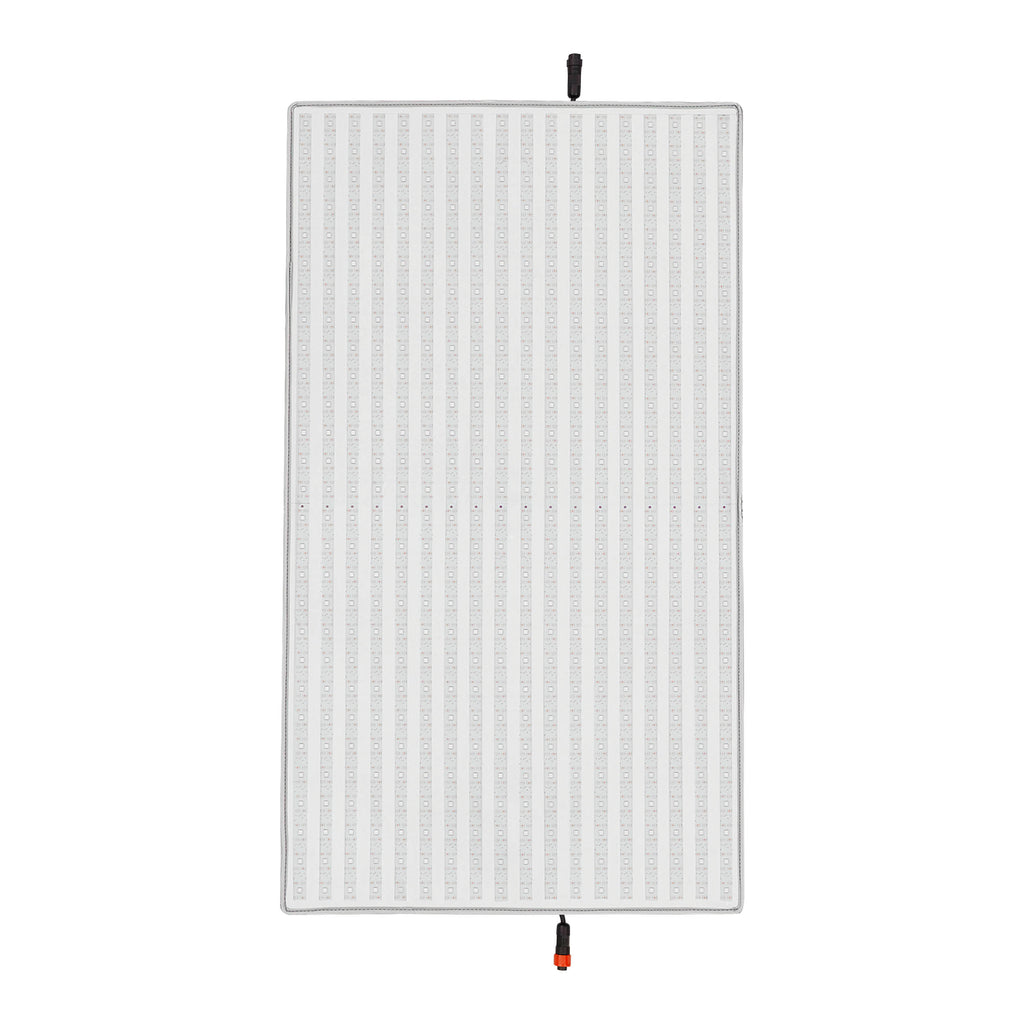

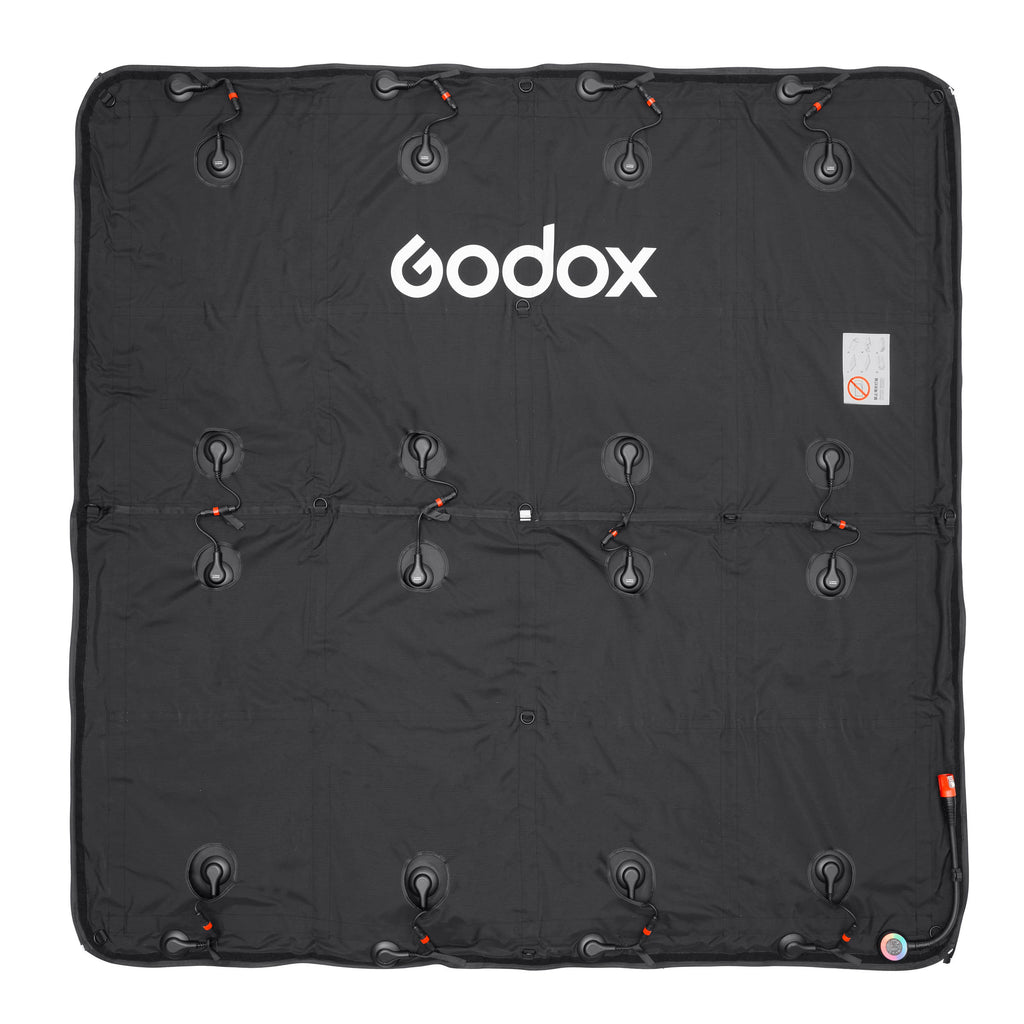

  • 1x AM1600R Light Body

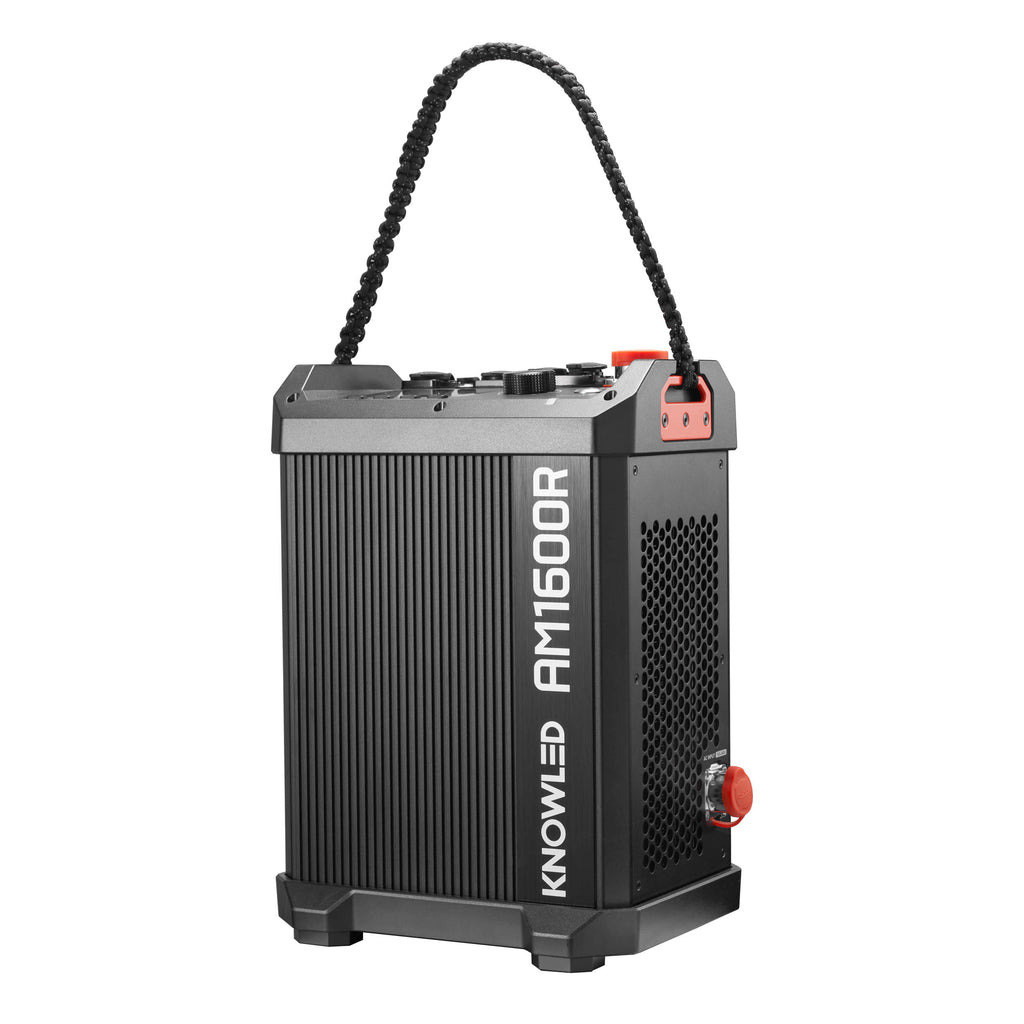

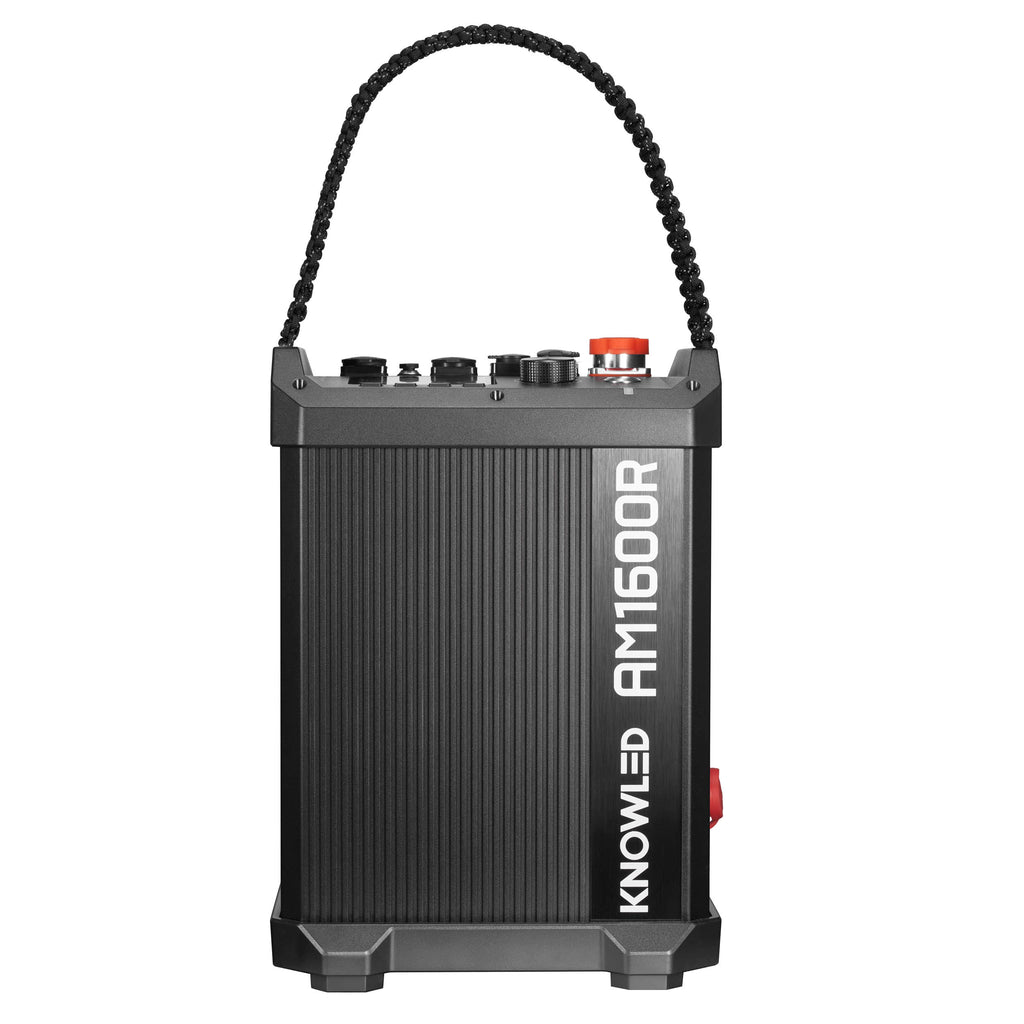

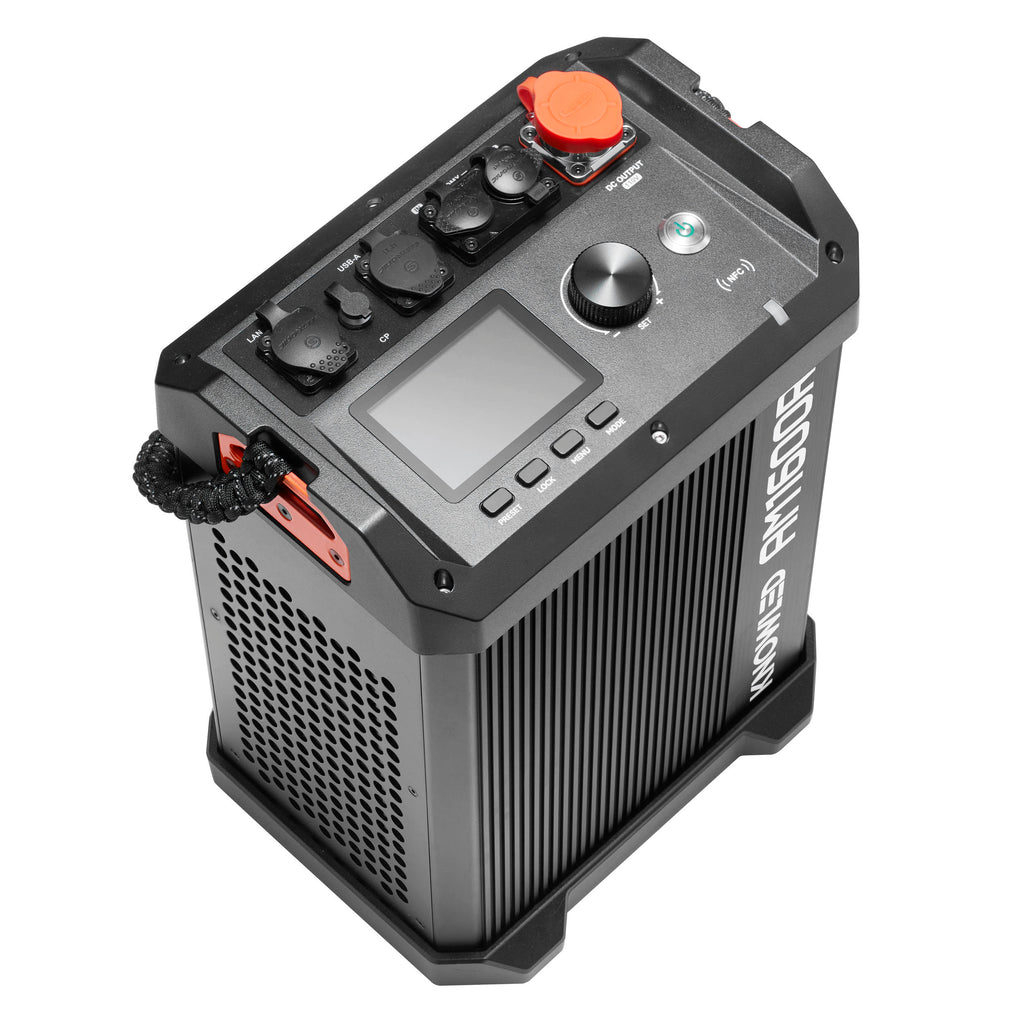

  • 1x Controller Box

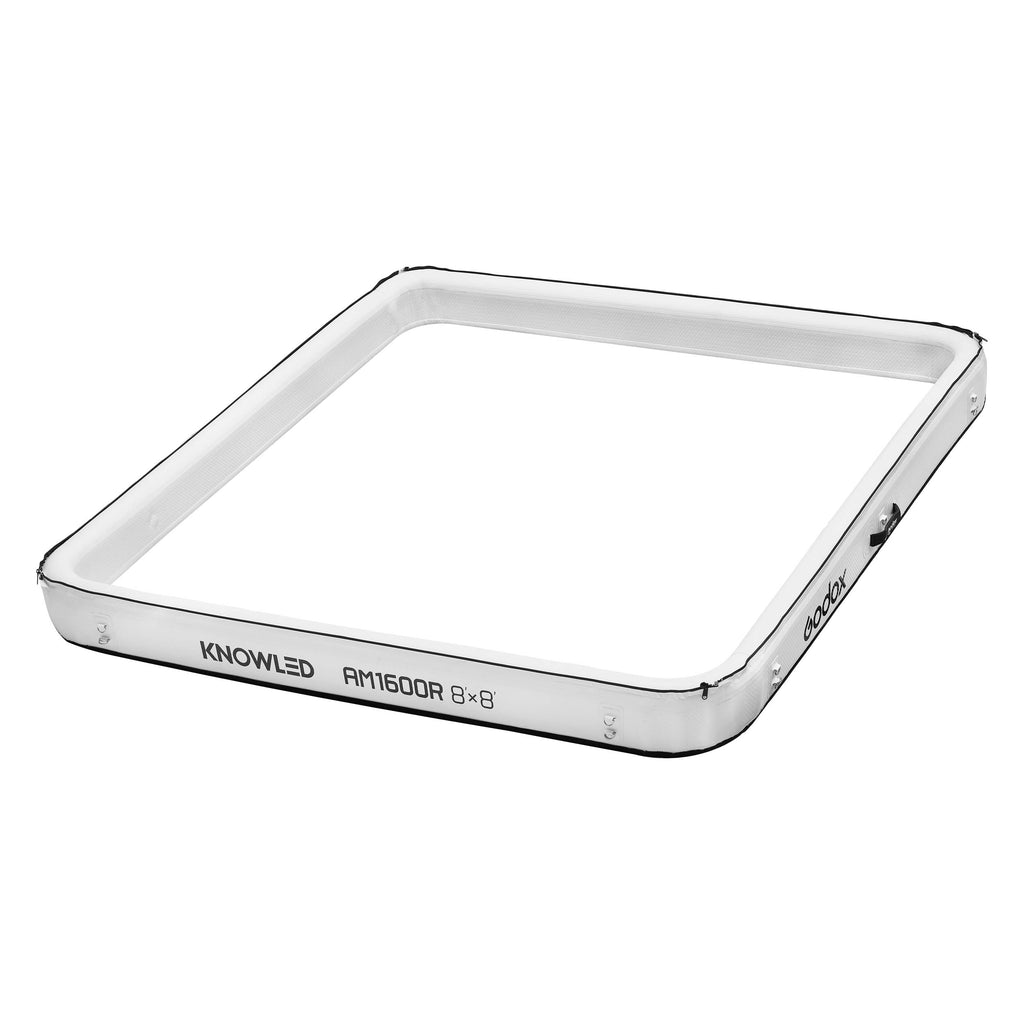

  • 1x AF88K Inflatable Butterfly Frame

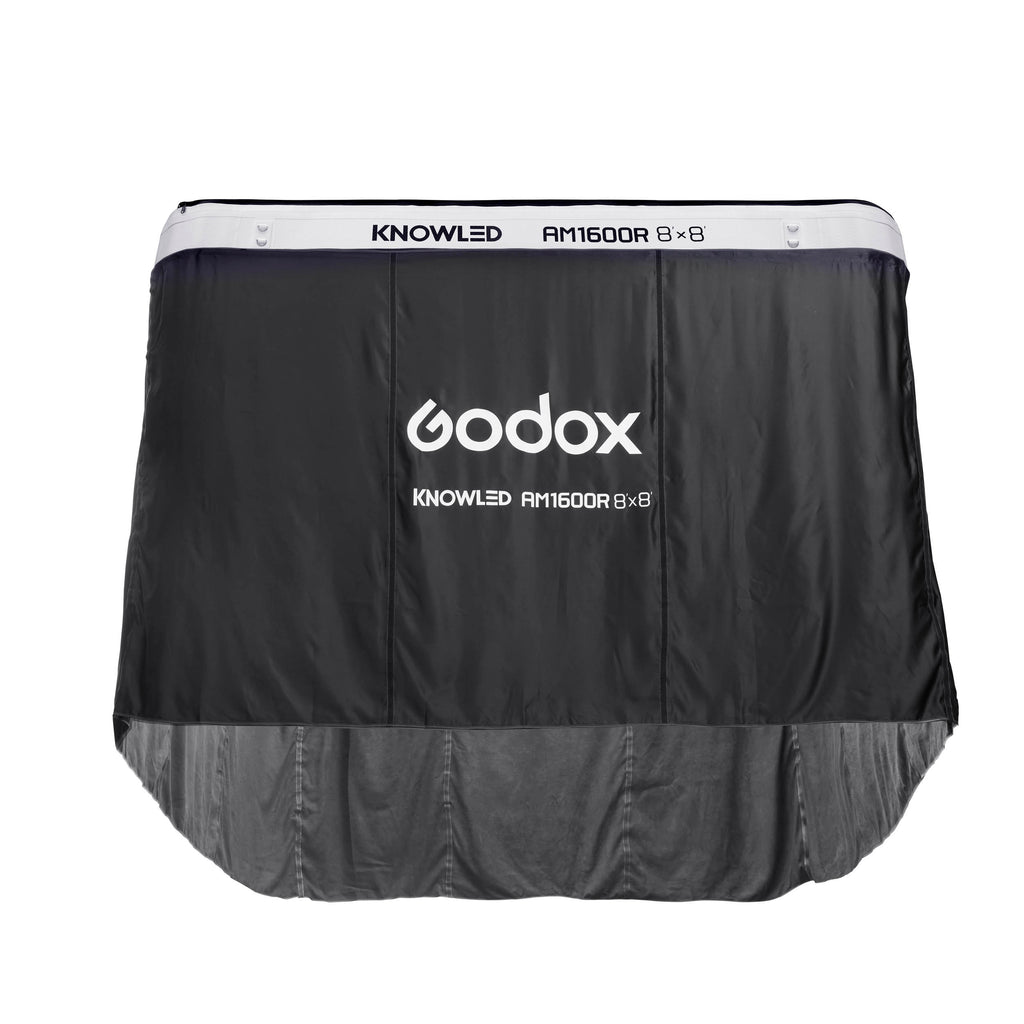

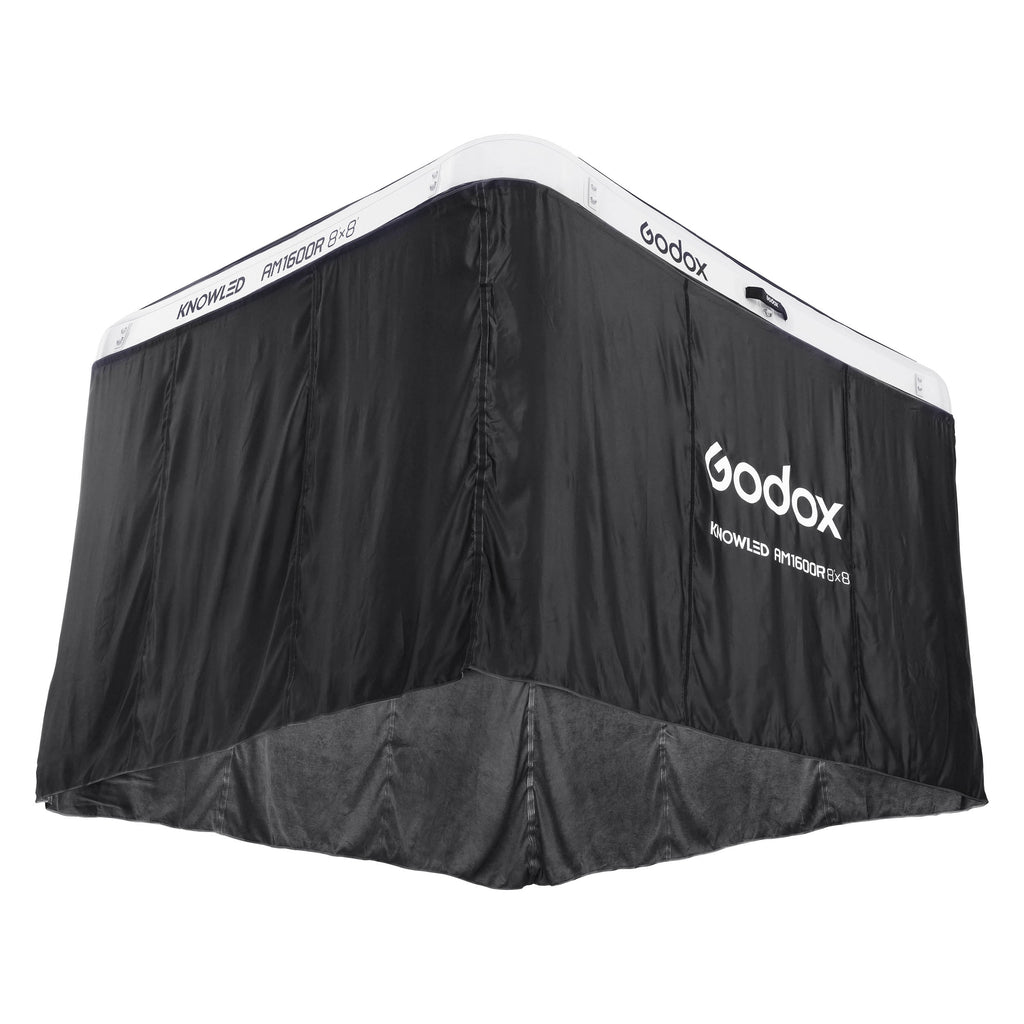

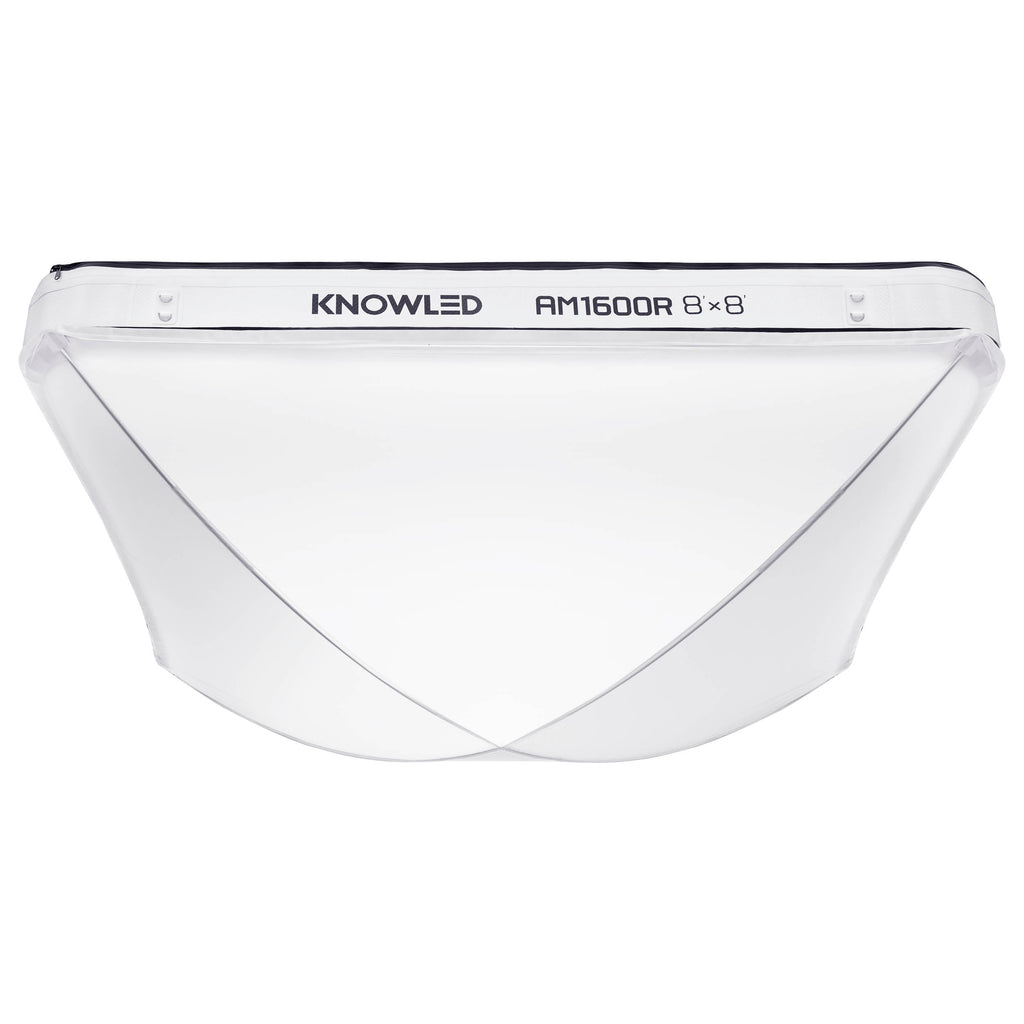

  • 1x AF88S Skirt

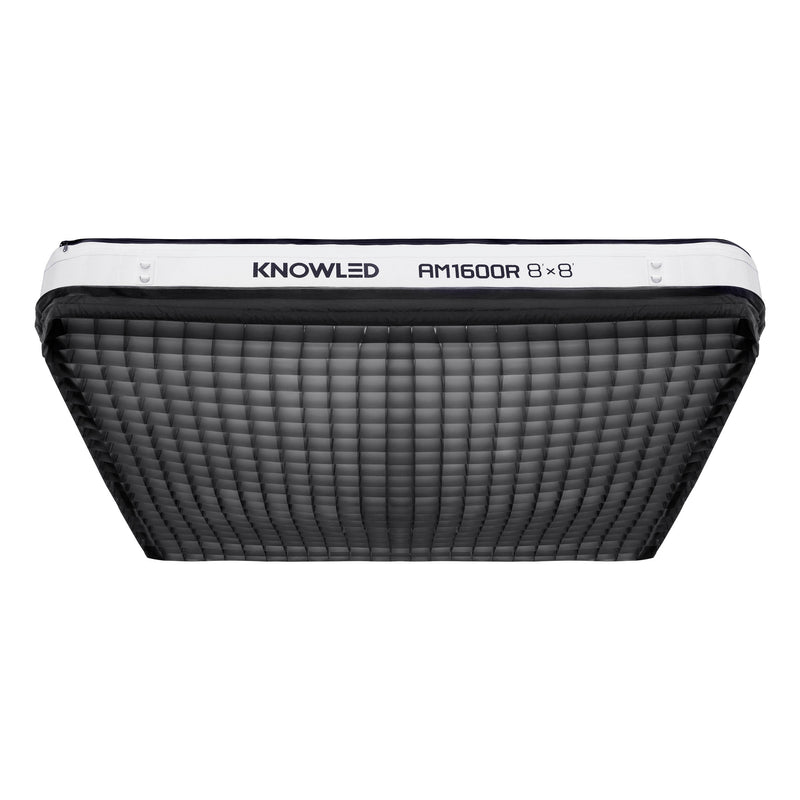

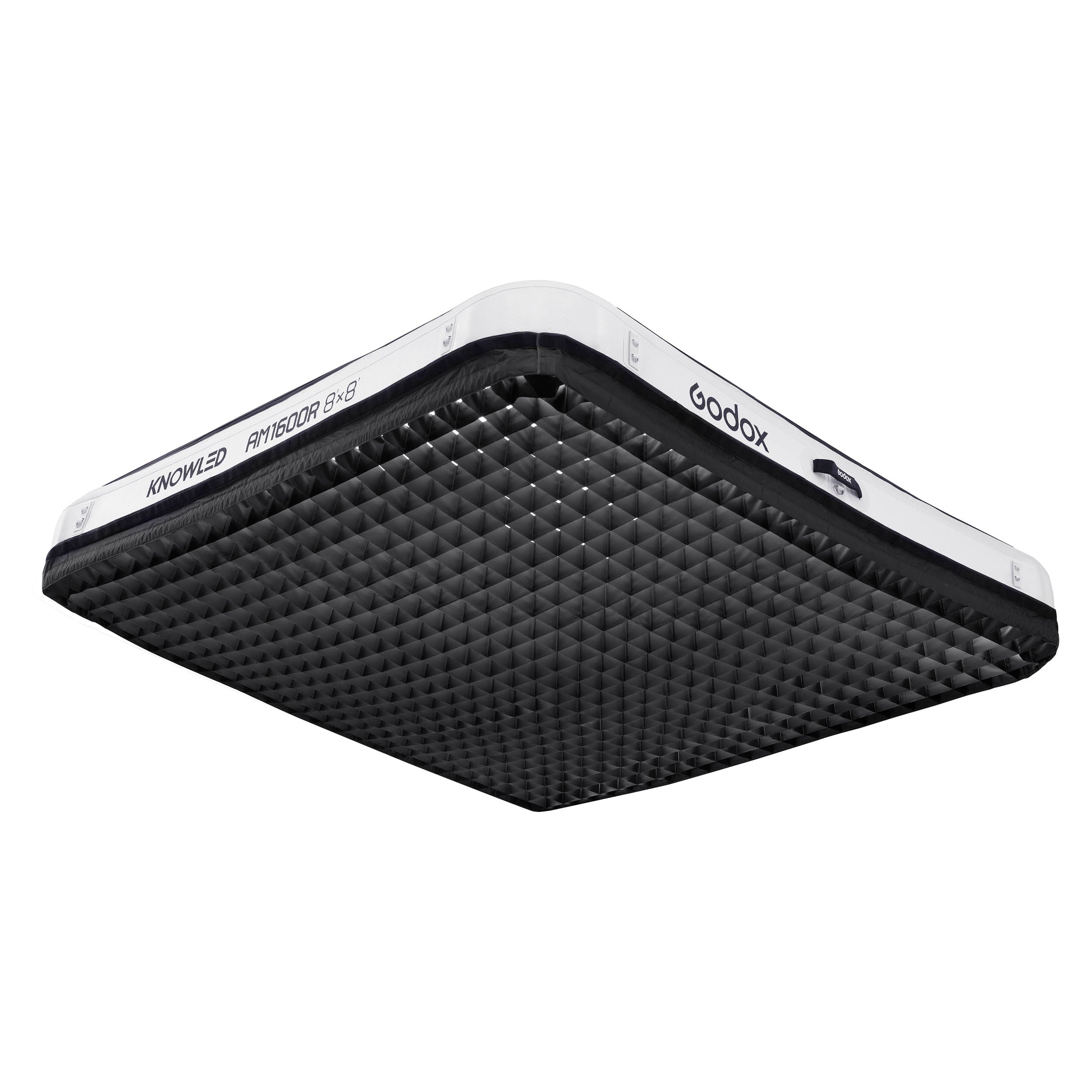

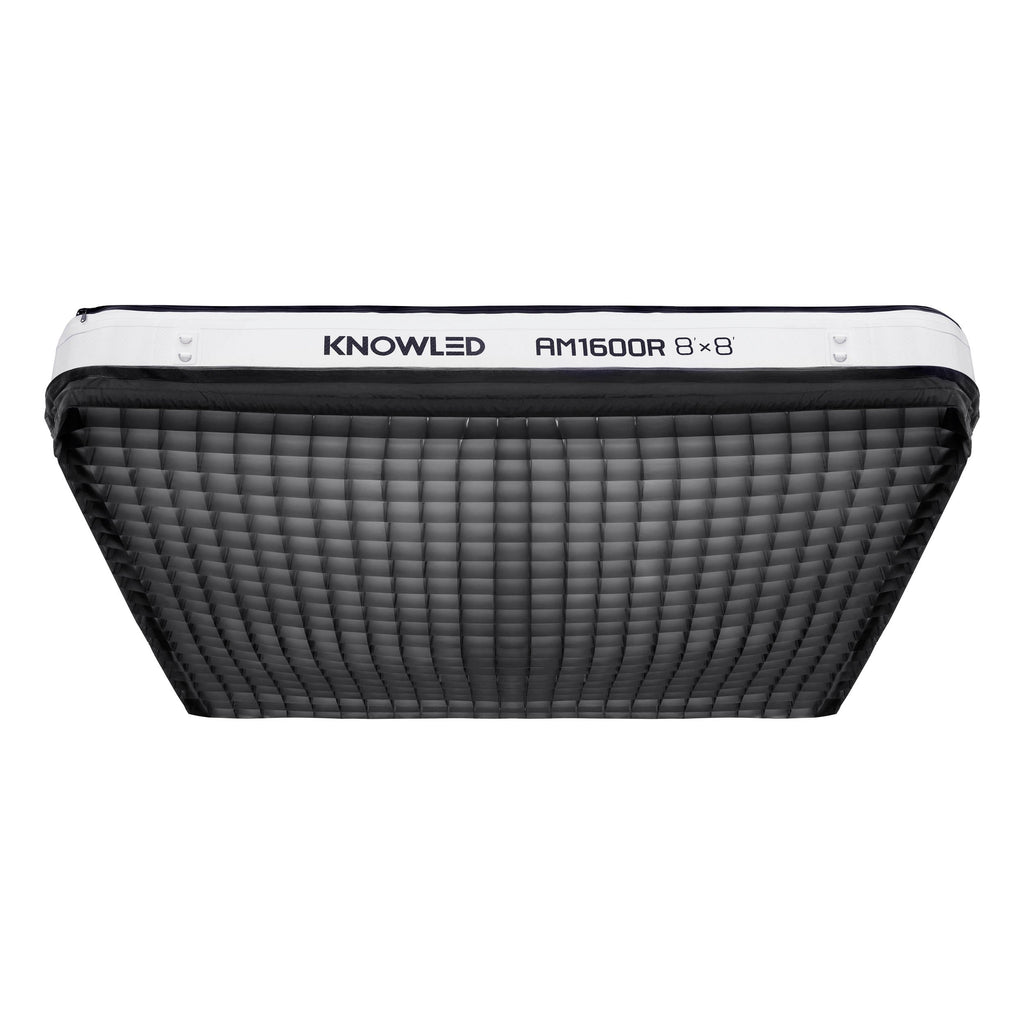

  • 1x AF88G Grid

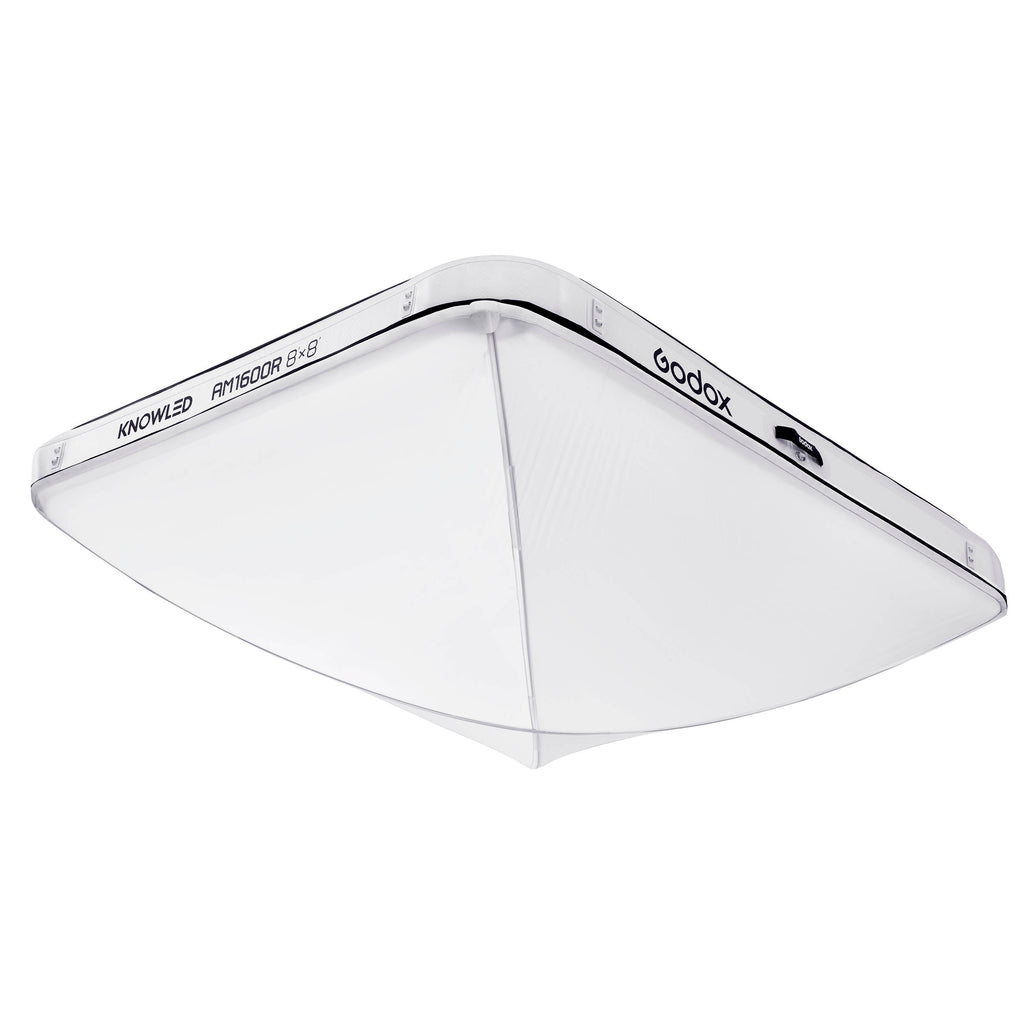

  • 1x AP88x1 Pancake Lantern
  • 1x AM1600R 8'x8' D13-30 Diffusion Fabric
  • 1x AM1600R 8'x8' D11-32 Diffusion Fabric
  • 1x Controller Mounting Clamp
  • 1x DC Power Cable
  • 1x AC Power Cable
  • 1x Air Pump
  • 2x Straps
  • 4x Ropes
  • 1x Repair Kit
  • 1x Optical Accessored

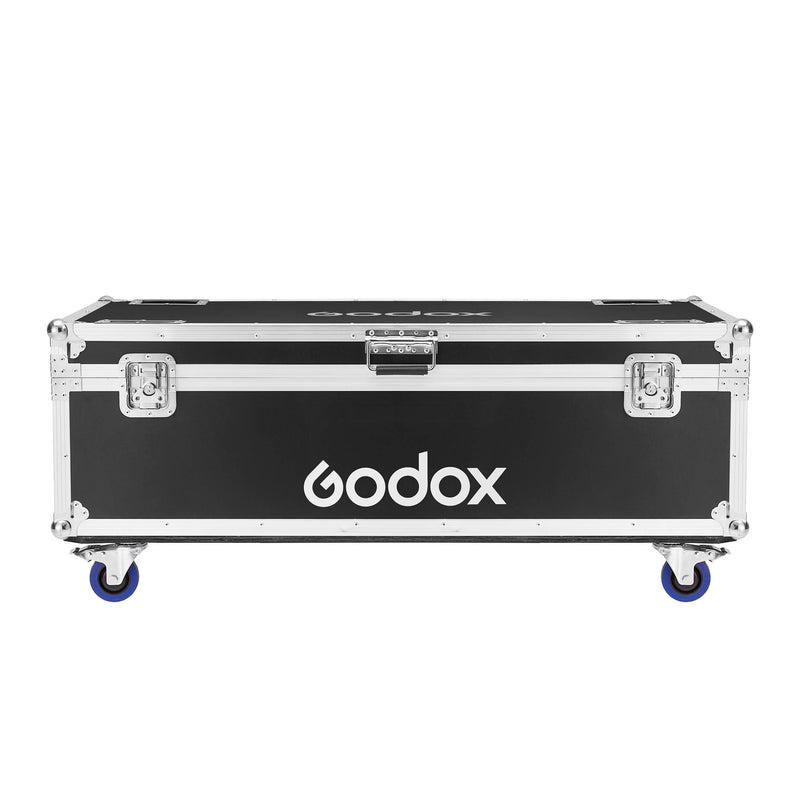

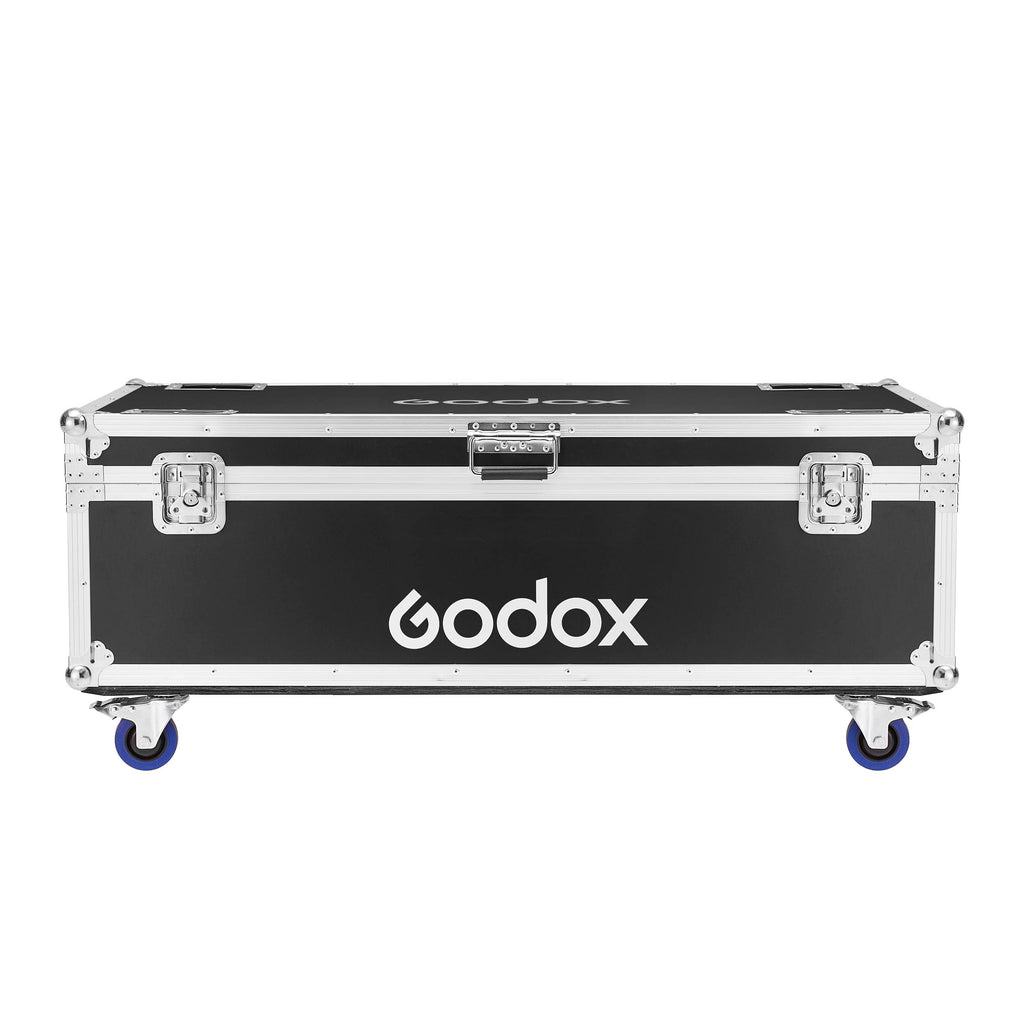

  • 1x Flight Case

Specifications

Power InputInput: 100-240V ~ 50/60Hz, 1800W
Colour Temperature Range1800K-10,000K
Green/Magenta Adjust100%~100%
Brightness Range0.0%~100% (in 0.1% Increments)
Dimming CurvesLinear, S-Curve, Exponential, Logarithmic
FX Modes14
CRI≈96
TLCI≈97
Light Body/Controller Weatherproof RatingIP54
Control MethodsDMX 512, Support RDM Protocol, LumenRadio CRMX/Ethernet/Art-Net & sACN Protocol, Bluetooth App, On Board Controls
Bluetooth Transmission Distance≈60m
USB-A PortFirmware Upgrade/5V 1.5A Power Supply
Working Envrionment Temperature-20°C ~ 45°C
Light Panel Dimensions (Without Inflateable Frame)≈230cm x ≈230cm
Controller Box Dimensions≈27cm x ≈22cm x ≈37cm
Light Panel Net. Weight12kg
Controller Box Net. Weight11kg
