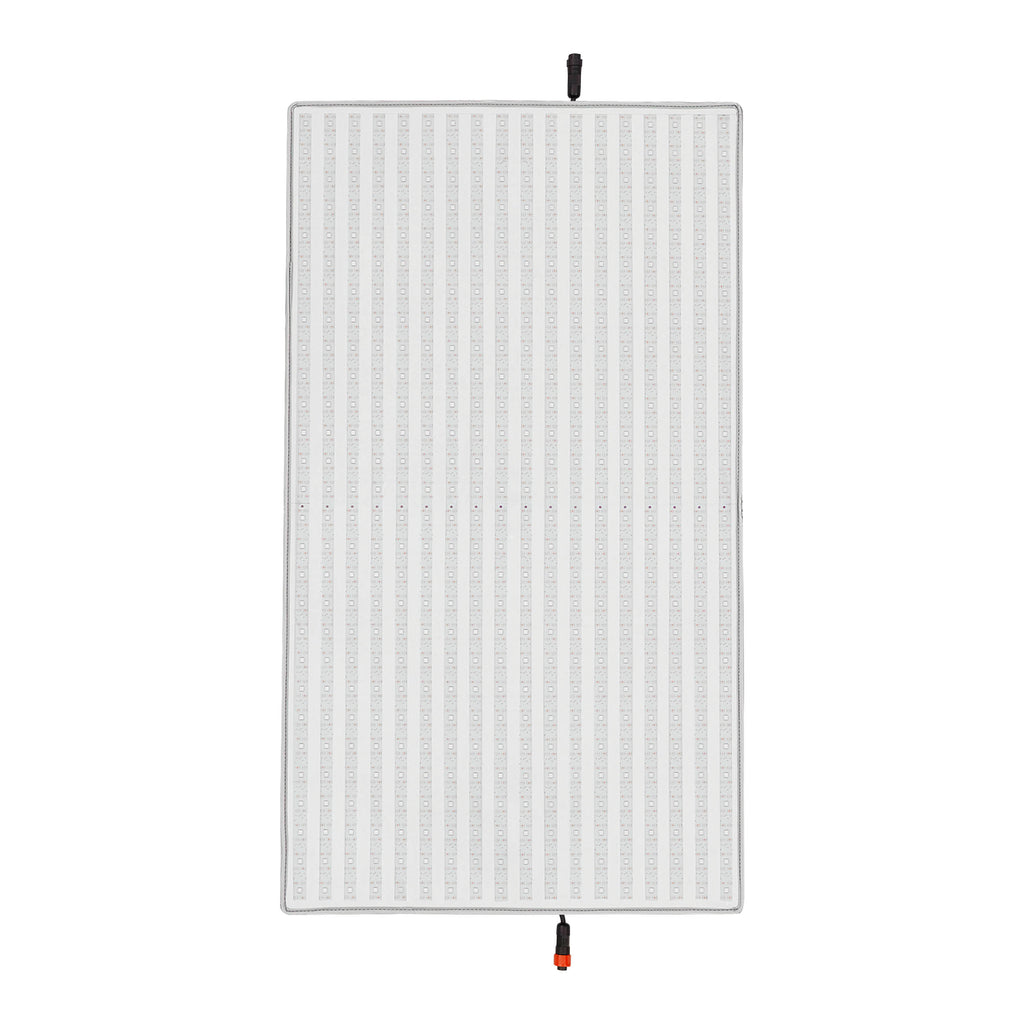

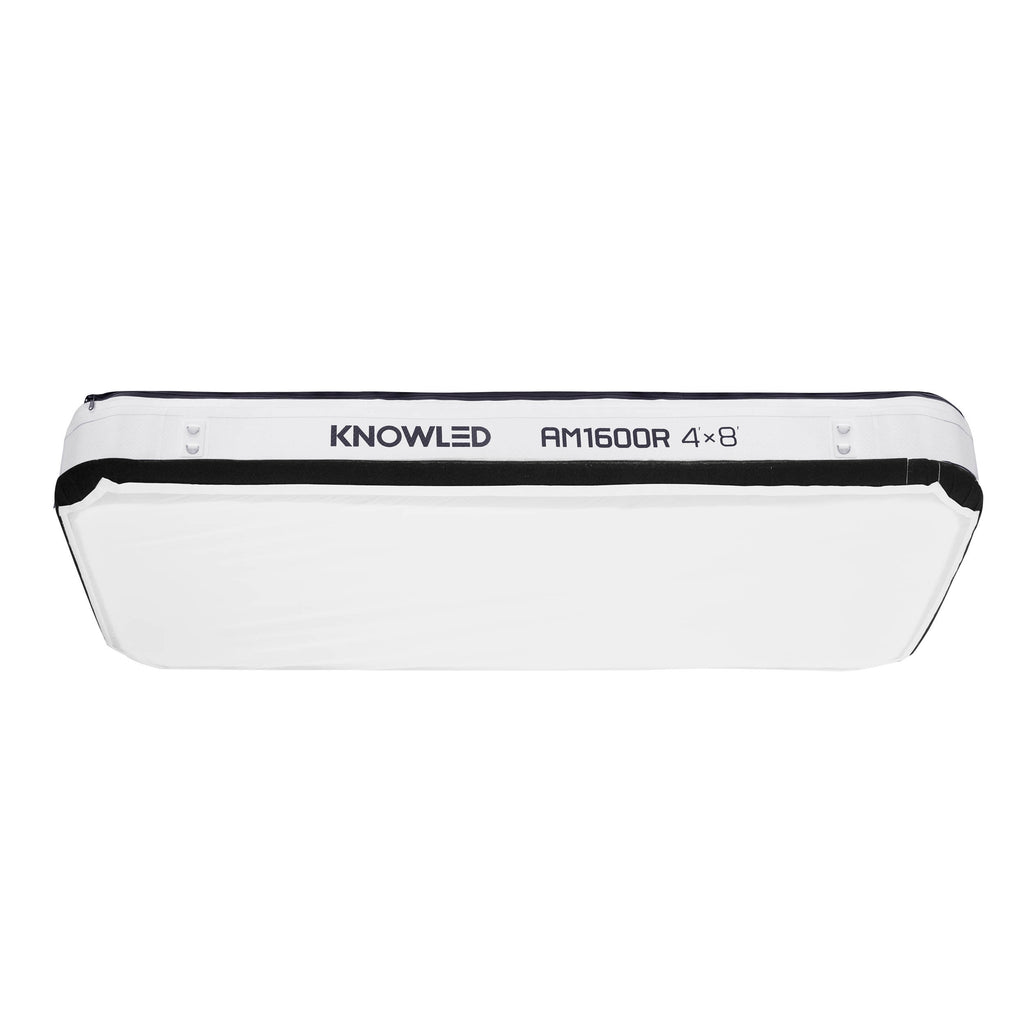

The Godox KNOWLED AM1600R 48K 4'x8' 1600W Inflatable RGB LED Cine Light is a high-performance, weather-resistant lighting solution designed for professional film and television production. This powerful full-colour RGB LED mat panel delivers outstanding colour accuracy with a CRI of ≥96 and a TLCI of ≥95, ensuring true-to-life colour rendering on set. Lightweight and portable, its inflatable design makes it easy to set up in both studio environments and challenging outdoor locations. With an IP54 weatherproof rating, it’s built to withstand demanding production conditions. The AM1600R supports industry-standard DMX512 and CRMX protocols as well as convenient wireless control via the Godox Light App using Bluetooth. Ideal for cinematographers, gaffers, and lighting technicians working on feature films, TV series, commercials, and broadcast productions, the Godox KNOWLED AM1600R combines flexibility, durability, and professional-grade performance in one innovative lighting tool.
The AM1600R's 1600W of raw output produces soft, full-colour lighting with CCT, HSI, RGBW, GEL, and FX colour modes. Its Green/Magenta adjustment allows for exact tint calibration to match the ambient lighting of any shooting environment. Its large size, combined with its 4x8 diffuser, enables it to produce soft, smooth, evenly diffused lighting.

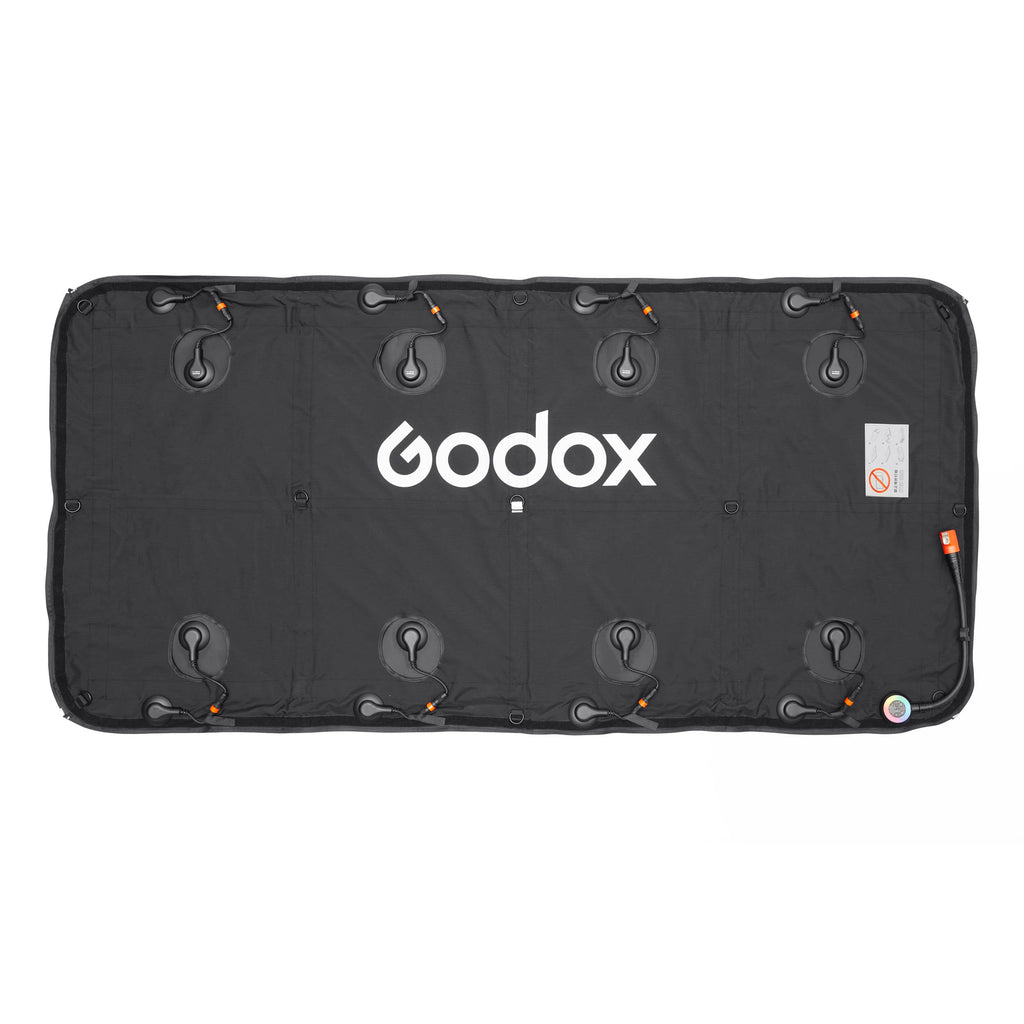

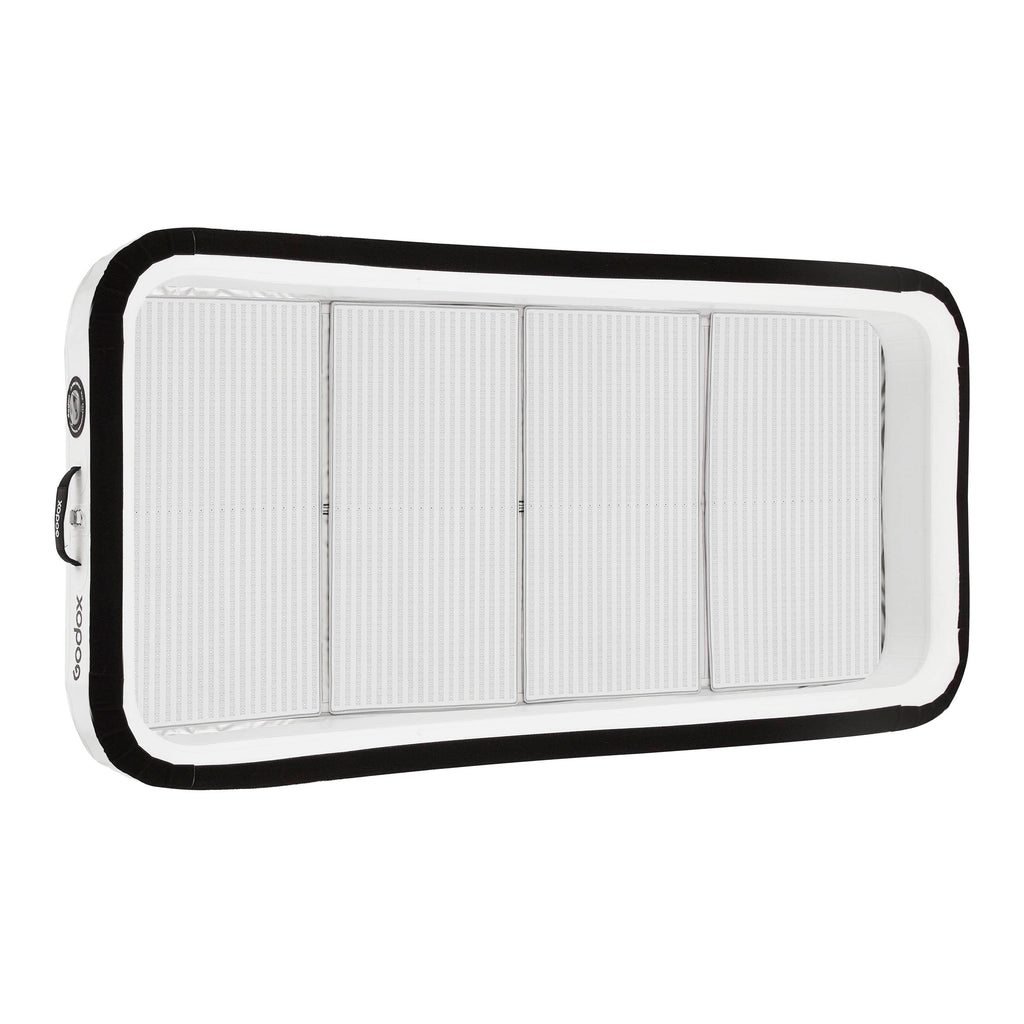

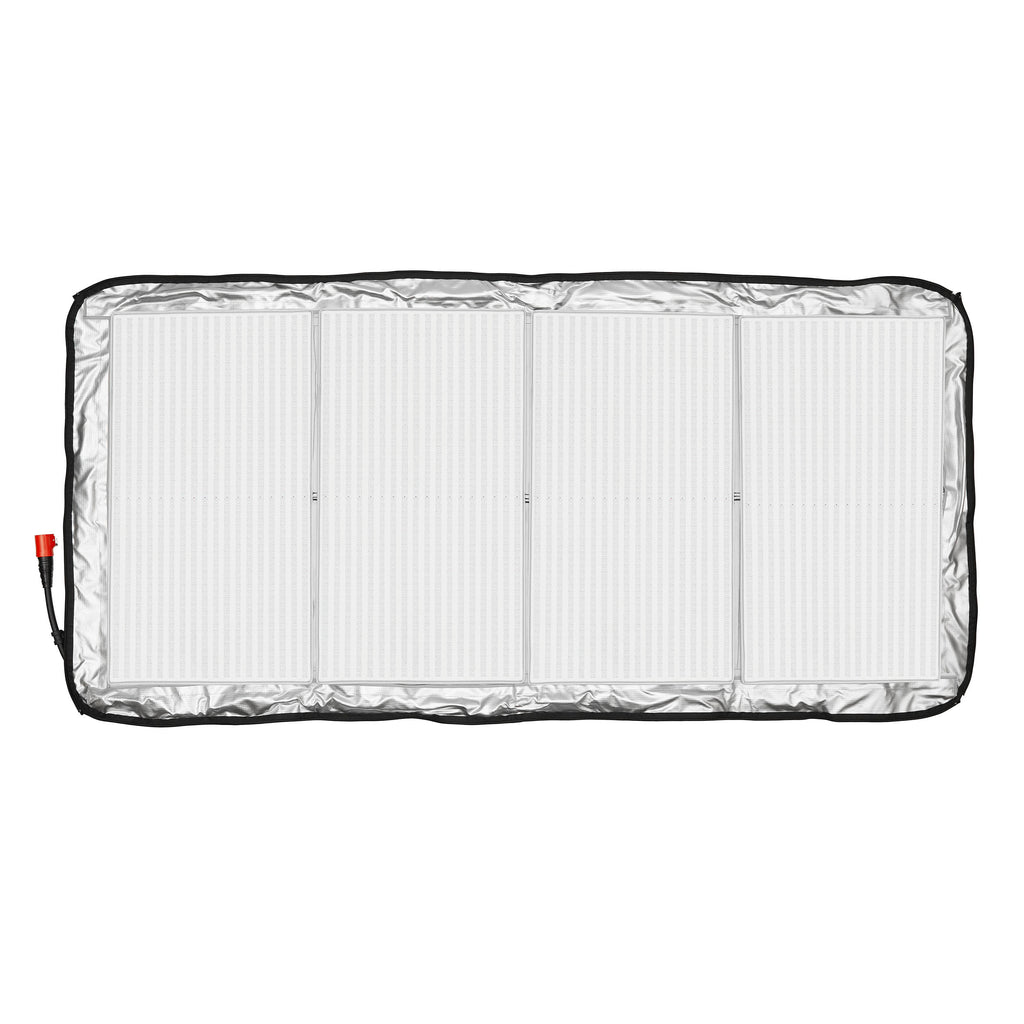

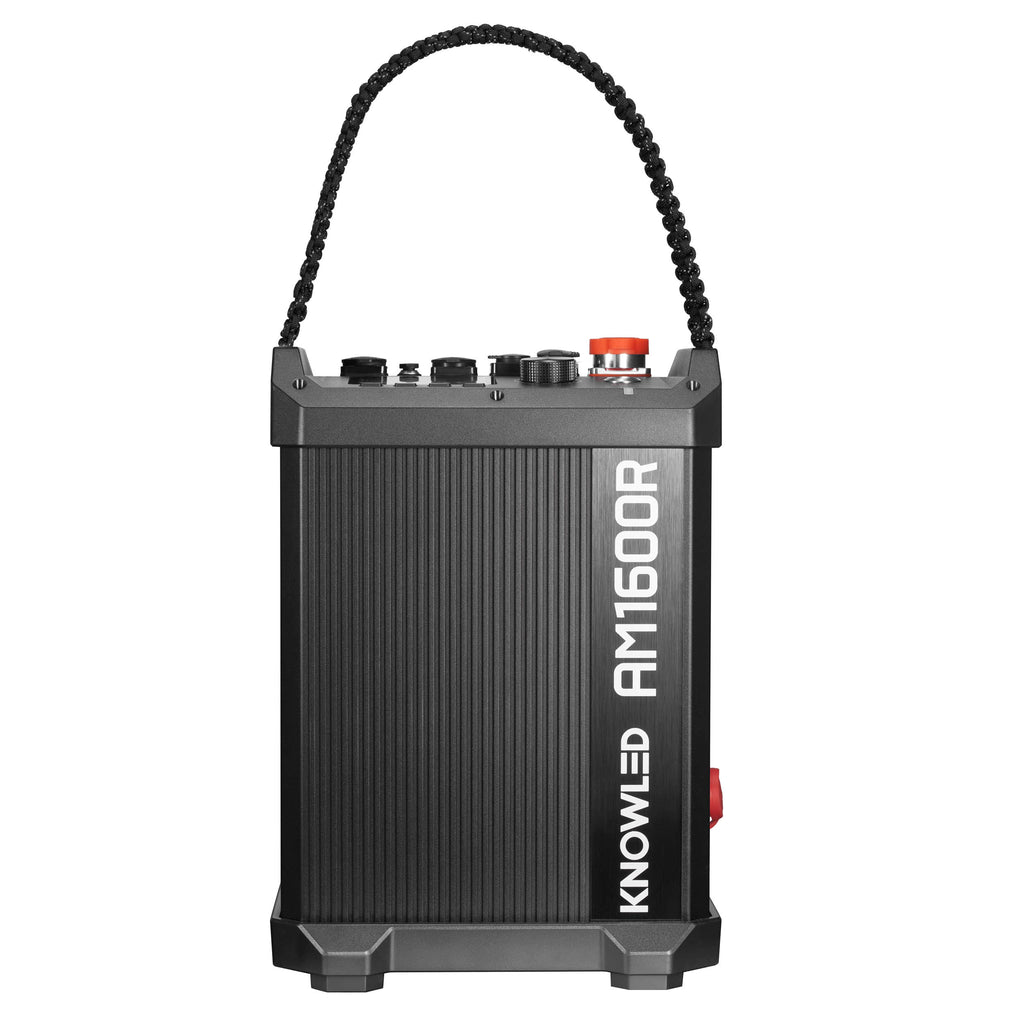

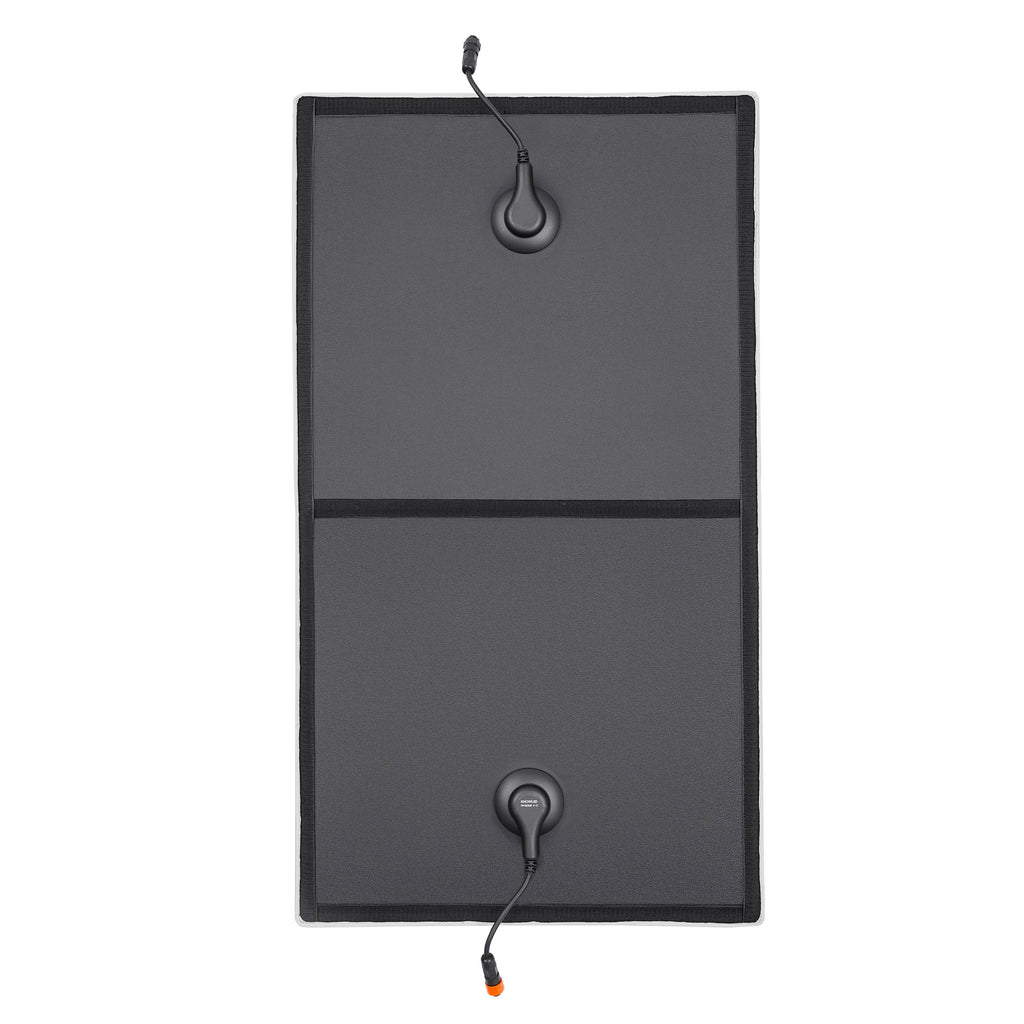

The KNOWLED AM1600R comes in two sizes: a 4’x8’ model for increased brightness and an 8’x8’ version that delivers softer light with broader coverage. Both variants share the same controller box, simplifying the process of assembling large light arrays. Its modular design features Velcro fasteners for quick panel swaps, while D-rings on the rear facilitate easy connection or extension of panels to accommodate various shooting needs.

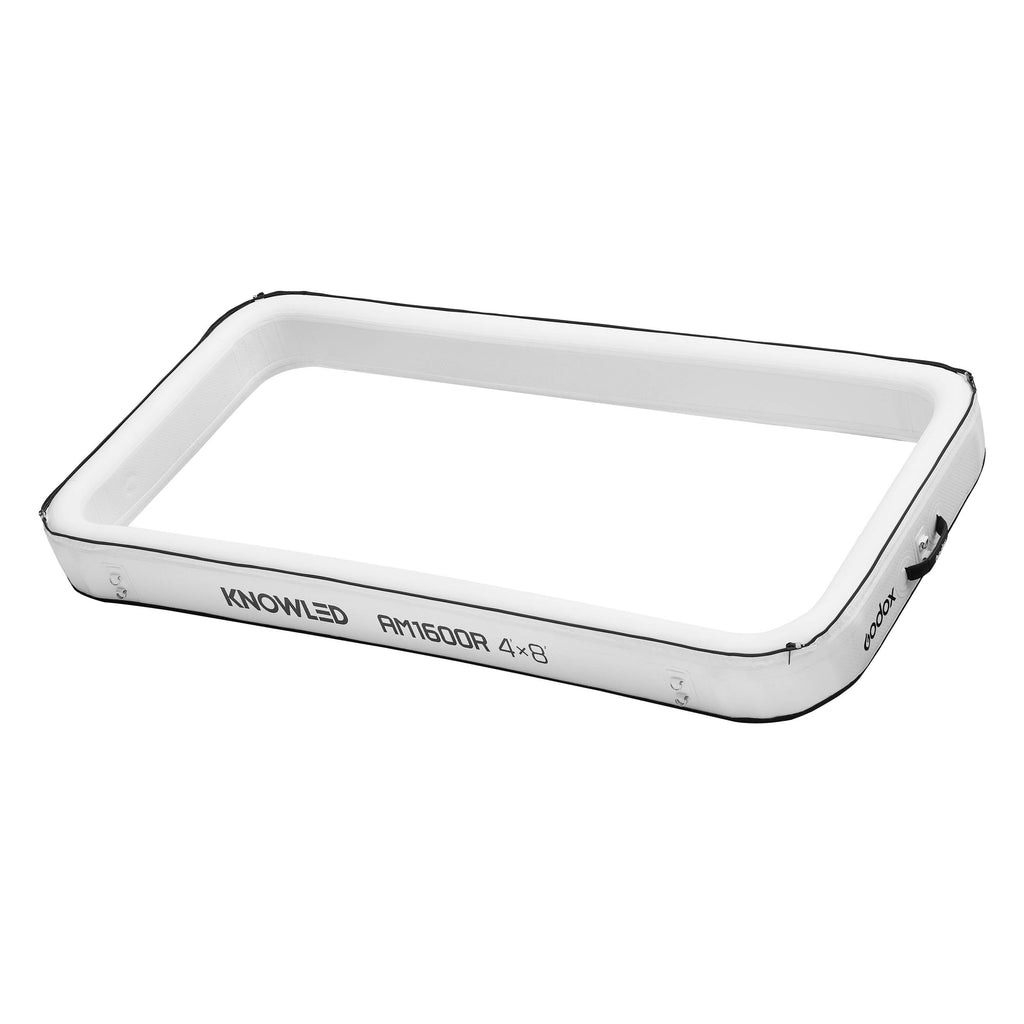

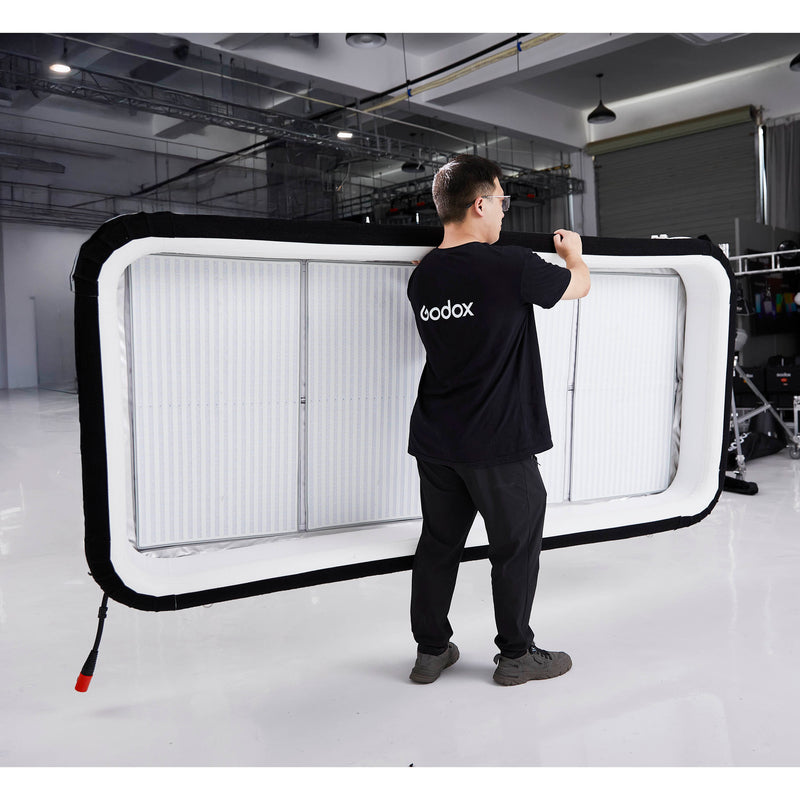

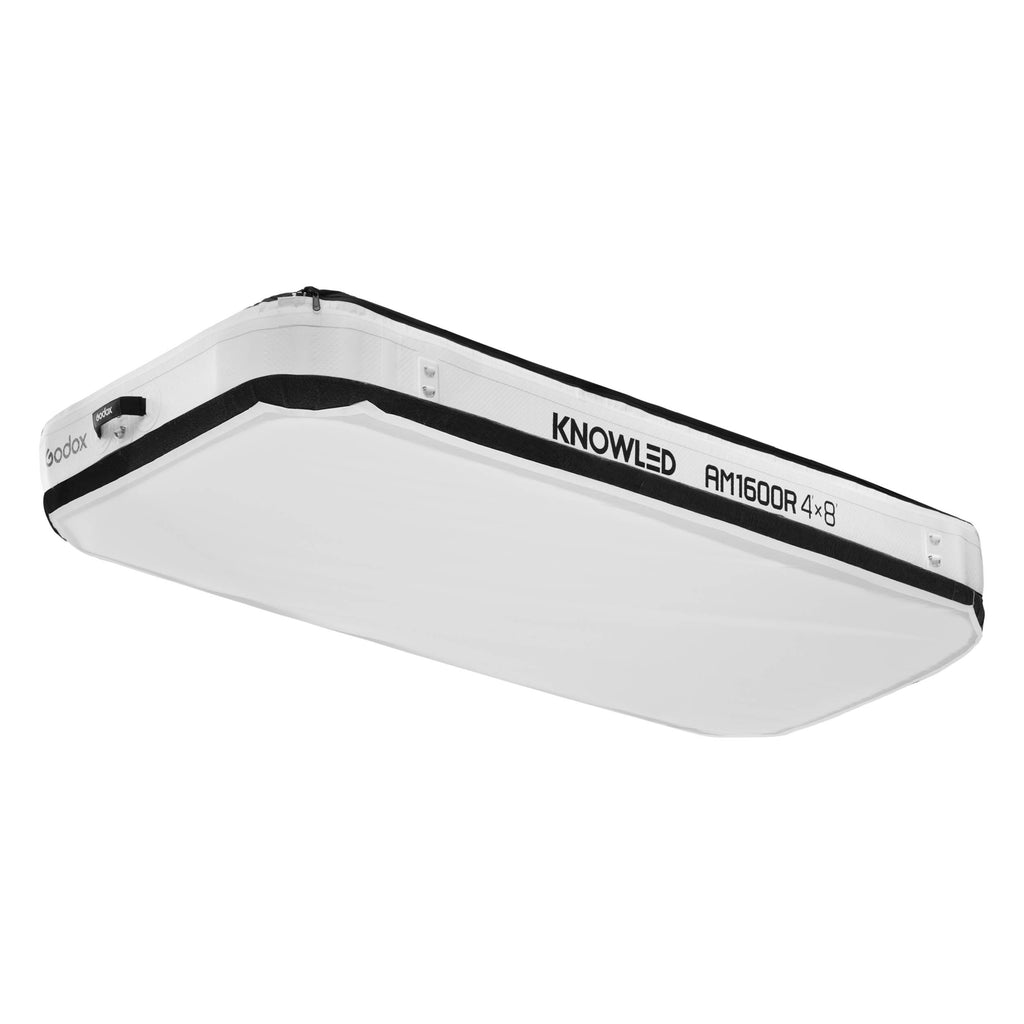

The KNOWLED AM1600R's inflatable butterfly frame uses advanced materials made with precision manufacturing to dramatically improve scratch and abrasion resistance, ensuring you get many years of use out of it. This helps tackle the common issue of air leaks and punctures due to damage that has occurred on set

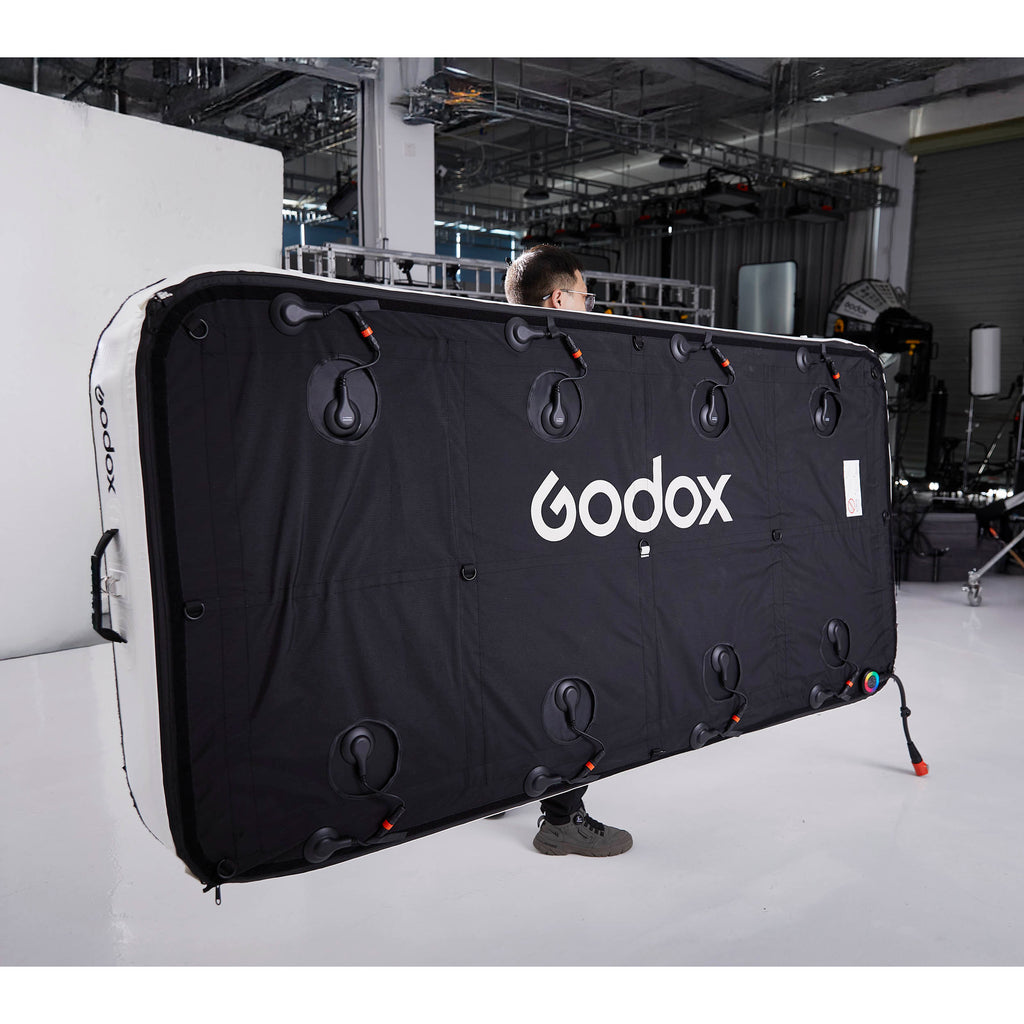

Thanks to its robust durability and structural integrity, the AM1600R can be safely suspended without requiring truss supports or rigging. Simply connect the included pump to 8 Psi, and the light is ready for use in as little as three minutes. This makes it an excellent choice for shoots in locations where truss systems are impractical or unavailable.
The KNOWLED AM1600R has been engineered for superior airtightness, maintaining its form for up to 15 days without requiring re-inflation. This reliability eliminates the need for daily air top-ups, making it ideal for extended production schedules.

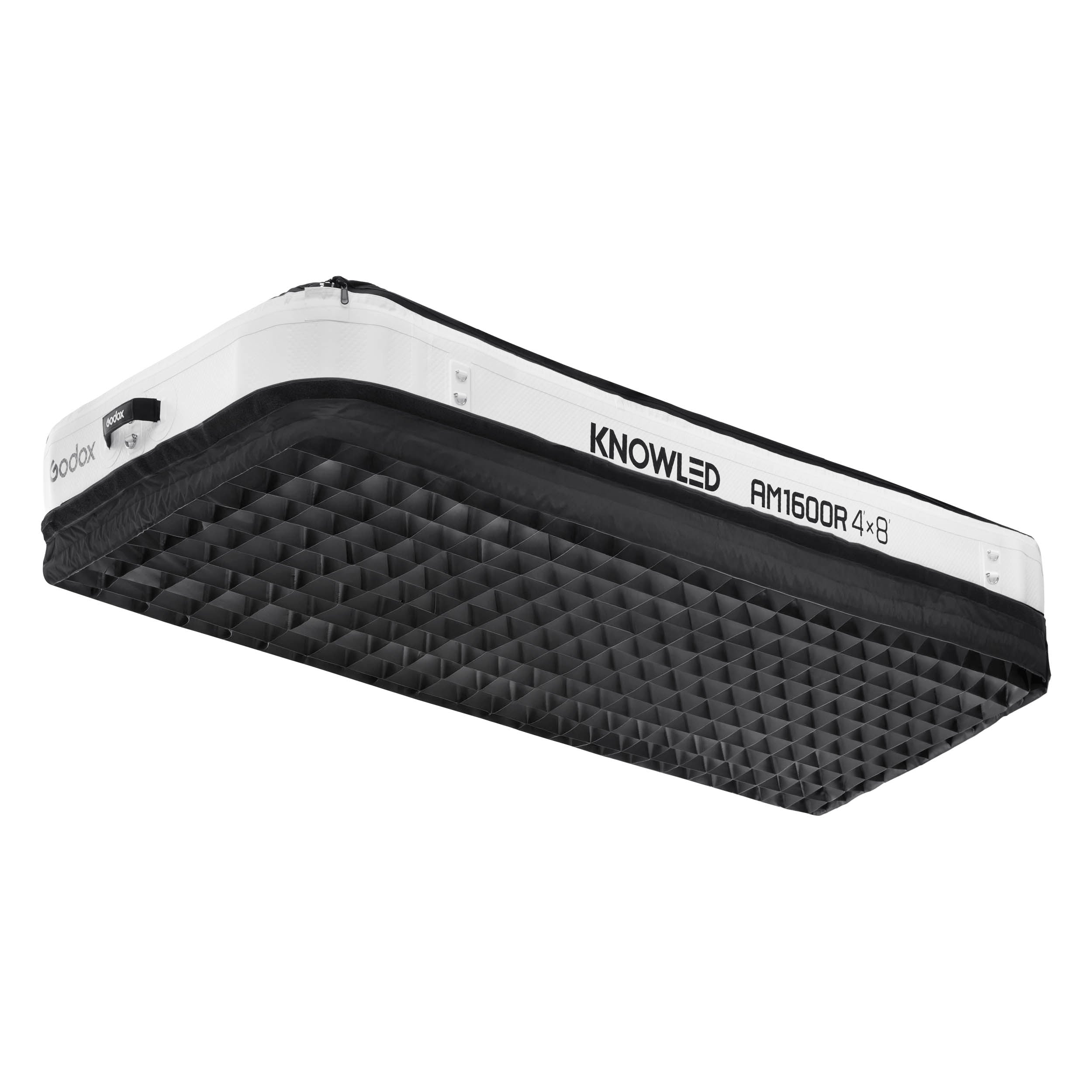

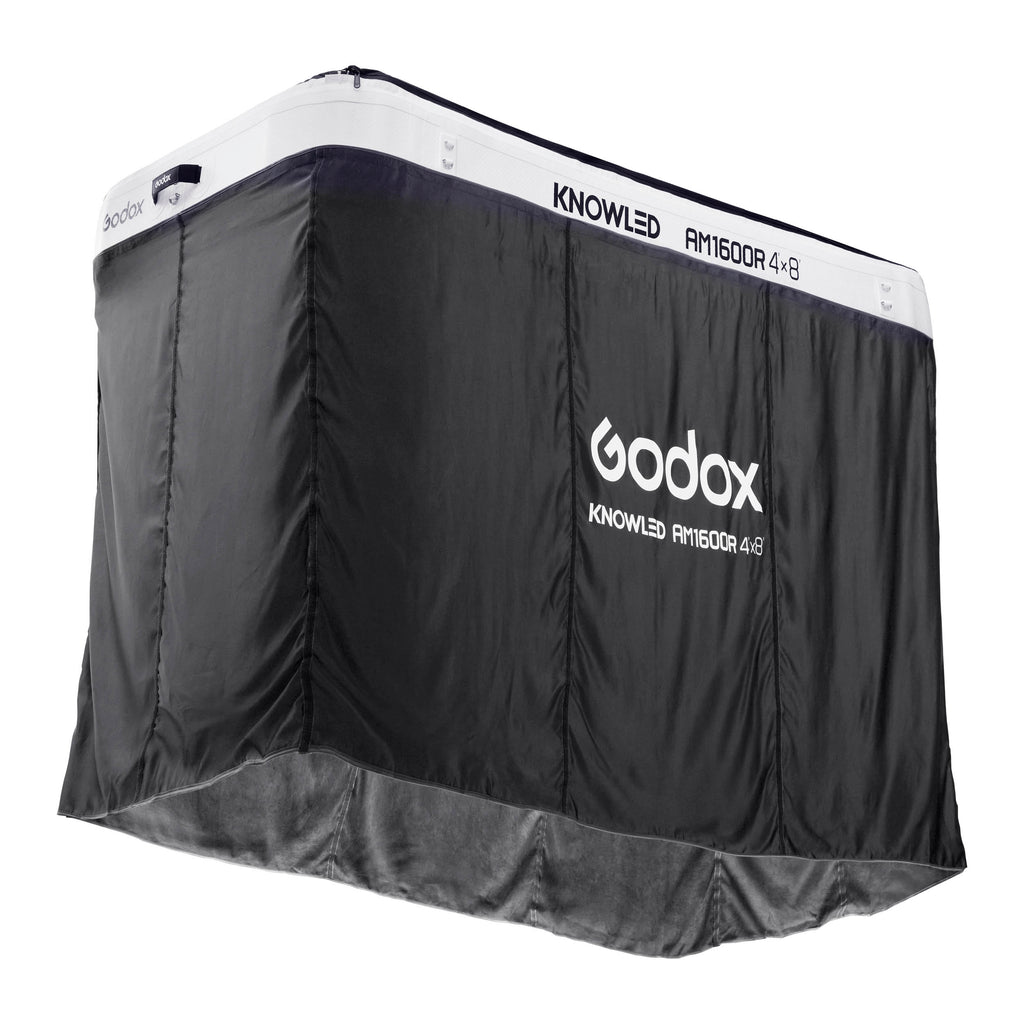

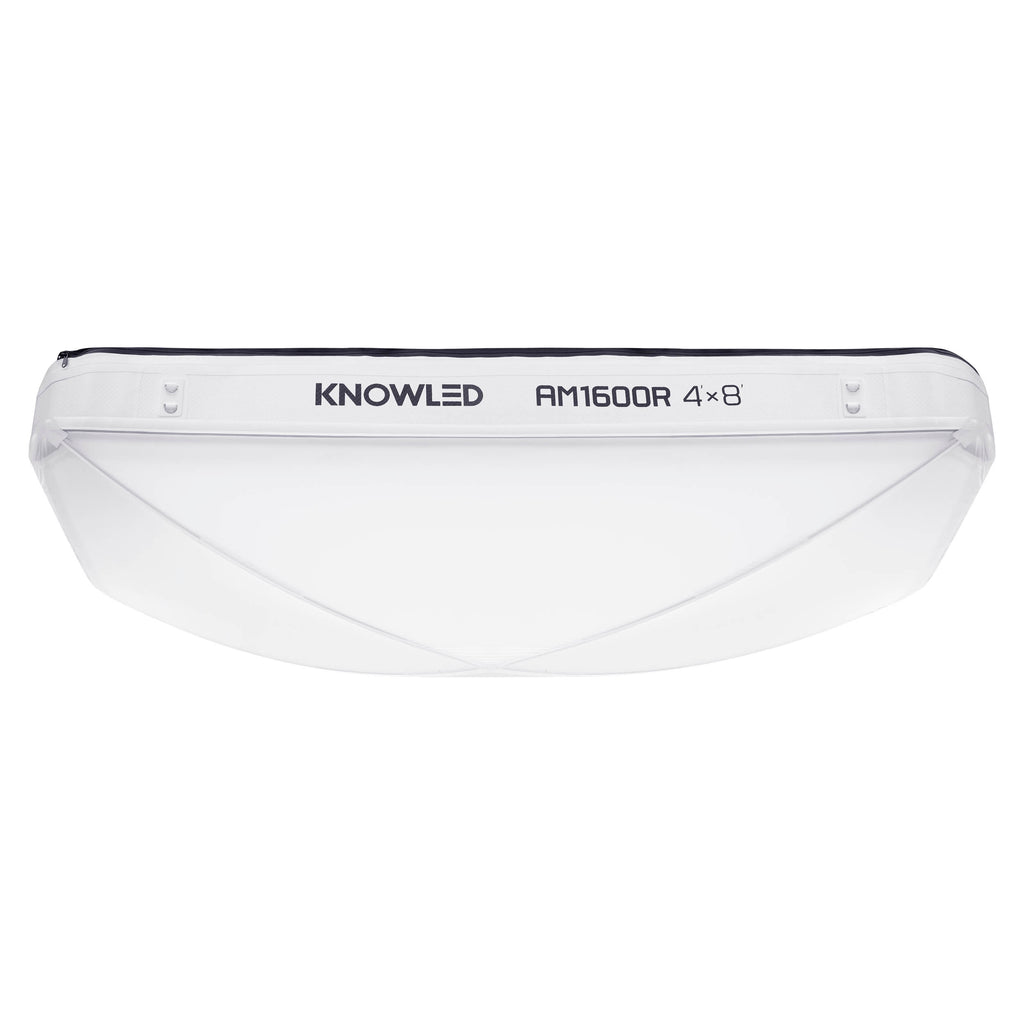

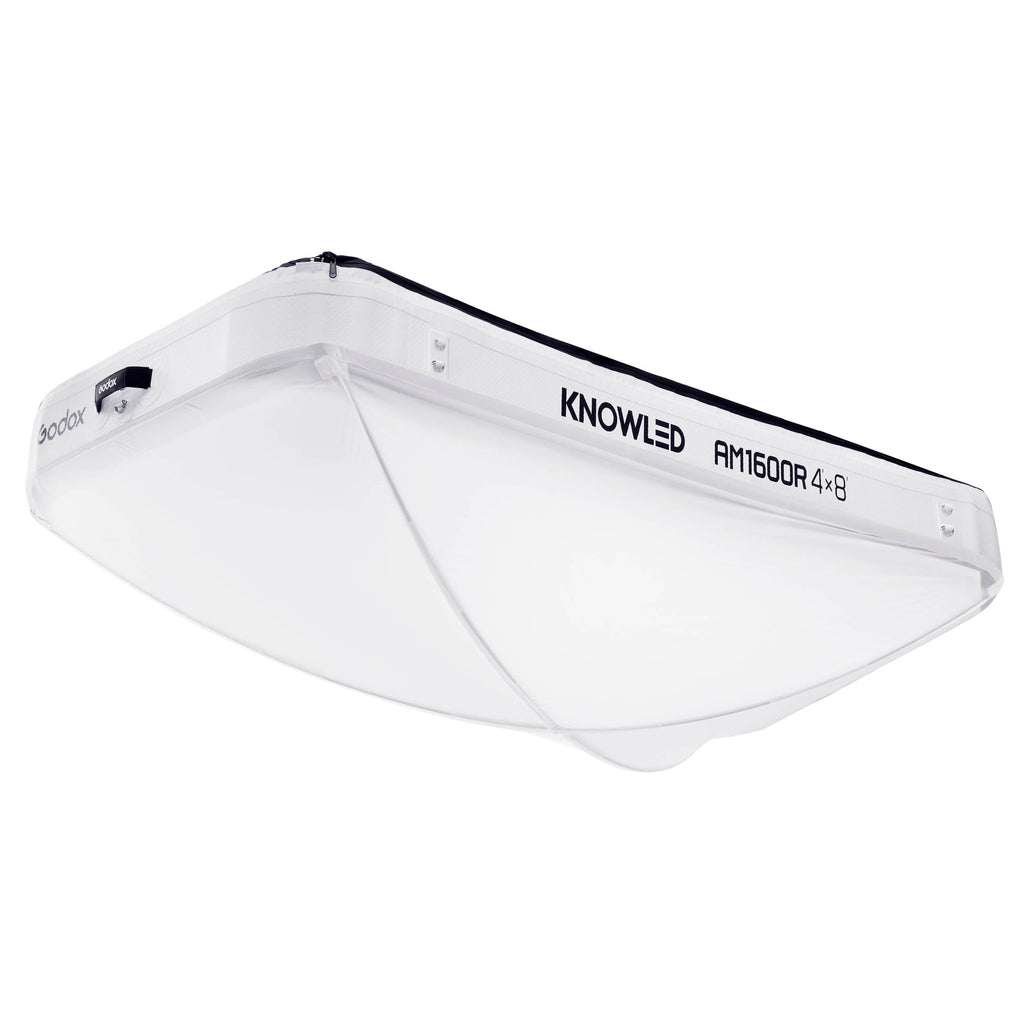

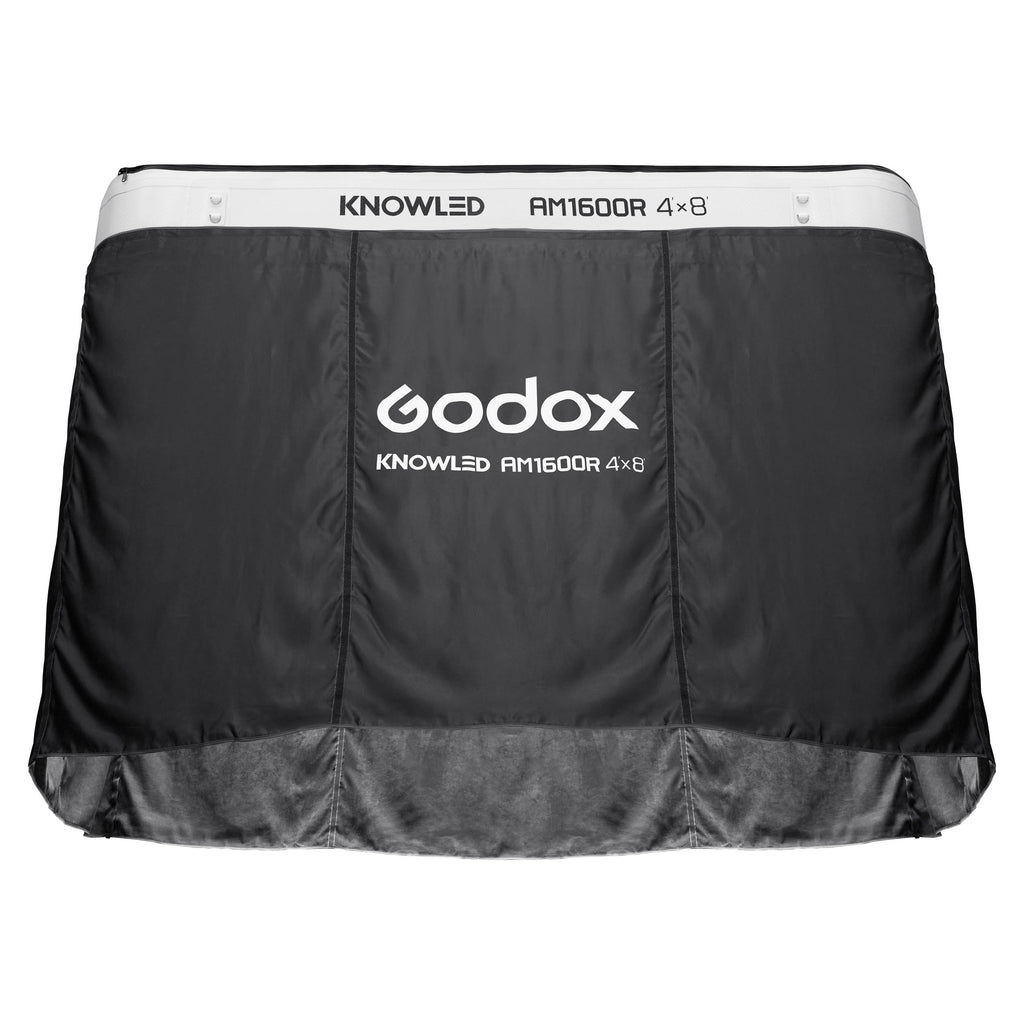

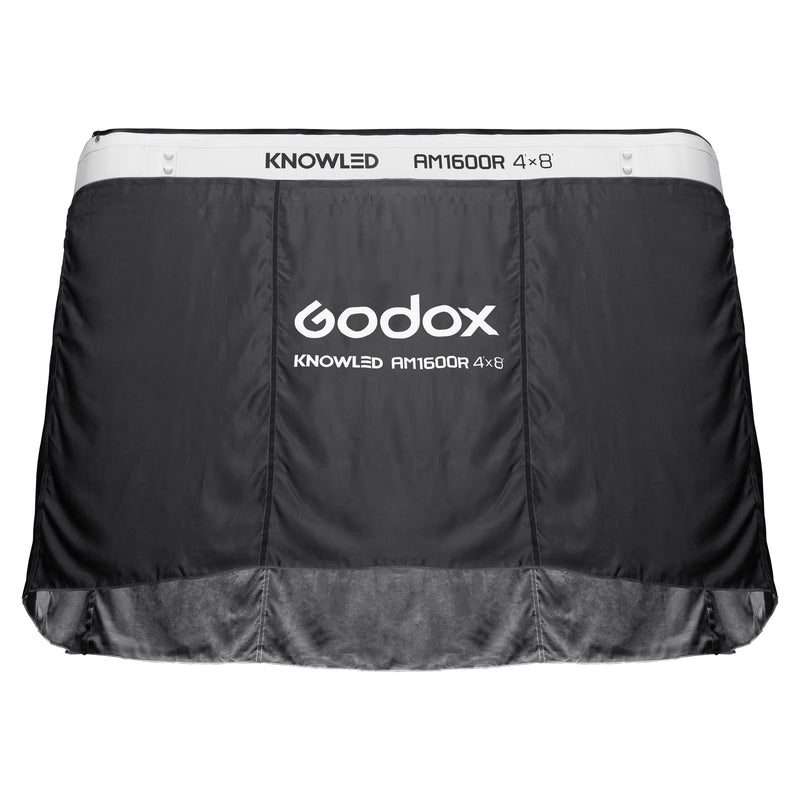

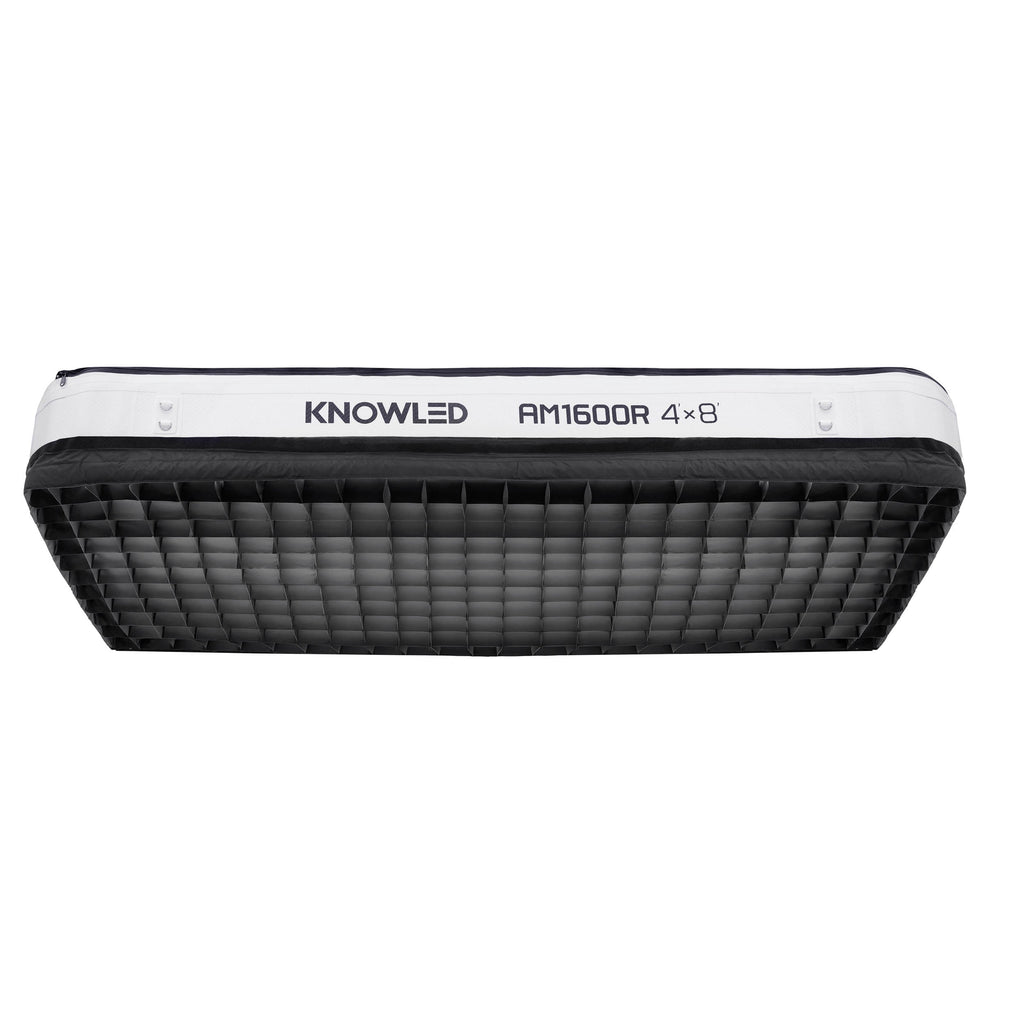

The AM1600R includes a variety of modifiers that can be used individually or in combination, giving you access to an extensive array of lighting options. These accessories include Diffusers, Skirts, Grids, Lantern diffusers, and more, opening up a world of lighting possibilities.

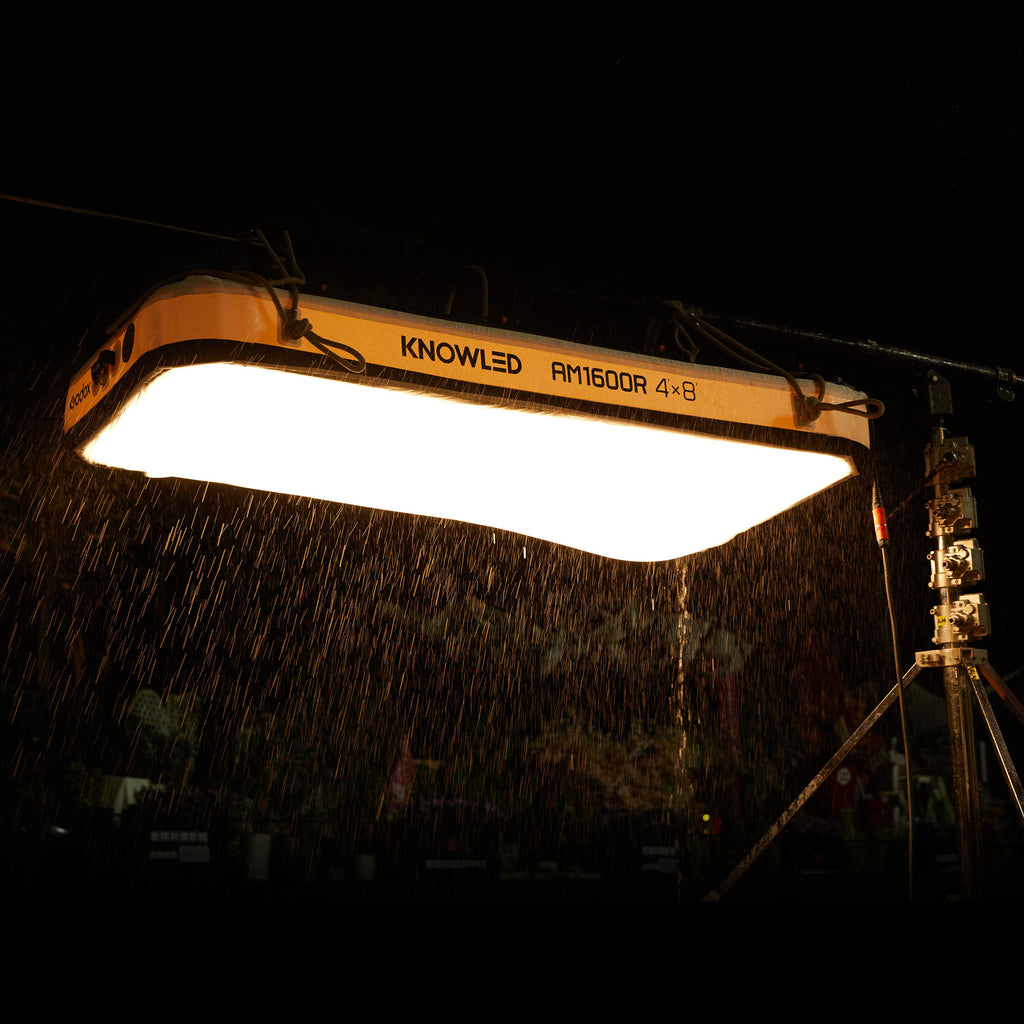

The AM1600R-Series Inflatable light mat is designed to last with its IP54 certification, meaning that it is completely protected from dust and water from the light head down to the controller box. It ensures you get the best, most reliable lighting performance.

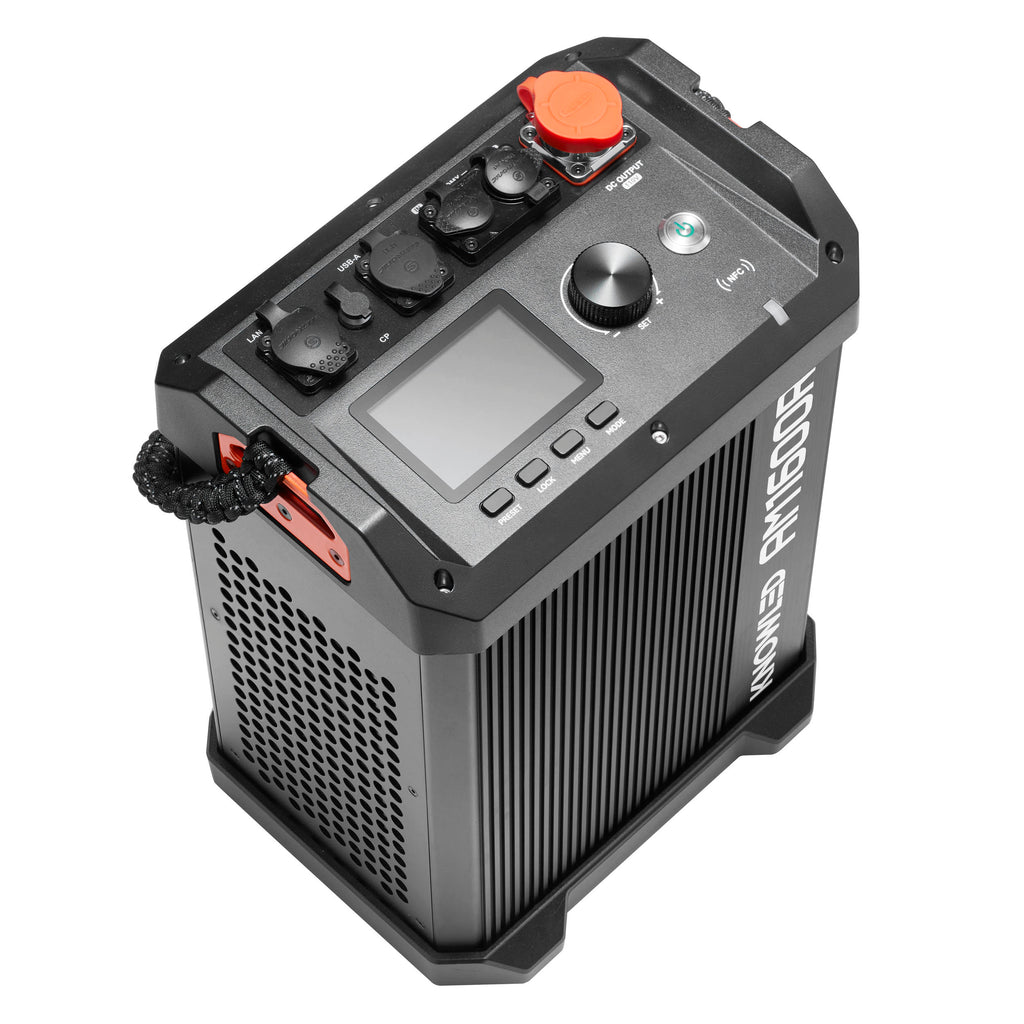

The AM1600R supports all standard professional control options for seamless integration into any movie production lighting setup. These options include CRMX, DMX, Ethernet, the KNOWLED App, and onboard controls, ensuring reliable multi-light synchronisation and accurate, real-time adjustments. Perfect for use on busy film sets.

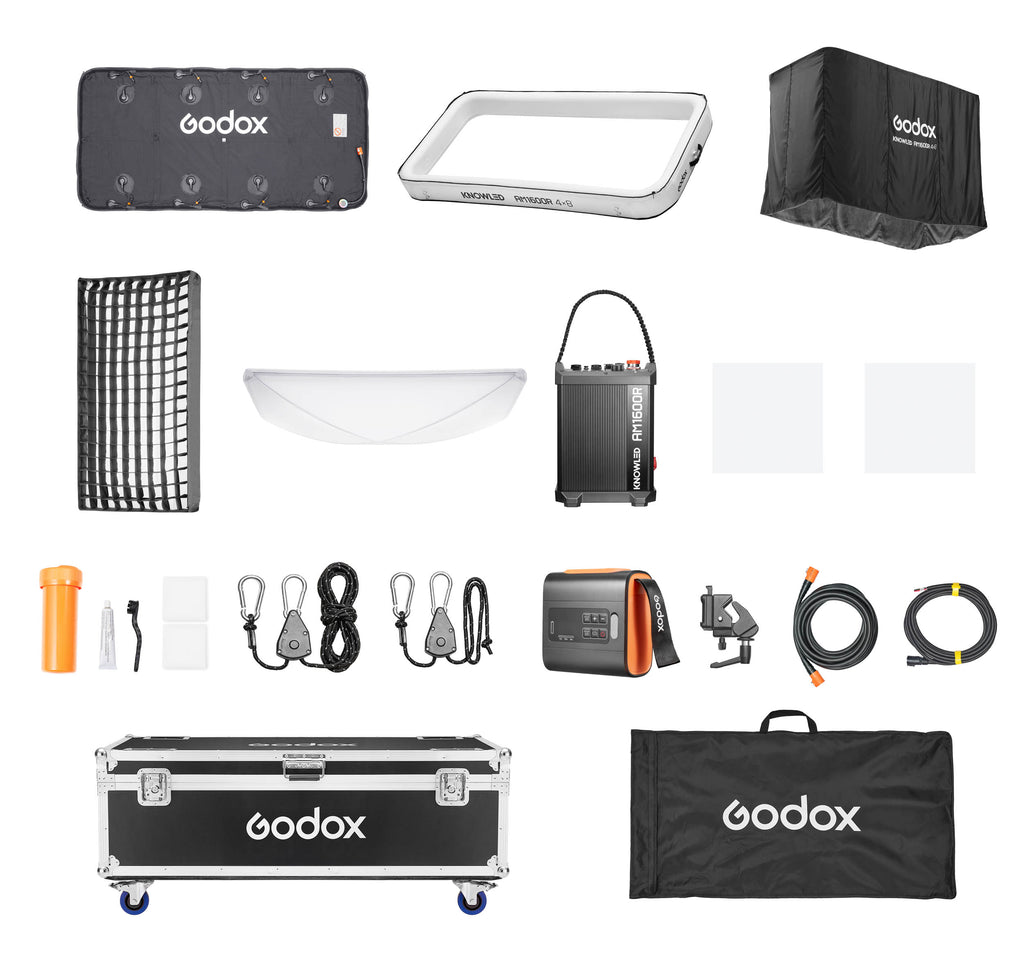

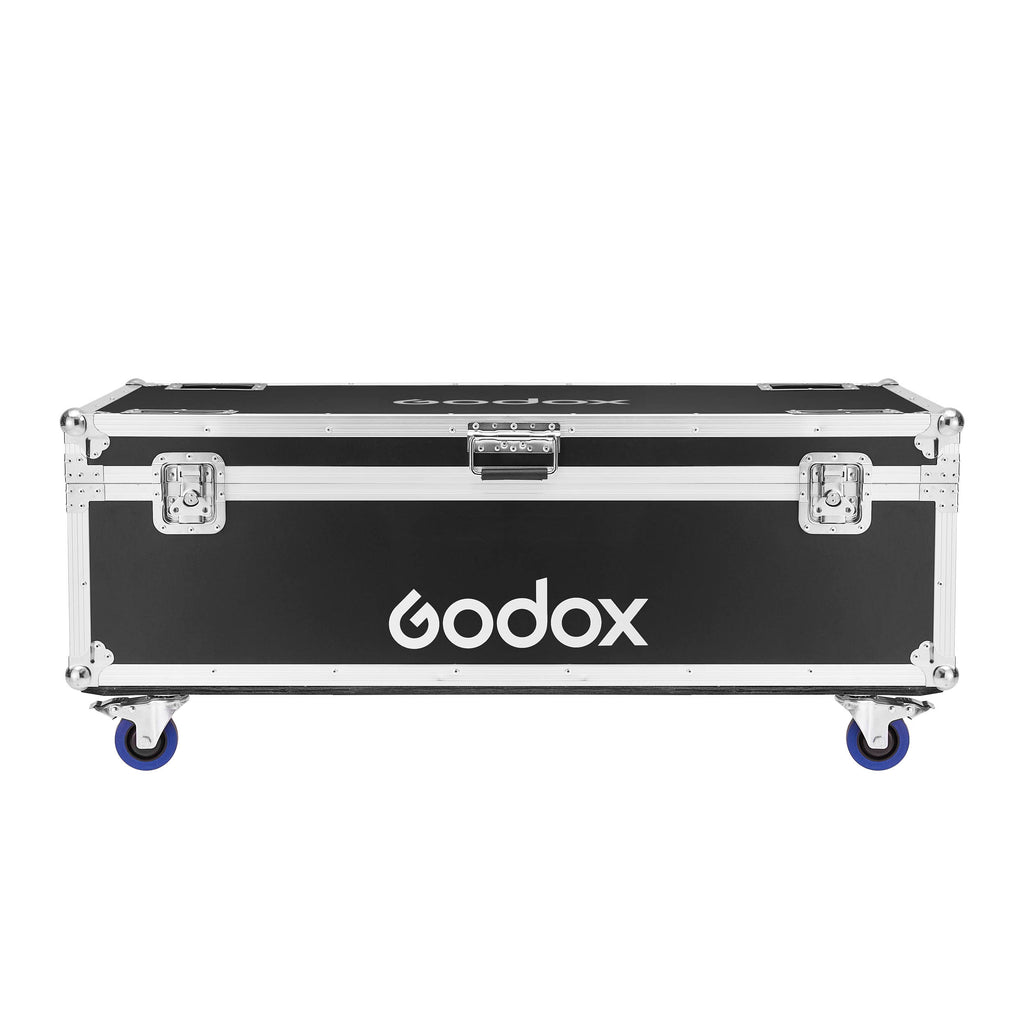

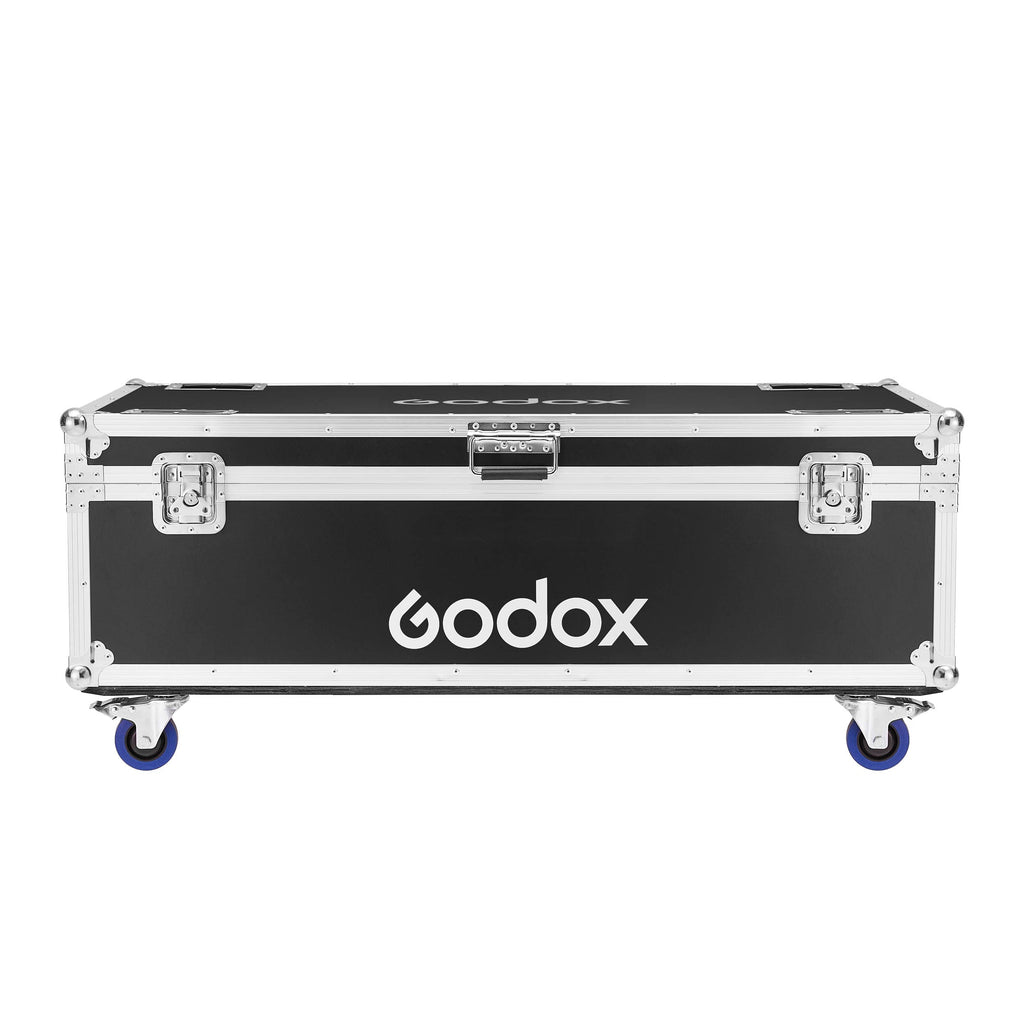

To solve the storage and transport challenges of large-scale lighting setups, the AM1600R is fully foldable — including the light panels, inflatable butterfly frame, and accessories. The custom flight case holds the complete system. Wherever your shoot takes you, just pack it up and go.

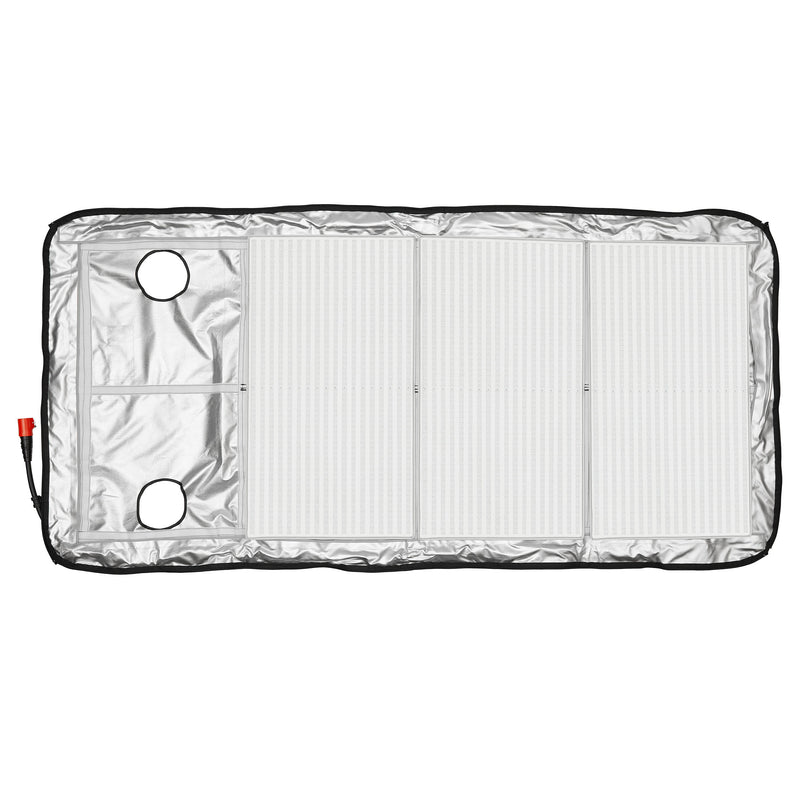

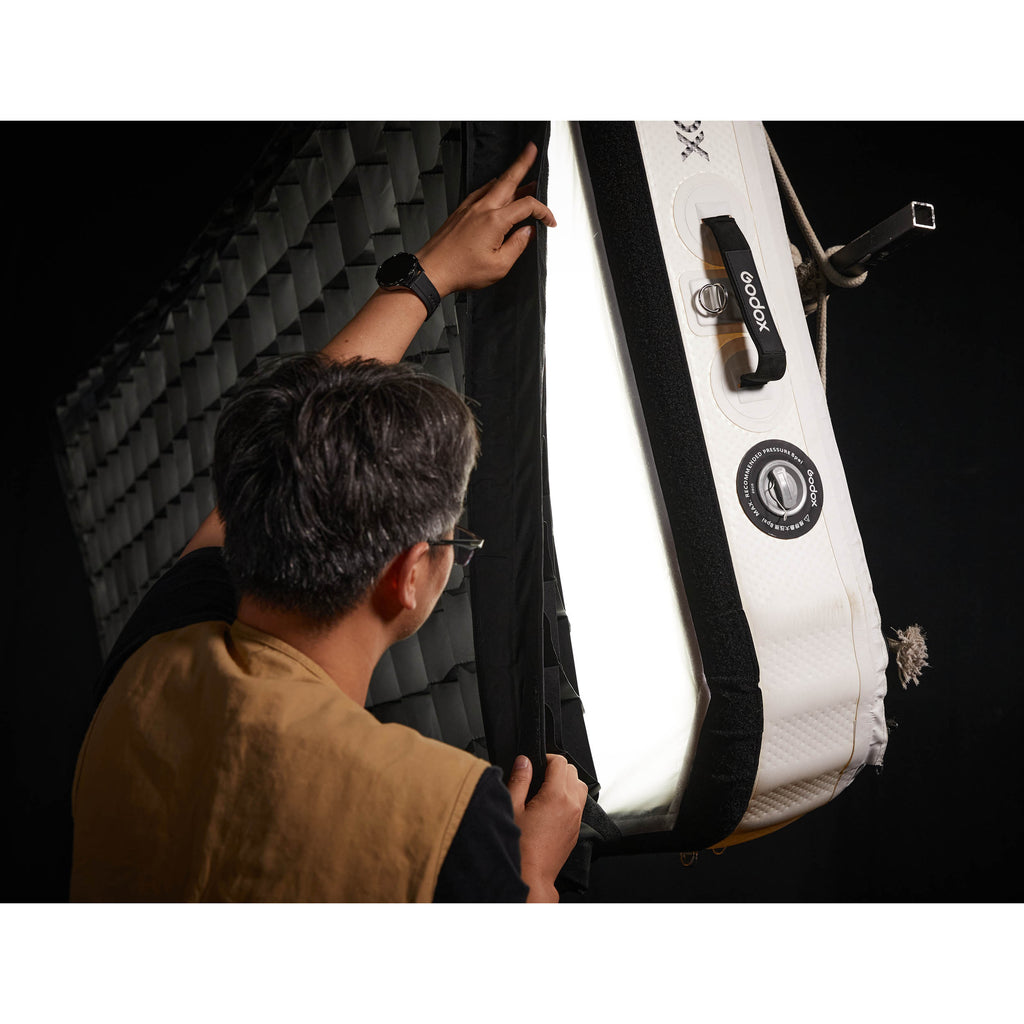

The AM1600R's Velcro-secured modular design allows for quick and easy panel replacements, helping to save time and reduce costs during production. It also comes with a repair kit to swiftly address any air leaks in the inflatable butterfly frame. Additionally, all accessories are fully detachable, making cleaning and replacement a straightforward process.
The Godox KNOWLED AM1600R 48K 4'x8' 1600W Inflatable RGB LED Cine Light is the perfect broadcasting, corporate video, YouTube, cinematography, Chroma Key green screen, as well as for photography. Whether you’re a seasoned professional or an enthusiast, you can’t really go wrong with the F800R LED mat.
Power Input | Input: 100-240V ~ 50/60Hz, 1800W |
Colour Temperature Range | 1800K-10,000K |
Green/Magenta Adjust | 100%~100% |
Brightness Range | 0.0%~100% (in 0.1% Increments) |
Dimming Curves | Linear, S-Curve, Exponential, Logarithmic |
FX Modes | 14 |
CRI | ≈96 |
TLCI | ≈97 |
Light Body/Controller Weatherproof Rating | IP54 |
Control Methods | DMX 512, Support RDM Protocol, LumenRadio CRMX/Ethernet/Art-Net & sACN Protocol, Bluetooth App, On Board Controls |
Bluetooth Transmission Distance | ≈60m |
USB-A Port | Firmware Upgrade/5V 1.5A Power Supply |
Working Envrionment Temperature | -20°C ~ 45°C |

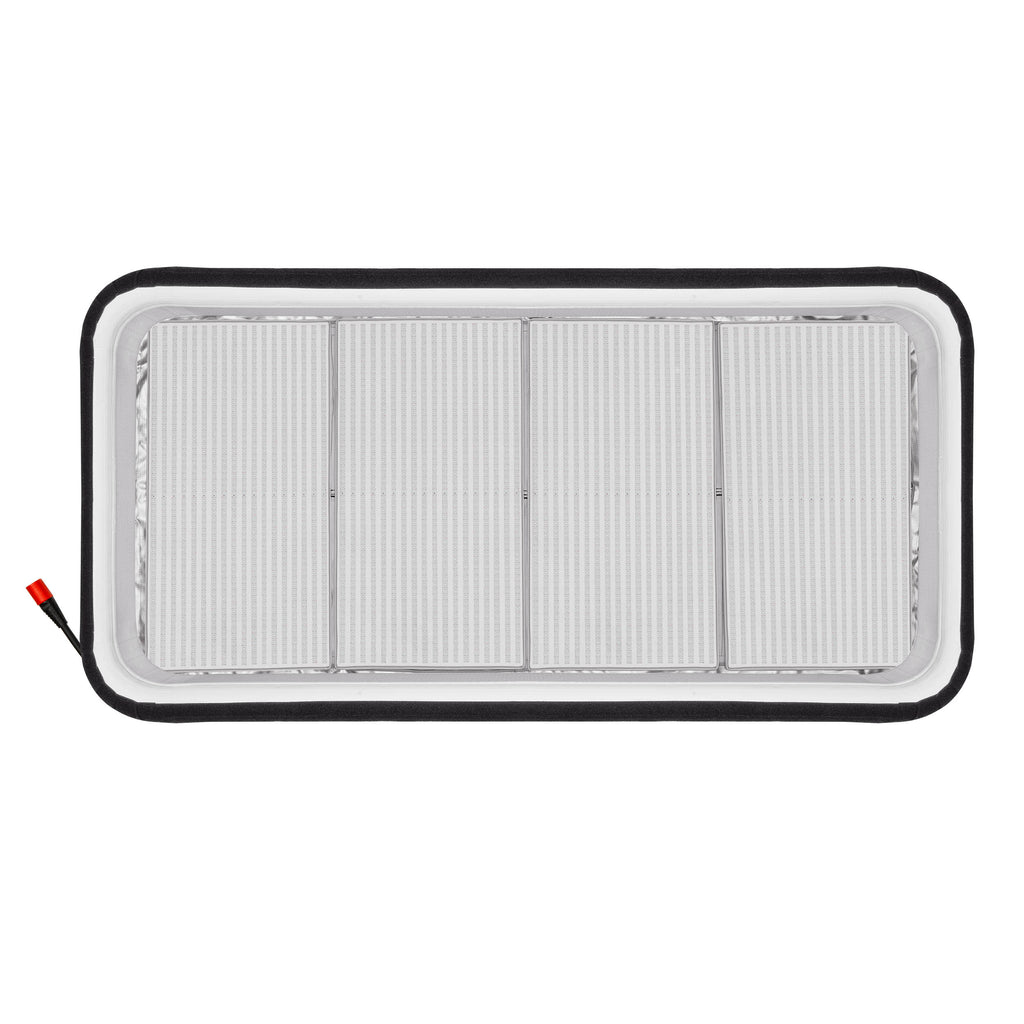

Light Panel Dimensions (Without Inflateable Frame) | ≈230cm x ≈110cm |

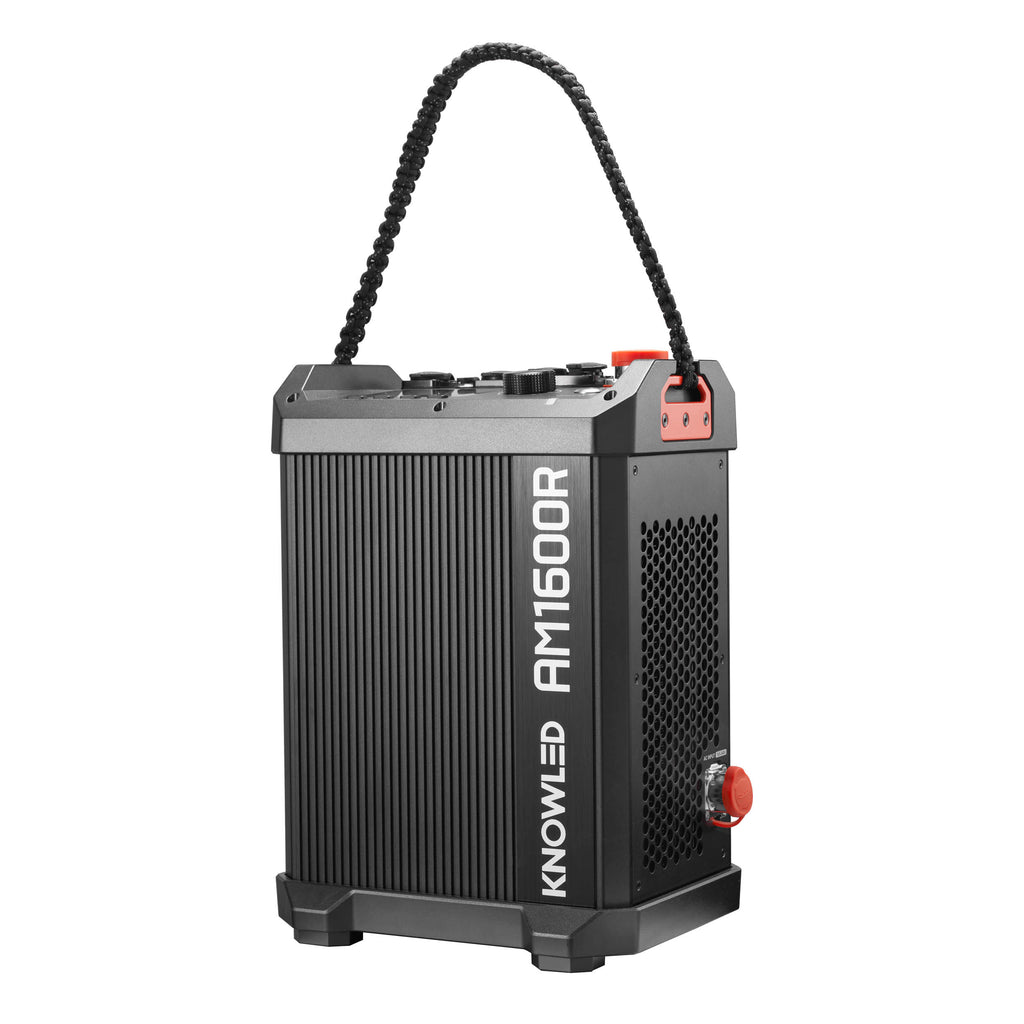

Controller Box Dimensions | ≈27cm x ≈22cm x ≈37cm |
Light Panel Net. Weight | 6.7kg |
Controller Box Net. Weight | 11kg |
