Complete Kit FLS10 10" S-Type Fresnel Lens & LB-02 Barn Doors

SKU: H-066001-P


Tax included. Shipping calculated at checkout.

  • In Stock, Ready to ship
  • Verified Secure Shopping

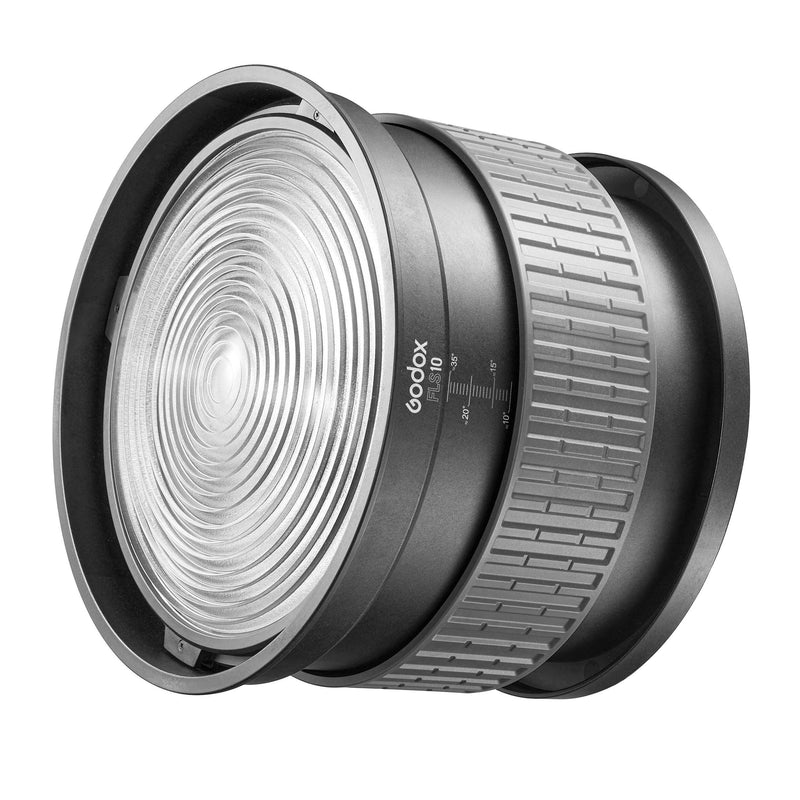

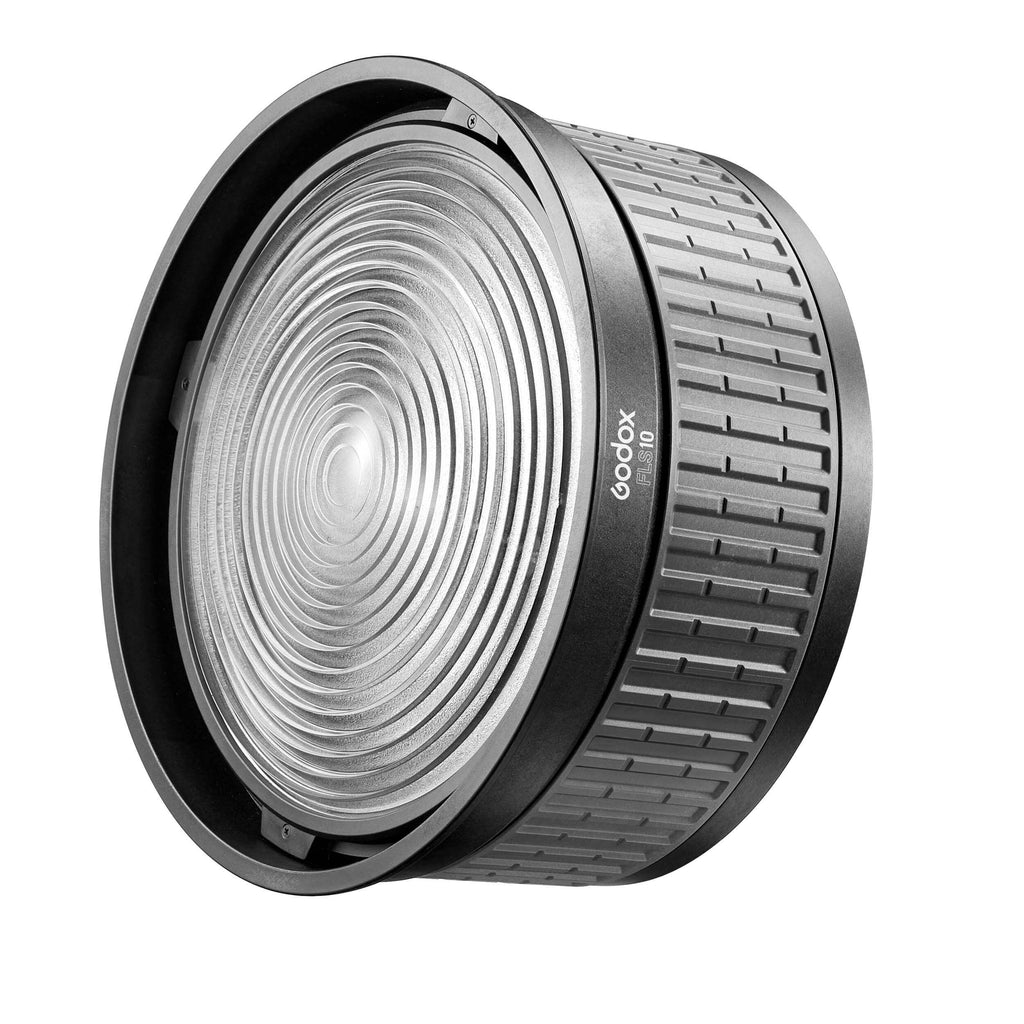

The GODOX FLS10 Fresnel Lens Photography (sometimes known as a Flooter) enables you to focus and amplify the effective output of your lighting by up to 19 times. The beam angle of the FLS10 Fresnel lens can be adjusted, allowing you to either produce a small pool of light, or a wide flood of light, giving you access to a plethora of lighting options. The FLS10 Is also great for throwing light over greater distances, making it a perfect accessory for use in larger film and theatrical productions. This kit also comes with detachable barn doors, designed to control the spill and direction of the light, maximising light control. The FLS10 Fresnel lens is the perfect accessory for Cinematographersindependent Filmmakers, and theatrical productions, that need their lighting to be able to travel over long distances. It can also be used for stills photography, especially for photographers working in commercialadvertising and fashion photography.

What is a Fresnel Lens Photography with Barn Doors?

The Fresnel (Freh-Nel) lens is a special kind of lens, developed by French Physicist Augustin-Jean Fresnel in the 19th Century. Fresnel lenses consist of a succession of concentric rings etched into glass or plastic. These rings use a combination of total internal reflection and refraction, to focus the light, allowing it to travel over greater distances. Though the Fresnel lens was originally designed for use in lighthouses, they have become a popular tool in the Film, Theatre and Photography industries. Especially if you need your lighting to travel over large distances.

Add More Intensity to Your Lighting.

Due to the nature of Fresnel lenses, the GODOX FLS10 amplifies the light output from the LED light source that it is mounted to by up to 19 times. This is great for times when you need the light from your COB LED Studio Light source to travel over a greater distance. Great for Film and theatrical productions.

Variable Beam Angle.

The spread of the beam put out by the FLS10 Fresnel Lens Photography can be adjusted anywhere between 10° and 35°, giving you the ability, to either create a small, controlled pool of light, to a flood of light in your scene.

Solid Construction.

The FLS10 Fresnel lens has been put together with durability and robustness in mind. Made from high-quality materials, the FLS10 has been designed to ensure that any light leaks are kept to a minimum and are rugged enough to endure professional use.

Fresnel Lens Photography with Barn-Doors.

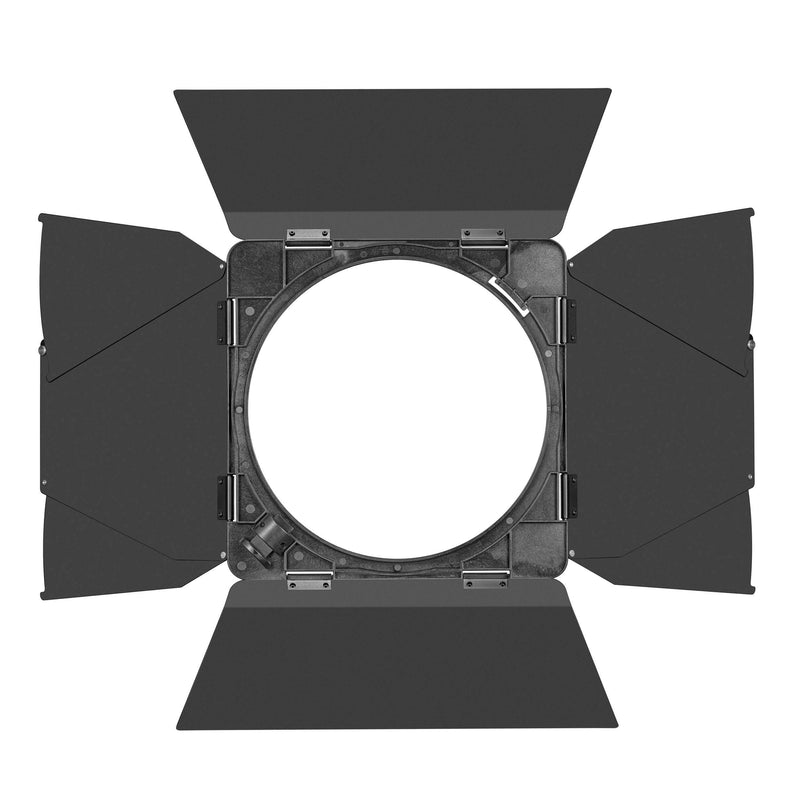

This kit also comes with the optional LB-02 8-Leaf Barn Doors set, which enables you to precisely shape the light for more creative control, and more cinematic effects.

Bowens S-Type Fitting

The GODOX FLS10 Fresnel Lens Photography features a Bowens S-Type bayonet fitting, enabling it to be used with virtually any Bowens S-Type fitting COB LED Studio light.

The GODOX FLS10 Fresnel Lens Photography is a necessary tool for anyone that requires a focusable beam, with extra light intensity, or for their light to travel over greater distances. Perfect for cinematographers, independent filmmakers or for theatrical productions. It can also be used for stills photography, especially for photographers working in commercial, advertising and fashion photography.

NOTE: Designed for use with LED Lighting Only:


  • Enables light to travel over greater distances
  • Amplifies the intensity of your lighting
  • Variable Beam Angle between 10° and 40°
  • Solid Construction
  • Includes 8-Leaf Barn Doors enabling you to control the spill and direction of the light eve further
  • Bowens S-Type Fitting

What’s In the Box

  • 1x FLS10 Fresnel Lens
  • 1x Carry Case
  • 1x LB-02 Barn Door Set


Beam Angle10-35°
Working Temperature-10°C – 40°C
Lens MaterialGlass
Dimensions295mm x 295mm x 135mm
Net. Weight3kg
FittingBowens S-Type
Box Weight

Box Dimensions

Approximately    Height  39cm  Width  36cm Length   19cm
