E-IMAGEE-Image Motorized elevation system With EI-7004 Dolly

Motorised camera elevation system with 30kg payload and remote control.

Overview

The E-Image GAM260D Motorized Elevation System is a powered camera support system designed primarily for PTZ cameras, providing controlled vertical movement with a 30kg maximum payload.

Its three-section motorised column offers a 98–280cm height range and a 65cm stroke, with movement at up to 40mm/s. A height display and wired remote controller make it possible to adjust and monitor the camera position during production.

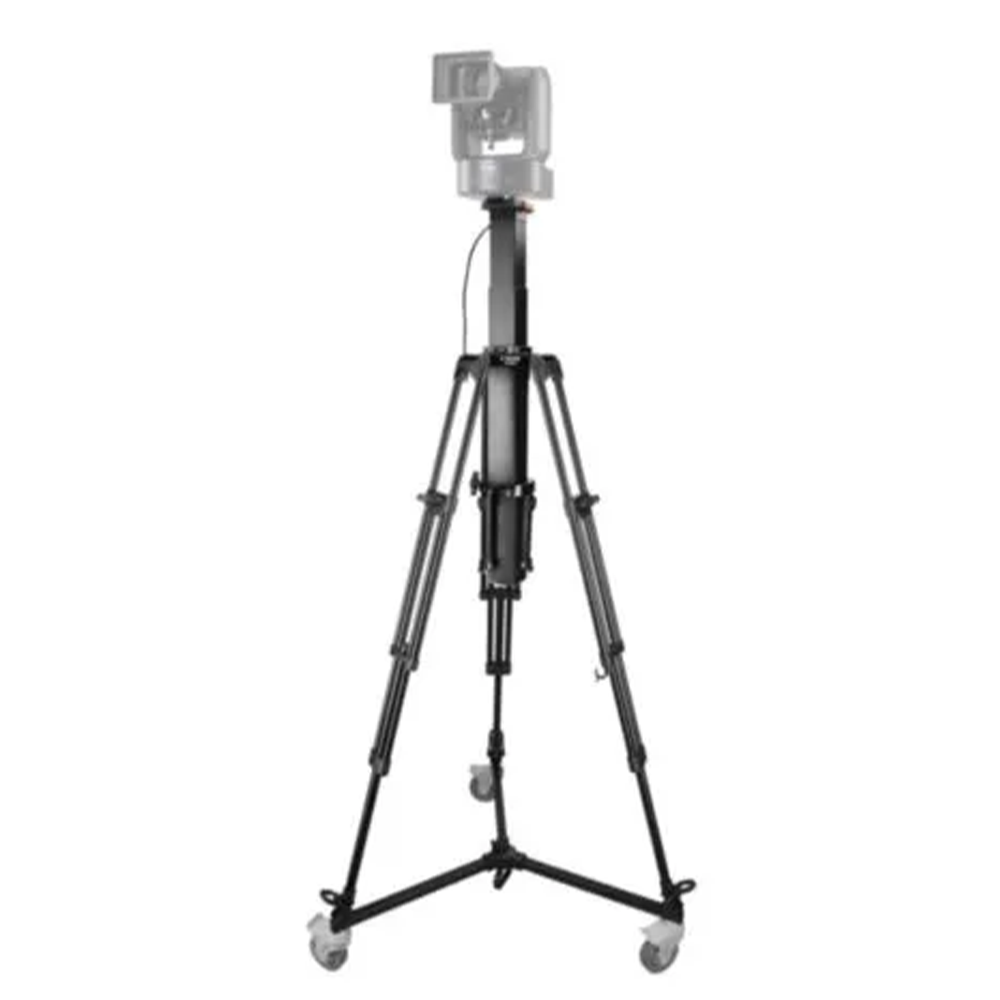

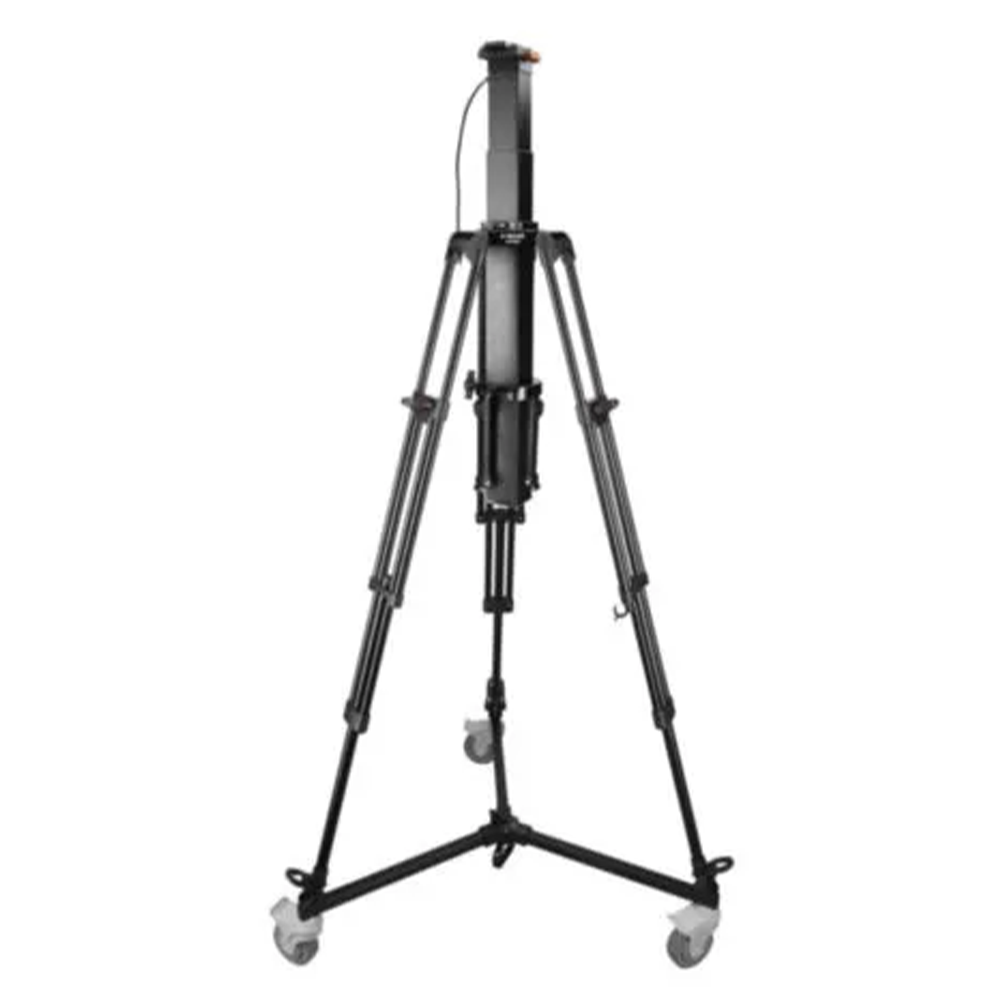

The system includes the EI-7004 Dolly, making it a complete mobile elevation solution for studio and production environments.

Who this is for

The GAM260D is suited to broadcasters, live production teams, studios and video professionals working with PTZ cameras or other compatible camera configurations requiring powered height adjustment.

At a glance

• Motorised elevation system with EI-7004 Dolly
• 30kg / 66lb maximum payload
• 98–280cm / 38.6–110.2in height range
• 65cm / 25.6in stroke
• 40mm/s raising and lowering speed
• Three-section, 70 × 70mm column
• P6 quick-release adapter
• 1/4-inch and 3/8-inch camera attachment points
• Height display
• Three preset height positions
• Wired remote controller
• ≤38dB stated noise level
• Bubble level
• Optional 2.4G wireless controller with 10m maximum range
• Optional 26V V-mount battery operation

How it works

The GAM260D uses an electric motor to raise and lower the camera platform. The 65cm stroke provides powered vertical adjustment, while the wired remote controller allows the operator to control the movement without manually adjusting the support.

Three preset height positions can be selected for faster, repeatable repositioning, while the integrated height display makes it easier to monitor the elevation setting.

The supplied EI-7004 Dolly provides a mobile base for the system. The column can also be powered from an optional 26V V-mount battery using the specified optional accessories, providing an alternative to mains power for suitable shooting locations.

Camera Compatibility and Mounting

The GAM260D is designed specifically for PTZ cameras, with a stated maximum payload of 30kg. The P6 quick-release adapter provides the primary camera interface, while 1/4-inch and 3/8-inch screw holes provide additional mounting options.

For other camera configurations, E-Image specifies that an optional EI-A19 100mm bowl adapter can be used with compatible video heads. An optional MS-010 tripod horizontal boom can also be used to mount two PTZ cameras simultaneously.

Why choose this system

The GAM260D combines powered elevation, mobile support and remote operation in one system. The broad 98–280cm height range allows the camera position to be changed without manually repositioning the complete support, while the 30kg payload provides capacity for professional PTZ camera setups.

The included dolly makes the system practical for production spaces where camera positions need to be changed between shots.

Ideal uses

• PTZ camera operation
• Broadcast studios
• Live production
• Studio video production
• Events and presentations
• Camera positions requiring repeatable height changes
• Mobile camera support
