E-IMAGEE-Image EP880MK Pedestal System Kit (20kg Payload)

Pneumatic camera pedestal kit with 100mm fluid head and dolly.

Overview

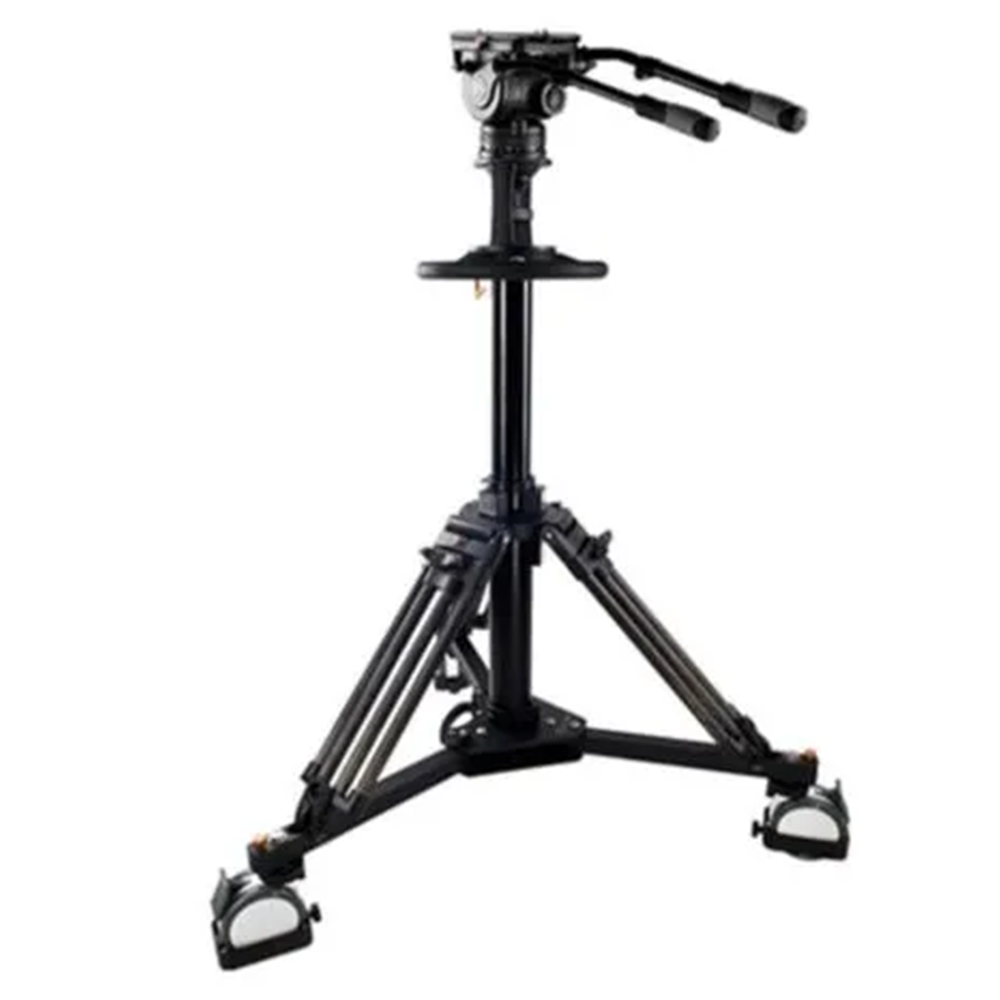

The E-Image EP880MK Pedestal System Kit combines the EI-7105H fluid head, EP880S pneumatic pedestal and EI-7007 foldable dolly into a complete camera support system for studio, broadcast and location production.

The system supports a working payload of up to 20kg / 44lb and provides a 104–183cm working height range. The pneumatic pedestal is designed for smooth height adjustment, while the integrated dolly provides mobile support for moving the camera around the production space.

Who this is for

The EP880MK is designed for broadcasters, studio operators and video production teams needing a mobile pedestal system for professional camera setups, both indoors and on location.

At a glance

• Complete pedestal system kit
• EI-7105H fluid head
• EP880S pneumatic pedestal
• EI-7007 foldable dolly
• 20kg / 44lb working payload
• 25kg / 50lb stated safety payload
• 100mm bowl
• 104–183cm working height
• 38cm on-shot stroke
• 28.5kg net weight
• 125mm dolly wheels
• Manual air pump included

How it works

The EP880S pneumatic pedestal provides controlled camera elevation, with an air pressure gauge, safety valve, locking brake and safety latch. Its removable central column provides an adjustment range of 86–165cm, while the complete system has a stated working height range of 104–183cm.

The EI-7007 dolly uses three 125mm wheels with foot-operated brakes and six-position track locks. Cable guards help keep cables managed around the wheels, while the foldable design makes the dolly easier to handle when not in use.

At the top, the EI-7105H fluid head uses a 100mm bowl and provides nine counterbalance steps and six pan and tilt drag settings. A 100mm sliding plate, dual extendable pan handles and built-in bubble level provide practical control when positioning the camera.

Why choose this system

The EP880MK brings the main components of a professional pedestal setup together in one kit. The pneumatic column provides smooth height adjustment, while the fluid head offers adjustable counterbalance and drag for controlled camera movement.

The dolly adds mobility, allowing the complete camera support system to be moved around the studio or production environment rather than requiring the camera to be repeatedly repositioned on fixed support.

Ideal uses

• Broadcast studios
• Studio video production
• Location production
• Professional camera support
• Mobile camera setups
• Productions requiring controlled camera height and movement

Component Breakdown

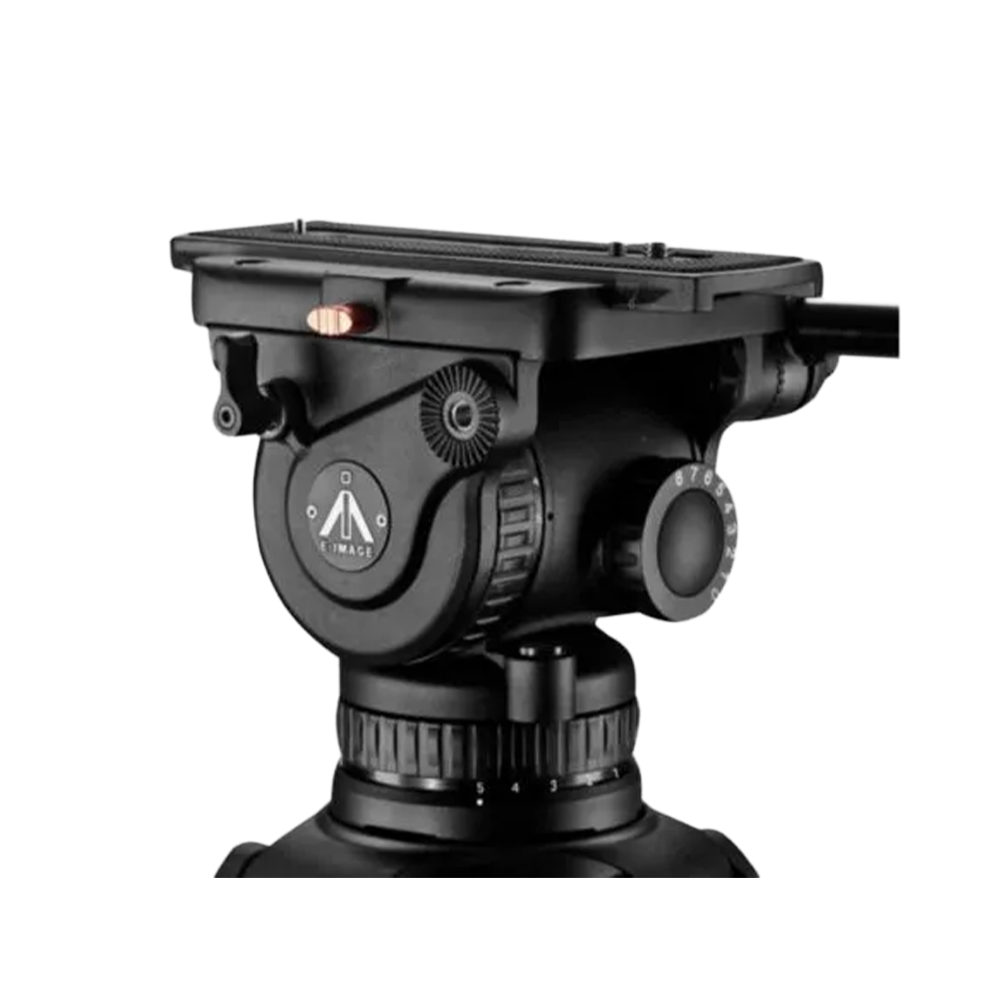

EI-7105H Fluid Head

The EI-7105H supports up to 20kg / 44lb and uses a 100mm bowl system. Its 9-step counterbalance system and 6-step pan and tilt drag adjustment allow the head to be configured for different camera setups and movement requirements.

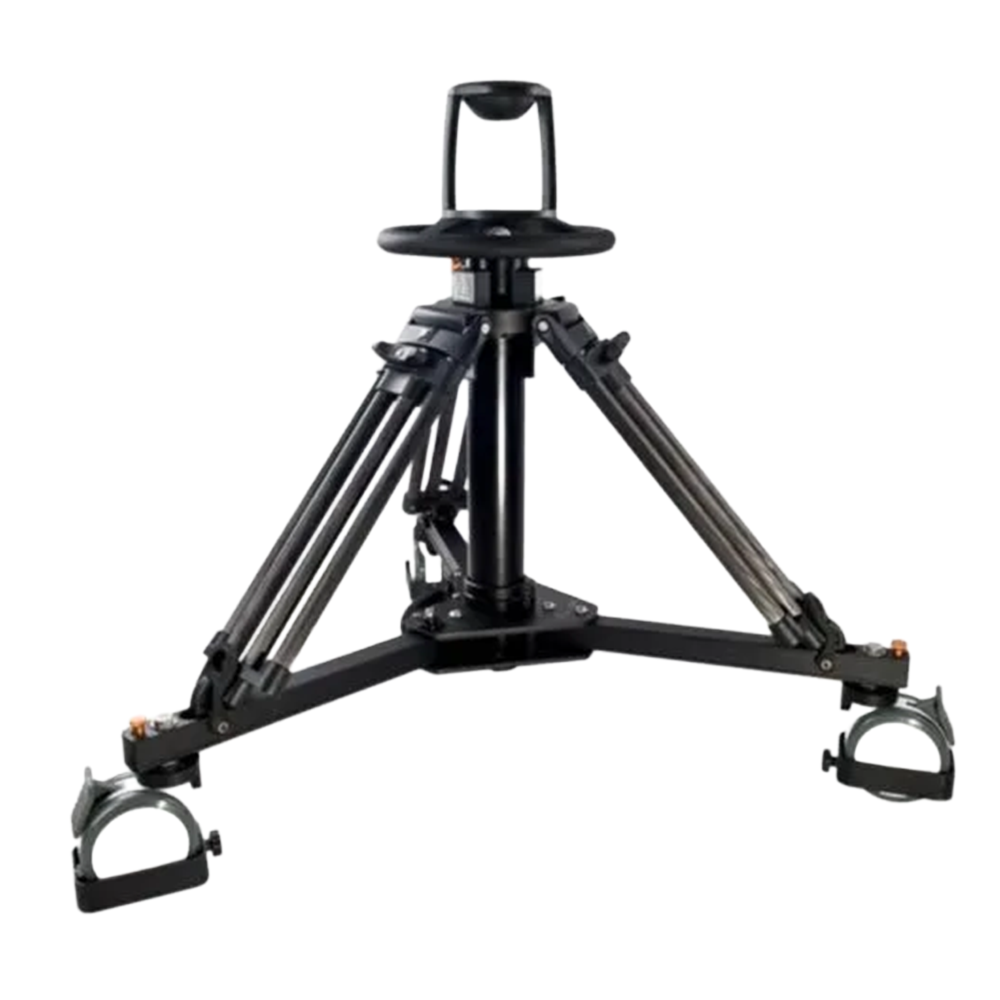

EP880S Pneumatic Pedestal

The EP880S provides pneumatic height adjustment with an air pressure gauge, safety valve, locking brake and safety latch. The removable central column provides 86–165cm of height adjustment.

EI-7007 Foldable Dolly

The included dolly uses three 125mm wheels with foot-operated brakes, cable guards and six-position track locks. This provides mobile support while allowing the dolly to be positioned and secured during production.
