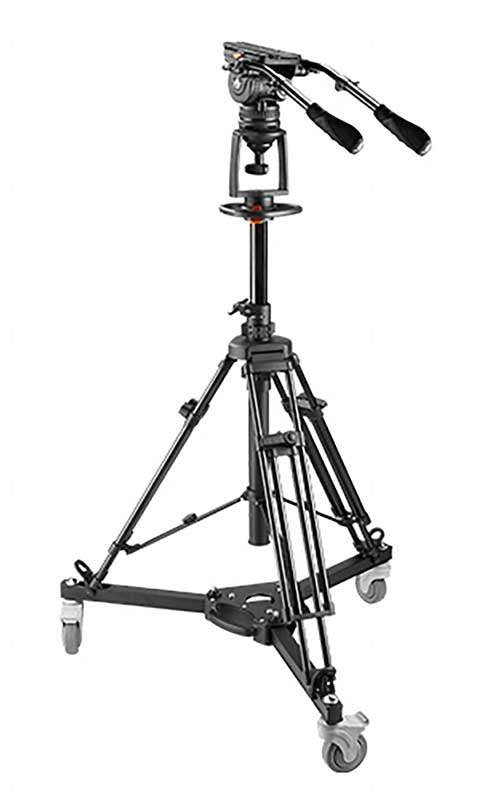

E-IMAGEE-Image EI-7903-A Air-Assist Pedestal Kit with EI-7103H Fluid Head

The E-Image EI-7903-A Air-Assist Pedestal Kit is a complete studio camera support system combining the EI-7103H fluid head with the AT7903 pedestal and a foldable wheeled dolly.

Supporting camera setups up to 15kg / 33lb, the system provides a working height range of 120–202.5cm and an on-shot stroke of 38cm. The air-assist pedestal allows the camera height to be adjusted while providing controlled operation for studio and broadcast-style setups.

The EI-7103H fluid head provides smooth fluid movement together with fixed and 0–8 position counterbalance adjustment. A 60mm sliding camera plate with dials provides adjustment for balancing the camera setup.

At floor level, the AT7903 pedestal incorporates additional mid-level spreading for stability and a foldable dolly fitted with 100mm wheels. Each wheel has a foot-operated brake, allowing the complete system to be moved and then secured in the required position.

Who this is for

Designed for studio, broadcast and video production teams that need a complete pedestal system with fluid camera movement, substantial height adjustment and a wheeled base for convenient repositioning.

At a glance

• Complete head, pedestal and dolly system
• 15kg / 33lb maximum payload
• 120–202.5cm / 47.2–79.7in height range
• 38cm / 15in on-shot stroke
• EI-7103H fluid head
• AT7903 air-assist pedestal
• 100mm bowl
• Fixed and 0–8 position counterbalance adjustment
• 60mm sliding camera plate with dials
• Mid-level spreader with locks
• Height-adjustment lever
• Side twist knob for locking the column
• Safety lock on each leg knob
• Foldable wheeled dolly
• 100mm wheels with individual foot-operated brakes
• 20kg / 44lb net weight

How it works / component breakdown

EI-7103H Fluid Head

The included EI-7103H combines fluid movement with fixed and 0–8 position counterbalance adjustment, helping the operator configure the head for the attached camera setup.

A 60mm sliding plate with dials provides fore-and-aft camera adjustment for balancing the system.

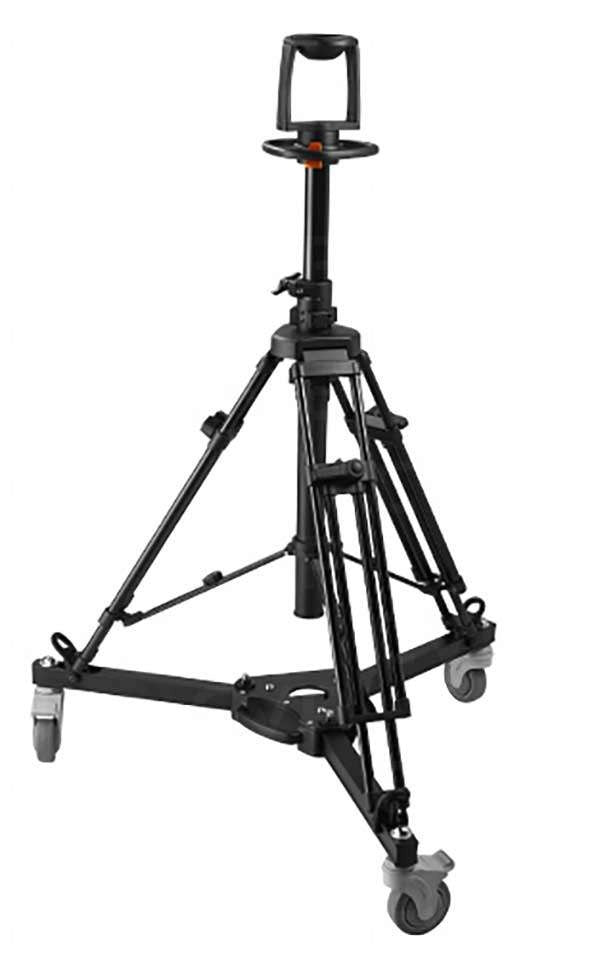

AT7903 Air-Assist Pedestal

The AT7903 provides the height-adjustable foundation of the system. It offers a working height range from 120cm to 202.5cm, together with a 38cm on-shot stroke.

The orange latch is used when adjusting the column, with a twist knob on the side allowing the column to be locked into position.

Mid-level spreader and leg locks

An additional mid-level spreader with locks improves the stability of the pedestal. Each leg knob also incorporates a safety lock for secure setup.

Foldable dolly

The pedestal sits on a sturdy folding dolly, allowing the complete camera support system to be repositioned without dismantling it.

Each 100mm wheel incorporates a foot-operated brake, providing control when securing the pedestal at the required camera position.

Why choose the E-Image EI-7903-A

The EI-7903-A combines the main elements required for a mobile studio camera support system into one coordinated kit: a fluid head for camera movement, an air-assist pedestal for height adjustment and a braked wheeled dolly for floor-level repositioning.

Its 15kg payload accommodates substantial camera setups, while the 120–202.5cm working range and 38cm on-shot stroke provide flexibility when changing camera height.

Ideal uses

• Studio video production
• Broadcast environments
• Multi-camera studios
• Production cameras up to 15kg
• Height-adjustable camera positions
• Mobile studio camera setups
