E-IMAGEE-Image 65mm Carbon Fibre Light Weight Tripod kit (only 2.2kg)

A lightweight carbon-fibre tripod system with a 65mm bowl, fixed pan and tilt drag, and 3kg payload.

Overview

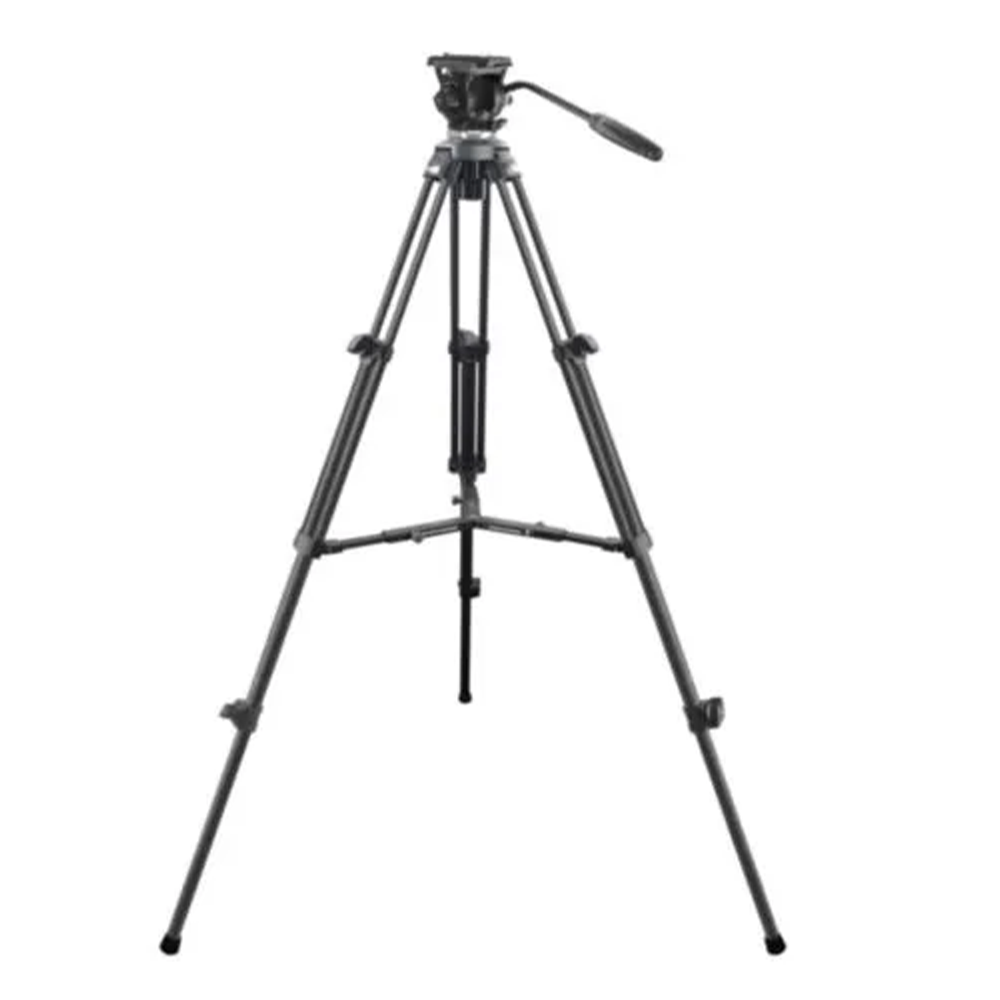

The E-Image EC610R is an ultralight camera tripod system combining the EH610 fluid head with CT610R carbon-fibre tripod legs and an adjustable mid-level spreader.

Designed for portability without sacrificing stability, the tripod uses 8-layer carbon fibre legs and ergonomic leg adjustment knobs for quick height changes. The system has a height range of 69.8–165cm and weighs 2.2kg, making it well suited to location work where keeping the camera support lightweight is important.

The 65mm bowl uses a ball adapter with a 3/8"-16 stud, allowing the head to be levelled independently of the tripod legs. The fixed pan and tilt drag provides controlled camera movement, while the sliding plate allows straightforward camera positioning.

A carrying bag is included for transporting the complete tripod system.

Who this is for

The EC610R is suited to videographers, content creators and camera operators who need a lightweight tripod system for portable production and location shooting.

At a glance

• EH610 fluid head
• CT610R carbon-fibre tripod
• 65mm bowl
• 3kg / 6.6lbs payload
• 69.8–165cm height range

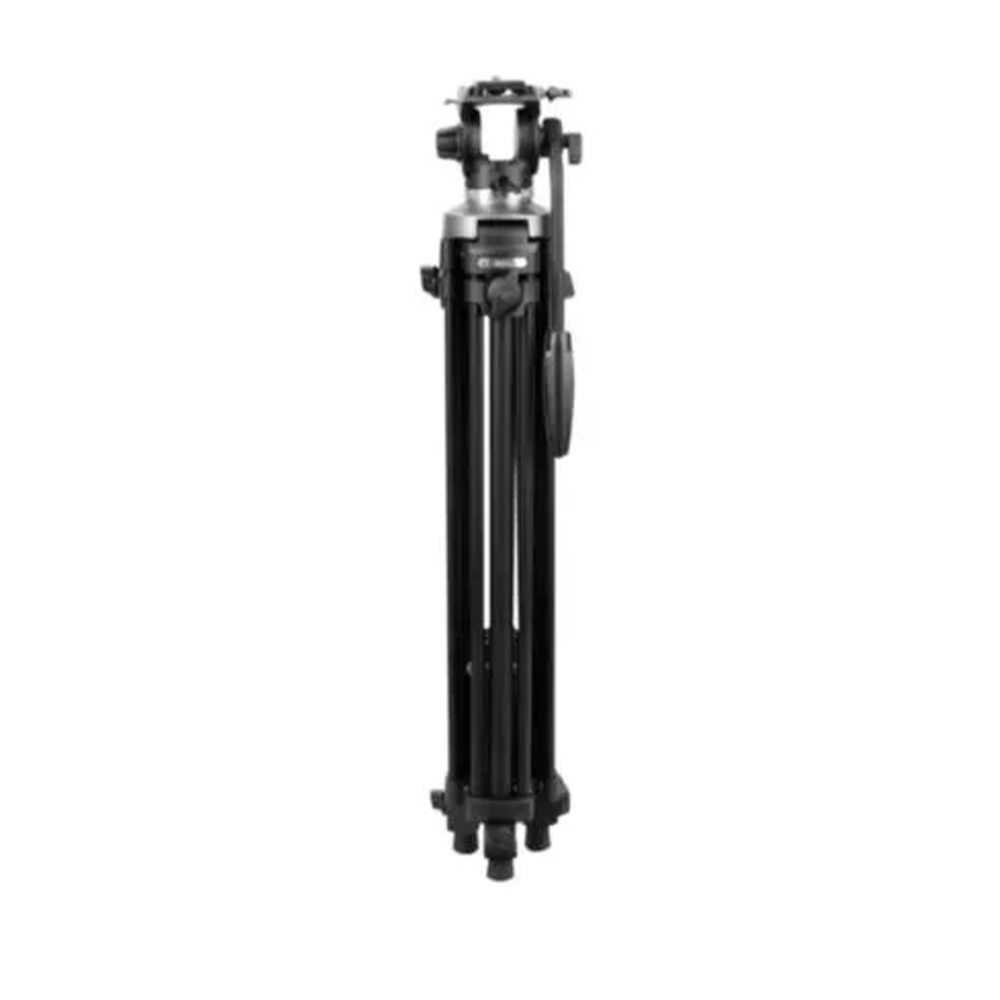

• 75cm transport length
• 2.2kg net weight
• 8-layer carbon-fibre tripod legs
• Fixed counterbalance
• Fixed pan and tilt drag
• -75° to +90° tilt range
• Sliding camera plate
• Universal quick release plate
• Integrated bubble level
• Adjustable mid-level spreader
• Carrying bag included

How it works / Component Breakdown

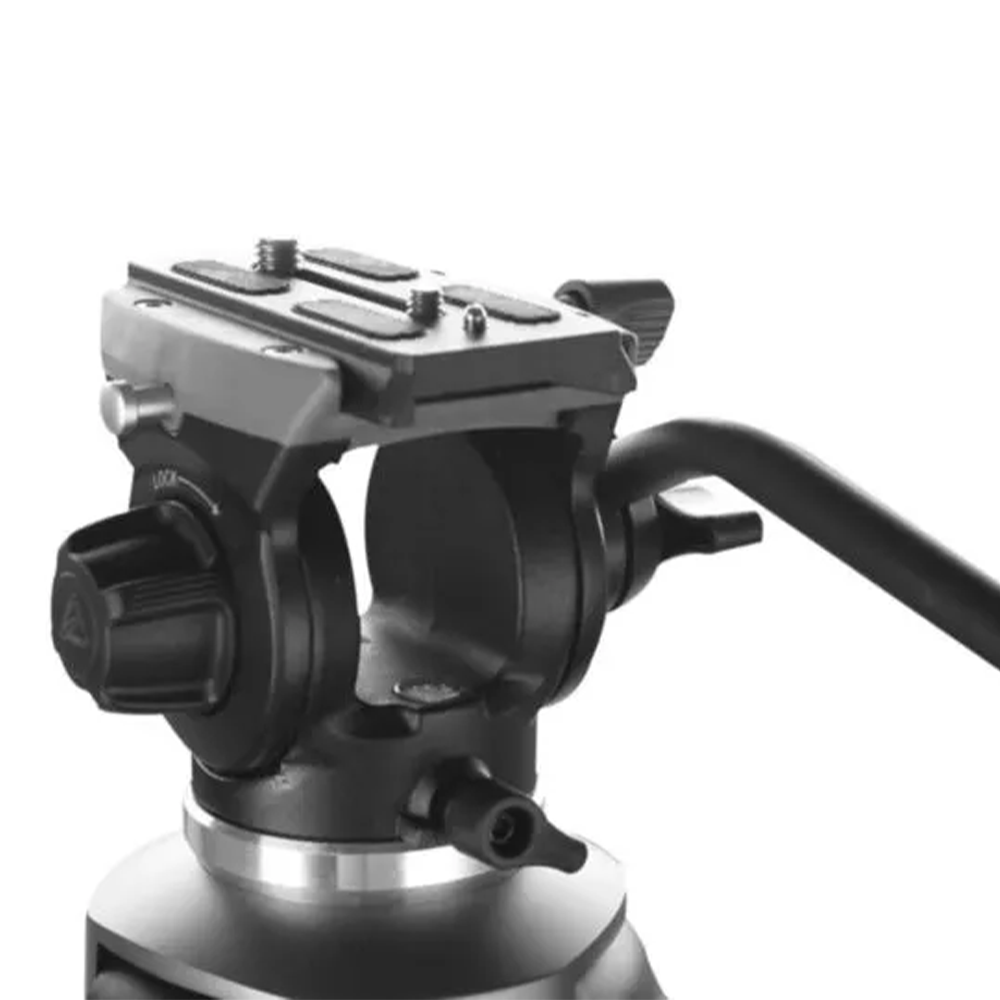

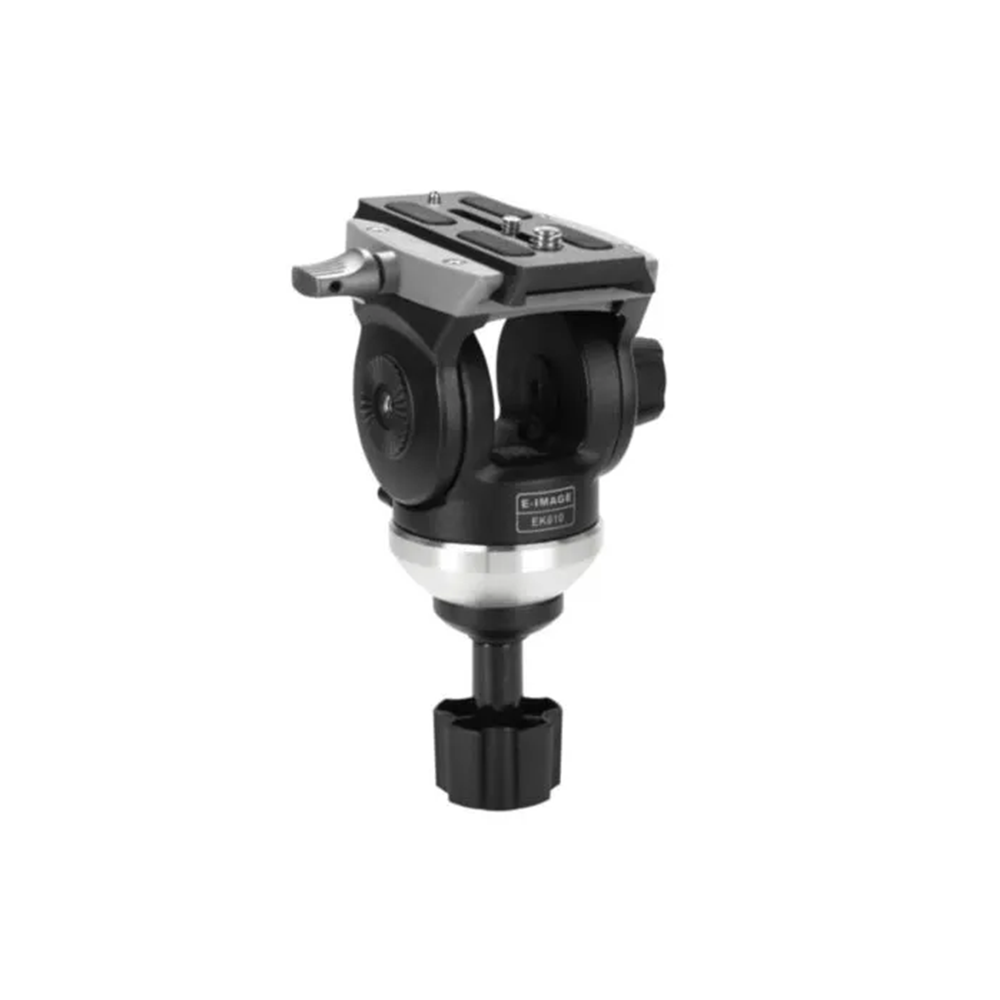

EH610 Fluid Head

The EH610 provides the camera mounting and movement controls. Its fixed counterbalance and fixed pan and tilt drag provide a consistent setup for controlled camera movements.

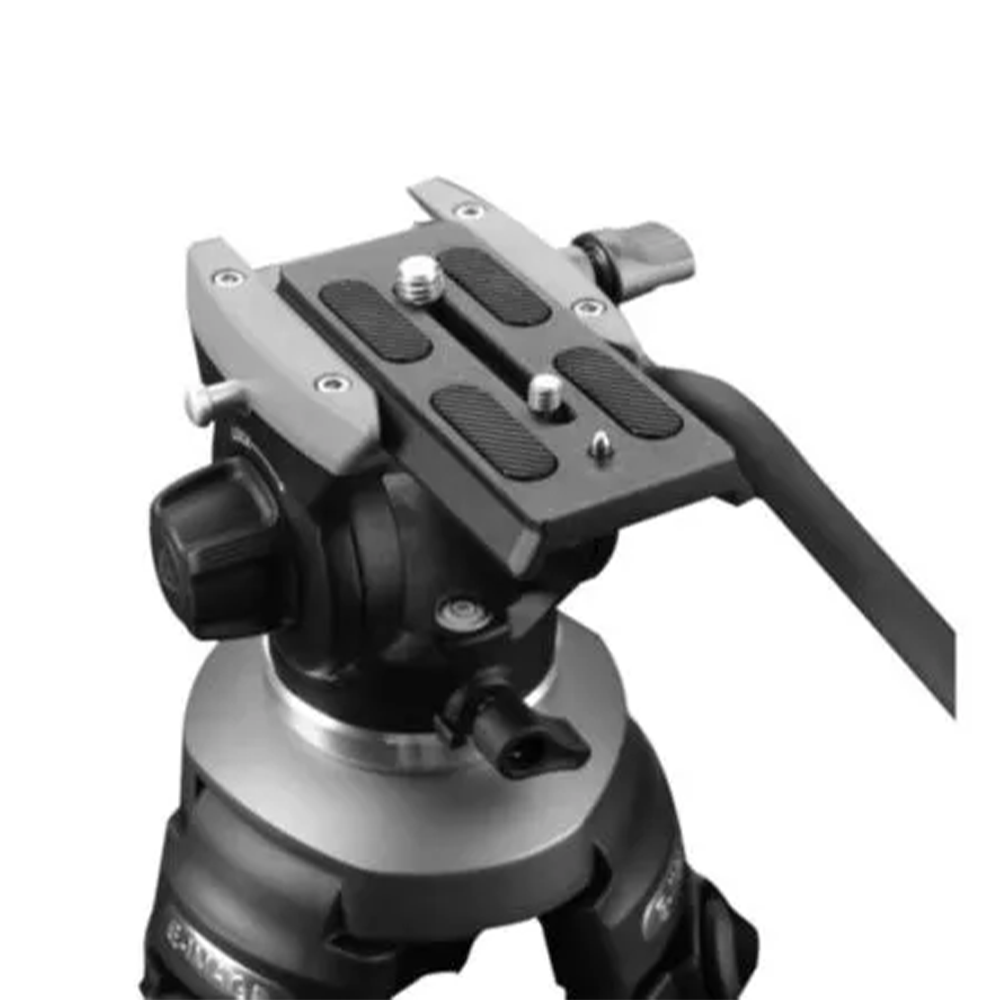

The sliding plate makes it easier to position the camera on the head, while the universal quick release plate allows the camera to be mounted directly onto other devices using the same plate system.

65mm Bowl

The 65mm bowl uses a ball adapter with a 3/8"-16 stud. This allows the head to be levelled without having to adjust the individual tripod legs, which can be useful when setting up quickly or working on uneven ground.

CT610R Carbon-Fibre Tripod

The tripod legs are constructed from 8-layer carbon fibre to keep the overall system weight down. Ergonomic leg adjustment knobs allow the working height to be changed and secured quickly.

Adjustable Mid-Level Spreader

The mid-level spreader helps maintain the spacing between the tripod legs for greater stability. It can also accommodate situations where individual leg positions need to be adjusted, making the tripod more adaptable to uneven surfaces.

Bubble Level

An integrated bubble level helps the operator level the fluid head quickly and accurately before shooting.

Why choose the E-Image EC610R?

The EC610R combines a lightweight carbon-fibre tripod with a dedicated fluid head in a compact system weighing 2.2kg. Its 65mm bowl makes head levelling straightforward, while the adjustable mid-level spreader provides useful flexibility when working on uneven surfaces.

With a 3kg payload and 69.8–165cm height range, it provides a practical support option for lightweight camera setups where portability is a priority.

Ideal uses

• Location video production
• Lightweight camera setups
• Travel filmmaking
• Content creation
• Interviews
• General videography

FAQs

What is the maximum payload?

The specified payload is 3kg / 6.6lbs.

How much does the tripod system weigh?

The net weight is 2.2kg / 4.8lbs.

What size bowl does it use?

The system uses a 65mm bowl.

What is the height range?

The height range is 69.8–165cm / 27.5–65.0in.
