E-ImageE-Image 2.6m Motorized PTZ Elevation System

Motorised PTZ camera elevation system with 2.6m maximum height, 30kg payload and remote-controlled preset positioning.

Overview

The E-Image GAM260 is a motorised elevation system designed primarily for PTZ cameras and professional video production. Its electric motor provides smooth vertical camera movement, while the remote control allows operators to adjust height without manually repositioning the camera support.

The three-section column provides a height range from 87cm to 260cm, with a maximum payload of 30kg. Three preset height positions can be stored and recalled for quicker, repeatable camera positioning during production.

A P6 quick-release adapter provides the primary camera attachment, while additional 1/4-inch and 3/8-inch screw holes allow compatible accessories to be mounted to the system. The quick-release middle spreader adds stability while retaining a practical setup for professional production environments.

Who this is for

The GAM260 is suited to:

• PTZ camera operators
• Broadcast studios
• Live production teams
• Corporate and event video
• Professional video production
• Camera crews requiring repeatable height changes
• Installations where camera elevation needs to be adjusted remotely

At a glance

• Motorised camera elevation
• Designed for PTZ cameras
• Maximum working height: 260cm
• Height range: 87–260cm
• Maximum payload: 30kg
• Three-section column
• Wired remote controller
• Three preset height positions
• Digital height display
• P6 quick-release camera interface
• 1/4-inch and 3/8-inch accessory mounting holes
• Quick-release middle spreader
• 40mm/s raising and lowering speed
• Optional 2.4G wireless controller
• Optional 26V V-Mount battery operation
• Optional EI-A19 100mm bowl adapter for video heads

How it works

Motorised elevation

The GAM260 uses an electric motor to raise and lower the camera platform at a speed of 40mm/s. The 65cm stroke provides substantial vertical adjustment within the overall 87–260cm height range.

This allows operators to change camera height without manually adjusting a conventional support system, which is particularly useful when camera positions need to change during a production.

Remote control and presets

The supplied wired remote controller provides control over the elevation system, while the memory function allows three preset height positions to be stored and recalled.

This is useful when a production repeatedly moves between established camera heights, helping operators return to consistent positions more quickly.

Camera mounting

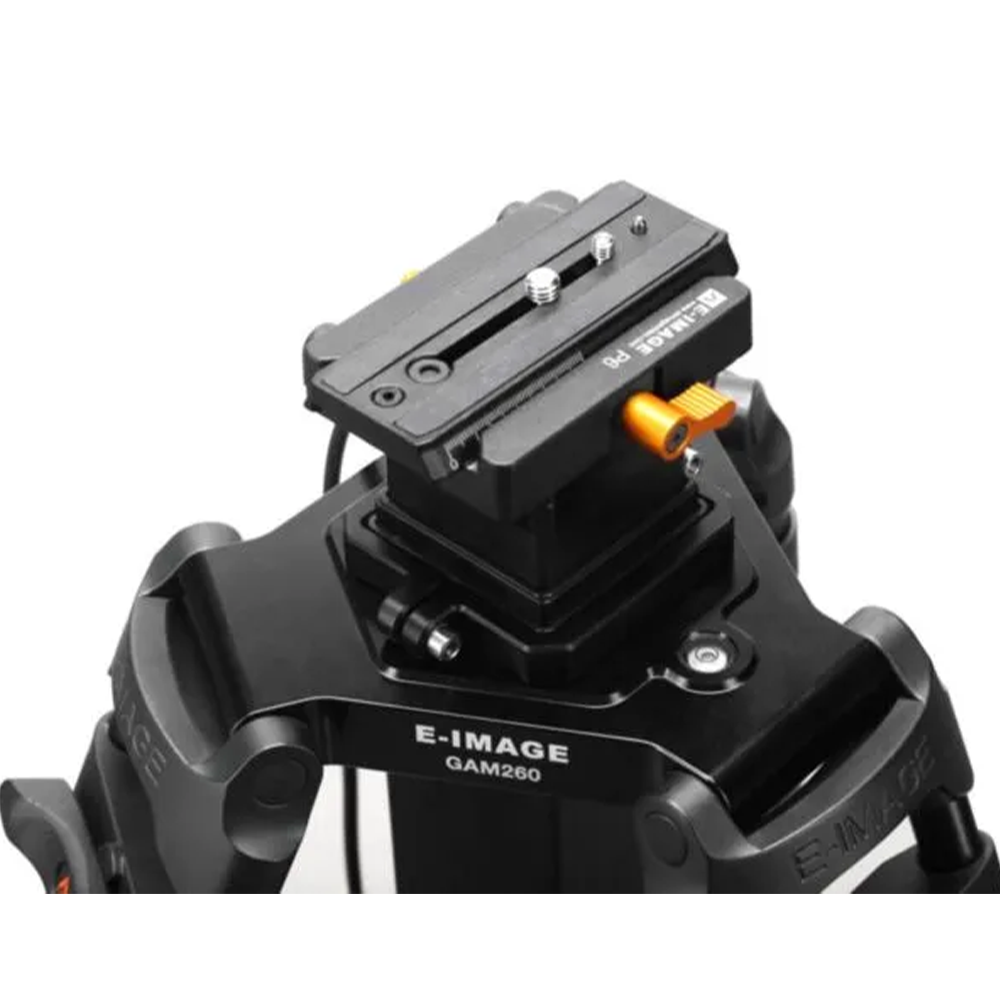

The P6 quick-release adapter provides the main camera interface. Additional 1/4-inch and 3/8-inch screw holes are provided for attaching compatible accessories.

For setups requiring a video head, the optional EI-A19 100mm bowl adapter can be used to expand compatibility.

Expanded camera configurations

When combined with the optional MS-010 tripod horizontal boom, the GAM260 can support two PTZ cameras simultaneously. The system can also be adapted for other camera configurations using the optional EI-A19 bowl adapter and compatible video heads.

Portable power option

For location work, the GAM260 can be powered from an optional 26V V-Mount battery when used with the optional EI-A05V clamp and AD-10 external battery mount plate with dedicated cable. This provides an alternative to mains power where a suitable portable setup is required.

Why choose the GAM260?

The GAM260 combines the load capacity of a professional camera support with motorised height adjustment and remote operation. Its 30kg payload provides capacity for PTZ cameras and associated equipment, while the 2.6m maximum height gives operators a wide range of camera perspectives.

The programmable height presets are particularly useful for productions where the camera needs to return to consistent positions repeatedly. Optional accessories further extend the system for multi-camera, video-head and battery-powered applications.

Ideal uses

• PTZ camera elevation
• Broadcast studios
• Live events
• Corporate video
• Professional streaming
• Multi-camera production
• Remote camera operation
• Productions requiring repeatable camera heights
• Location work with optional battery power

FAQs

What is the maximum height of the GAM260?

The maximum working height is 260cm, with a height range of 87–260cm.

How much weight can the GAM260 support?

The maximum payload is 30kg / 66lb.

How fast does the column move?

The raising and lowering speed is 40mm/s.

Does the GAM260 have preset positions?

Yes. The remote control system supports three preset height positions.

What camera mounting system does it use?

The GAM260 features a P6 quick-release adapter with plate, along with 1/4-inch and 3/8-inch screw holes for compatible accessories.

Can it be used with a video head?

Yes. The optional EI-A19 100mm bowl adapter allows the GAM260 to accommodate video heads.

Can it be powered by a battery?

Yes, with the optional EI-A05V clamp, AD-10 external battery mount plate and dedicated cable, the system can be powered by an optional 26V V-Mount battery.

Is a wireless remote available?

Yes. An optional 2.4G wireless controller is available, with a maximum range of 10m.

What's in the Box

• 1 x E-Image GAM260 Motorised Elevation Tripod
• 1 x Power Supply Unit with 3m cable
• 1 x Motor Cable, 2.5m
• 1 x Extension Cable, 2.5m
• 1 x Wired Remote Controller, 2m
• 1 x SC-4 Carrying Bag
