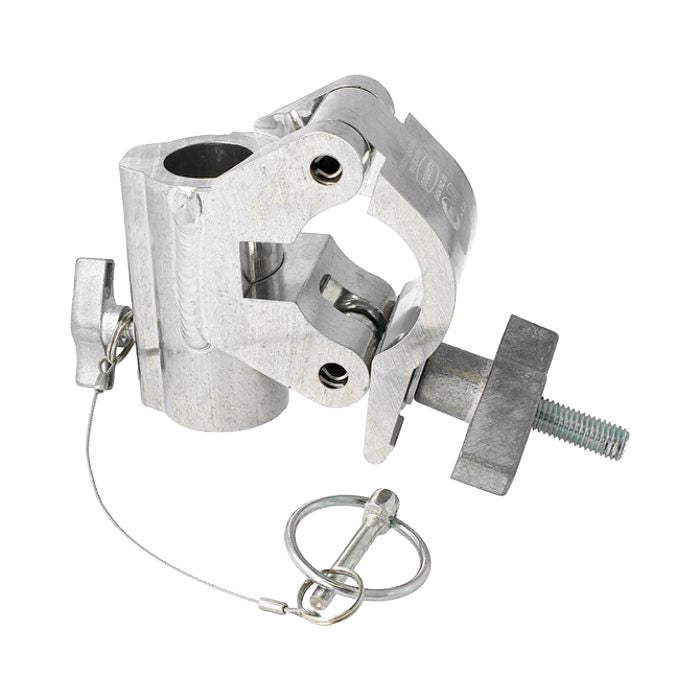

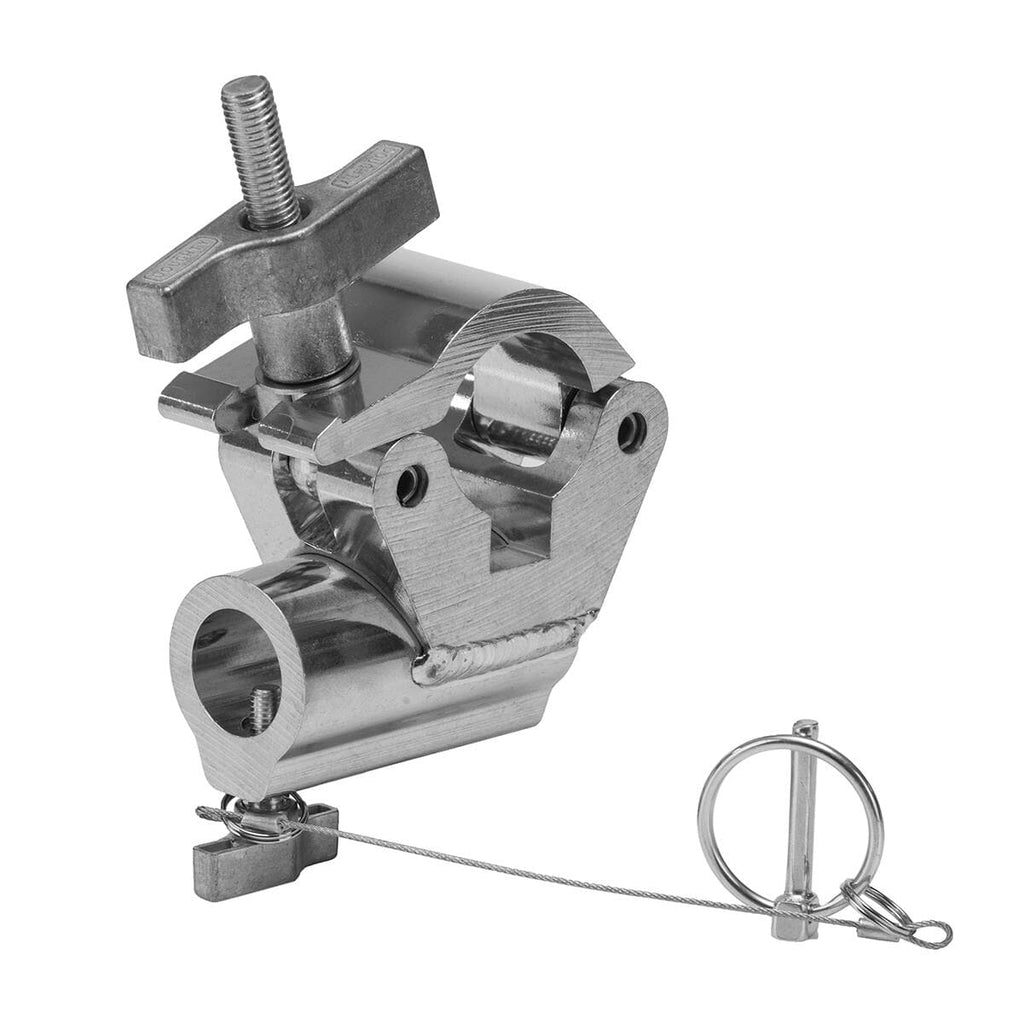

T57223 TV Doughty Clamp - Silver

SKU: DOU-T57223


Tax included. Shipping calculated at checkout.

  • In Stock, Stock Available, Delivery Due in 3-7 Working Days
  • Stock Available, Delivery Due in 3-7 Working Days
  • Verified Secure Shopping

Made from High Tensile Extruded Aluminium, the TV Clamp from Doughty is suitable for tubes, scaffold rigs and truss systems with a diameter of between 48mm and 51mm (1.89″ and 2.01″). This 50mm (1.97″) clamp has been skilfully designed to accept 28mm (1-1/8″) Junior Pin Studs, enabling you to mount larger LED and HMI light fixtures. Featuring a Built-In Lynch Pin for added security, to prevent fixtures from accidentally coming loose.  This clamp is designed predominantly for use in the TV Broadcasting and Film industries.

High Load-Capacity

Made from High-Tensile Extruded Aluminium, the Doughty Silver TV Clamp can take loads of up to 250kg, making it perfect for use on scaffold rigs and truss systems.

Built-In Junior Receiver

The Doughty Silver TV Clamp Features a 1-1/8" (28mm) Junior Pin Receiver, enabling it to be used to rig light fixtures and accessories that use the male junior-pin stud connection. This makes rigging light fixtures a simple and hassle-free process.

Doughty TV Clamp (Silver)

Cable Slot

This TV Clamp features a cable slot, which enables it to hold power cables, without crushing or damaging any cables when rigging or trussing.

Built-In Lynchpin - for Added Safety

As an extra layer of security, the Doughty TV Clamp also features a built-in lunch pin, designed to go through the lynchpin hole in the Junior Pin stud, to prevent the light from accidentally coming loose and falling to the ground, and potentially damaging your light fixture, or injuring someone.

The Doughty Engineering TV Clamp in Polished Silver is an essential accessory for Cinematographers, Gaffers and DPs who are looking for a quick and simple, yet highly durable solution for creating custom rigging, to help light their next project.

Also Available in Powder-Coated Black



  • Made from High tensile extruded aluminium
  • 250kg working load limit
  • Built-In Junior Receiver
  • Features Built-In Lynch Pin as an extra layer of security
  • Ideal for trussing as it will not damage the cords

What’s In the Box

  • 1x Doughty TV Clamp Silver

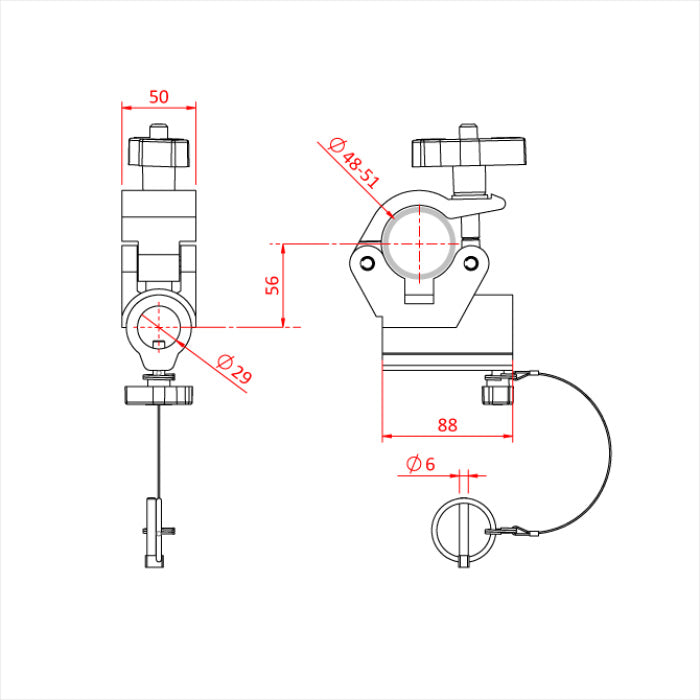

Tube Diameter 48 - 51mm
Materials Main Body - AW6082 T6 Aluminium
Roll Pins - Stainless Steel
Eyebolt Assy - Grade 8.8
Max Tightening Torque 30Nm
Fixings Ø29mm Receiver
Working Load Limit 200kg
Net. Weight 0.93kg
Factor for Safety 5:1
Approval TÜV Approved
