SwitCIMO-98S 98Wh USB-C Slim Cine V-mount Battery

The CIMO-98S is a slim 98Wh cine-style V-mount battery designed for professional camera systems where high output needs to be balanced with a smaller, more portable battery format.

Its 14.4V, 98Wh / 6.8Ah capacity is paired with 150W / 12A continuous output and up to 200W peak power, allowing the battery to run demanding cine cameras and additional on-camera equipment.

Two D-Tap connections provide accessory power, while USB-A and USB-C ports make it possible to run compatible production equipment and smart devices directly from the battery. USB-C provides up to 65W output and can also accept up to 45W for charging.

A four-LED indicator provides a quick view of remaining battery capacity, while a rear LED torch helps when fitting the battery or connecting equipment in dark production environments.

Who this is for

The CIMO-98S is suited to cinematographers, camera operators and production crews looking for a compact V-mount battery without giving up the high-load output required by professional camera rigs.

Its 98Wh capacity and slim construction make it particularly useful for location work, travel productions and compact camera builds where battery size and weight need to be kept under control.

At a glance

• Slim cine-style V-mount battery

• 98Wh / 6.8Ah capacity

• 14.4V nominal voltage

• 150W / 12A continuous output

• Up to 200W peak output

• 2 x D-Tap connections

• D-Tap combined output up to 150W

• USB-A 18W output

• USB-C 65W output

• USB-C 45W charging input

• Four-LED remaining power indicator

• Rear LED torch

• 1.2m drop resistance

• Low-temperature operation down to -20°C

• Ultra-low standby power design

• Multiple circuit protections

How it works / component breakdown

98Wh slim battery design

The CIMO-98S uses eight ternary lithium cells to provide a nominal 14.4V output with 98Wh / 6.8Ah capacity.

The ternary lithium cell design provides high energy density, helping achieve useful capacity within a smaller battery format. The cells also support operation in cold environments down to -20°C.

The 98Wh capacity makes the CIMO-98S a practical option for productions where a more compact V-mount battery is preferred.

150W continuous high-load output

Despite its slim format, the CIMO-98S supports at least 150W / 12A continuous output, including at low remaining battery levels.

Peak output is rated up to 200W.

This gives the battery the power required for high-draw cine cameras and allows additional on-camera devices to be powered as part of the same setup.

Dual D-Tap connections

Two D-Tap connections provide a combined output of up to 150W.

These connections provide convenient accessory power for compatible monitors, wireless systems, camera accessories and other production equipment.

USB-A and USB-C power

Alongside its D-Tap connections, the CIMO-98S provides:

• 1 x USB-A with 5V / 9V, 2A output

• 1 x USB-C with up to 65W output

• USB-C charging input up to 45W

The additional USB connections make the battery useful beyond the main camera system, allowing compatible production and mobile devices to share the same power source.

65W USB-C output

The USB-C port supports 5V, 9V, 12V and 15V at up to 3A, plus 20V at up to 3.25A, providing a maximum output of 65W.

Supported protocols include BC1.2, QC 2.0, QC 3.0, FCP, SCP, PD 2.0 and PD 3.0.

This allows compatible laptops, smart devices and production accessories to be powered directly from the battery.

45W USB-C charging

The CIMO-98S can be charged through its USB-C port using a PD 2.0 or PD 3.0 charger rated at 45W or above.

The stated full charging time with a compatible USB-C charger is approximately 2.5 hours.

USB-C chargers rated below 45W are not supported for charging the battery.

Four-LED power indicator

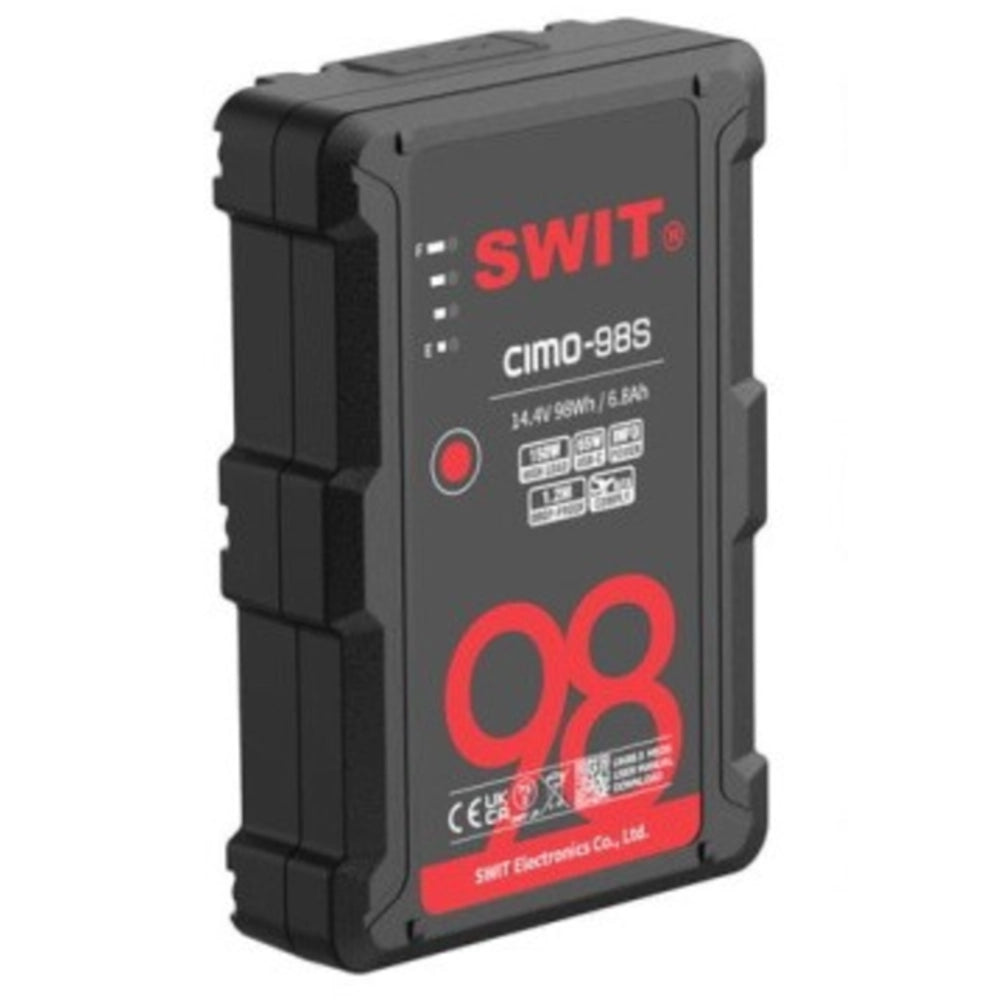

A four-LED indicator provides a quick visual indication of remaining battery capacity.

This makes it easy to check the approximate battery level before installing it on a camera or during production.

Rear LED torch

A built-in LED torch is positioned on the rear of the battery to provide illumination in dark production environments.

Double-pressing the power check button switches the torch on. Double-pressing again switches it off, and the light automatically switches off after 60 seconds.

It provides a convenient way to locate a V-mount plate or connections during battery changes in low light.

1.2m drop resistance

The CIMO series uses a dual-housing construction designed to withstand drops from up to 1.2 metres at different angles.

This provides additional protection for regular production use where batteries are frequently transported, mounted and handled.

Ultra-low standby power

The battery incorporates a low-power standby design intended to minimise discharge during long-term storage.

This reduces the need for regular charge-discharge maintenance when the battery is stored between productions.

Multiple circuit protections

Built-in circuit protection includes protection against:

• Overcharging

• Over-discharging

• High temperature

• Low temperature

Why choose the CIMO-98S?

The CIMO-98S combines a slim 98Wh format with a 150W continuous load rating, providing a useful balance between portability and the power requirements of professional cine camera systems.

Its dual D-Tap outputs make it easy to integrate into accessory-heavy camera rigs, while the 65W USB-C output provides additional power for compatible laptops and production devices.

USB-C charging, a four-LED power indicator and built-in rear torch add practical flexibility for location work, while the reinforced housing is designed for regular professional handling.

Ideal uses

• Digital cinema cameras

• Compact cine camera rigs

• Shoulder-mounted camera systems

• Location filmmaking

• Travel productions

• Documentary production

• Production monitors

• Wireless video systems

• On-camera accessories

• Studio production

• Rental equipment fleets
