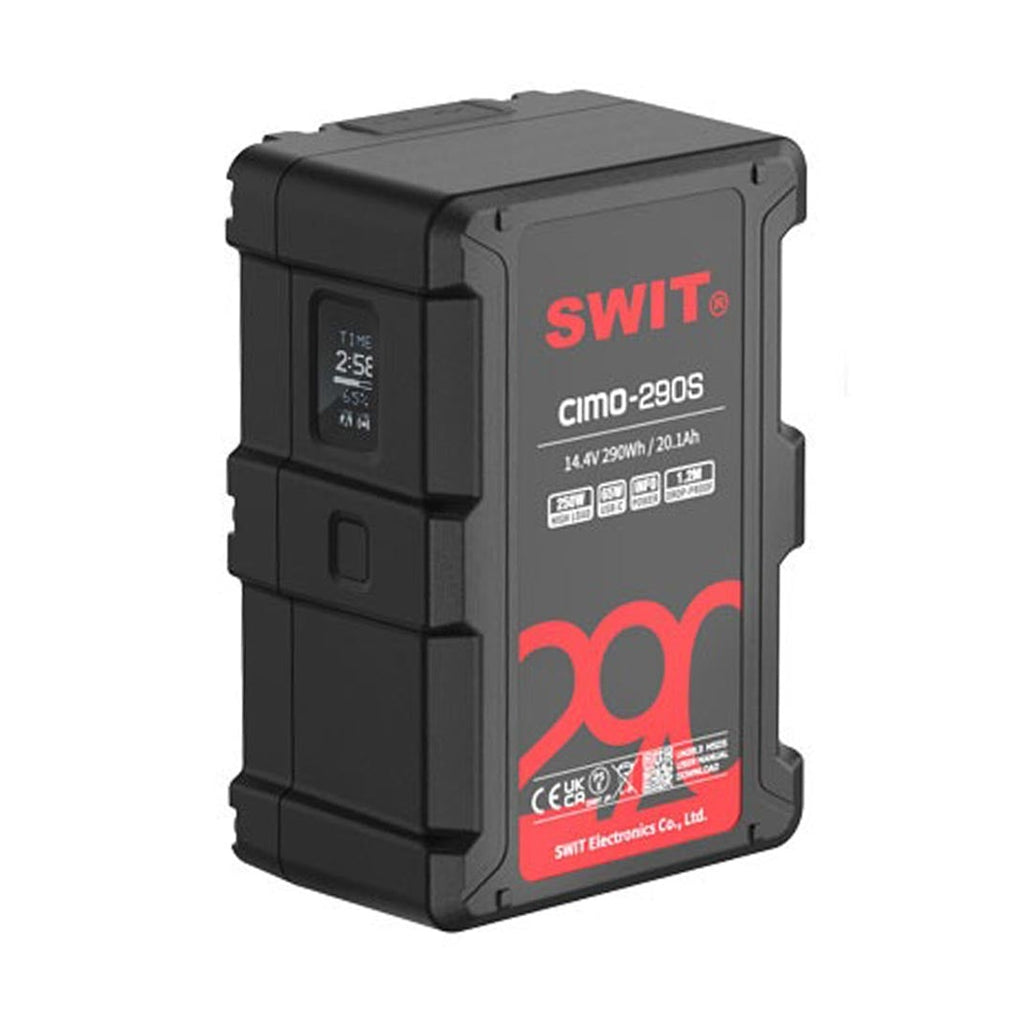

SwitCIMO-290S 290Wh USB-C OLED info Cine V-mount Battery

The CIMO-290S is a high-capacity 290Wh cine-style V-mount battery designed for professional cinema cameras and demanding production rigs.

With a nominal voltage of 14.4V and 290Wh / 20.1Ah capacity, it delivers up to 250W / 20A continuously and 335W peak. This gives the battery the output required to run high-power cine cameras alongside monitors, wireless systems and other on-camera equipment.

Two D-Tap connections provide additional power for production accessories, while USB-A and USB-C connections support everyday electronic and production devices. The USB-C port delivers up to 65W and can also be used as a 60W charging input.

An integrated OLED display provides remaining capacity, estimated run time, battery cycle count and health information. A rear LED torch assists when changing or connecting equipment in dark production environments.

Who this is for

The CIMO-290S is designed for cinematographers, camera operators, production companies and rental environments that need substantial V-mount capacity combined with high continuous output.

Its 250W continuous load capability makes it particularly suited to demanding cine camera configurations and multi-device rigs where a camera and several accessories need to be powered from the same battery.

At a glance

• 290Wh / 20.1Ah capacity

• 14.4V nominal voltage

• 250W / 20A continuous high-load output

• Up to 335W peak output

• 2 x D-Tap connections

• D-Tap combined output up to 250W

• USB-A 18W output

• USB-C 65W output

• USB-C 60W charging input

• Supports compatible 100W / 6A fast charging

• OLED battery information display

• Remaining run-time indication

• Battery cycle and health information

• Rear LED torch

• 1.2m drop resistance

• Low-temperature operation down to -20°C

• Ultra-low standby power design

• BMS circuit protection

How it works / component breakdown

290Wh capacity

The CIMO-290S uses 24 ternary lithium cells to provide a nominal 14.4V output with 290Wh / 20.1Ah capacity.

The ternary lithium cell design provides high energy density while supporting operation in cold environments down to -20°C.

The substantial 290Wh capacity is useful for productions where longer operating times are required or where one battery is powering several pieces of equipment.

250W continuous high-load output

The CIMO-290S supports at least 250W / 20A continuous output, including at low remaining battery levels, with peak output up to 335W.

This high-load capability allows the battery to support demanding cine cameras and additional on-camera equipment simultaneously.

100W / 6A fast charging

The CIMO-290S supports 100W / 6A fast charging using compatible SWIT PC-P461S, MATRIX-S8 and S-3812S chargers.

With compatible charging equipment, the stated charging time from empty to 80% is approximately 2.5 hours, with a full charge taking approximately 3.8 hours.

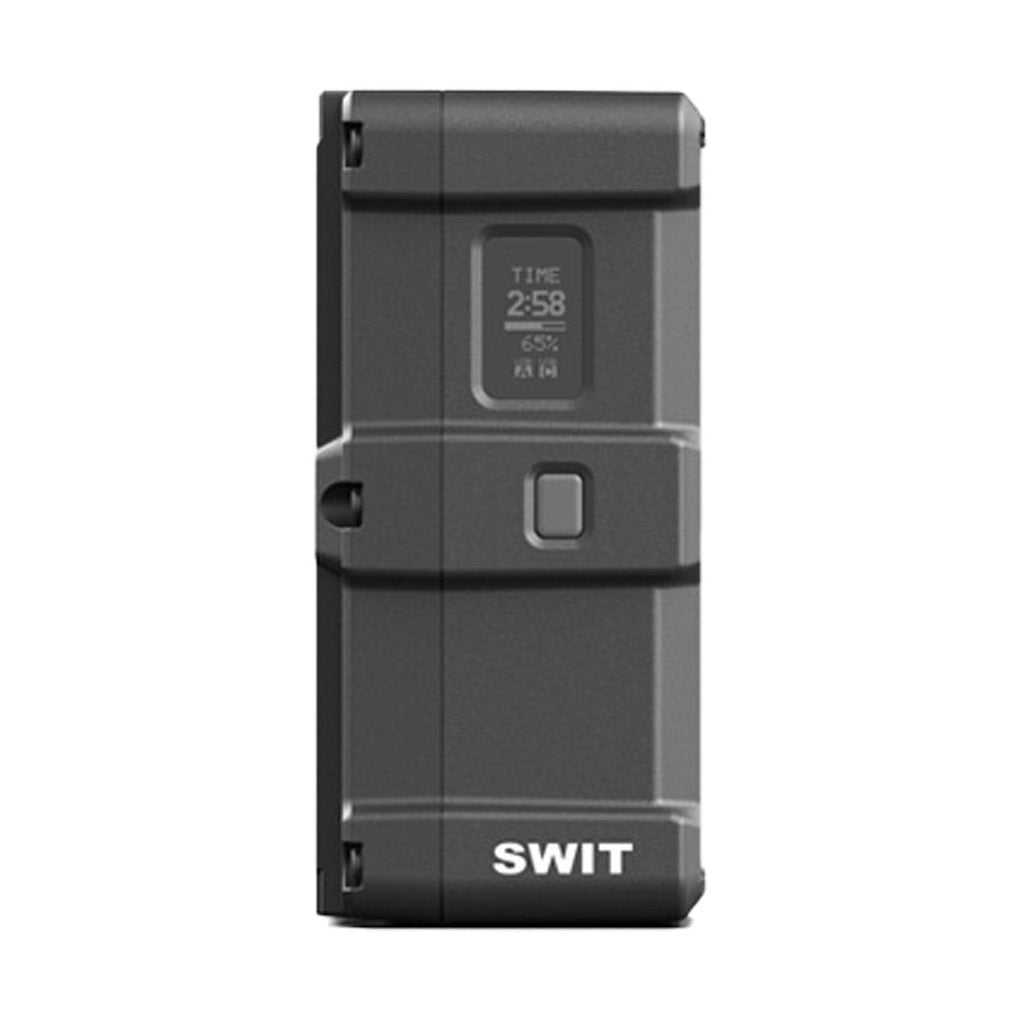

OLED power and health information

The integrated OLED screen provides battery status and power information directly on the battery.

Displayed information includes:

• Remaining battery percentage

• Estimated remaining run time

• Battery cycle count

• Battery health level

Holding the power check button provides access to cycle count and battery health information, making it easier to monitor battery condition across regular professional use.

Dual D-Tap, USB-A and USB-C connectivity

The CIMO-290S provides multiple accessory power connections:

• 2 x D-Tap with up to 250W combined output

• 1 x USB-A with 5V / 9V, 2A output

• 1 x USB-C with up to 65W output

• USB-C charging input up to 60W

This combination allows cameras and production accessories to share a single high-capacity power source while also providing USB power for compatible devices.

65W USB-C output

The USB-C connection supports 5V, 9V, 12V and 15V at up to 3A, plus 20V at up to 3.25A, providing a maximum output of 65W.

Supported protocols include BC1.2, QC 2.0, QC 3.0, FCP, SCP, PD 2.0 and PD 3.0.

The connection can therefore power compatible laptops, mobile devices and production equipment directly from the V-mount battery.

60W USB-C charging

The CIMO-290S can also be charged through its USB-C port using a PD 2.0 or PD 3.0 charger rated at 60W or above.

The stated full charging time using a compatible USB-C charger is approximately 6.6 hours.

USB-C chargers rated below 60W are not supported for charging the battery.

Rear LED torch

A built-in LED torch on the rear of the battery provides convenient illumination when working in dark production environments.

Double-pressing the power check button switches the torch on. Double-pressing again switches it off, while an automatic timer switches the light off after 60 seconds.

This provides a practical way to locate the V-mount plate and connections without reaching for a separate light.

1.2m drop resistance

The CIMO series uses a dual-housing construction designed to withstand drops from up to 1.2 metres at different angles.

The reinforced design is intended for professional production environments where batteries are frequently handled, transported and changed throughout a shoot.

Ultra-low standby power

The CIMO-290S uses a low-power standby design intended to minimise battery drain during long periods of storage.

This reduces the need for regular charge-discharge maintenance when batteries are stored between productions.

BMS circuit protection

The battery incorporates multiple BMS circuit protections to help protect the battery and connected equipment during operation and charging.

Why choose the CIMO-290S?

The CIMO-290S combines a substantial 290Wh capacity with 250W continuous output and up to 335W peak power, making it particularly useful for high-demand cinema camera systems and accessory-heavy rigs.

Dual D-Tap connections provide dedicated power for production equipment, while 65W USB-C adds a convenient way to run compatible laptops, mobile devices and accessories.

The OLED screen provides useful operational and battery-health information at the battery itself, while fast charging support, reinforced construction and low standby consumption make it practical for regular professional production and rental use.

Ideal uses

• Digital cinema cameras

• High-power cine camera systems

• Accessory-heavy camera rigs

• Shoulder-mounted camera systems

• Production monitors

• Wireless video systems

• On-camera accessories

• Studio production

• Location filmmaking

• Documentary production

• Rental equipment fleets
