PiXAPRO

Studio Lighting Pantograph Support Ceiling Rail System

SKU: K-080103

£899.99

Tax included. Shipping calculated at checkout.

  • Out of stock, pre-order available
  • Verified Secure Shopping

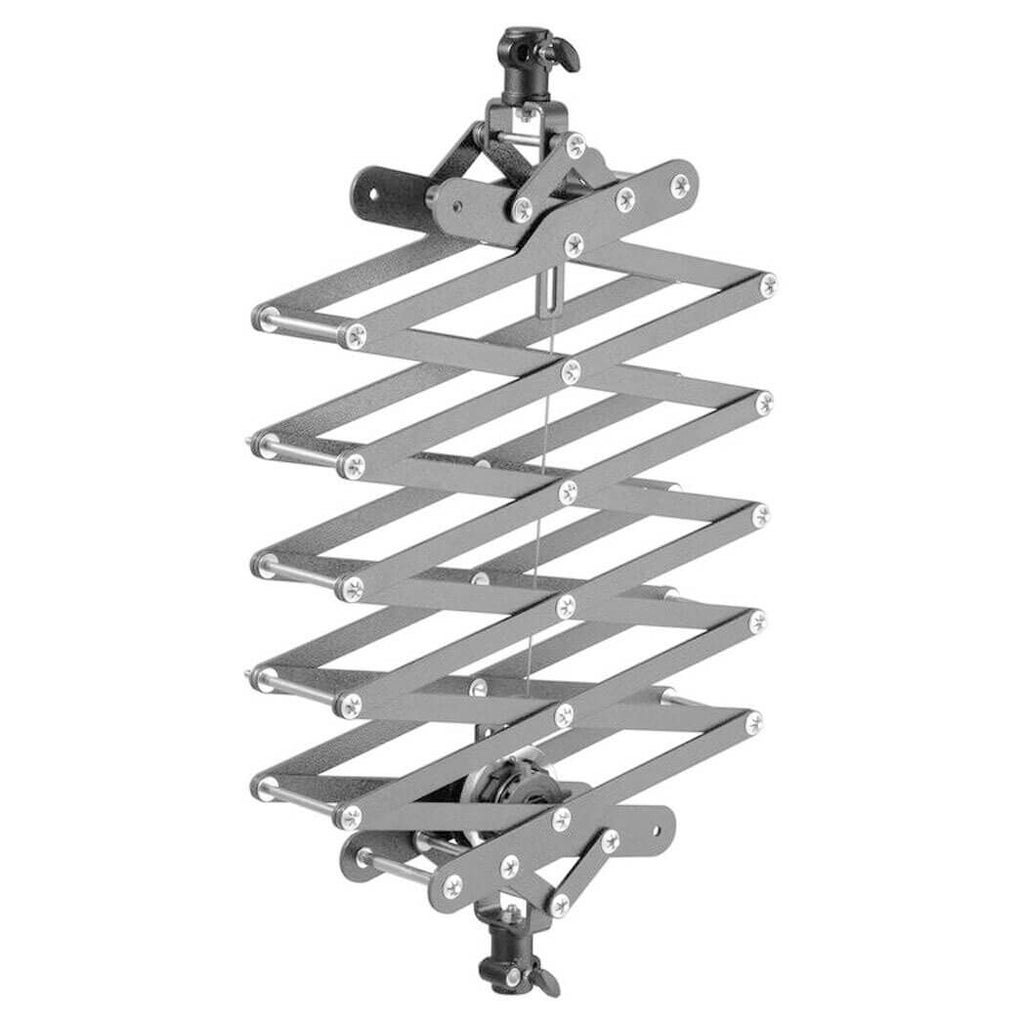

The PixaPro 3x Studio Ceiling Rail Pantograph Lighting Support System is a modular pantograph system, which enables you to suspend your studio strobe flashes or led studio lights from the ceiling, thus removing the need for floor-based light stands, leaving your studio floor free from clutter.  The pantograph lighting system is great for large studios and is especially good for smaller studios as you will have a lot more floor real estate to play with.

Precise Positioning

The pantograph lighting system uses a combination of rails and carriages to enable you to precisely position with the greatest of ease. Featuring a modular design to allow you to expand or modify the system to your needs.

Heavy-Load Support

The studio rail lighting system can be extended anywhere between 39.5cm and 203cm and support loads of up to 15kg.

9 Square Meter Area Coverage

The track system consists of two fixed 3m long rails and two 3m long mobile rails. The two mobile rails can be moved anywhere along the fixed rails which in turn enables you to position the pantographs virtually anywhere you need them to be.

PixaPro 3x Studio Ceiling Rail Pantograph Lighting Support System

The PixaPro 3x Studio Ceiling Rail Pantograph Lighting Support System is a great solution for large studios and smaller studios alike, freeing up space to allow for greater square footage on your studio floor. A great solution for decluttering studio floors.

Due to the design and construction of this product, once this product has been open and set-up, this is excluded from our standard returns period and is non-returnable.

Please note, from 1st May 2024, as this kit contains a Ceiling Track System which features a unique design & packaging, this kit will feature a 14 Day Return Period if the mentioned product remains unopened & in its sealed packaging. Once this item has been unsealed and opened, it is no longer covered by our returns policy.


Important Points To Be Aware Of

The maximum load capacity of each pantograph is 15kg. This also means that no single point of contact on the track system should exceed this load. It is advised that you should avoid positioning any more than two pantographs in close proximity on any occasion.
You will need to ensure the ceiling you are fitting the track system to can take the weight of the entire pantograph system. It needs to be a solid ceiling, as mounting it to a hollow or suspended ceiling, would run the risk of the track system collapsing. An Evaluation of the ceiling conditions and structure is critical before installation.
Please do not attempt fitting the pantograph track system if there are any indications of the ceiling not being structurally safe to do so. Please ensure every step is followed and double-checked. After installation, we would advise you to carry out a safety survey. Please bear in mind that all installation and safety precautions are considered your responsibility so please take this into consideration before purchasing this equipment.
Please note: This product does not come with screws and bolts, therefore; these will need to be sourced separately. Please take into consideration the solidity of the wall or surface before finding suitable screws and bolts. Please be aware, it would be your responsibility to source screws that are safe and sturdy enough to use on the chosen wall or surface so please carry out appropriate safety checks and precautions before continuing with installation.

Features

  • Precise Positioning with Easy Adjustment
  • Maximum Load Capacity of 15KG
  • Perfect for keeping Studio space clear

What’s In the Box

  • 3x Pantographs
  • 2x Fixed Single Rails
  • 2x Mobile Double Rails
  • 6x Mounting Plates
  • 3x Single Carriages
  • 4x Double Carriages
  • 9x Cable Carriages
  • 24x Cable Clips
  • 1x Adjustment Pole

Specifications

Load Capacity1-15kg
Weight (Each Pantograph)4.5kg
Jink SizeInside Diameter 16mm (5/8)
Condense Size (Pantograph)330mm x 98mm x 395mm
Extension39.5cm - 203cm
