Swit

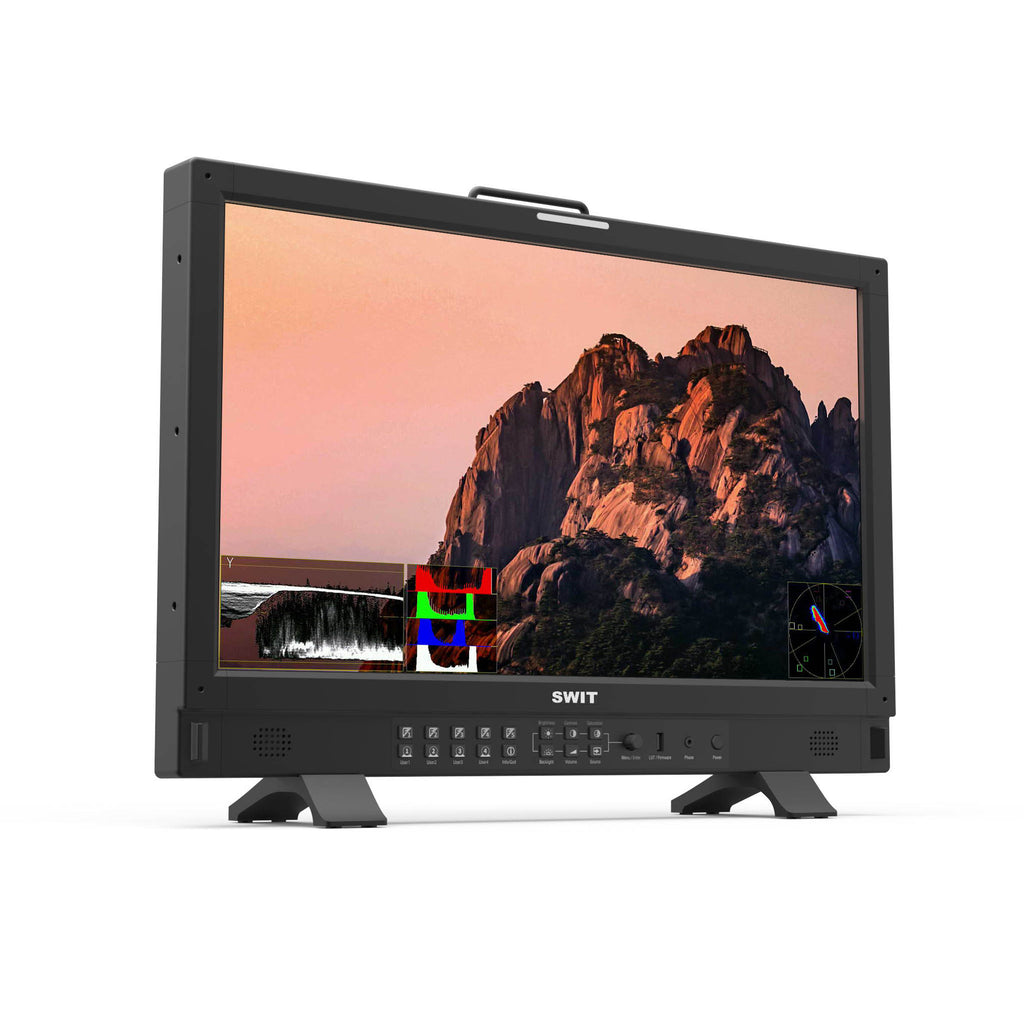

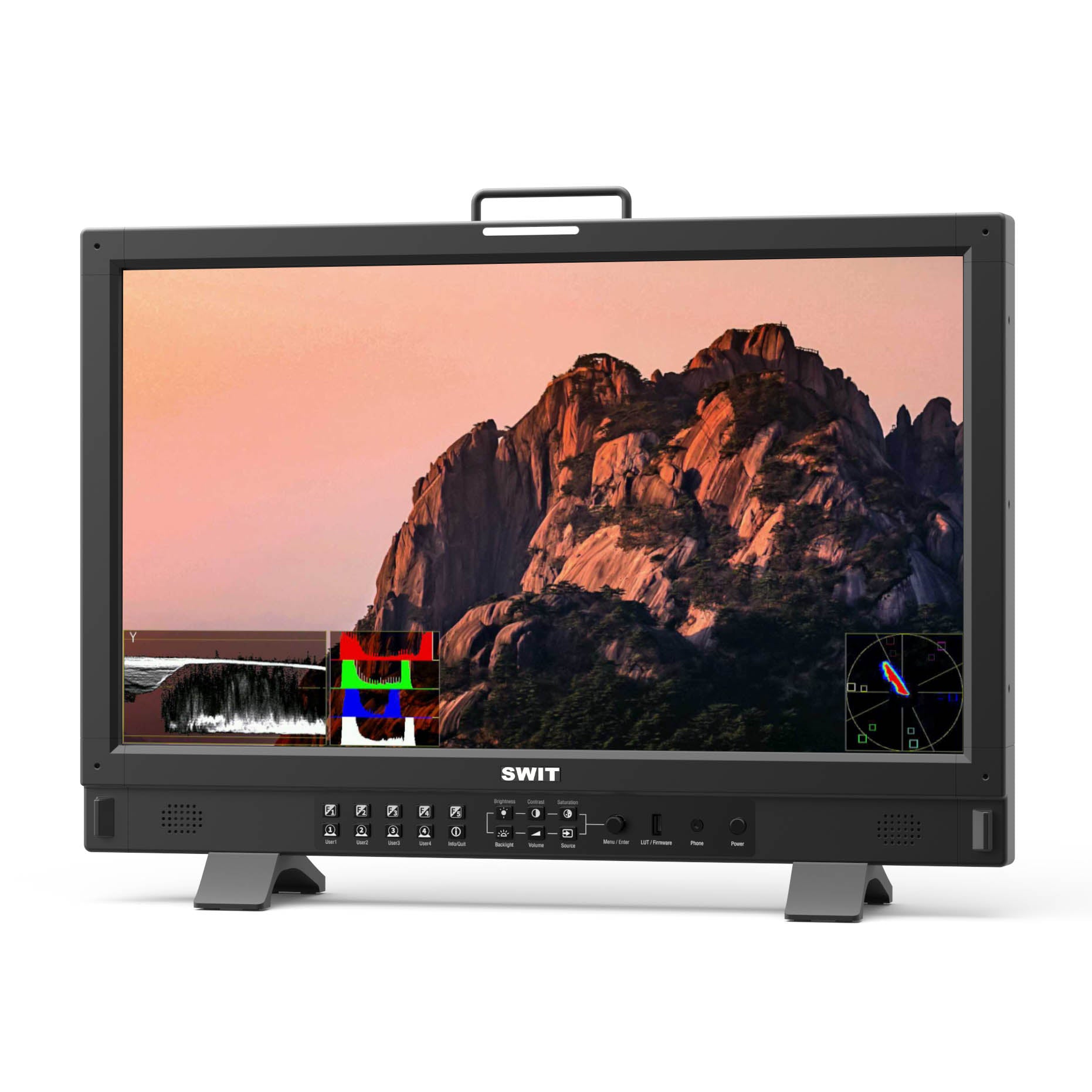

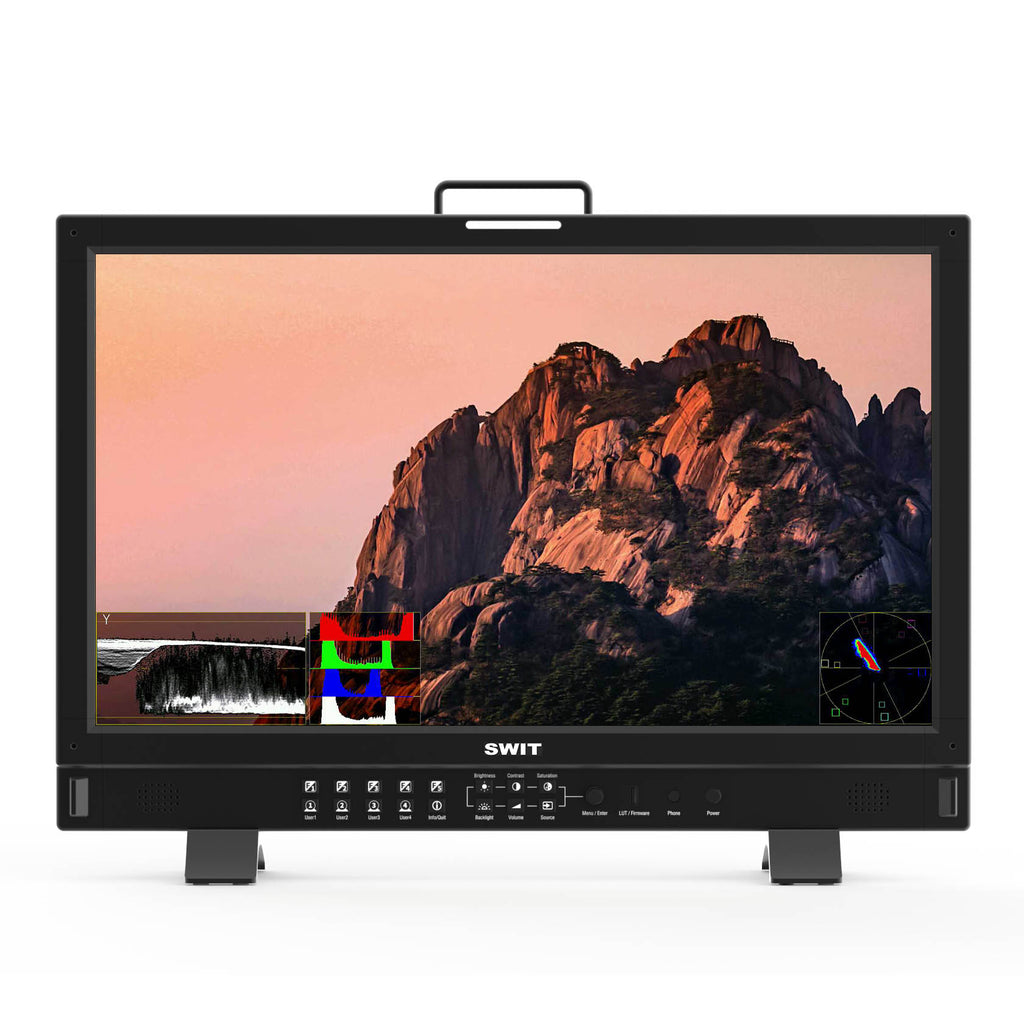

BM-H245 23.8-inch 4K- Ready Professional Production Monitor

SKU: SWI-BM-H245

£2,357.99

Tax included. Shipping calculated at checkout.

  • In Stock, Stock Available, Delivery Due in 3-7 Working Days
Add Accessories:
£109.99
£173.99
£744.99
Your Total:
  • Stock Available, Delivery Due in 3-7 Working Days
  • Verified Secure Shopping

Experience stunning visuals with the Swit BM-H245 23.8-inch 4K-Ready Production Monitor. Designed for the demanding needs of the broadcast and video production industry, this 12G-SDI monitor delivers impressive 4K QLED HDR visuals with accurate colours thanks to its DCI-P3 colour gamut support. Its zero-delay technology ensures lag-free performance.

23.8-inch QLED WCG Panel

The BM-H245 features a 23.8-inch QLED panel with a resolution of 1920x1080, providing 100% coverage of the DCI-P3 colour gamut. With a 400-nit LED backlight and a contrast ratio of 1000:1, it offers a wide viewing angle of 178° for use in broadcast and film productions.

SWIT BM-H245  Main Hero Image

Multi 4K Interfaces

BM-H245 provides 4x SDI inputs and 2x SDI loop outputs and supports multiple 4K inputs including:

  • 12GSDI Single link 4K
  • 4x3GSDI Quadlink 4K, (SQD and 2SI)
  • HDMI® 2.0 (4K60P)

Supports pixel-to-pixel zoom-in of the 4K signal to the FHD panel.

Display Modes

Easily handle 4K inputs with our BM-H245 23.8-inch 4K Input Ready Production Monitor. Enjoy seamless connectivity with single link 12GSDI, HDMI®2.0, and quad link 4x 3GSDI inputs. Plus, our monitor supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats and offers waveform, vector, audio meters, EOTF, and colour gamut selection for each input.

SWIT BM-H245  Display Modes

VICO 1.97 Eye Protect

The BM-H245 production monitor features a QLED panel with a Quantum Dot layer that alters the LED spectrum, resulting in a reduction of blue light and a balanced R/G/B peak. This promotes equal stimulation of cone cells and can effectively reduce visual fatigue.

The VICO (Visual Health and Comfort) test scores 1.97, ranking in the A class, to safeguard your eyes during prolonged video editing or broadcast studio production.

HDR/SDR EOTFs and Color Gamut Selection

The BM-H245 boasts numerous advanced features such as HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR, and a range of EOTFs including Gamma 1.0/1.8/2.2/2.4/2.6 for SDR. Users can also select from multiple colour gamut options, including LCD native, REC.709, DCI-P3, and REC.2020.

SWIT BM-H245  SDR and HDR Display ModesPayload ID Auto Setting

The monitor will automatically configure HDR/SDR EOTFs, colour gamut, input range, colour space, and colour depth based on the payload ID information provided.

Multi CG & EOTF Viewing

This production monitor allows users to copy 1 input source to 4 windows and display various HDR/SDR and colour gamuts at the same time, providing an accurate reference for HDR and SDR production.

3DLUT Auto Self-Calibration

The BM-H245 23.8-inch 4K Input Ready Production Monitor features built-in 3DLUT calibration software and supports X-rite i1 and Jeti Specbos 1211 probes. With a quick and accurate calibration process of only 15-45 minutes, this monitor promises a colour difference of ∆E≤1.0, ensuring precise colour representation for your production needs.

SWIT BM-H245  Calibration

HDR/SDR De-log LUTs

The monitor features built-in multi-camera logs for HLG1000, PQ1000, or Rec 709 SDR conversion LUTs, such as Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm, and more. User LUTs can also be uploaded to the monitor via USB disk, with support for 17x17x17 3DLUT cube files.

Multiple Video Analysis Patterns

SWIT BM-H245  Analysis Pattern Modes

Audio Patterns

This production monitor features up to 16 channels of embedded audio meters and the ability to output any 2 channels of audio through the speaker or 3.5mm headphone socket.

In addition, BM-H monitors are compatible with Lissajous figures and can display 5.1 and 7.1 surround sound patterns.

Eye Pattern

Its integrated eye pattern aids with evaluating the quality of input video transmission through an SDI cable, specifically the 12GSDI quality.

Webserver IP Remote Control

The BM-H245 allows for remote control via a web server through an Ethernet LAN connection. Simply use a computer web browser to access the monitor's control panel, where you can easily select input sources, adjust picture settings, configure video/audio functions, and assign function keys, without the need for any additional applications.

SWIT BM-H245  NDI Network Setup

 Power Supply

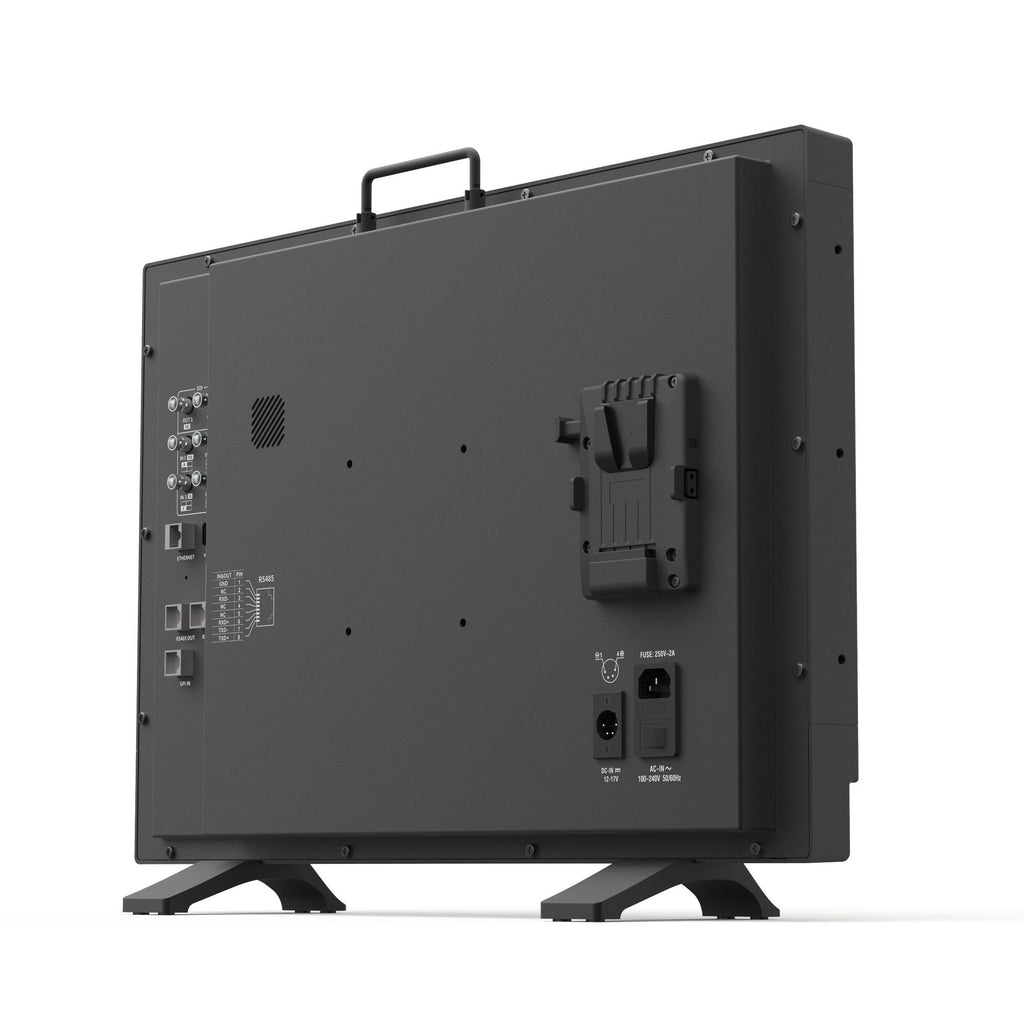

The BM-H245 production monitor accepts a power consumption of 60W, with compatibility for both AC 100-240V and 4-pin XLR DC 12-17V input. Additionally, it features a V-mount battery plate on the back panel, with an optional Gold mount available.

Features

  • 23.8-inch 1920×1080 QLED Panel
  • 100% DCI-P3 wide color gamut coverage
  • VICO 1.97 A-class Eye Protecting LCD
  • 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
  • 4-ch SDI/HDMI® mixed multiview
  • 2-ch SDI/HDMI® PBP or PIP view
  • Multi Color Gamut & HDR/SDR Viewing
  • Payload ID auto setting
  • 18-bit internal color processing
  • Audio/Video Zero latency for lip-sync
  • 3DLUT Auto Self-calibration without PC
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram / Eye pattern
  • Focus assist / False color / Zebra
  • 16-ch audio meters / Lissajous pattern
  • 5.1 & 7.1 surround sound phase pattern
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade

What’s In the Box

  • 1x BM-H245 23.8 Broadcast Monitor

Specifications

LCD Performance

Size23.8 inches
Display area527.04×296.46mm
Resolution1920×1080
Aspect ratio16:9
Brightness400nits
Contrast1000:1
Color depth10-bit
Signal process18-bit
Viewing angle178°(H) /178°(V)

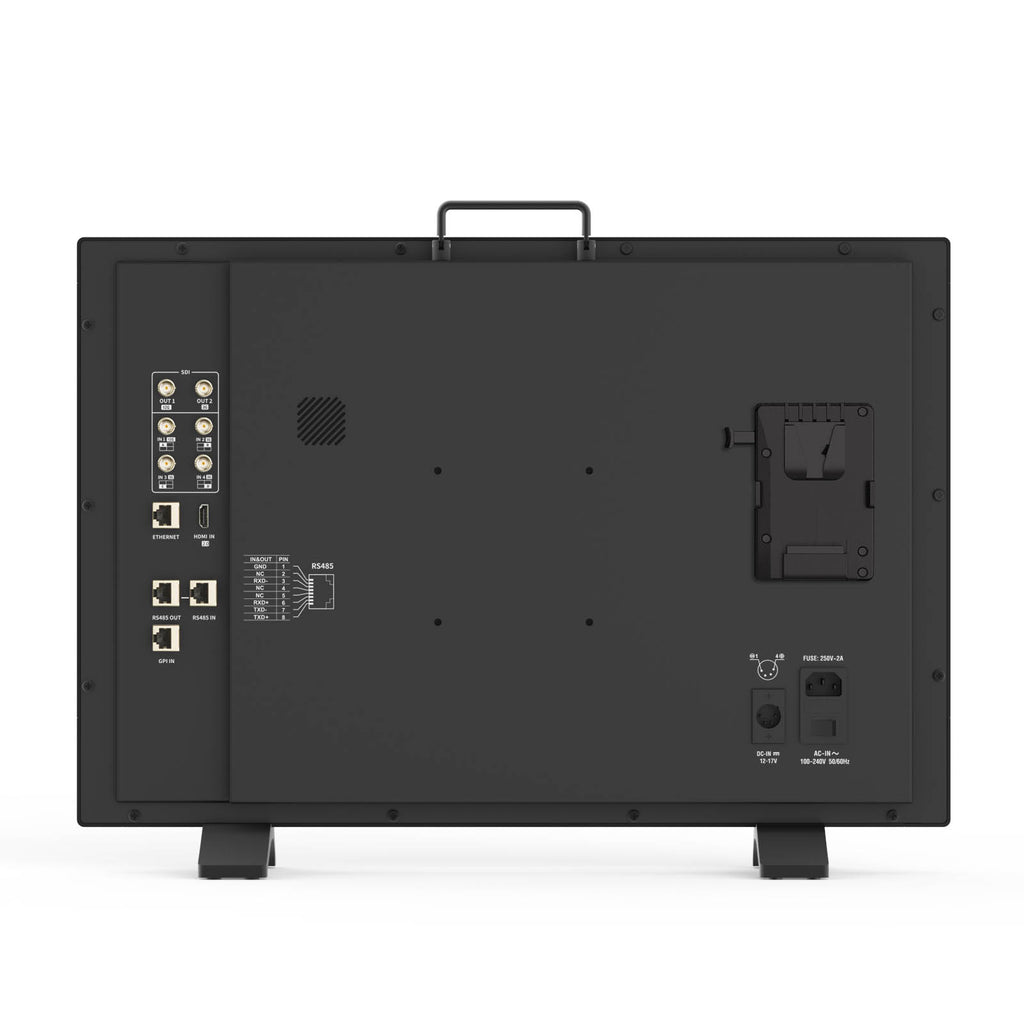

Input

BNC ×112G/6G/3G/HD/SD-SDI input
BNC ×33G/HD/SD-SDI input
HDMI ×1HDMI 2.0 input
RS485 ×1TSL 3.1/4.0 UMD input
RS485 ×1GPI (Tally) input
RJ45 ×11000M Ethernet input for Webserver IP control

Output

BNC ×112G/6G/3G/HD/SD-SDI loop output
BNC×13G/HD/SD-SDI input
RS485 ×1TSL 3.1/4.0 UMD output
Analog audio3.5mm headphone and speaker

Video Format

SDI 14096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
SDI 2/3/42048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
Quad Link 4K (Each channel)2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General

Input voltageDC 12V-17V, AC 100-240V, 50/60Hz
Power consumption60W
Working temperature0°C~+50°C
Working humidity10%~90%
Storage temperature-15°C~+60°C
Storage humidity10%~90%
Dimensions580.9×392.3×73.6mm
Net weight (main body)Net 6.7kg; With package 10.65kg
