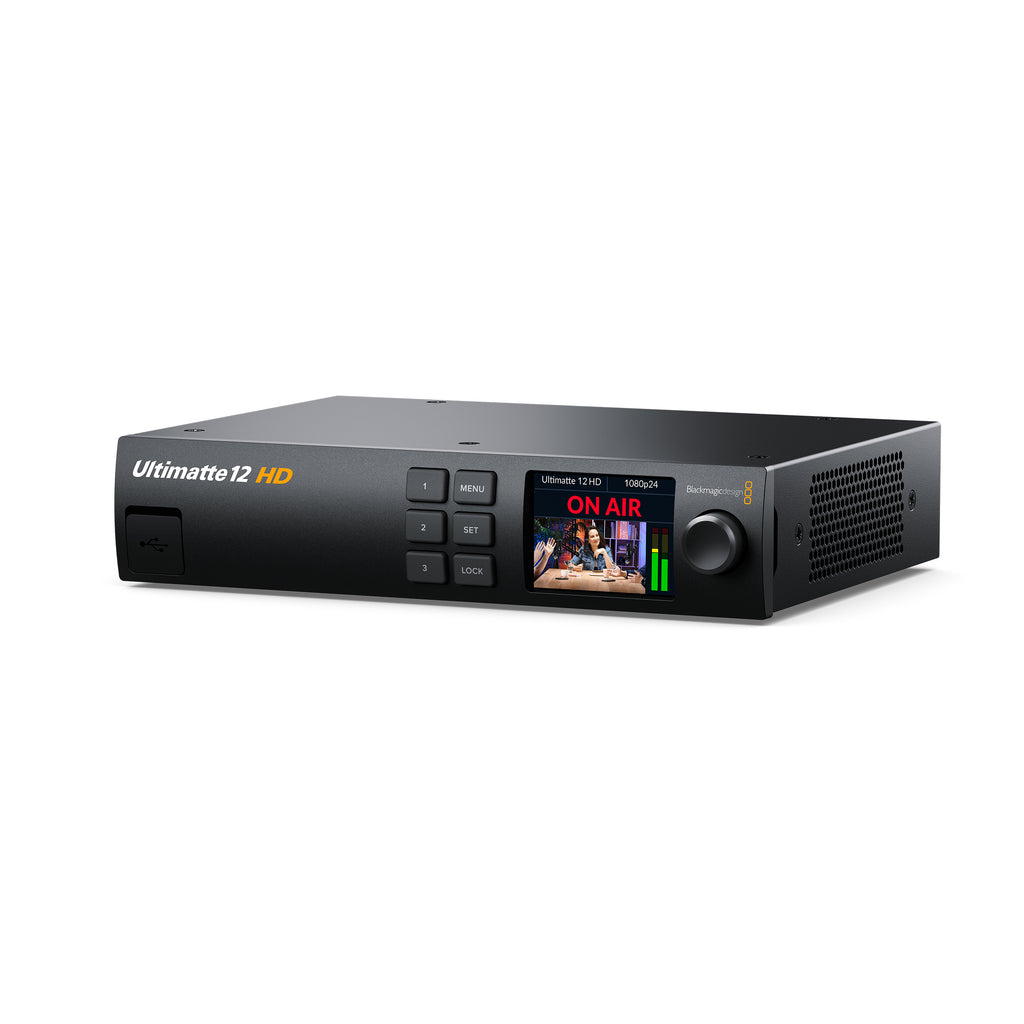

The Ultimatte 12 is a cutting-edge real-time compositing processor designed for professional broadcast graphics. It offers advanced algorithms, colour science, and photorealistic compositing, delivering exceptional edge handling, colour separation, spill suppression, and transparency effects. It supports a range of applications, from live virtual environments to fixed-camera virtual sets.
Ultimatte 12 allows each camera to have its own keyer, ensuring consistent quality across multi-camera setups and eliminating green screen variations.
Integrated frame stores enable layering of pre-rendered backgrounds and augmented reality elements without the need for live video inputs.
Ultimatte 12’s sophisticated algorithms generate detailed mattes and process different parts of the image independently, ensuring sharp edges and smooth transitions.
The one-touch keying feature automates over 100 parameters, allowing for quick and accurate scene setup, even with unevenly lit green or blue screens.
Support for translucent layers and complex broadcast graphics makes it possible to add realistic glass effects and preserve natural colour transparency.
The system ensures difficult colours, like bright yellow against green screens, are accurately retained while eliminating unwanted spill.
With up to 7 video inputs, Ultimatte 12 supports foreground, background, mattes, and layers.
The monitor cascade feature allows seamless previewing of up to eight units on a single SDI display, while Ethernet connectivity supports Ultimatte Software Control and Smart Remote 4 integration.
The included Ultimatte Software Control for Mac and Windows provides intuitive access to all settings, with presets stored in flash memory for easy recall.
An optional touchscreen Smart Remote 4 enables fine-tuned control of up to eight Ultimatte units, offering quick preset recall and custom parameter adjustments.
Ultimatte 12 is designed for current HD workflows, ensuring long-term compatibility and investment protection.
PLEASE NOTE: This particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 10-14 working days to be delivered, but please note this is subject to change.

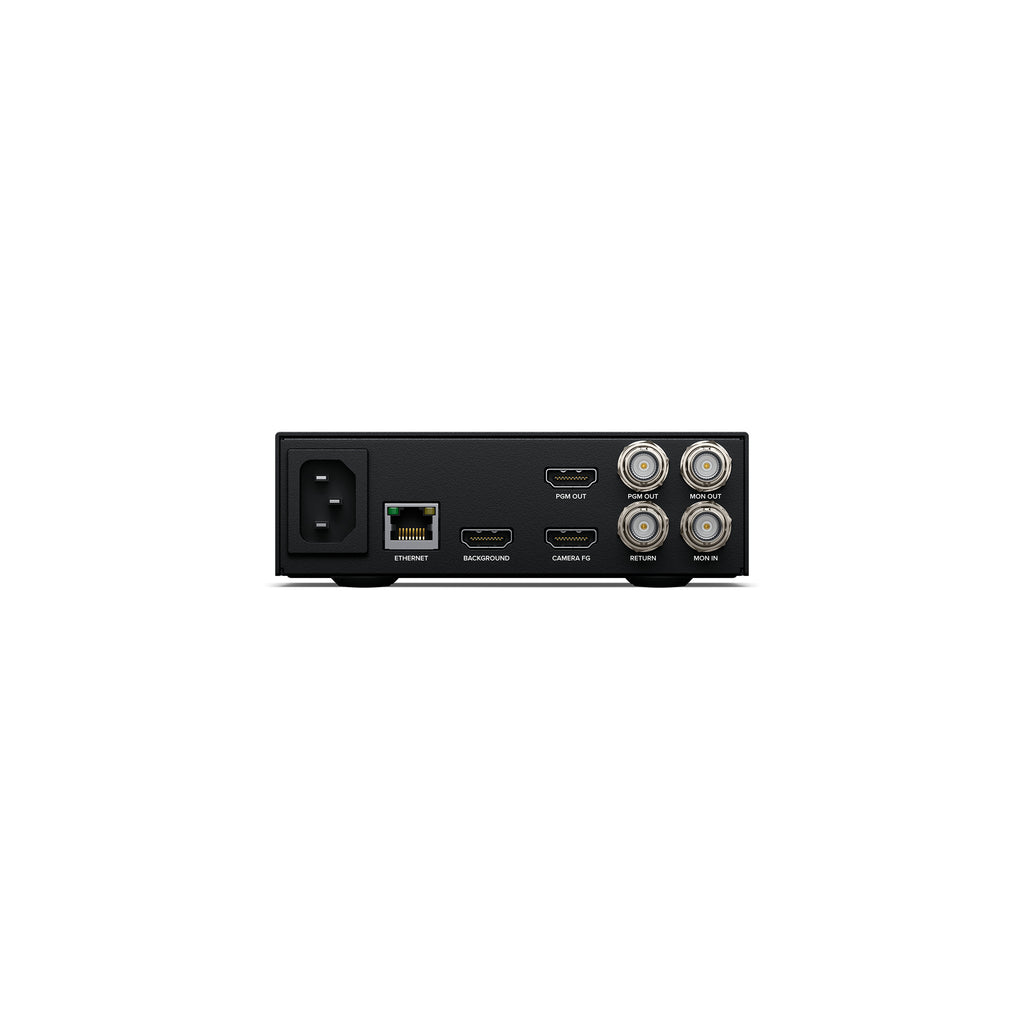

| SDI Video Inputs | 5 |
| SDI Video Outputs | 4 |
| SDI Video Loop Outputs | 1 Relocked SD or HD Camera FG. |
| SDI Rates | 270mb, 1.5G, 3G |
| Video Input Re-Sync | On all inputs |
| Reference Connections | 1x BNC In, 1x BNC Out Tri-Sync or Black Burst |
| GPIO | DE15 |
| Ethernet | Up To 1gb/s for device control and loading stills into media pool |
| Computer Interface | 1x USB-C 3.0 for device configuration and software updates |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B |
| Video Sampling | 4:2:2 |
| Colour Precision | 10-bit |
| Colour Space | REC 601, REC 709, REC 2020 |
| Multiple Rate Support | Auto detection of SD and HD |
| Foreground | 1x 3G-SDI In with Loop Out |
| Background | 1x 3G-SDI In Still from Media Pool |
| Background Matte | Internal Window Still from media |
| Garbage Matte | 1x 3G-SDI In Internal Window Still from Media Pool |
| Holdout Matte | 1x 3G-SDI In Internal Window Still from Media Pool |
| Layer | Still from Media Pool |
| Layer Matte | Internal Window Still from Media Pool |
| Fill | 1x 3G-SDI |
| Matte | 1x 3G-SDI |
| Program | 1x 3G-SDI |
| Monitor In | 1x 3G-SDI For monitor cascade |
| Monitor Out | 1X 3G-SDI For monitoring program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte Processed Background Matte, Screen Correction |
| Background Still Image Formats | TGA, TIFF, BMP, PNG, JPG |
| Background With Alpha Still Image Formats | TGA, TIFF, BMP |
| Layer Image Still Image Formats | TGA, TIFF, BMP, PNG, JPG |
| Layer With Alpha Still Image Formats | TGA, TIFF, BMP |
| Garbage Matte Still Image Formats | TIFF, BMP, PNG, JPG |
| Holdout Matte Still Image Formats | TIFF, BMP, PNG, JPG |
| Media Pool Memory | 6GB non-volatile internal storage |
| Displays | Built in 2.2 inch colour display for device name, preview video standard audio meters, status and menus |

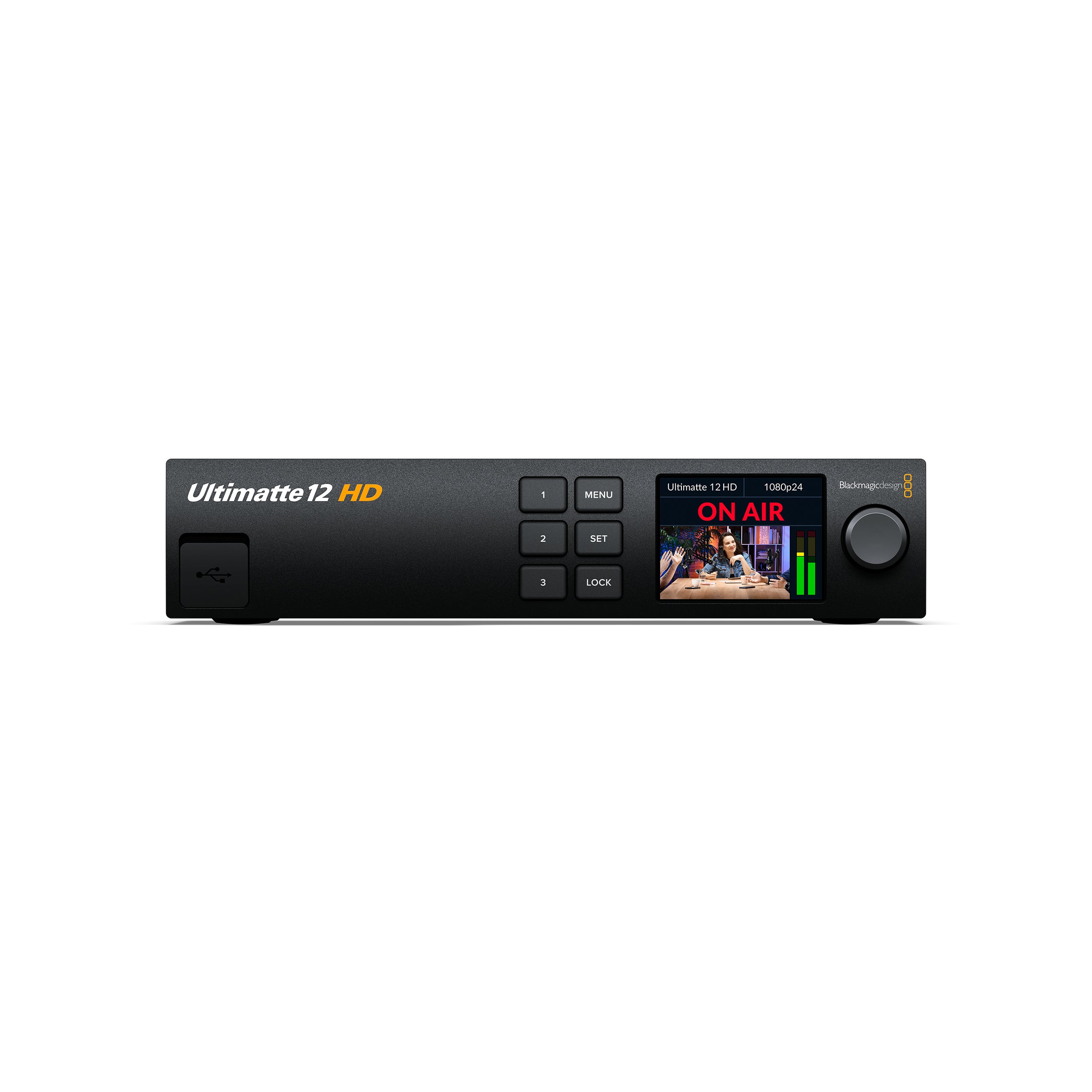

| Front Panel | 2.2 inch colour display, 3 preset buttons, 3 menu buttons and spin knob |
| Control Connection | Network or direct Ethernet connection to a computer running Ultimate Software Control or Ultimate Smart Remote 4 |
| Software Control | Ultimate Software Control Supported on Mac or Windows computers |
| Hardware Control Panel | Ultimatte Smart Remote 4 |
| Custom Control | Ethernet protocol and GPIO pin out included in the Ultimatte Instruction Manual |
| Software Updates | Using USB-C or Ethernet connection to Mac or Windows computers |
| Configuration | Ultimatte IP Address is set via the front panel or Ultimatte setup utility connected via USB |
| Operating Systems | Mac 11.0 Big Sur Mac 12.0 Monterey or later Windows 10, 64-bit Windows 11 |
| Power Supply | 1x Internal 100-240V AC, 50/60Hz |
| Power Usage | 15W |
| Optional Accessories | Ultimatte Smart Remote 4 |
| Physical Installation | Half rack unit width,1 rack unit height |
| Weight | 1.6kg |
| Weight | 1.6kg |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature |
| |
| Relative Humidity | 0% to 90% non-condensing. | |
| Warranty | 12 Month Limited Manufacturer Warranty | |
| Colour | Black |
