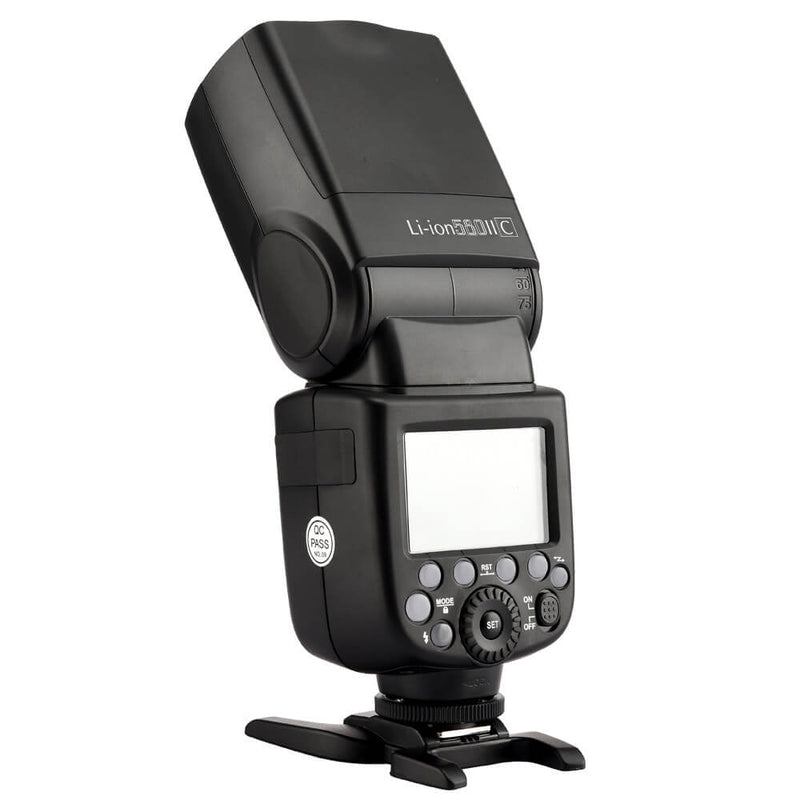

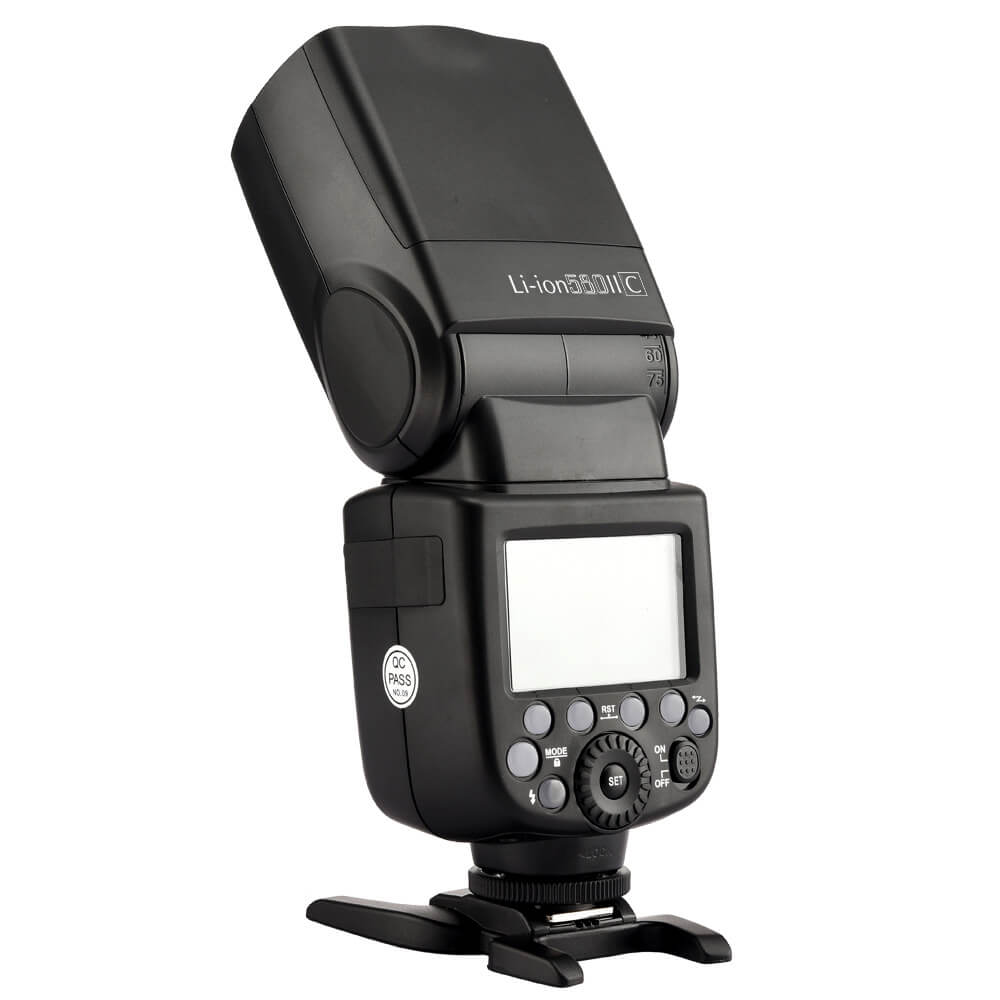

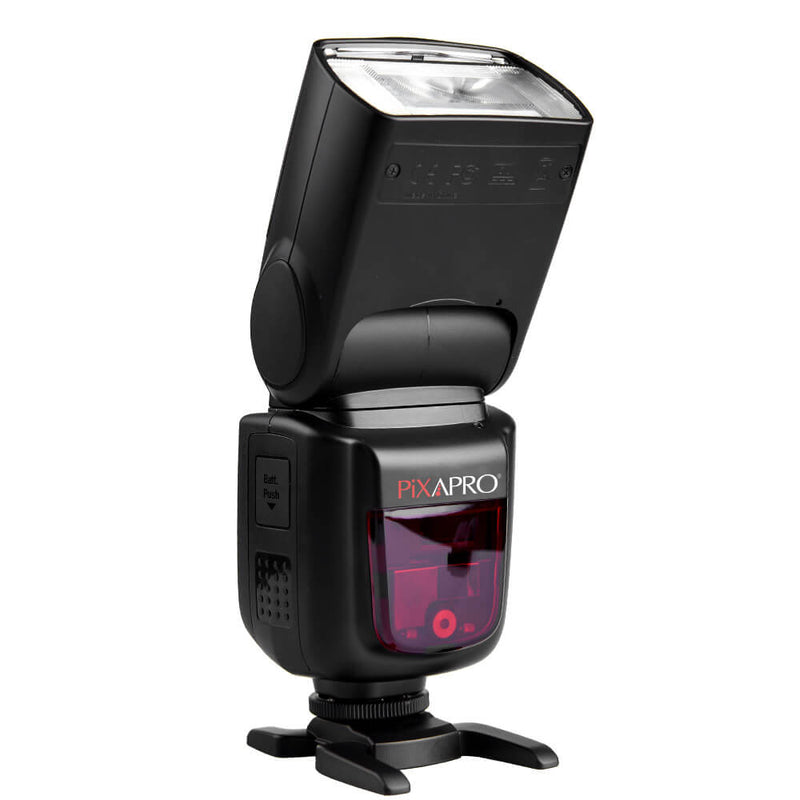

Read moreThe PIXAPRO® Li-ION580II TTL Portable Flashgun (Godox's Ving V860II) is a powerful compact portable TTL compatible Speedlight flashgun, powered by a high capacity 2000mAh li-ion rechargeable battery.
Lithium-Ion Battery: Unlike traditional speedlites that use AA batteries, the LI-ION580II uses a lithium-ion battery which will give you an impressive 650 full-powered shots per charge and with an ultra-fast recycling time of up to 1.5 seconds and virtually no slowdown as the battery power diminishes. This removes the need for bulky external battery packs, or bags of AA batteries and will keep you going throughout your shoot. With a built-in receiver and a variety of different modes from HSS to the multi burst, it is perfect for people who shoot weddings, portraits, events, fashion, sports, fitness & advertising. It is especially good for shooting on location due to the flash being easily portable
8-Stop Power Range: The PIXAPRO® Li-ION580II TTL Speedlite has an 8-stop power range (1/1 to 1/128 power) adjustable in 1/3 stop increments, with flash durations between 1/300 second to 1/20,000 second for sharper images whilst maintaining colour accuracy throughout its power range which opens up a whole world of possibilities. It also features a variety of different flash modes. This includes a multi-flash mode, which can be set to between 1 and 100 flashes at a frequency between 1 and 199Hz (flashes per second), which allows you to create many different effects such as stroboscopic photography.

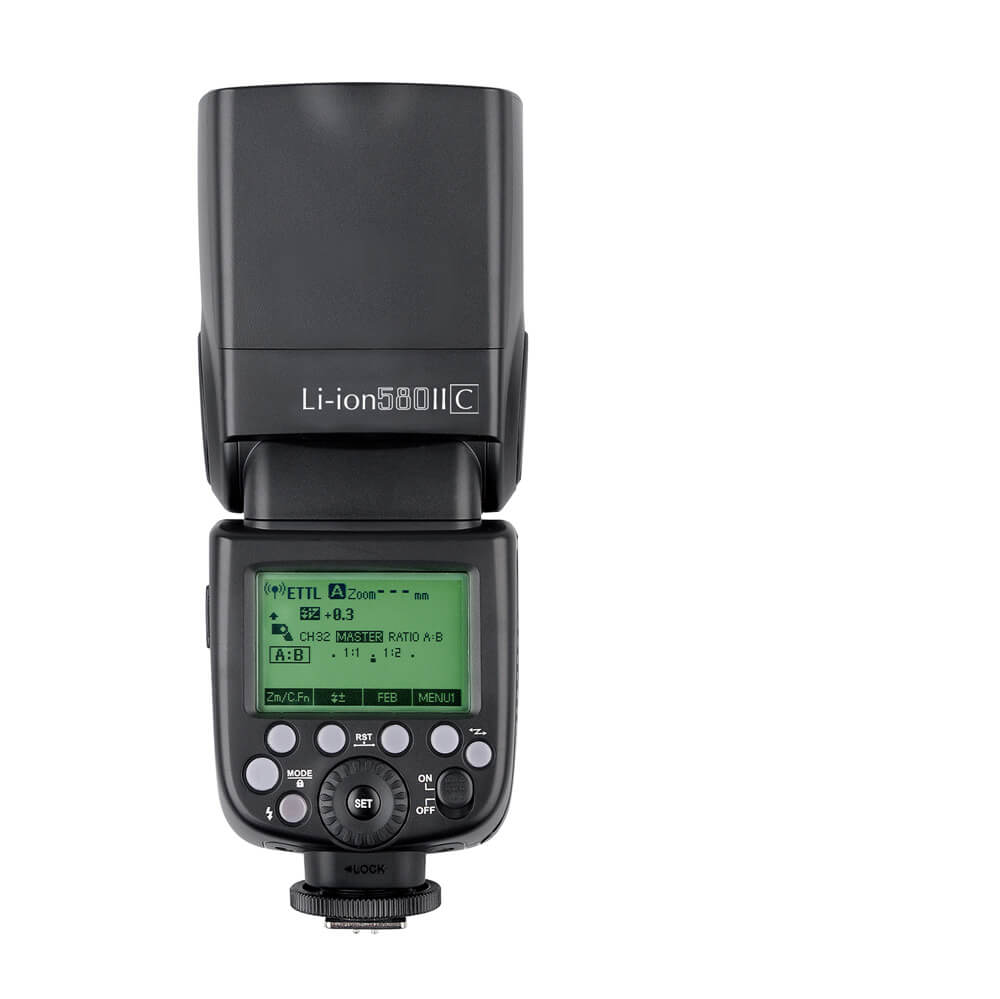

User-Friendly Interface: It features a user-friendly interface, with a large LCD screen with large, easy-to-access buttons and a control dial, which allows you to quickly and easily adjust your flash settings.
TTL: The Li-ION580II gives you access to TTL automatic metering which will quickly provide you with perfect exposure without the need for manual metering, which could sometimes cause you to miss key moments. It also has other features like High-Speed Sync up to 1/8000 sec as well as a Second-Curtain Sync mode. High-Speed Sync Mode allows your flash to sync at higher shutter speeds than normal. Great for times when you want to lower the exposure of the bright sky, and to fill your subject in with flash, or if you want to shoot with a wide-open aperture in the midday Sun.
Zoom Range: The LI-ION580II TTL also has a zoom range of 20-200mm, this helps you to restrict acting as a spotlight or expand the focus of the beam of light for even widespread coverage, allowing you to add more creativity to your photography.

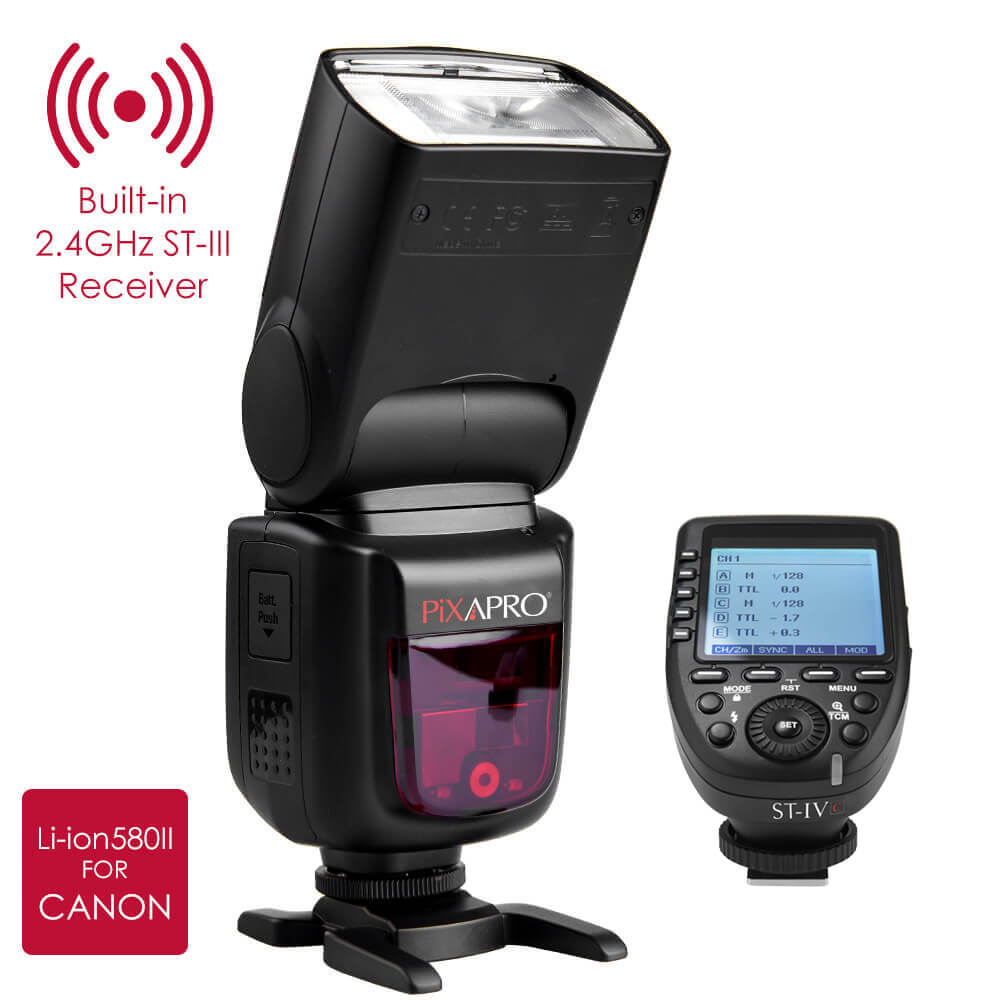

Bulti-In Transceiver: As well as being powered by a Li-Ion battery, the PIXAPRO® LI-ION580 II TTL also features a built-in 2.4GHz flash transceiver, which allows it to be used as a master flash or alongside your existing flashes in conjunction with the PIXAPRO 2.4GHz flash Triggers and receivers. This allows you to control your flash heads remotely from the flash or trigger such as flash power settings, changing groups & channels and Triggering. It’s part of The One System, which you can mix and match any PIXAPRO range flash.
Camera Brands: The flash is available with popular camera brands from Canon, Nikon, Sony, Olympus, Fuji, and Pentax with full control and even high-end cameras from Hasselblad, Leica and PhaseOne with basic control. You also have a choice of 32 different channels, and 5x groups giving you maximum flexibility for your photographic projects.
Security: The LI-ION580 II also has an overheat protection to protect the flash if it runs at high temperatures when shooting frequently in a short period of time, this will help to increase the longevity of the flash and battery life.

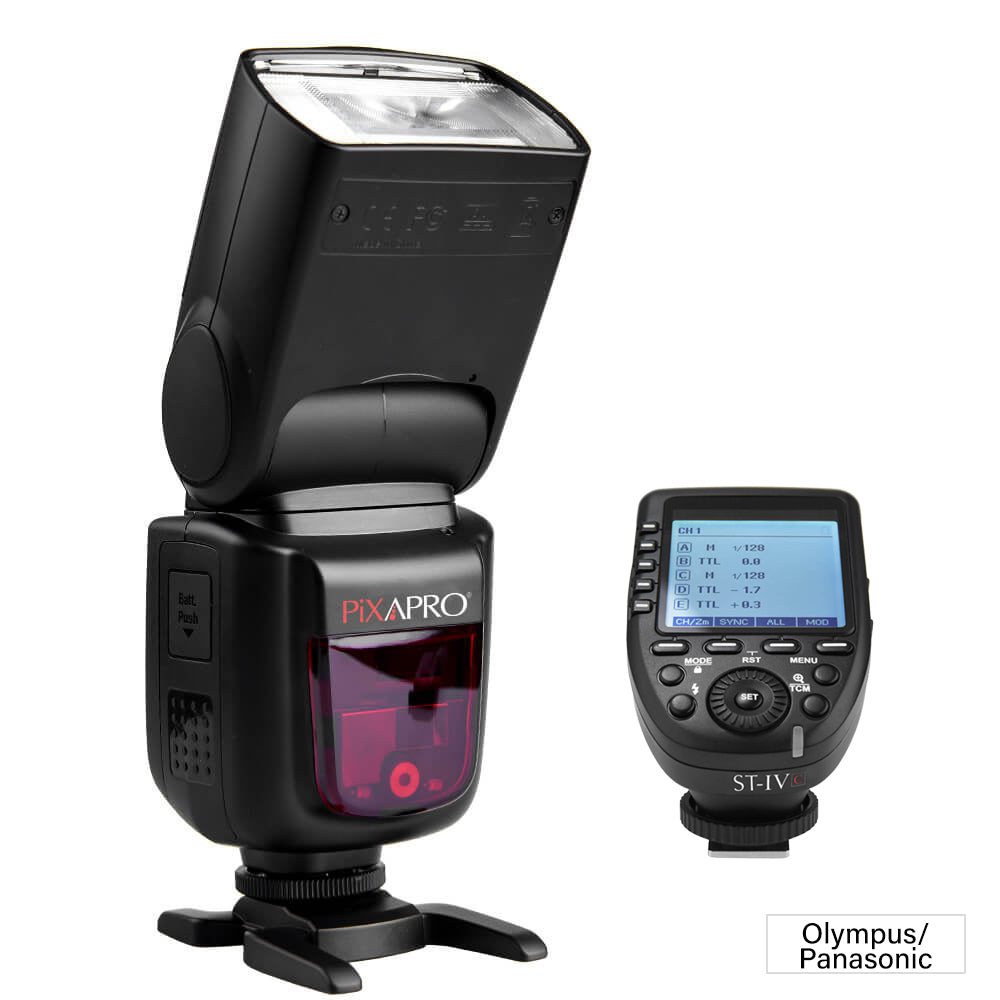

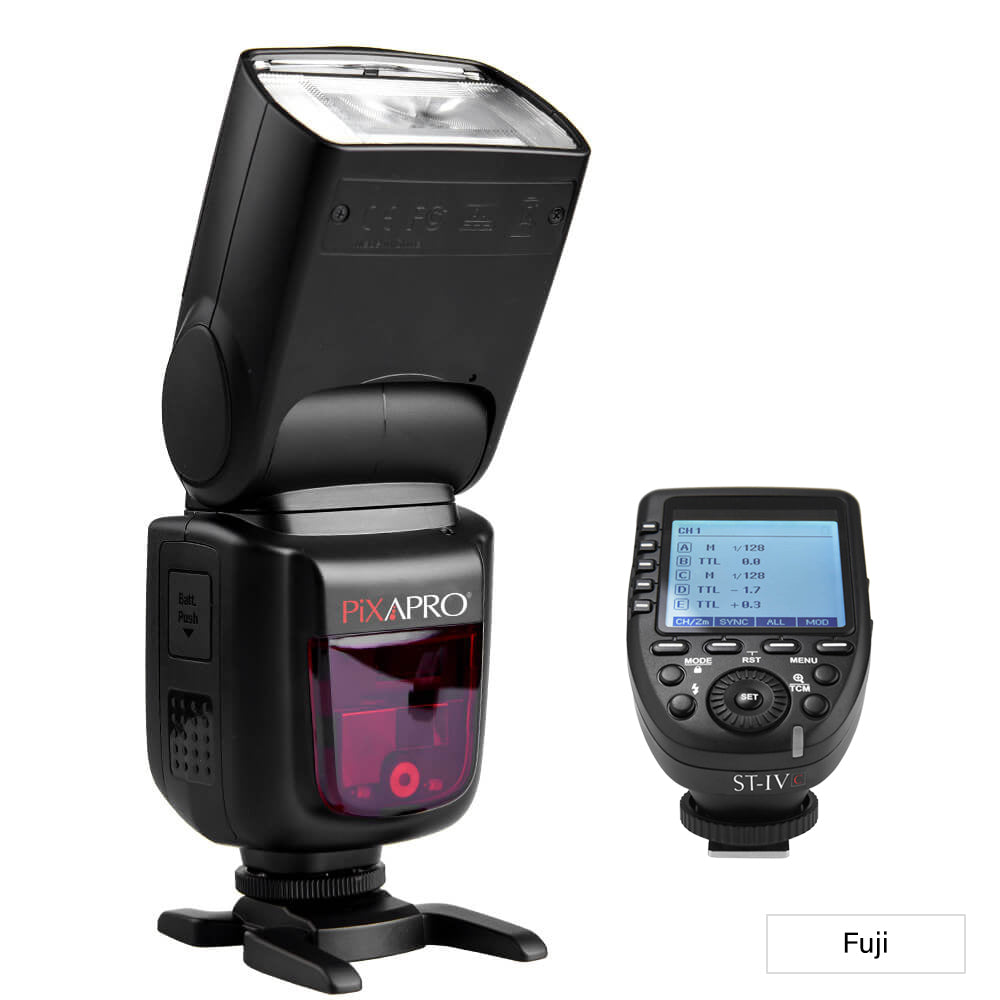

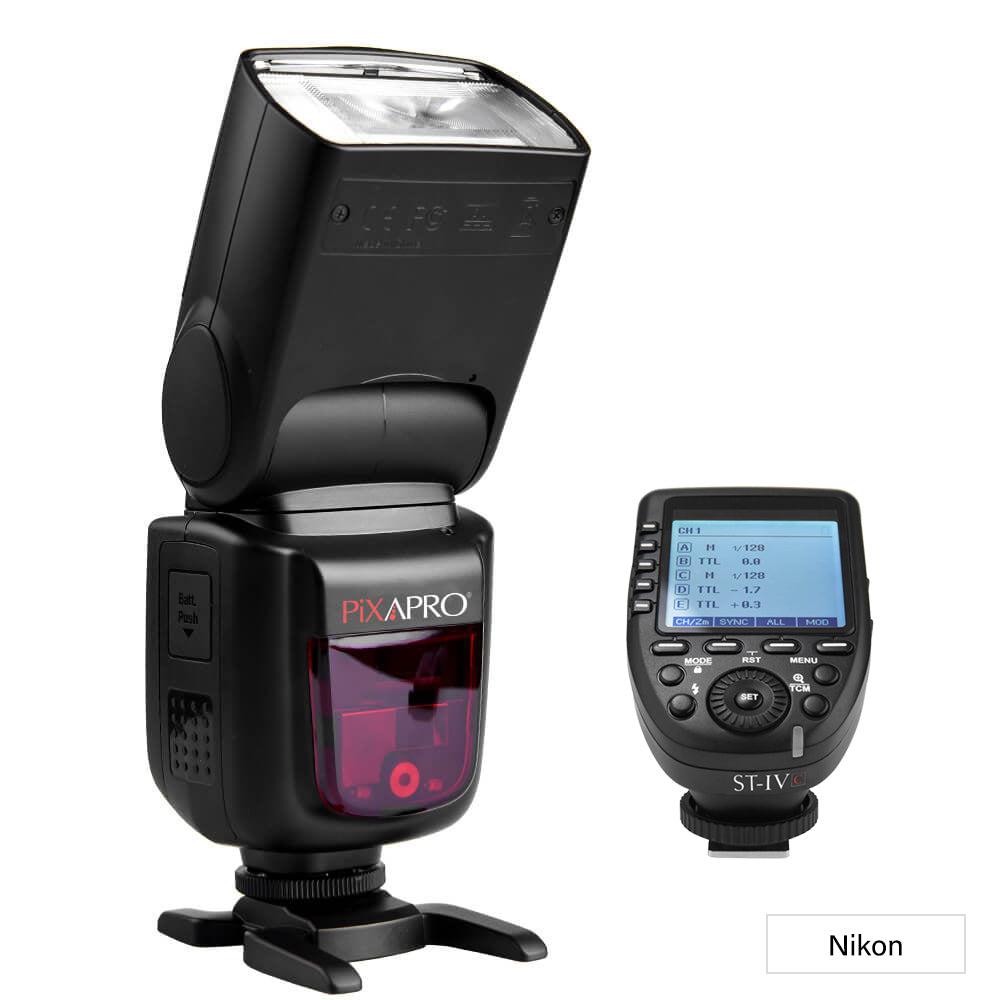

The ST-IV wireless trigger will allow you to control both of your flash's power, groups and channels without having to go and manual change this on the flash. With a clear, large display and user-friendly control, this is ideal for those that want an easy solution to configuring their setup. With added features that support TTL, HSS (High-Speed Sync) Rear-Curtain sync, TCM and stroboscopic multi-flash modes.
Please Note: PiXAPRO Flash and Triggering Systems are fully compatible with Godox 2.4GHz Triggers, which will allow you to mix both Godox and PiXAPRO Equipment together without issue.
Compatible Camera System | Canon DSLR & Mirrorless Cameras |
Guide No | 60m (190ft) ISO 100, Zoomed to 200mm |
Zoom Range | 20-200mm (14mm with Wide-Angle Diffuser) |
Flash Duration | 1/300 - 1/20,000 sec |
Exposure Control System | ETTL II Autoflash & Manual Flash |
Recycle Times | <1.5 Seconds (Red LED indicator will light up when ready) |
Colour Temperature | 5600 ± 200K |
Flash Exposure Compensation (FEC) | Manual. FEC ± 3 tops in 1/3 stop Increments |
Flash Exposure Bracketing | ±3 tops in 1/3 stop Increments |
Flash Exposure Lock | With or <*> Button |
High-Speed Sync | Up to 1/8000 second |
Rear-Curtain Sync | Between 1/30 second – 30 Seconds |
Stroboscopic Multi-Flash | Yes (Up to 100 Flashes, 199Hz) |
Optical Wireless Flash Modes | Master, Slave Off |
Controllable Slave Groups (Optical) | 3 (A, B and C) |
Approx. Transmission Range (Optical) | Indoors: 12-15m (39.4 - 49.2ft) Outdoors: 8-10m (26.2-32.8ft) |
Transmission Range (2.4GHz Radio) | Approx. 100m in an Open Area |
No. of Channels | 4 Optical (1, 2, 3 & 4) / 32 2.4GHz Radio (1-32) |
Slave Ready Indicator | Two Red Indicators Blink |
Modelling Flash | Depth of Field Preview Button |
AF Assist Beam Range | Centre 0.6 - 10m (2.0 - 32.8 ft) Periphery 0.6 - 5m (2.0 - 16.4 ft) |

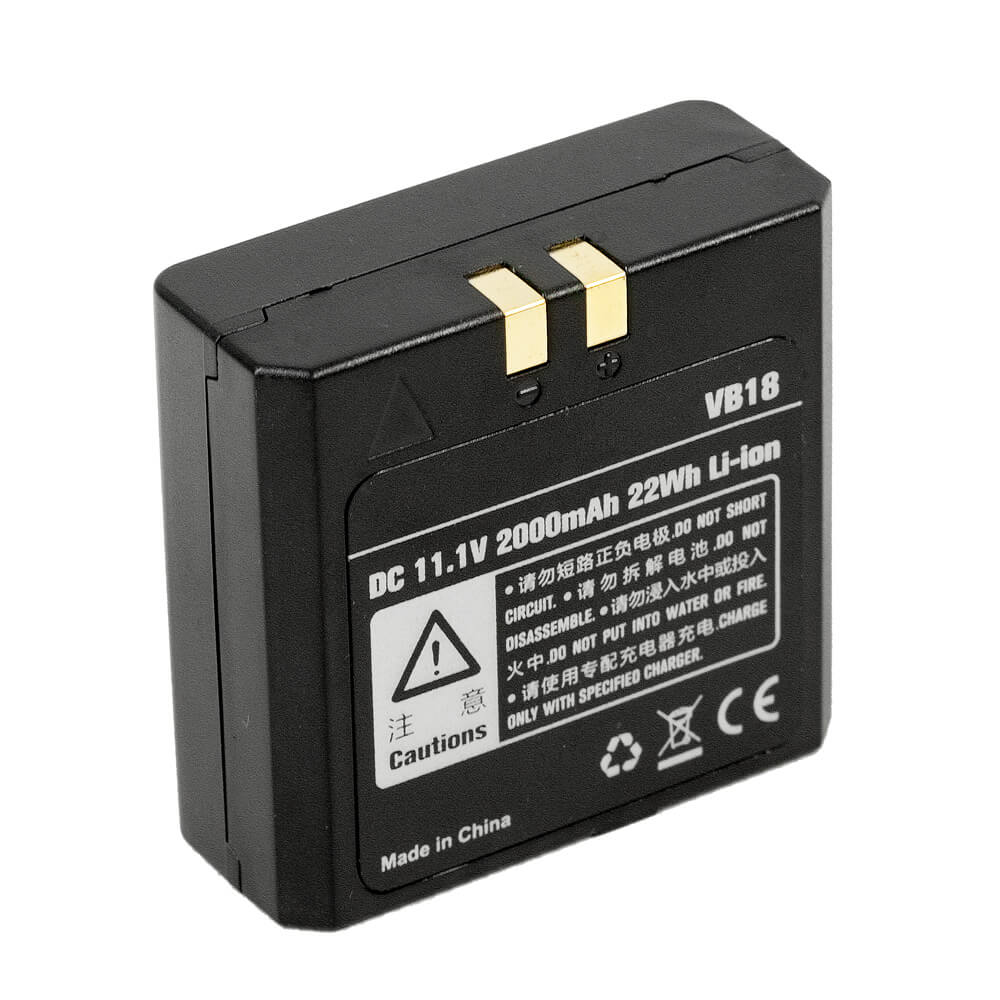

Power Source | 11.1V/2000mAh Rechargeable Li-Ion Polymer Battery |
No. Flashes | 650 Full Power Flashes Per Charge |
Power Saving | Off Automatically if Idle for 90 seconds (60 minutes in slave mode) |
Flash Head Rotation | 0 to 360° Horizontally, -7 to 90° Vertically |
Trigger Methods | Hot Shoe, Sync lead with 2.5mm jack , Wireless control port |
Dimensions | 64mm x 76mm x 190mm |
Weight | 540g (With Battery) - 430g (Without Battery) |
Accessory Mount | Speedlite / PIKA Fitting |
